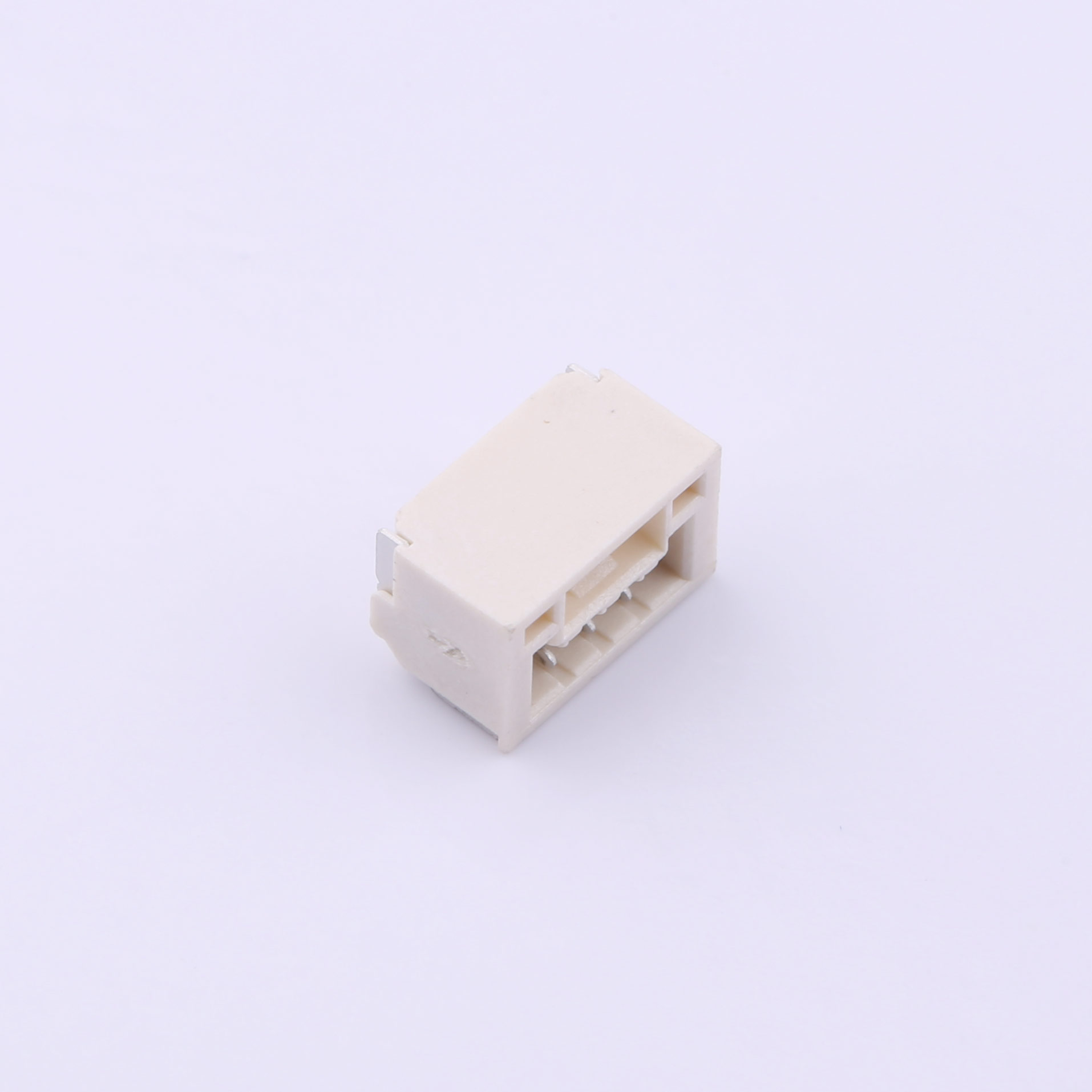

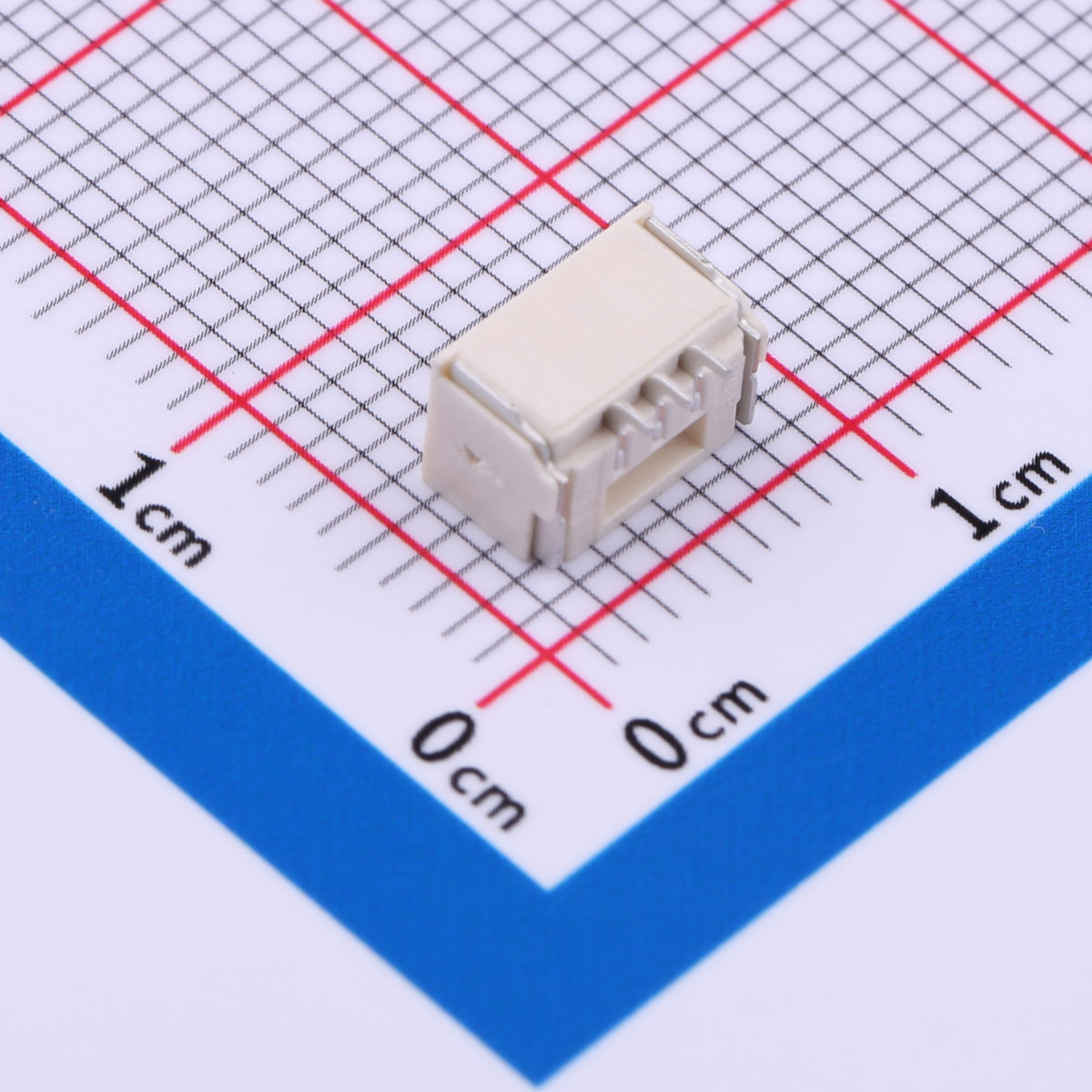

Wire-to-Board Connector, 1.25mm Pitch, 1x3P, SMD, KH-A1252RS-3P
Current Rating: 1A AC,DC
Voltage Rating: 100V AC,DC
Temperature Range: -25°C to +85°C
Contact Resistance: 30mΩ Max
Insulation Resistance: 100MΩ Min
Product Features
● 1.25mm pitch, single row, 3 positions
● Surface Mount Device (SMD) type
● Horizontal mounting configuration
● Rated current: 1A AC/DC
● Rated voltage: 100V AC/DC
● Operating temperature: -25°C to +85°C
● Contact resistance: Max 30mΩ
● Insulation resistance: Min 100MΩ
Product Benefits
● Perfect for very compact electrical connections
● Consistent, low-resistance performance
● Optimized for high-speed SMT assembly
● Horizontal mounting saves space on the PCB
● Reliable across a wide temperature range
Product Applications
● Audio systems
● Small sensors
● Power management devices
● Low-pin communications
● Wearable devices
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
