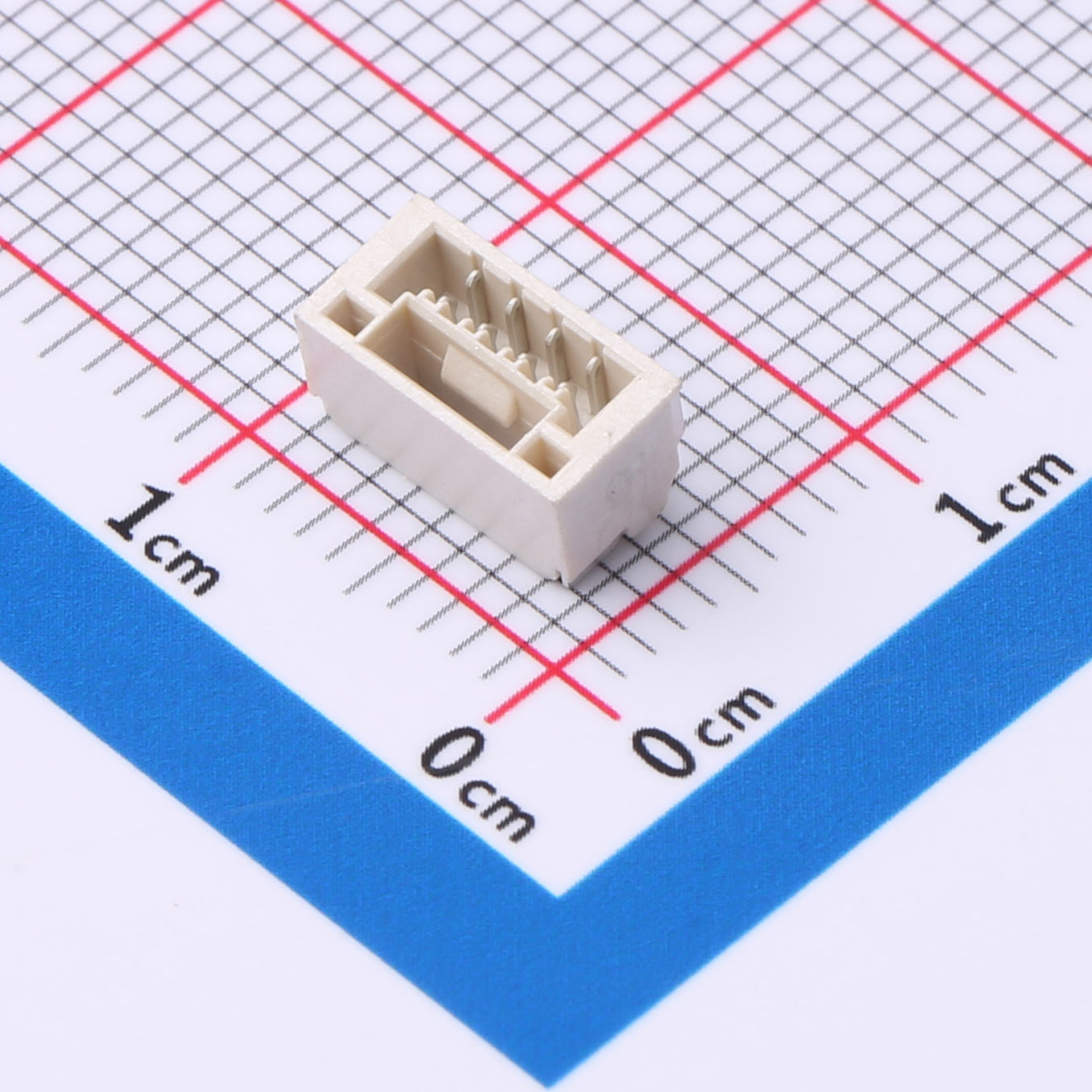

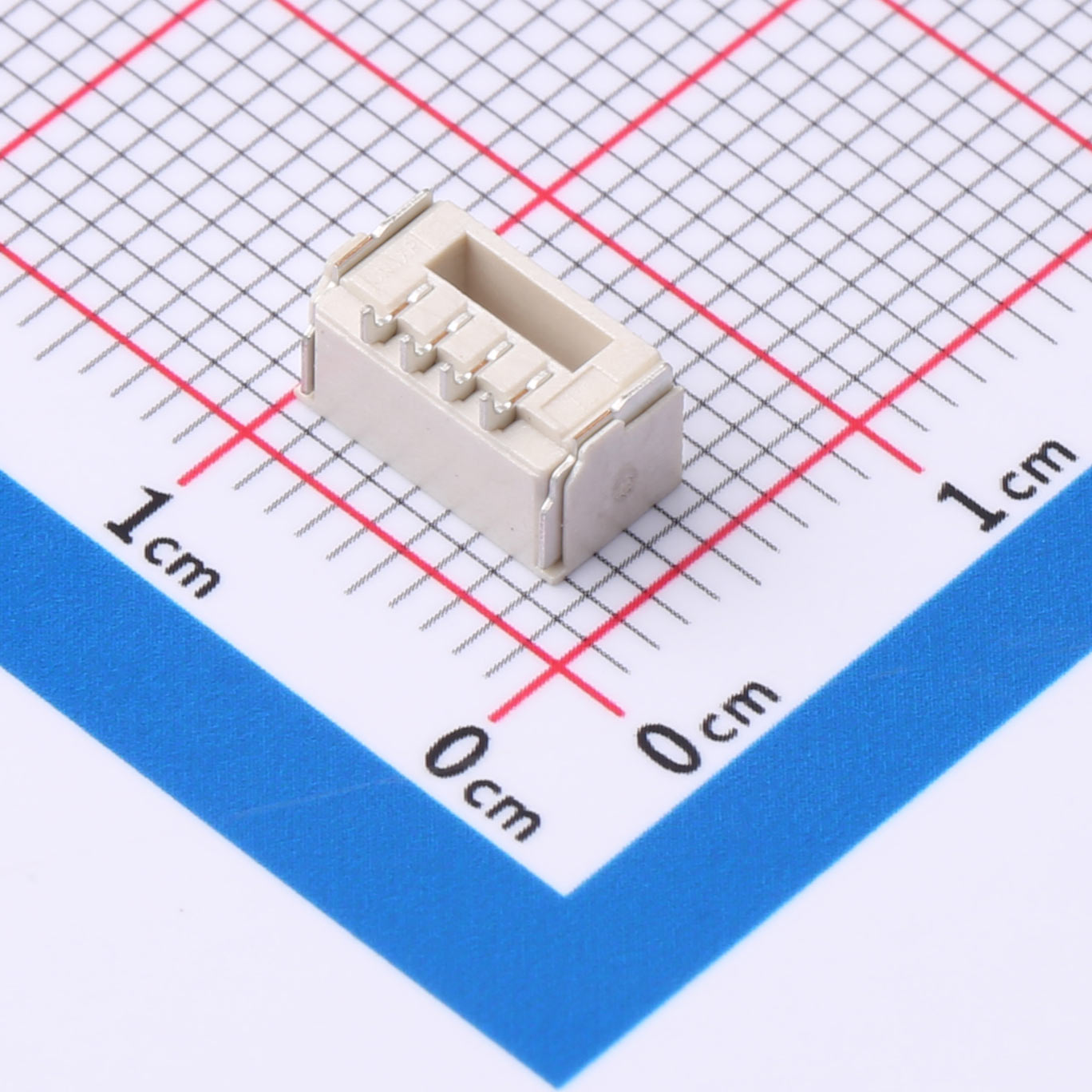

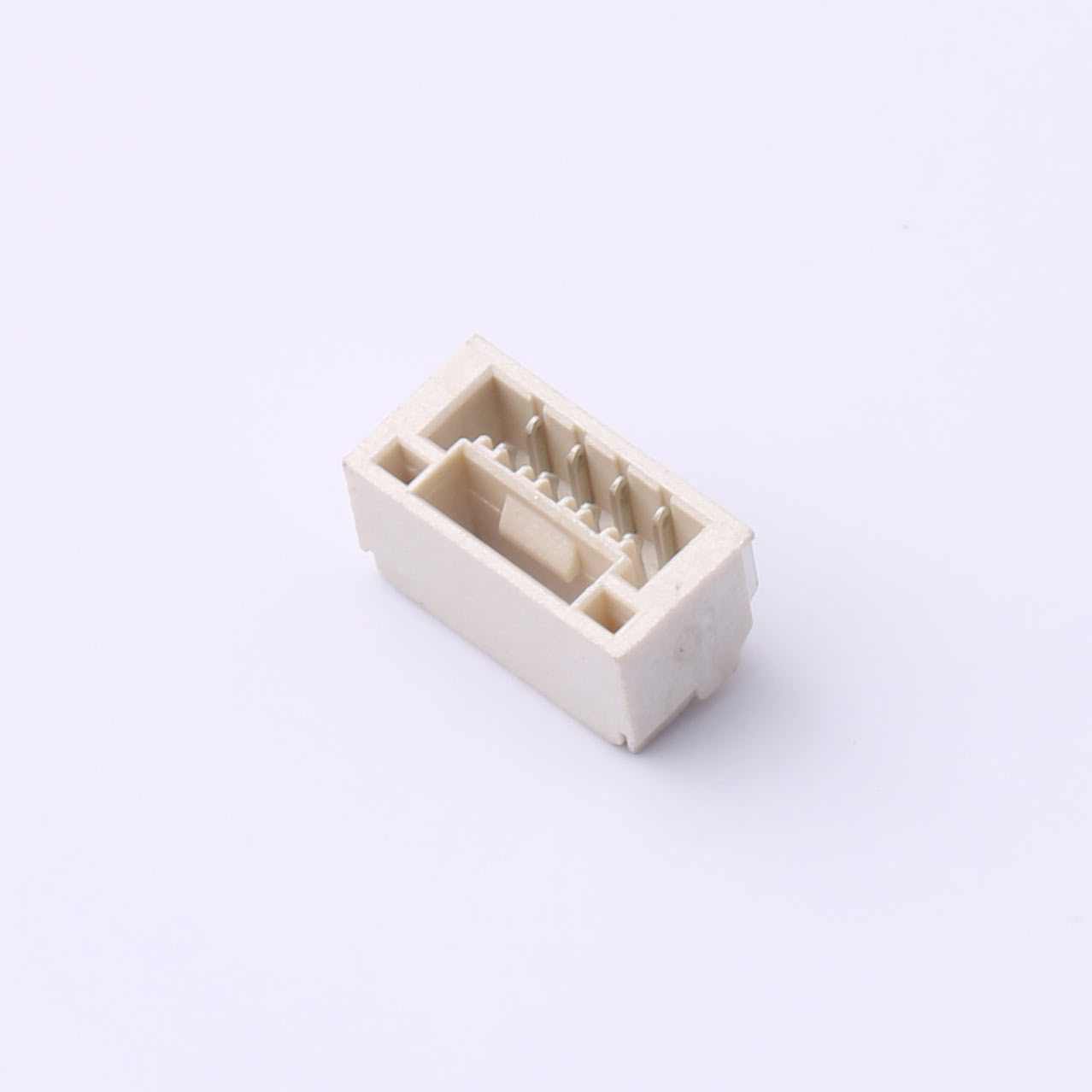

Kinghelm Wire-to-Board Connector KH-A1252RS-4P
Current Rating: 1A AC,DC
Voltage Rating: 100V AC,DC
Temperature Range: -25°C to +85°C
Contact Resistance: 30mΩ Max
Insulation Resistance: 100MΩ Min
Product Features
● 1.25mm pitch, single row, 4 positions
● Surface Mount Device (SMD) type
● Horizontal mounting configuration
● Rated current: 1A AC/DC
● Rated voltage: 100V AC/DC
● Operating temperature: -25°C to +85°C
● Contact resistance: Max 30mΩ
● Insulation resistance: Min 100MΩ
Product Benefits
● Ideal for minimal-pair connections
● Ensures high-quality electrical integrity in small spaces
● Quick integration into automated production lines
● Horizontal mount saves space in designs
● Excellent performance in varied temperature conditions
Product Applications
● Sensors
● Small power applications
● Communication devices
● Home automation modules
● Automotive circuits
