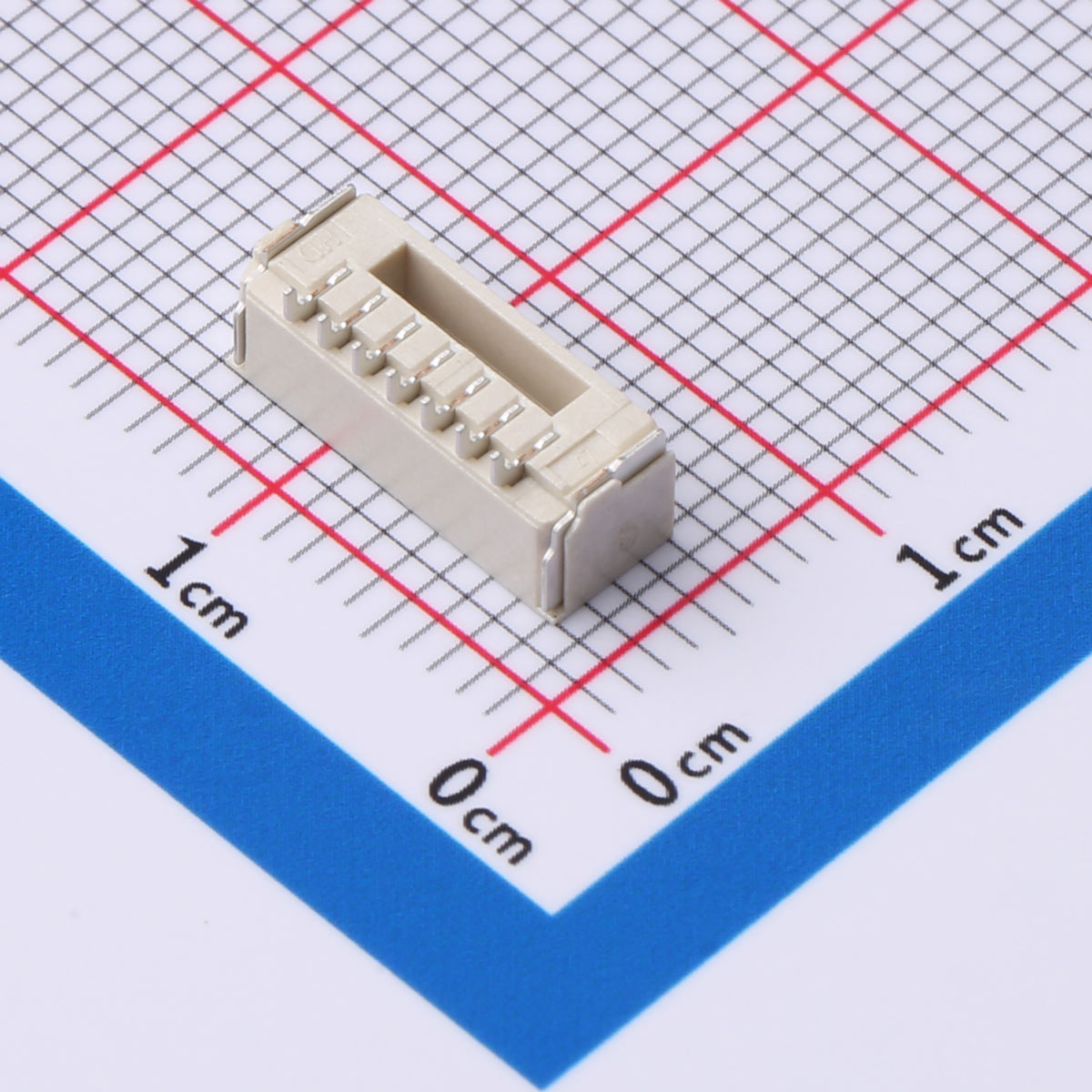

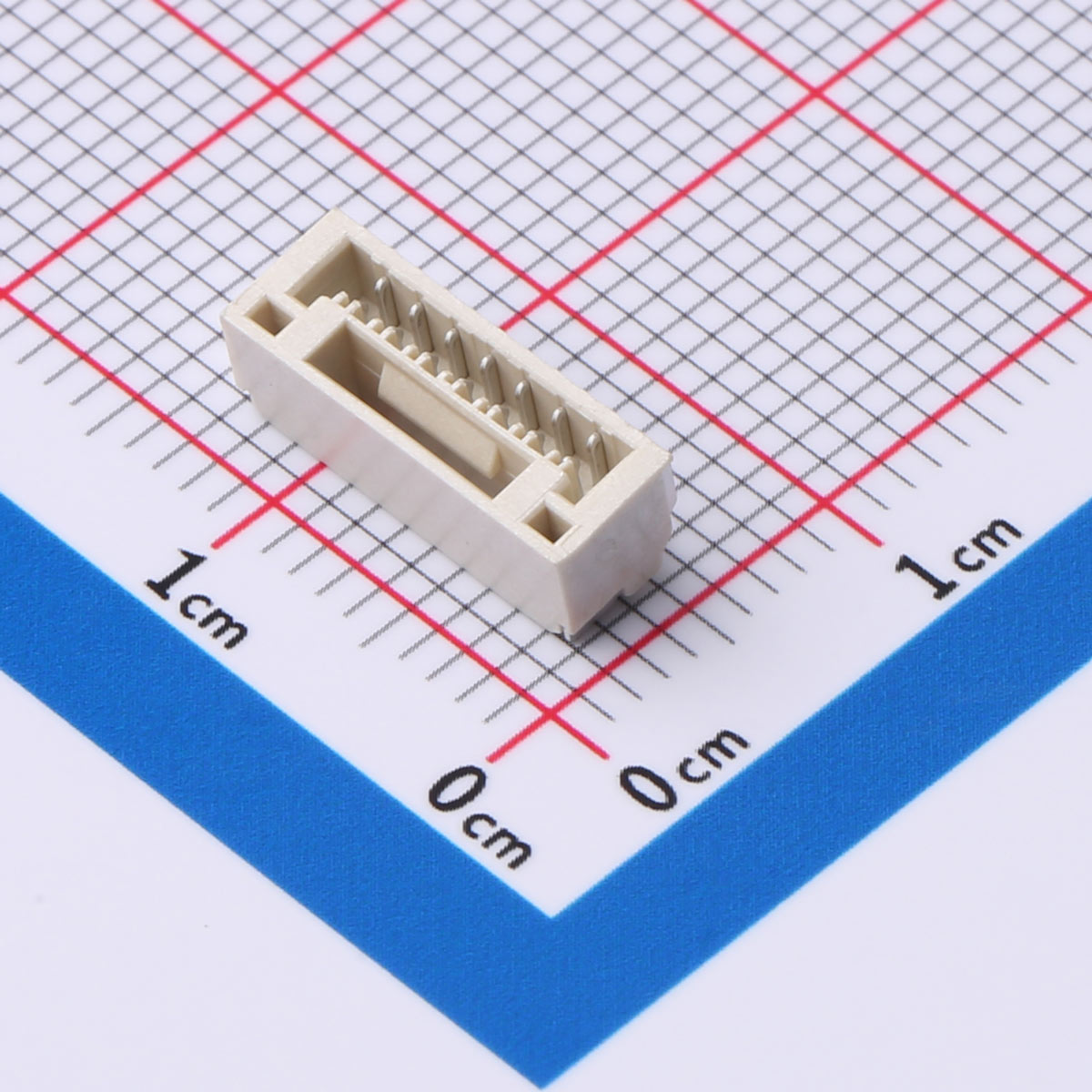

Wire-to-Board Connector, 1.25mm Pitch, 1x7P, SMD, KH-A1252RS-7P
Current Rating: 1A AC,DC
Voltage Rating: 100V AC,DC
Temperature Range: -25°C to +85°C
Contact Resistance: 30mΩ Max
Insulation Resistance: 100MΩ Min
Product Features
● 1.25mm pitch, single row, 7 positions
● Surface Mount Device (SMD) type
● Horizontal mounting configuration
● Rated current: 1A AC/DC
● Rated voltage: 100V AC/DC
● Operating temperature: -25°C to +85°C
● Contact resistance: Max 30mΩ
● Insulation resistance: Min 100MΩ
Product Benefits
● Ideal for low-pin, space-sensitive designs
● Robust connection with consistent electrical integrity
● Simplifies high-volume production
● Horizontal mount minimizes vertical space
● Reliable performance in fluctuating temperatures
Product Applications
● Compact sensors
● Smart home devices
● Communication interfaces
● Power supplies
● Automotive control modules
