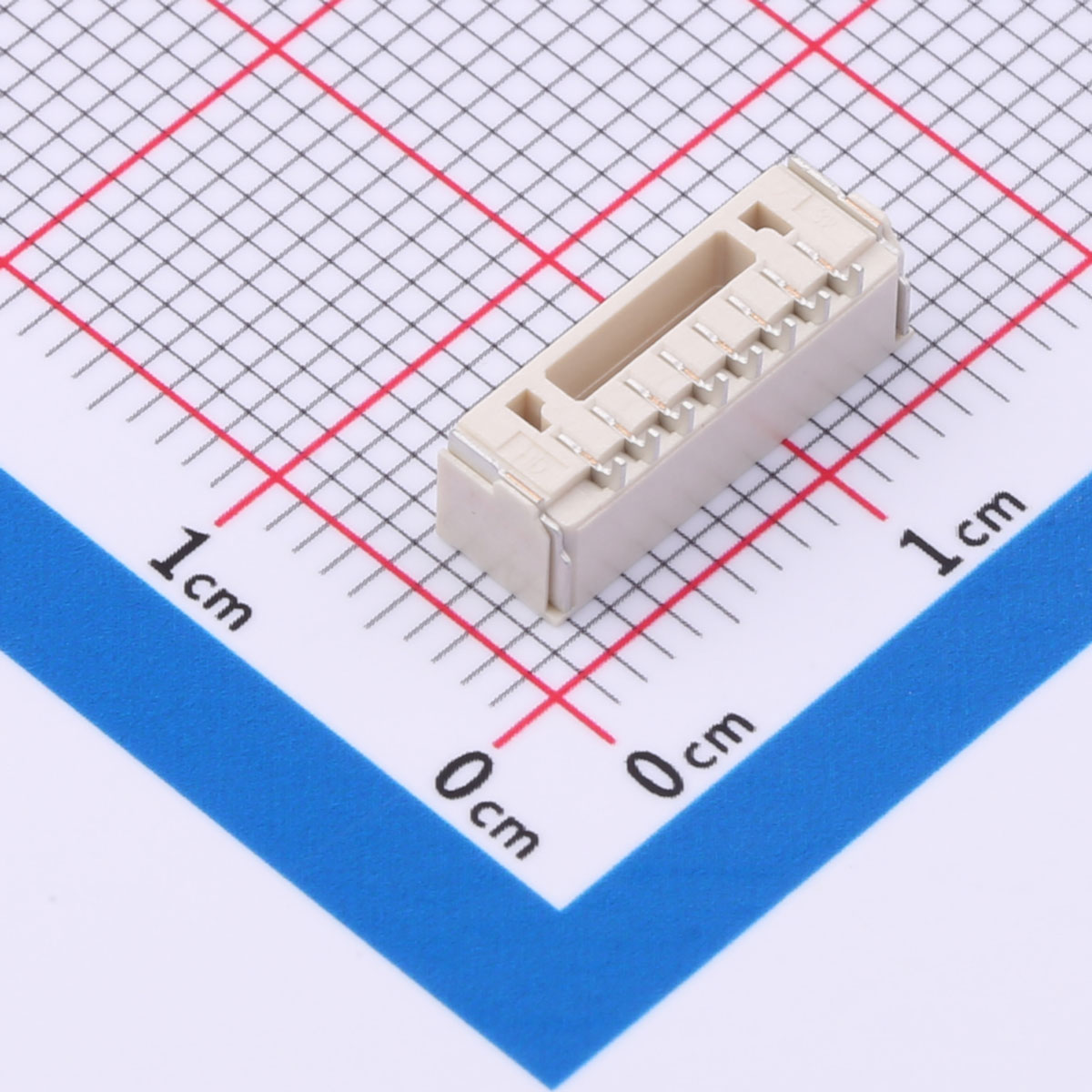

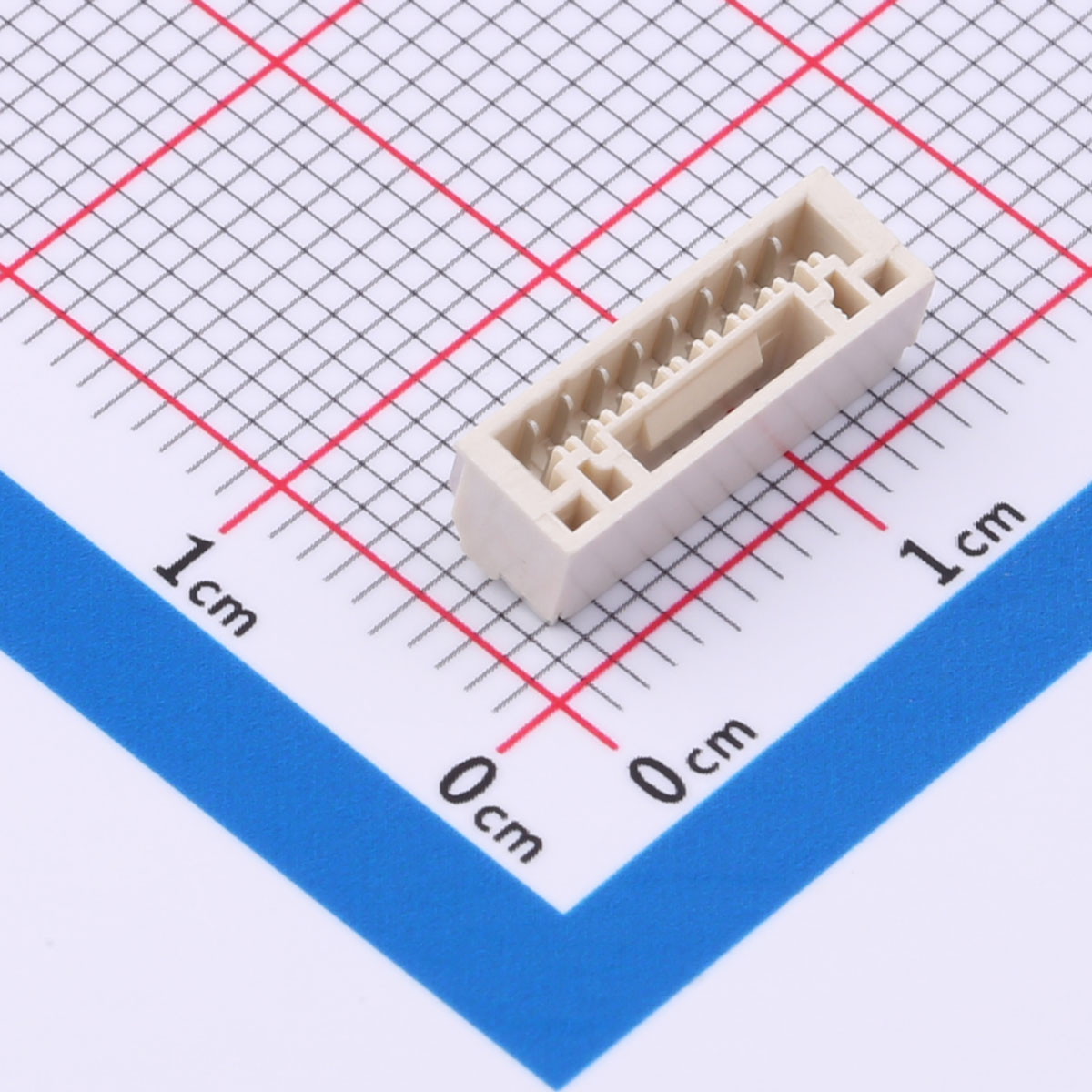

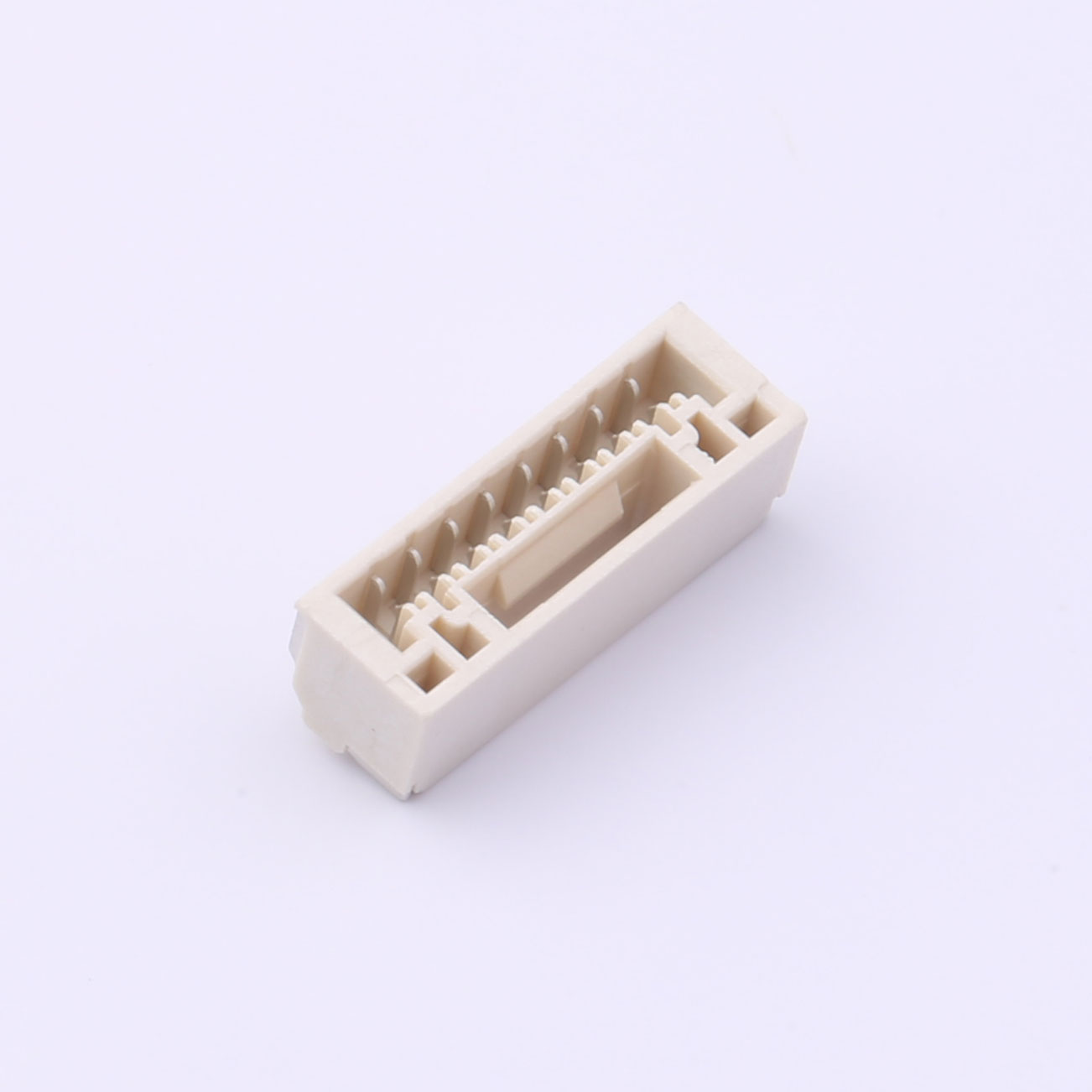

Wire-to-Board Connector, 1.25mm Pitch, 1x8P, SMD, KH-A1252RS-8P
Current Rating: 1A AC,DC
Voltage Rating: 100V AC,DC
Temperature Range: -25°C to +85°C
Contact Resistance: 30mΩ Max
Insulation Resistance: 100MΩ Min
Product Features
● 1.25mm pitch, single row, 8 positions
● Surface Mount Device (SMD) type
● Horizontal mounting configuration
● Rated current: 1A AC/DC
● Rated voltage: 100V AC/DC
● Operating temperature: -25°C to +85°C
● Contact resistance: Max 30mΩ
● Insulation resistance: Min 100MΩ
Product Benefits
● Ideal for applications with tight space constraints
● Low-resistance contact ensures long-lasting reliability
● Compatible with high-speed automated processes
● Horizontal mounting reduces PCB space usage
● Temperature-resistant for harsh environments
Product Applications
● Wearable devices
● Automotive electronics
● Communication equipment
● Small appliances
● Medical sensors
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
