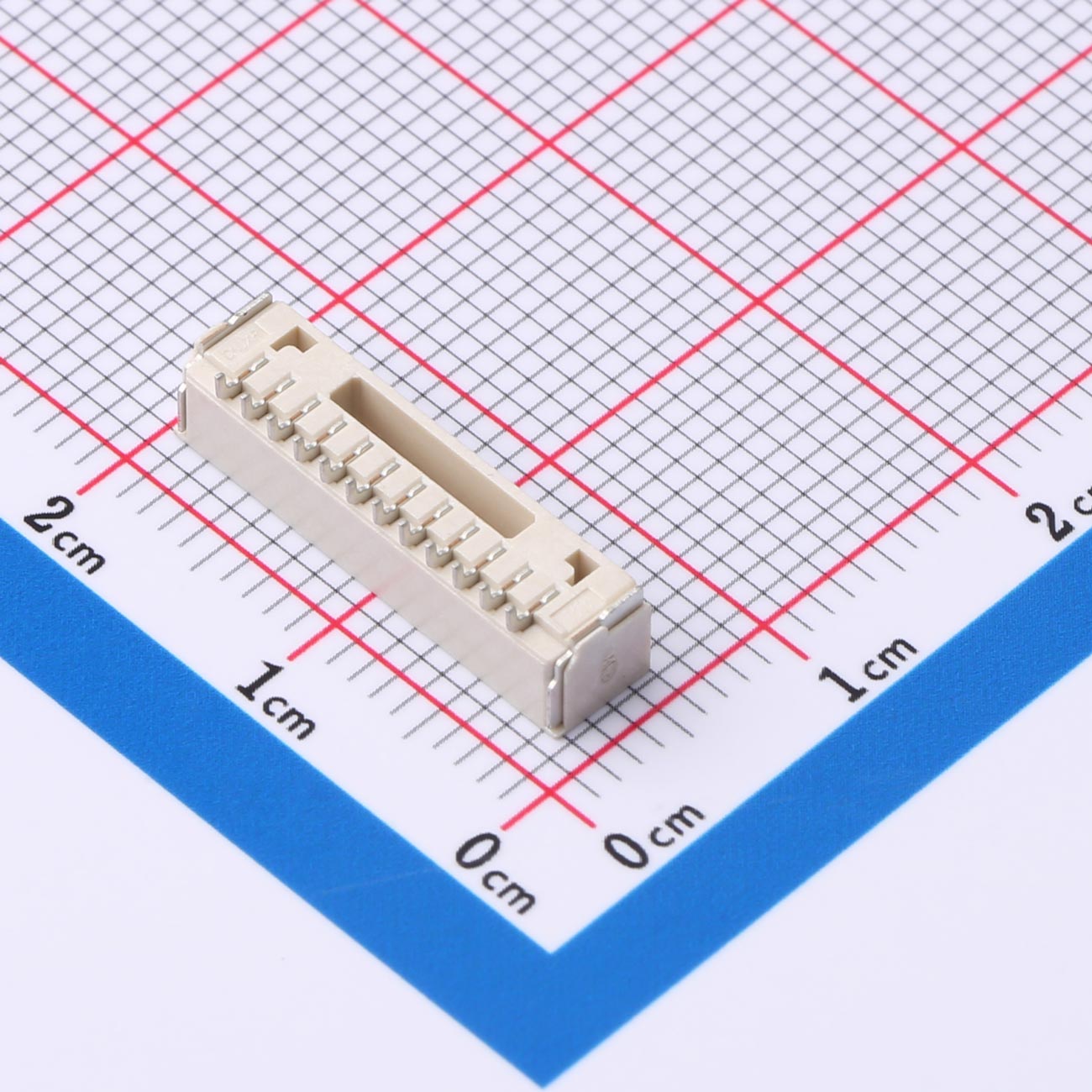

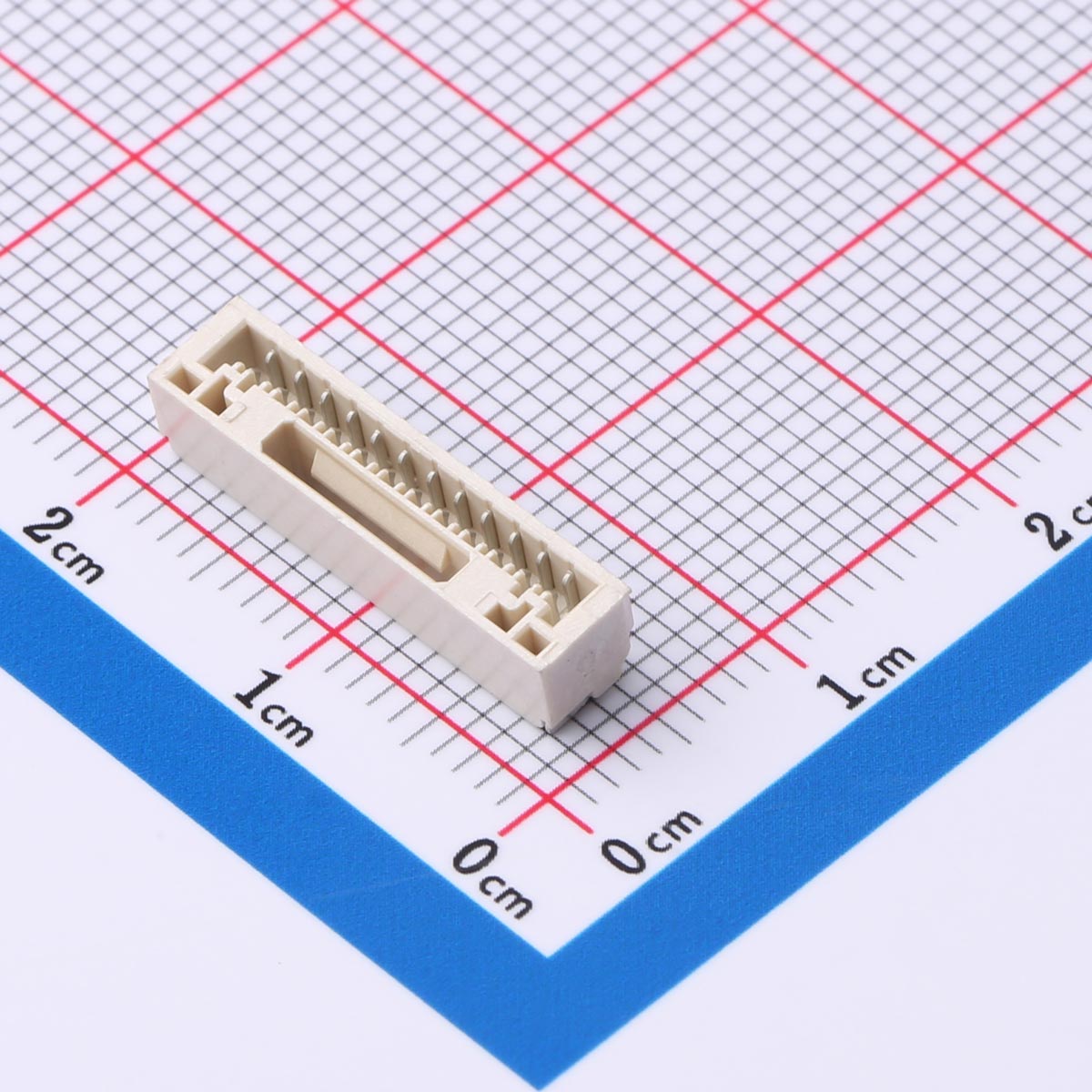

Wire-to-Board Connector, 1.25mm Pitch, 1x12P, SMD, KH-A1252RS-12P
Current Rating: 1A AC,DC
Voltage Rating: 100V AC,DC
Temperature Range: -25°C to +85°C
Contact Resistance: 30mΩ Max
Insulation Resistance: 100MΩ Min
Product Features
● 1.25mm pitch, single row, 12 positions
● Surface Mount Device (SMD) type
● Horizontal mounting configuration
● Rated current: 1A AC/DC
● Rated voltage: 100V AC/DC
● Operating temperature: -25°C to +85°C
● Contact resistance: Max 30mΩ
● Insulation resistance: Min 100MΩ
Product Benefits
● Optimized for compact designs with fewer pins
● Reliable performance in high-density applications
● Simple integration into automated assembly lines
● Horizontal mount reduces overall footprint
● Withstands harsh environmental conditions
Product Applications
● Audio equipment
● Small power supplies
● IoT devices
● Communication modules
● Robotics
