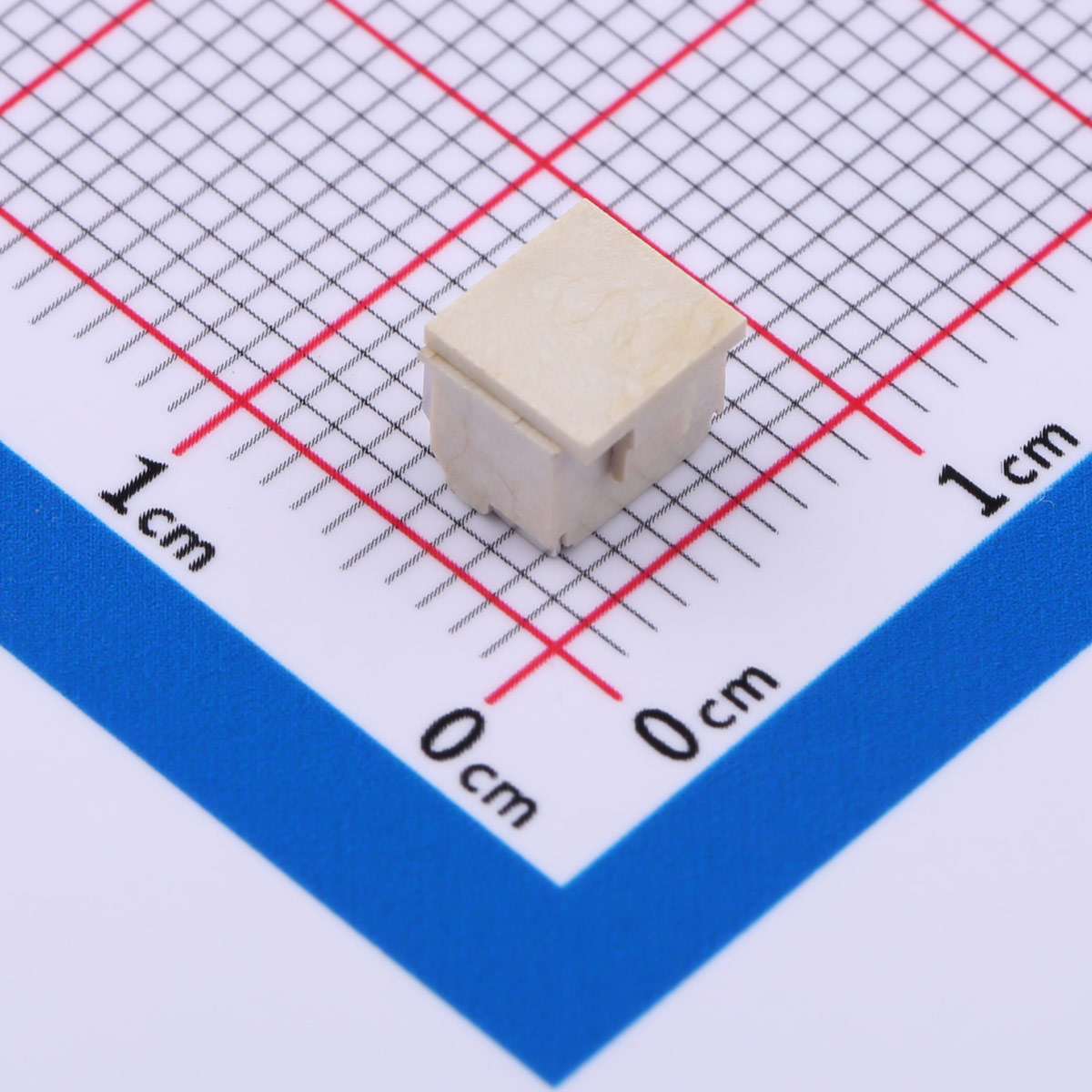

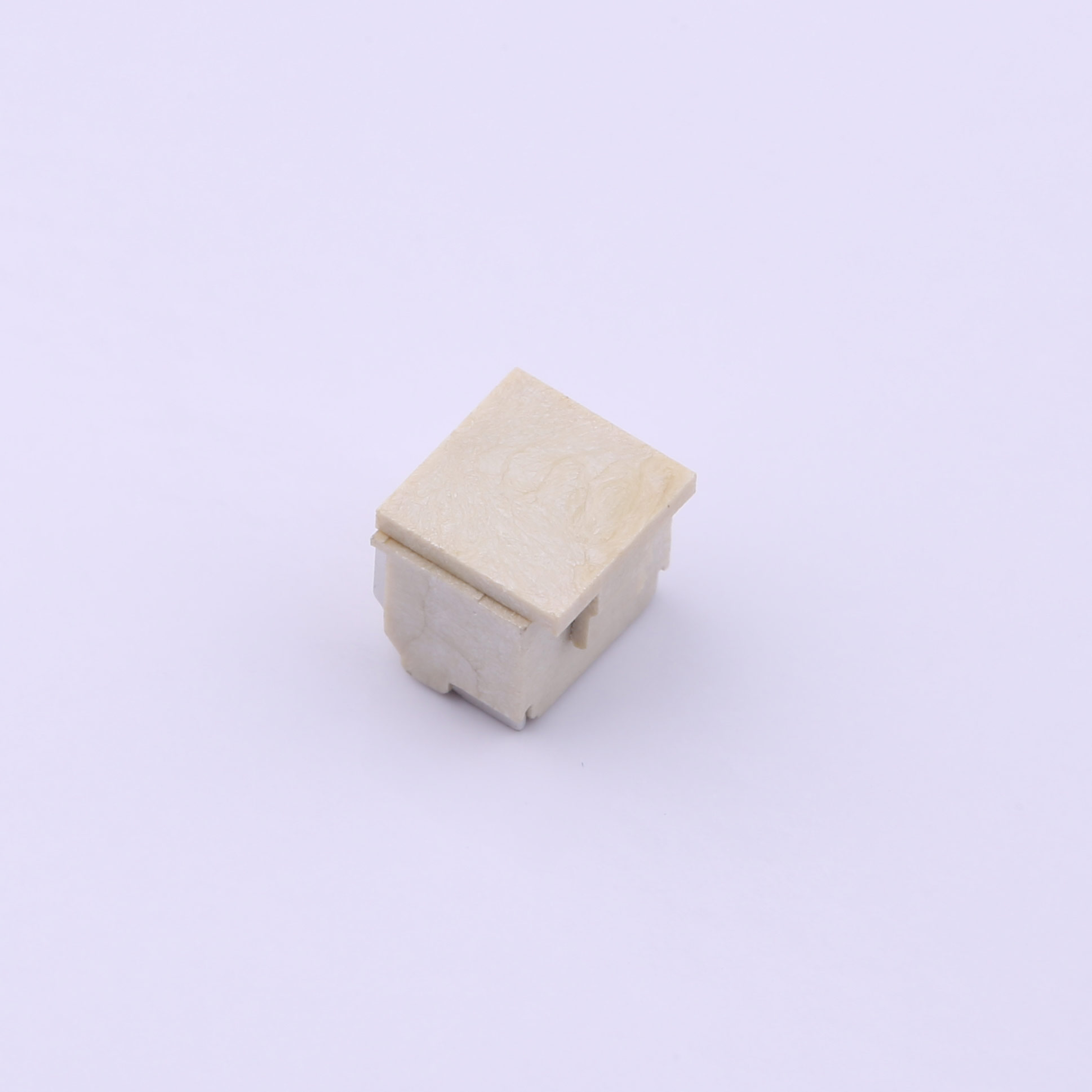

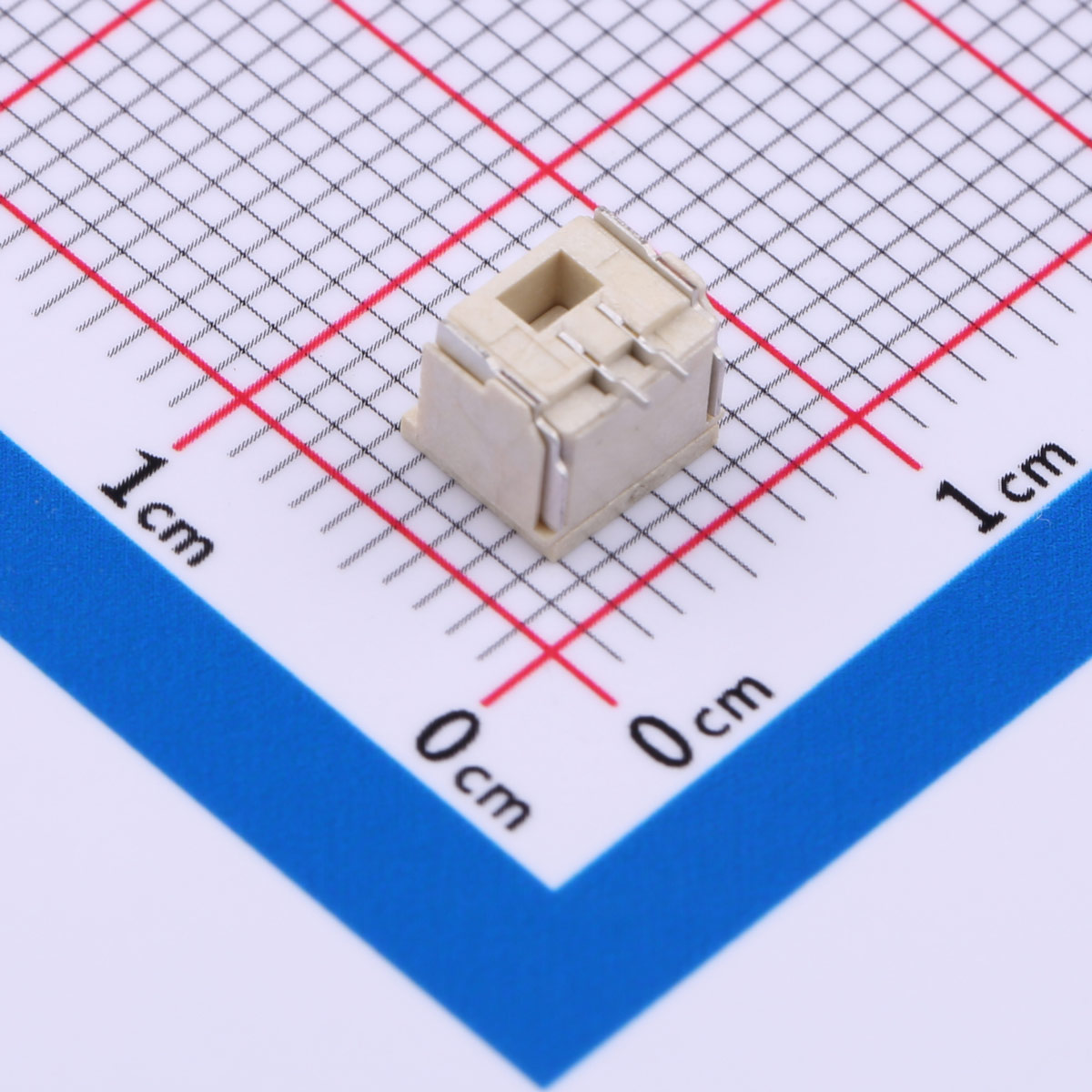

Kinghelm Wire-to-Board Connector KH-A1252VS-2P-CAP
Current Rating: 1A AC/DC
Voltage Rating: 100V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 30mΩ
Insulation Resistance: ≥ 100MΩ
Product Features
● 1.25mm pitch, 2-pin configuration
● Vertical SMT connector
● Rated current: 1A AC/DC
● Rated voltage: 100V AC/DC
● Temperature range: -25°C to +85°C
● Contact resistance ≤ 30mΩ
● Insulation resistance ≥ 100MΩ
Product Benefits
● Simplifies two-line connections
● Perfect for power or signal pairs
● Easy SMT installation
● Extremely compact and reliable
● Reduces PCB clutter
Product Applications
● Power switches
● Signal indicator lines
● Board-to-module links
● LED connections
● Sensor triggers
