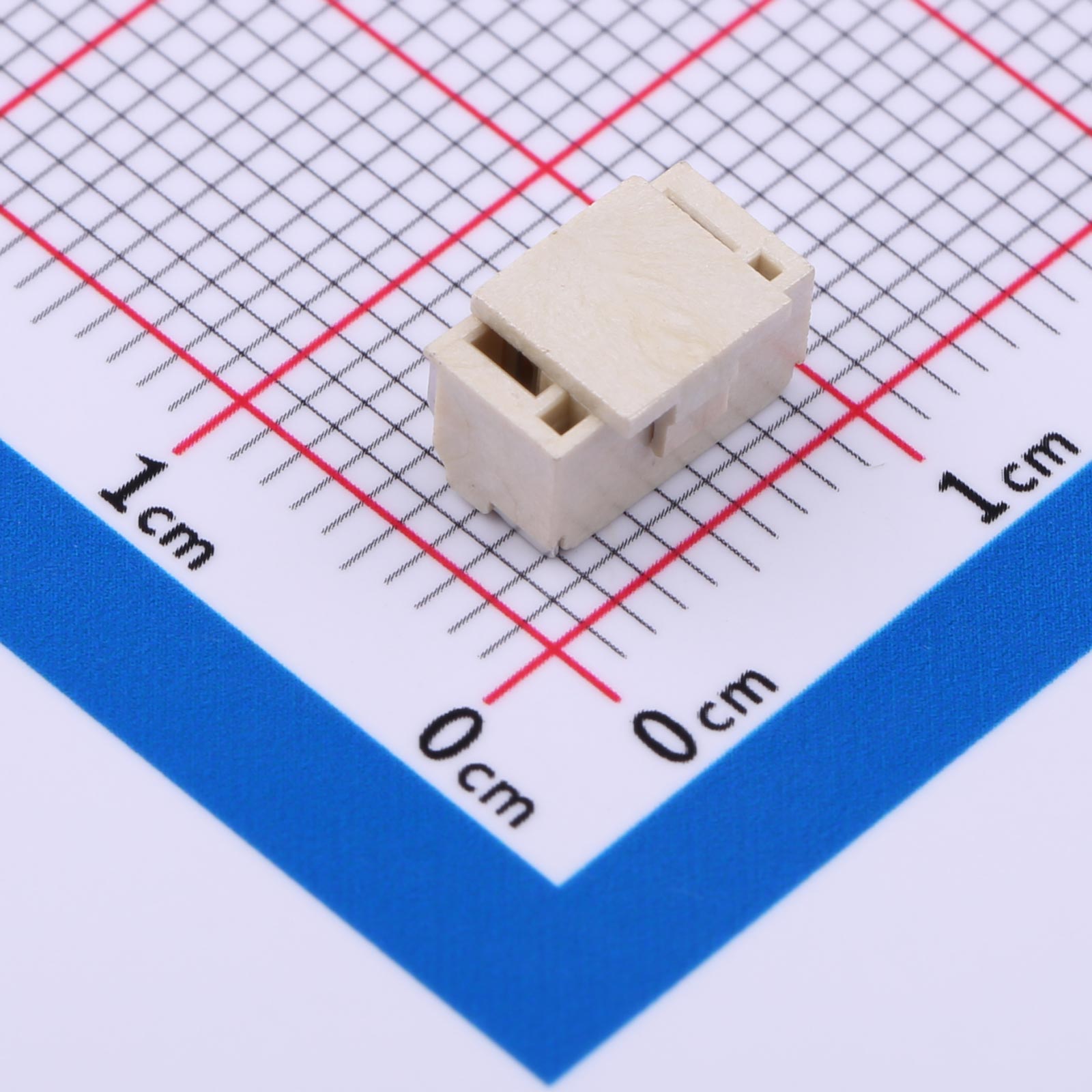

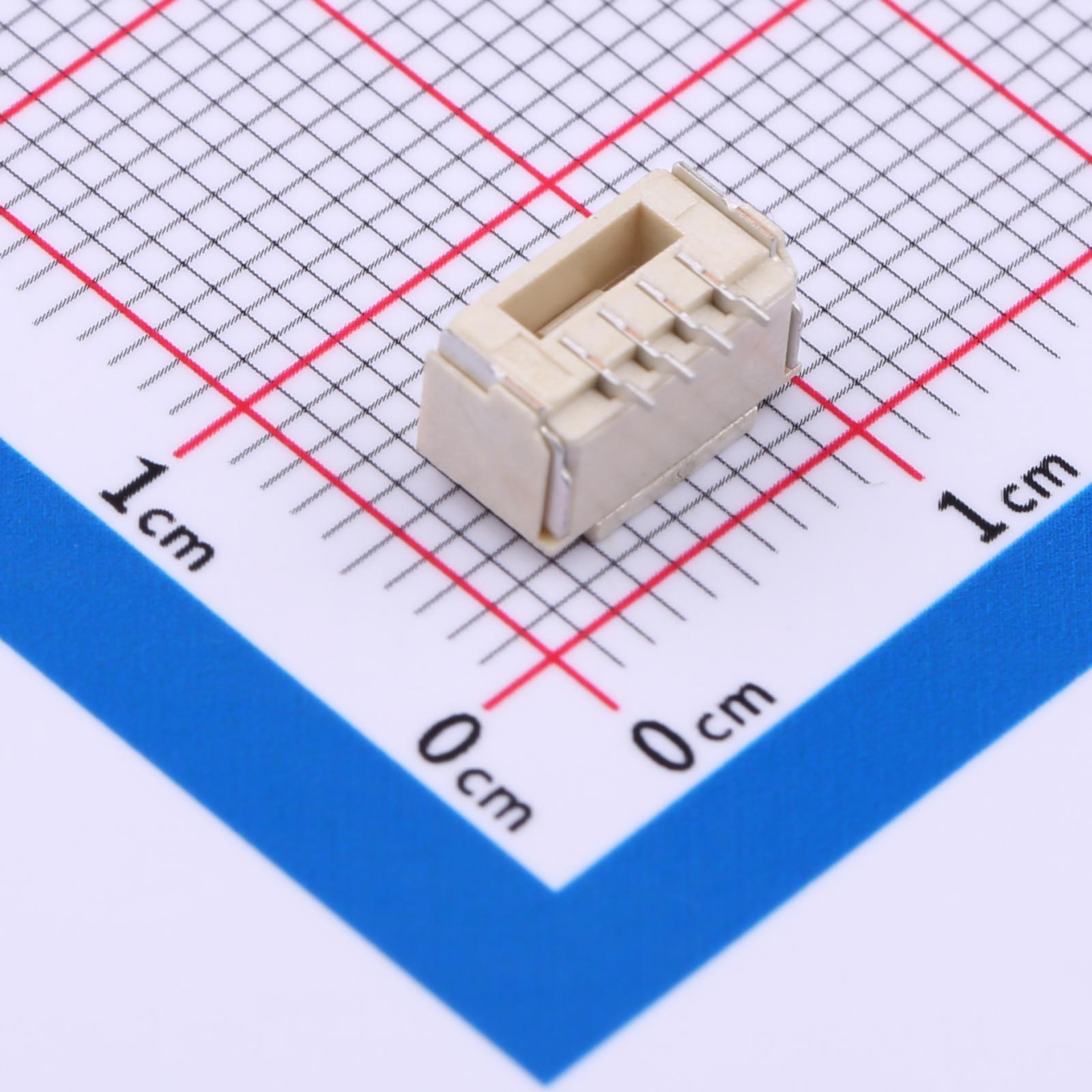

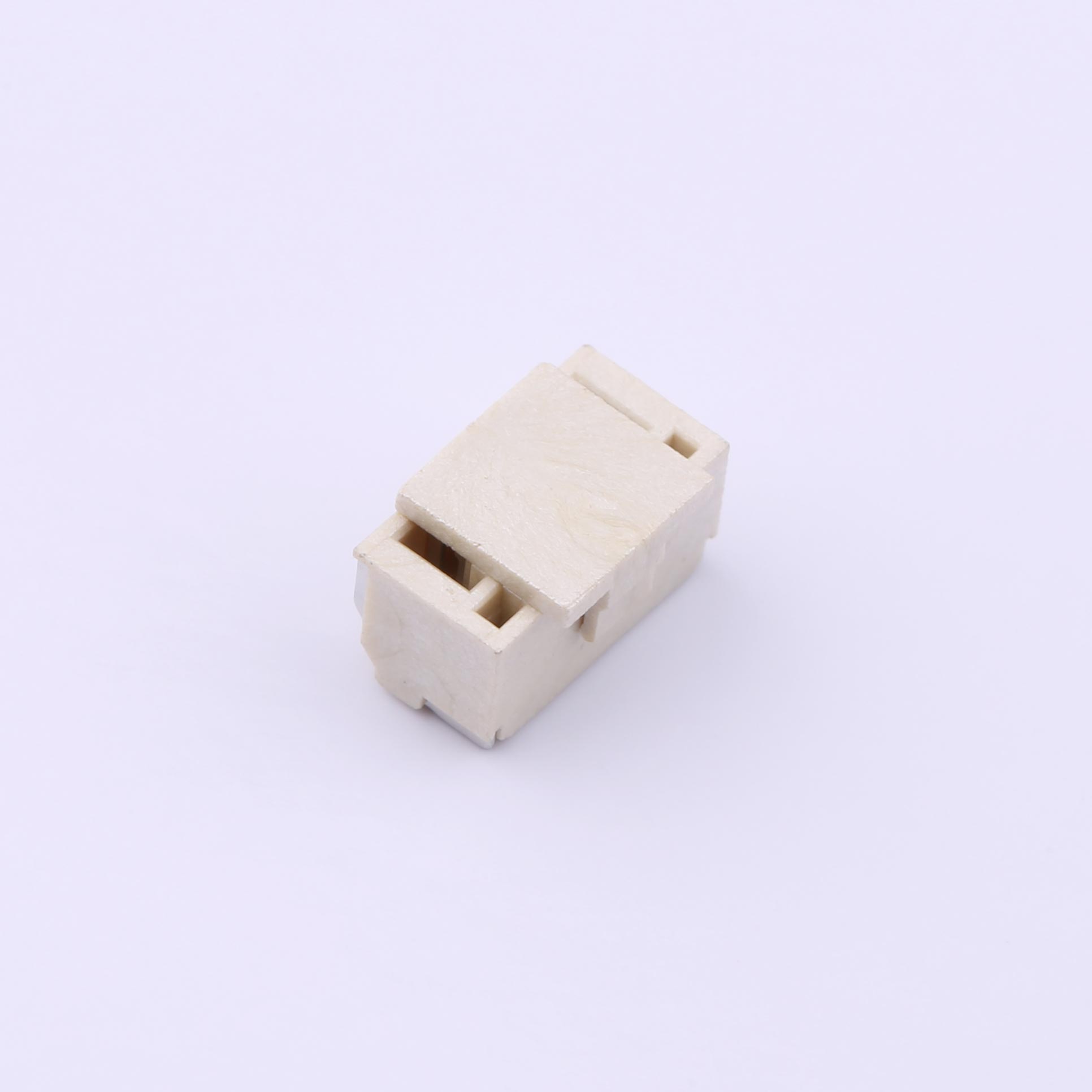

Wire-to-Board Connector, 1.25mm Pitch, 1x4P, Vertical SMT, KH-A1252VS-4P-CAP
Current Rating: 1A AC/DC
Voltage Rating: 100V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 30mΩ
Insulation Resistance: ≥ 100MΩ
Product Features
● 1.25mm pitch, 4-pin layout
● Vertical SMT mounting
● Current: 1A AC/DC
● Voltage: 100V AC/DC
● Temp: -25°C to +85°C
● Contact resistance ≤ 30mΩ
● Insulation resistance ≥ 100MΩ
Product Benefits
● Fits ultra-compact PCB spaces
● Stable connection in small form factors
● Easy SMT handling for volume production
● Minimal footprint for lean designs
● High signal clarity and mechanical strength
Product Applications
● Signal link modules
● Miniature LEDs or sensors
● Board-to-board jumpers
● IoT tracking devices
● Tiny computing platforms
