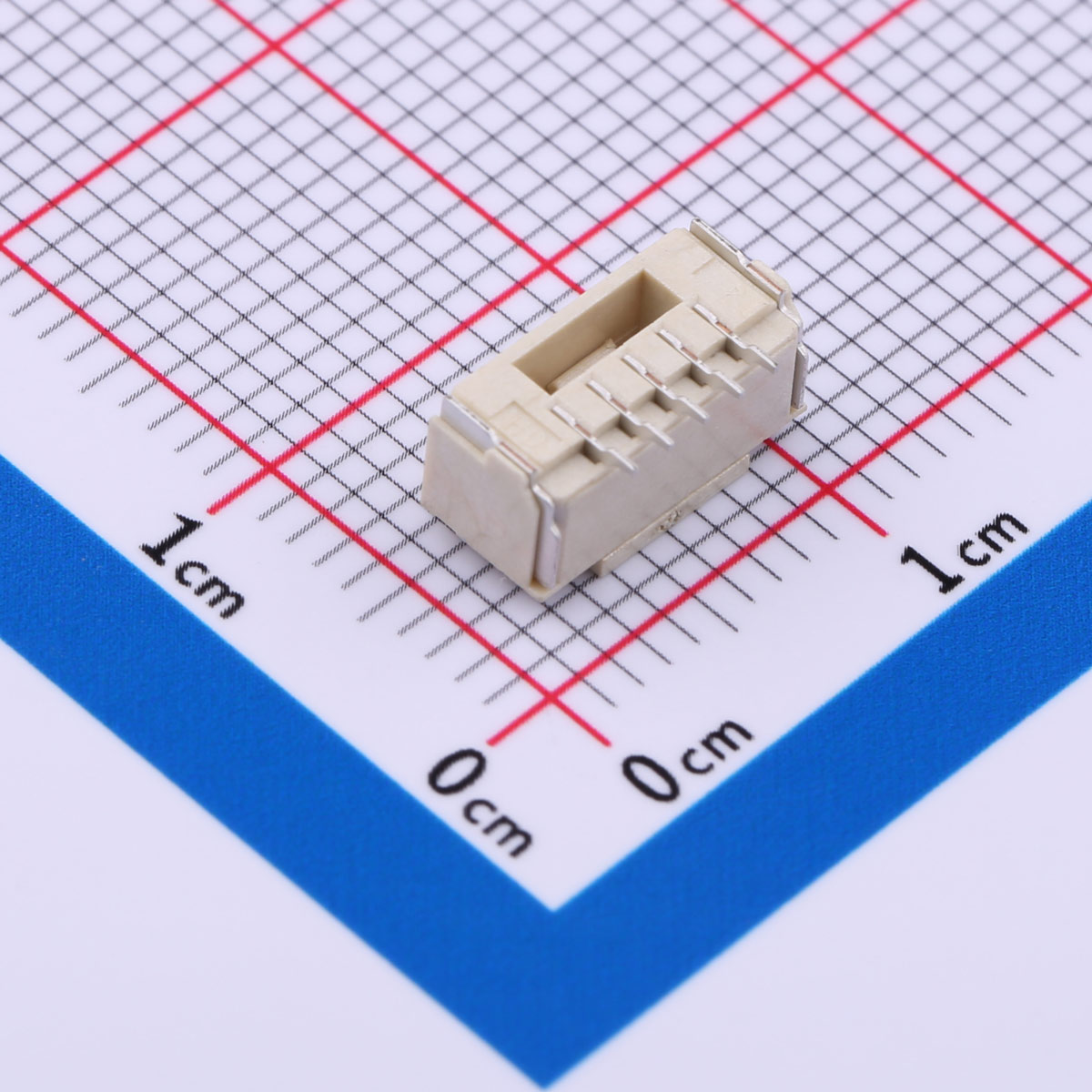

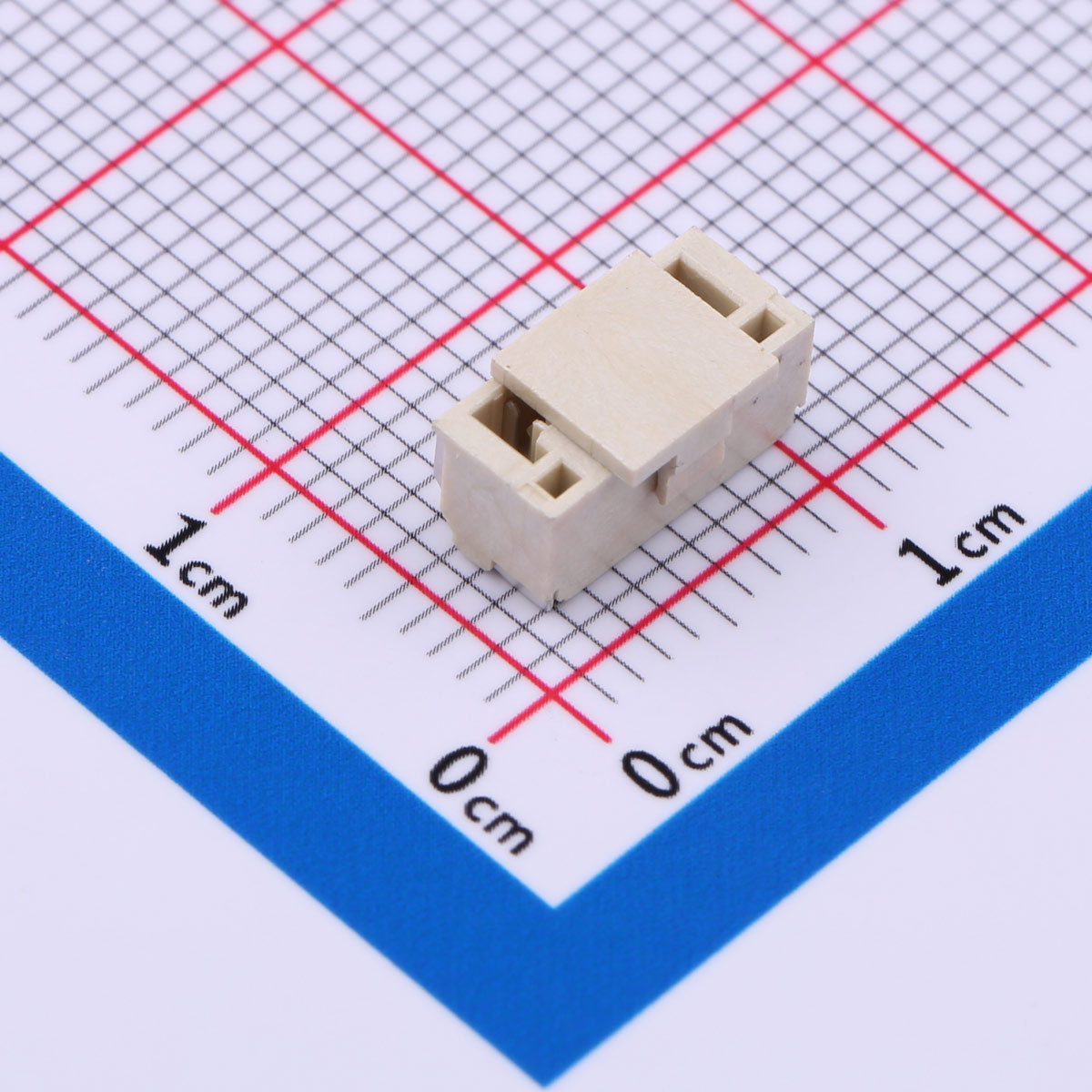

Wire-to-Board Connector, 1.25mm Pitch, 1x5P, Vertical SMT, KH-A1252VS-5P-CAP
Current Rating: 1A AC/DC
Voltage Rating: 100V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 30mΩ
Insulation Resistance: ≥ 100MΩ
Product Features
● 1.25mm pitch, 5-position single-row
● SMT vertical connection type
● Rated current: 1A AC/DC
● Rated voltage: 100V AC/DC
● Temperature range: -25°C to +85°C
● Contact resistance ≤ 30mΩ
● Insulation resistance ≥ 100MΩ
Product Benefits
● Ultra-compact for limited board area
● Fast, precise SMT processing
● Maintains low resistance for clean signals
● Strong electrical reliability in tight layouts
● Versatile for small-signal transmission
Product Applications
● Mini IoT nodes
● Embedded micro devices
● Access control systems
● Wearable medical gear
● DIY and educational kits
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
