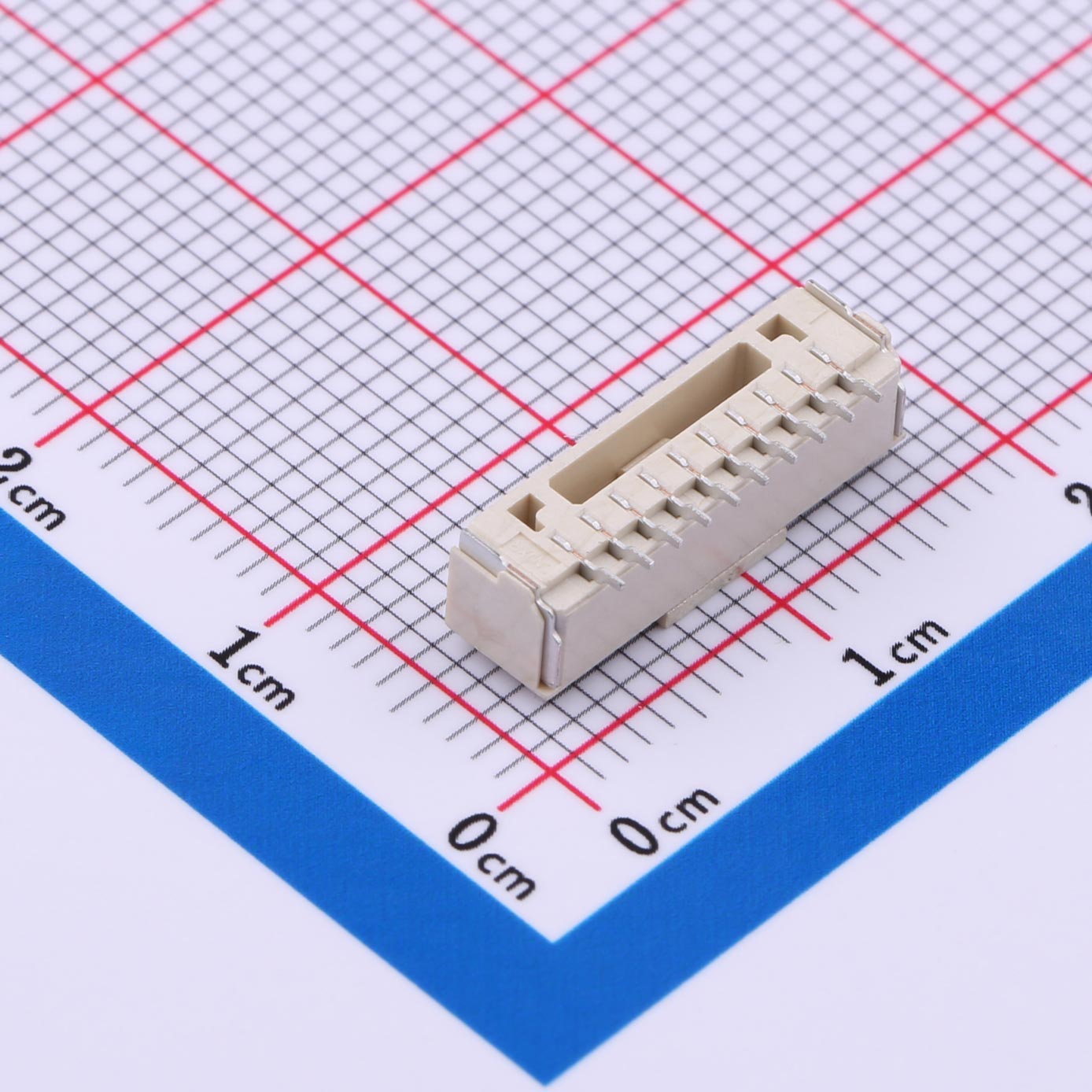

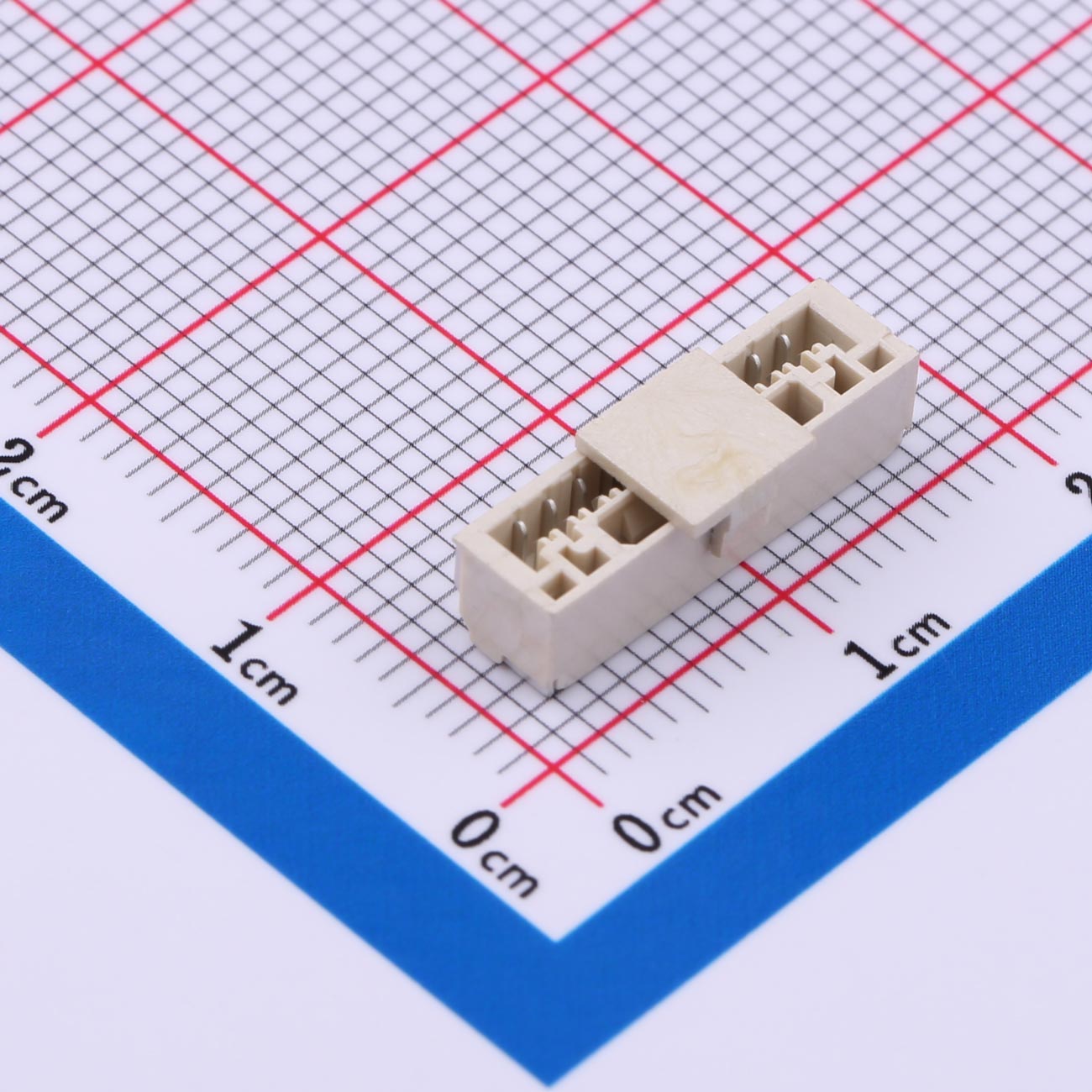

Wire-to-Board Connector, 1.25mm Pitch, 1x10P, Vertical SMT, KH-A1252VS-10P-CAP
Current Rating: 1A AC/DC
Voltage Rating: 100V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 30mΩ
Insulation Resistance: ≥ 100MΩ
Product Features
● 1.25mm pitch, streamlined layout
● 1x10P single-row SMT connector
● Vertical mount configuration
● Rated current: 1A AC/DC
● Rated voltage: 100V AC/DC
● Temp range: -25°C to +85°C
● Contact resistance ≤ 30mΩ
● Insulation resistance ≥ 100MΩ
Product Benefits
● Optimized for small PCB assemblies
● SMT-friendly for mass production
● Reliable contact with minimal resistance
● Ideal for medium-density board designs
● Stable performance across applications
Product Applications
● Consumer gadgets
● Control signal interfaces
● LED driver modules
● Microcontrollers
● Robotics and automation
