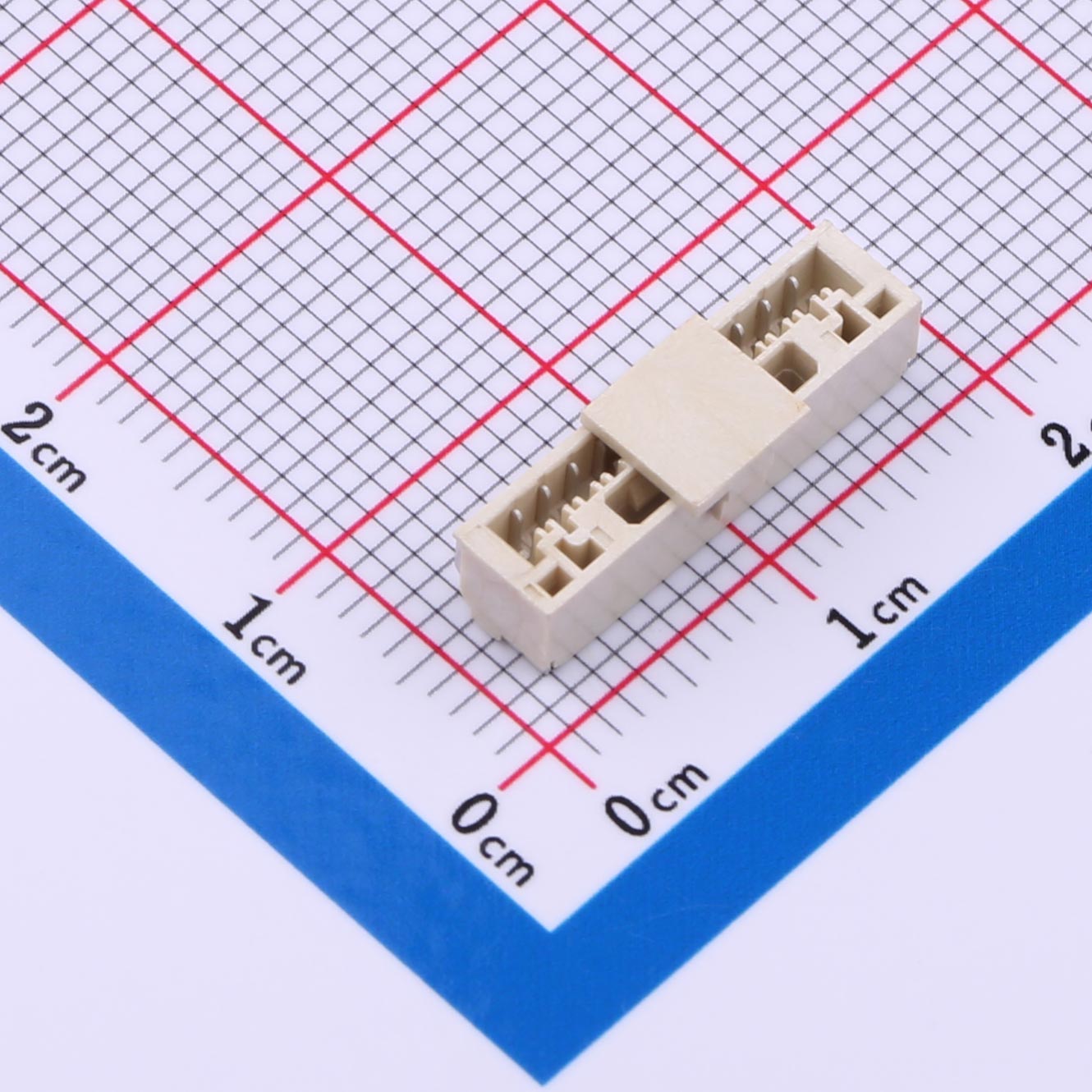

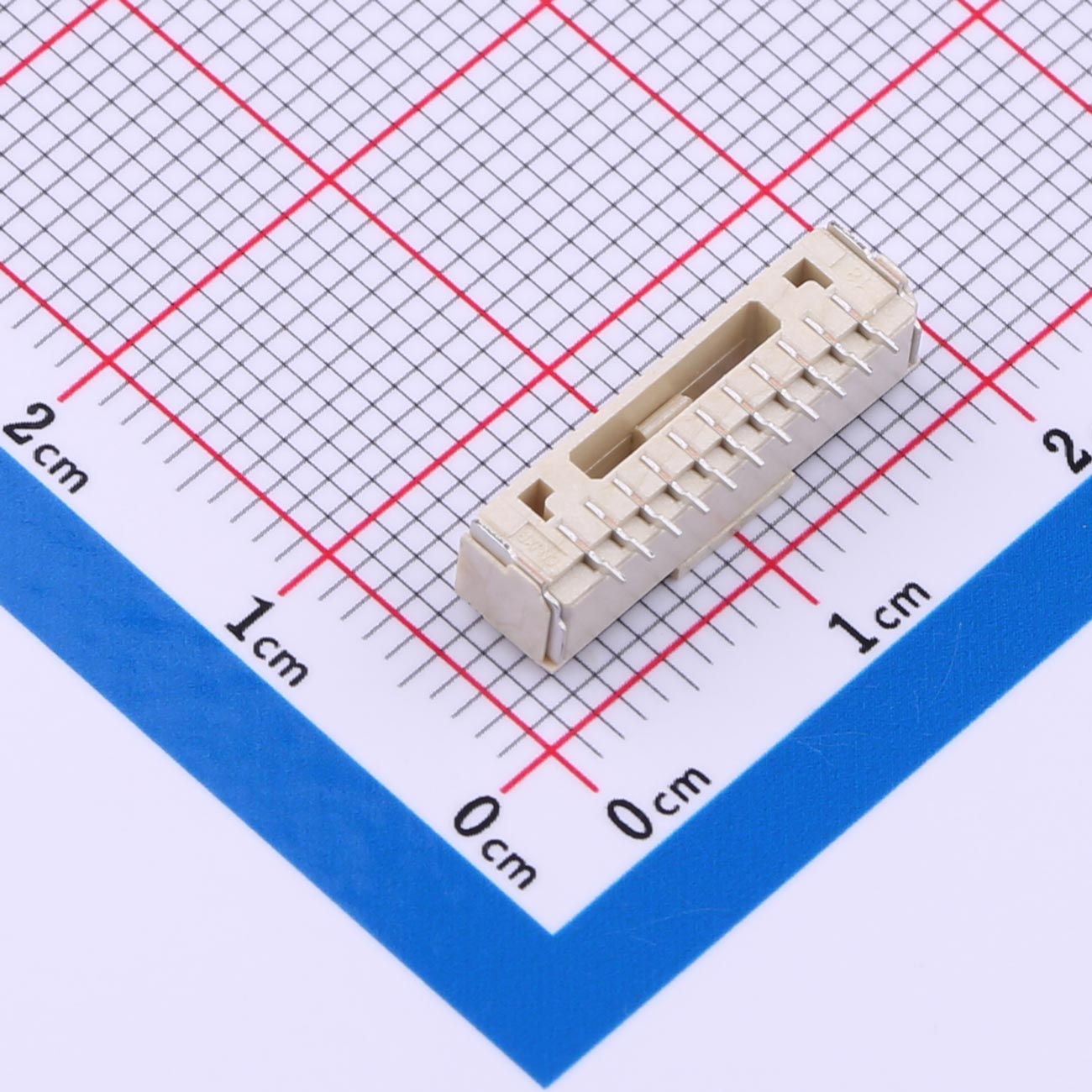

Wire-to-Board Connector, 1.25mm Pitch, 1x11P, Vertical SMT, KH-A1252VS-11P-CAP
Current Rating: 1A AC/DC
Voltage Rating: 100V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 30mΩ
Insulation Resistance: ≥ 100MΩ
Product Features
● 1.25mm pitch, slim profile
● 1x11P single-row connector
● Vertical surface-mount (SMT) configuration
● Current rating: 1A AC/DC
● Voltage rating: 100V AC/DC
● Temperature range: -25°C to +85°C
● Contact resistance ≤ 30mΩ
● Insulation resistance ≥ 100MΩ
Product Benefits
● Enables high-density circuit layouts
● Compatible with high-speed SMT assembly
● Provides stable and low-resistance connections
● Reliable under diverse operational environments
● Supports sleek and minimal PCB architecture
Product Applications
● Compact communication terminals
● Smart control panels
● Lightweight instrumentation
● Mini PCBs and embedded modules
● Battery management systems
