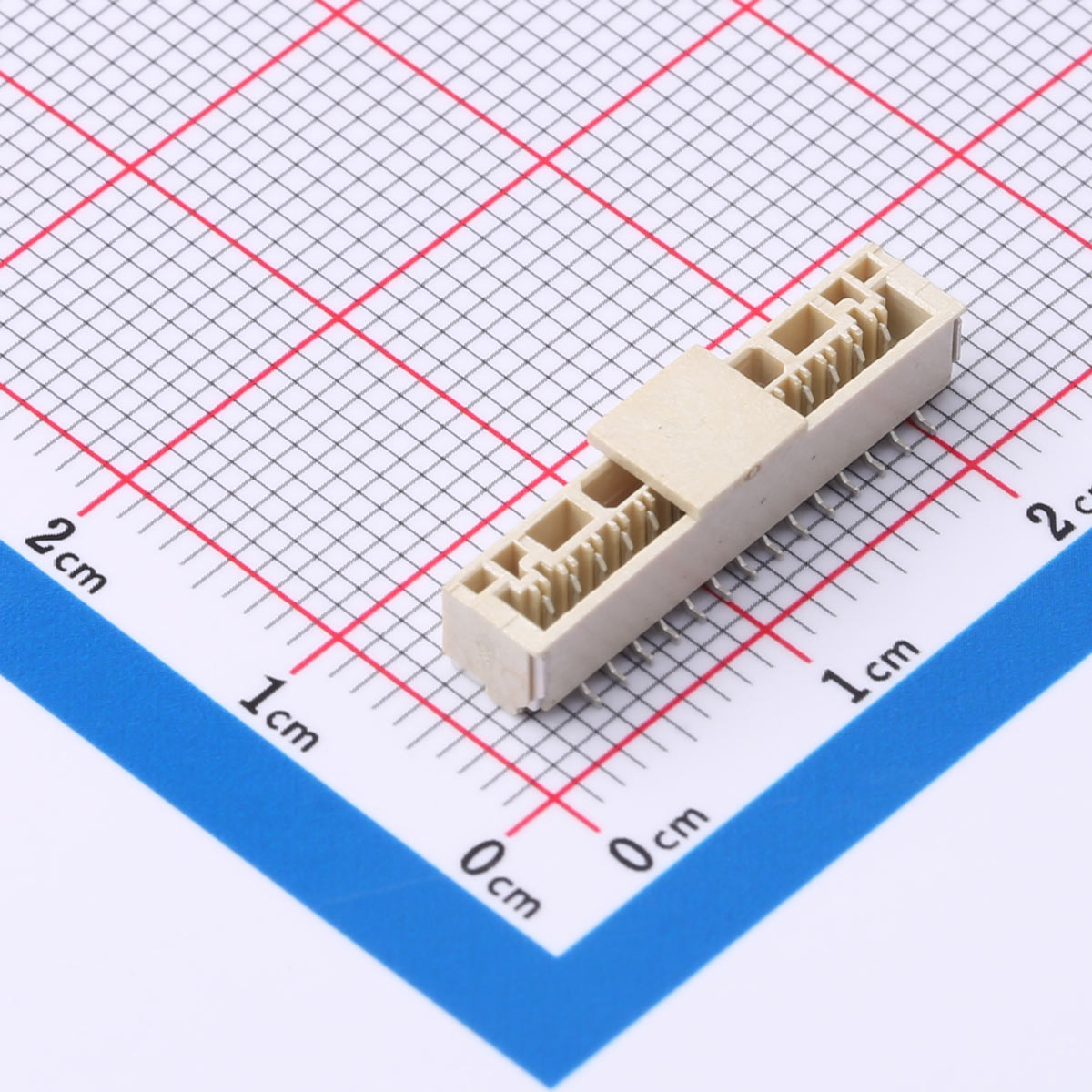

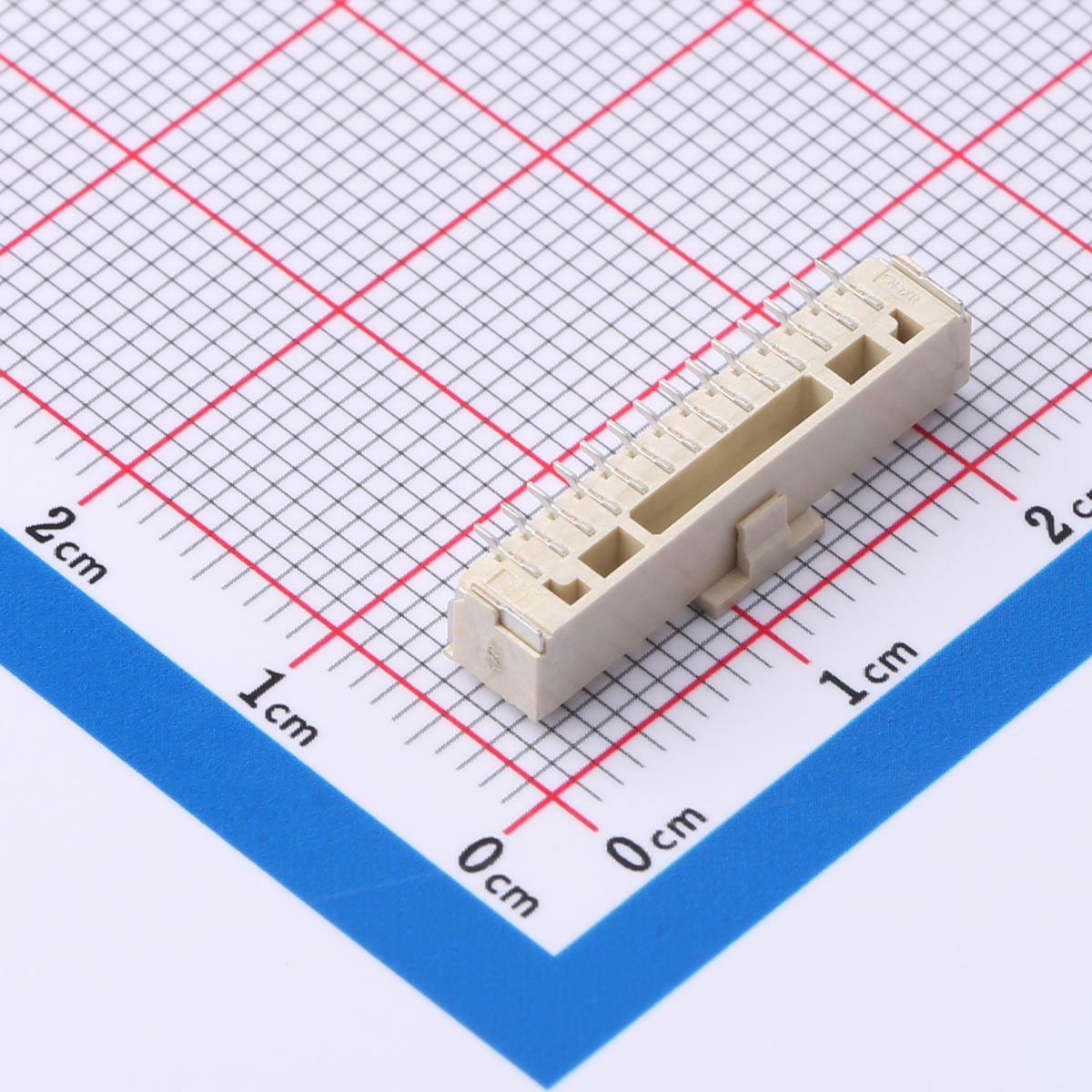

Wire-to-Board Connector, 1.25mm Pitch, 1x14P, Vertical SMT, KH-A1252VS-14P-CAP
Current Rating: 1A AC/DC
Voltage Rating: 100V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 30mΩ
Insulation Resistance: ≥ 100MΩ
Product Features
● 1.25mm pitch, miniaturized footprint
● 1x14P single-row contact layout
● Vertical surface-mount (SMT) style
● Rated current: 1A AC/DC
● Rated voltage: 100V AC/DC
● Operating temperature: -25°C to +85°C
● Contact resistance ≤ 30mΩ
● Insulation resistance ≥ 100MΩ
Product Benefits
● Ideal for compact PCB designs
● Easy integration into SMT assembly lines
● Provides consistent electrical connectivity
● Reliable under moderate thermal conditions
● Reduces space without compromising performance
Product Applications
● Compact electronic devices
● Smart wearables
● Data transmission modules
● Security systems
● Portable medical equipment
