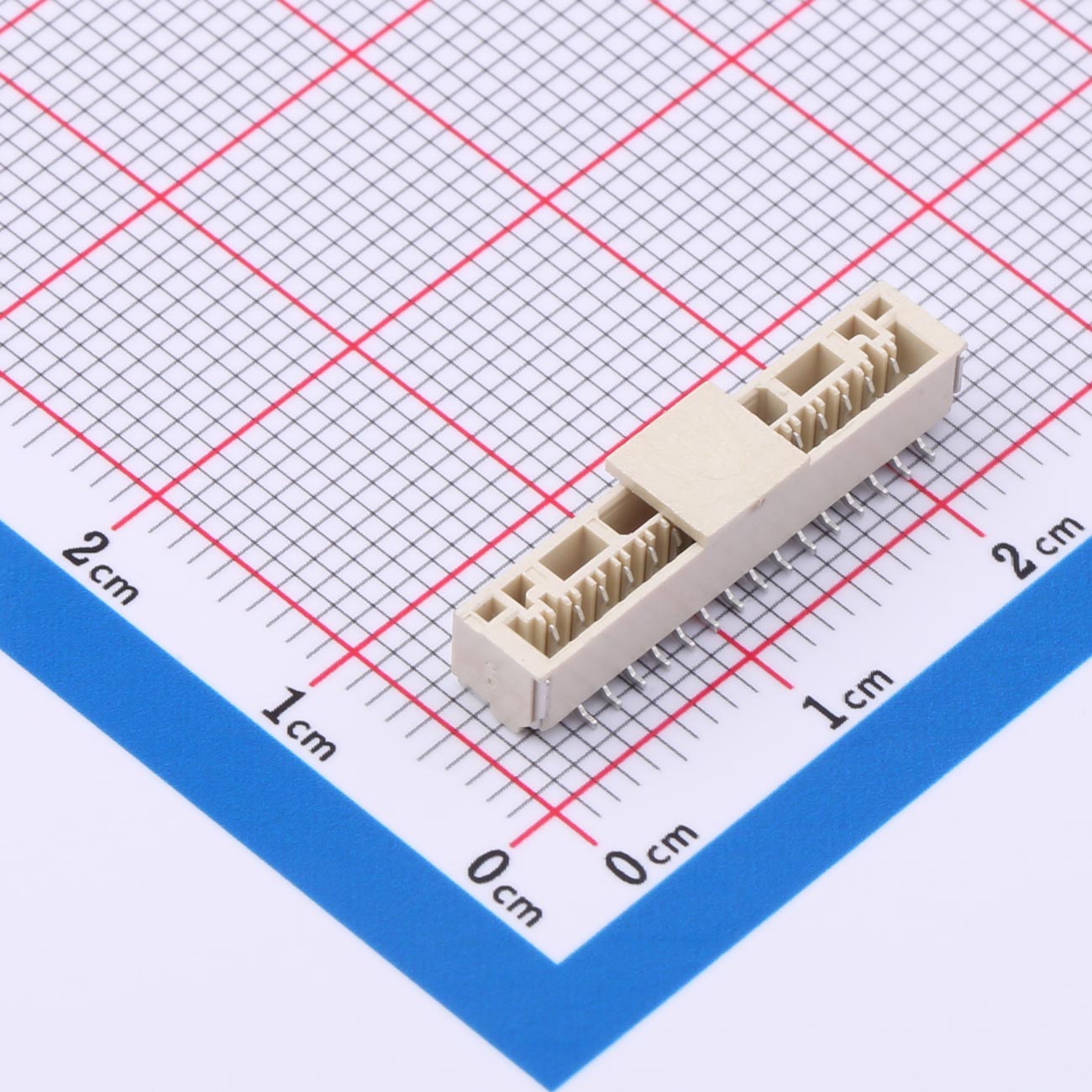

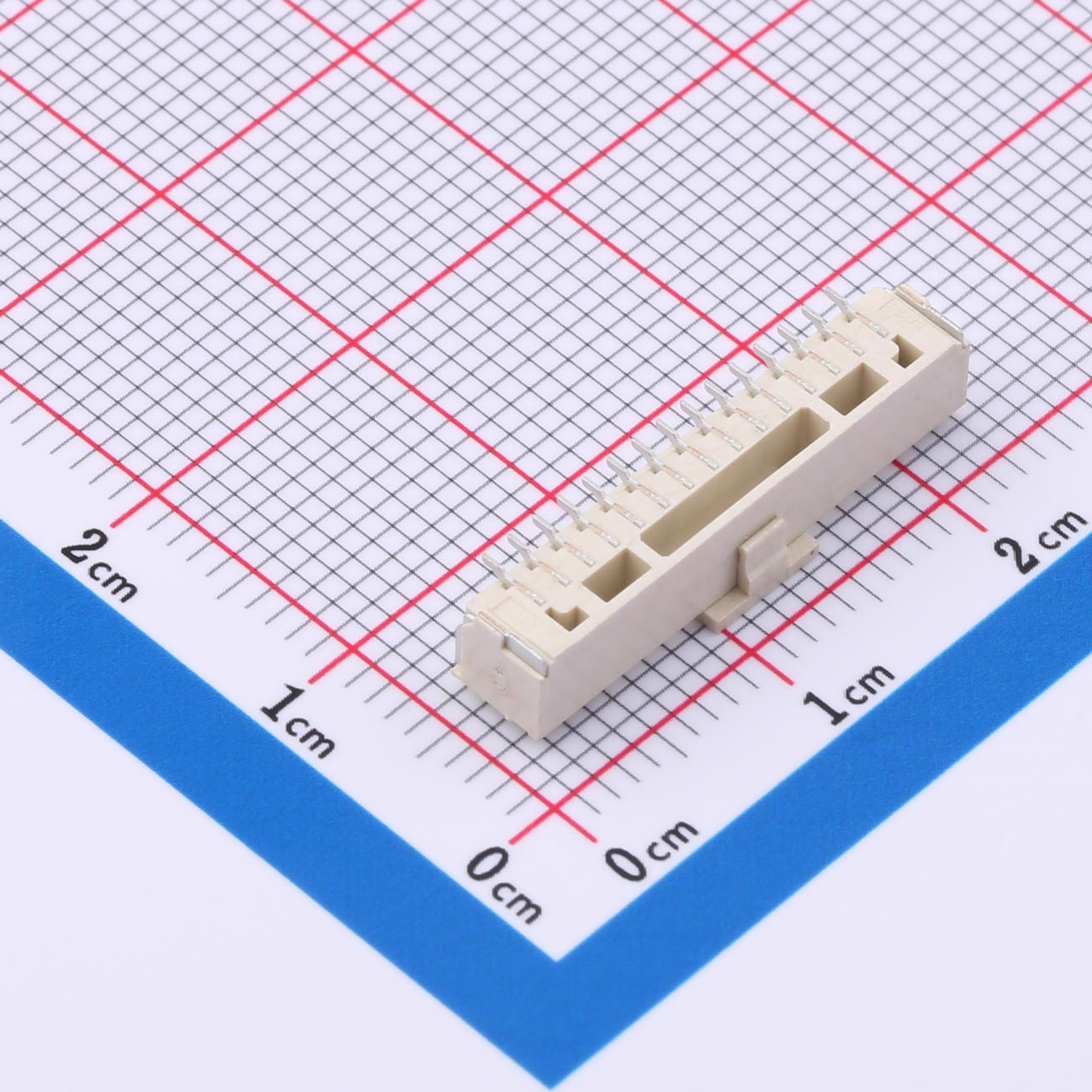

Wire-to-Board Connector, 1.25mm Pitch, 1x15P, Vertical SMT, KH-A1252VS-15P-CAP
Current Rating: 1A AC/DC
Voltage Rating: 100V AC/DC
Temperature Range: -25°C to +85°C
Contact Resistance: ≤ 30mΩ
Insulation Resistance: ≥ 100MΩ
Product Features
● 1.25mm pitch, compact design
● 1x15P single-row configuration
● Vertical SMT mounting type
● Current rating: 1A AC/DC
● Voltage rating: 100V AC/DC
● Operating temperature: -25°C to +85°C
● Low contact resistance ≤ 30mΩ
● High insulation resistance ≥ 100MΩ
Product Benefits
● Space-saving for high-density PCB layouts
● Reliable vertical board connection
● Compatible with automated SMT processes
● Stable performance under varied temperatures
● Ensures secure and efficient signal transmission
Product Applications
● Consumer electronics
● Wearable devices
● Communication equipment
● Industrial control systems
● LED lighting modules
