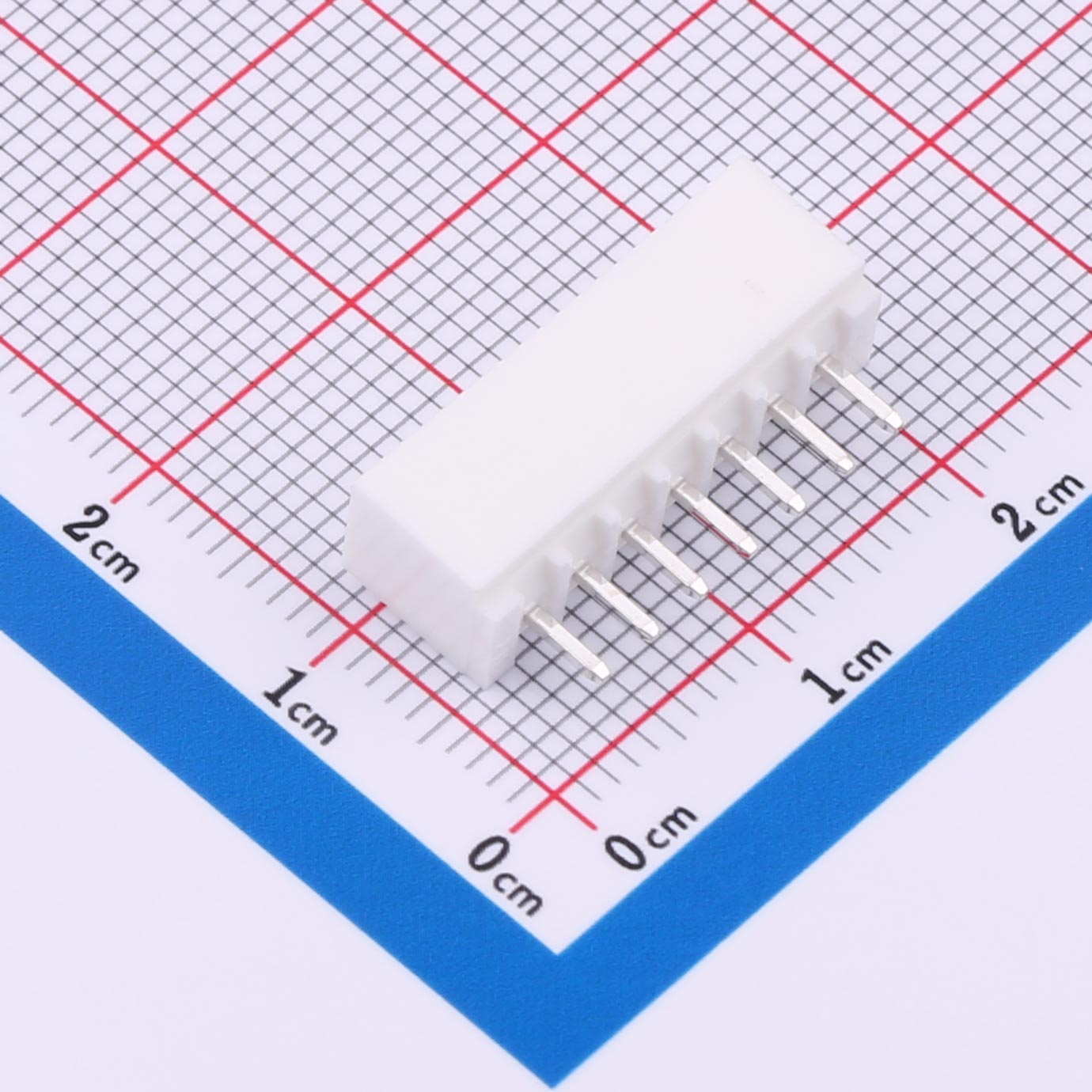

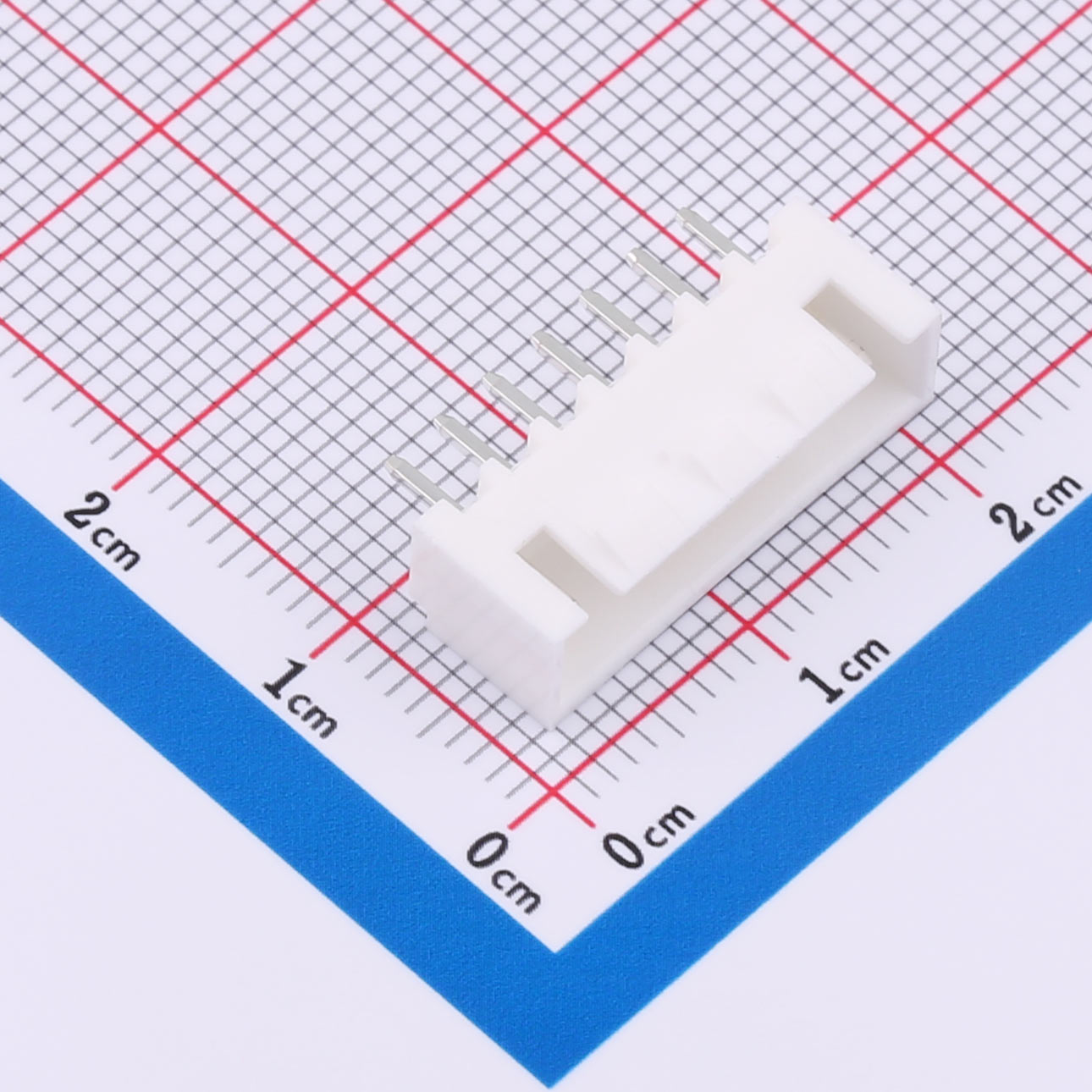

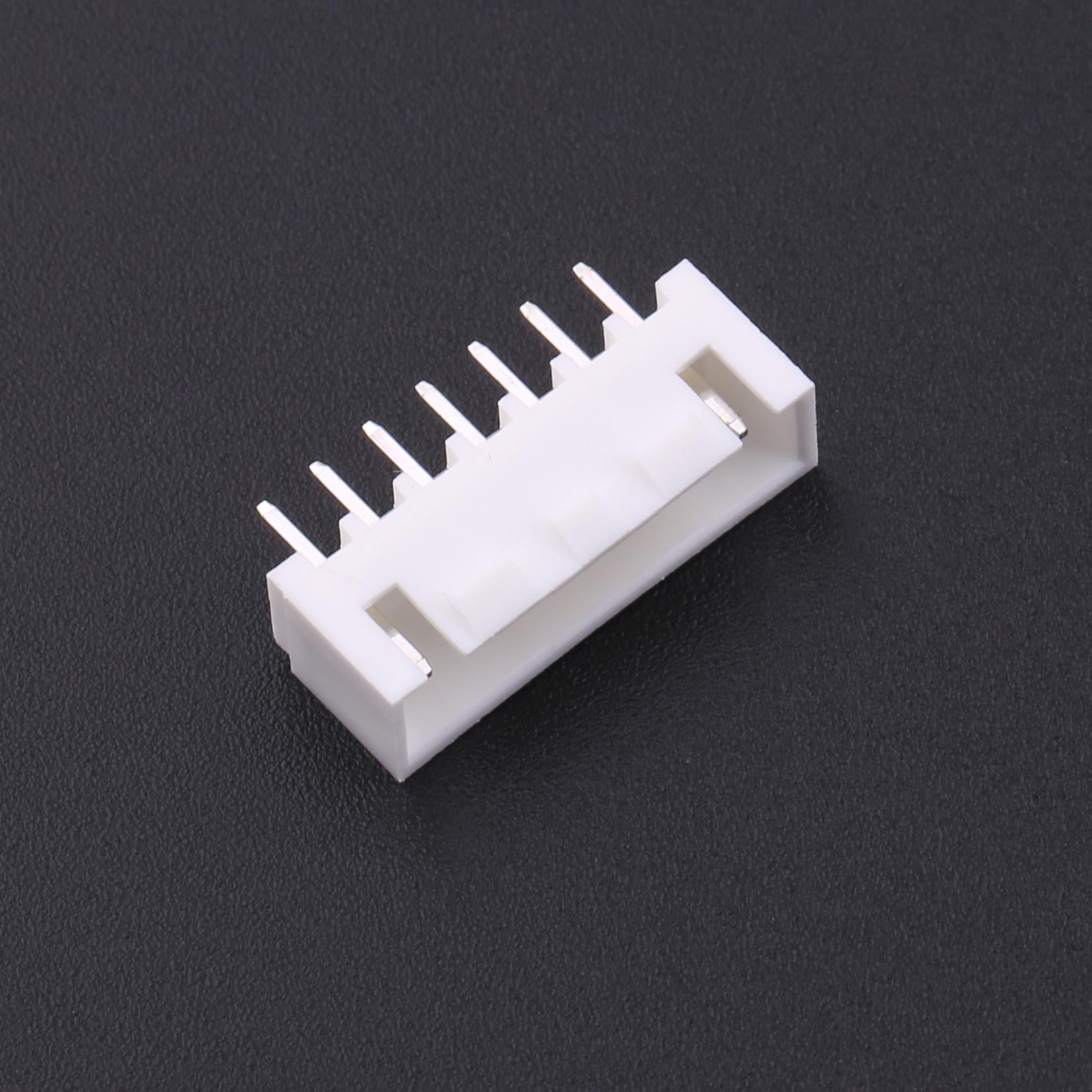

2.54mm Pitch Wire-to-Board Connector, 1x7P, KH-A2504-07A
Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.54mm pitch single-row board-to-board connector
● 7 pins configuration for tight, compact layouts
● White housing for clean look
● HA straight pins with locking system
Product Benefits
● Ensures stable and reliable board-to-board connections
● Saves space in compact electronic designs
● Locking system ensures strong and secure connection
● Ideal for space-constrained applications
Product Applications
● Communication systems
● Consumer electronics
● Industrial control and sensor systems
● Automotive electronics
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
