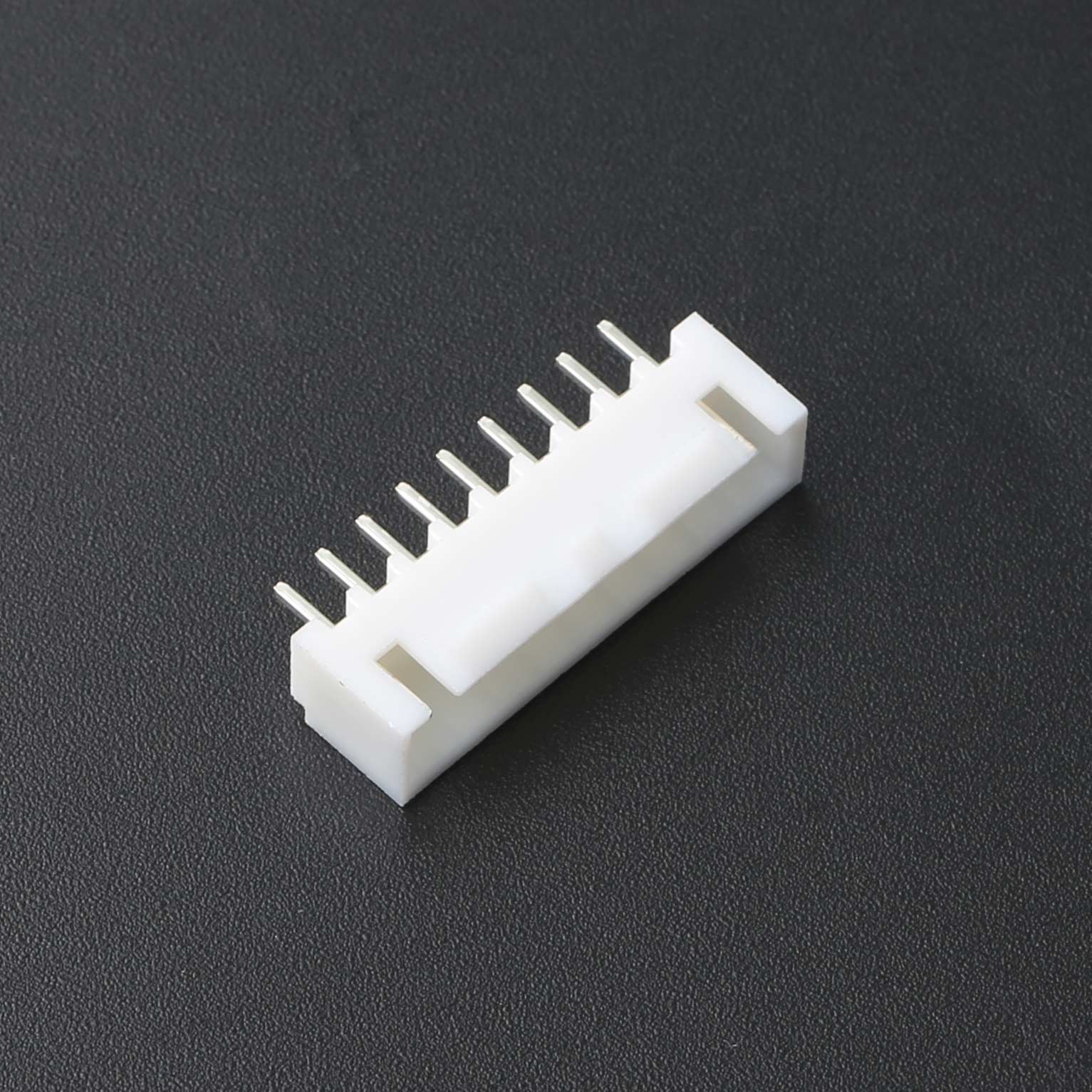

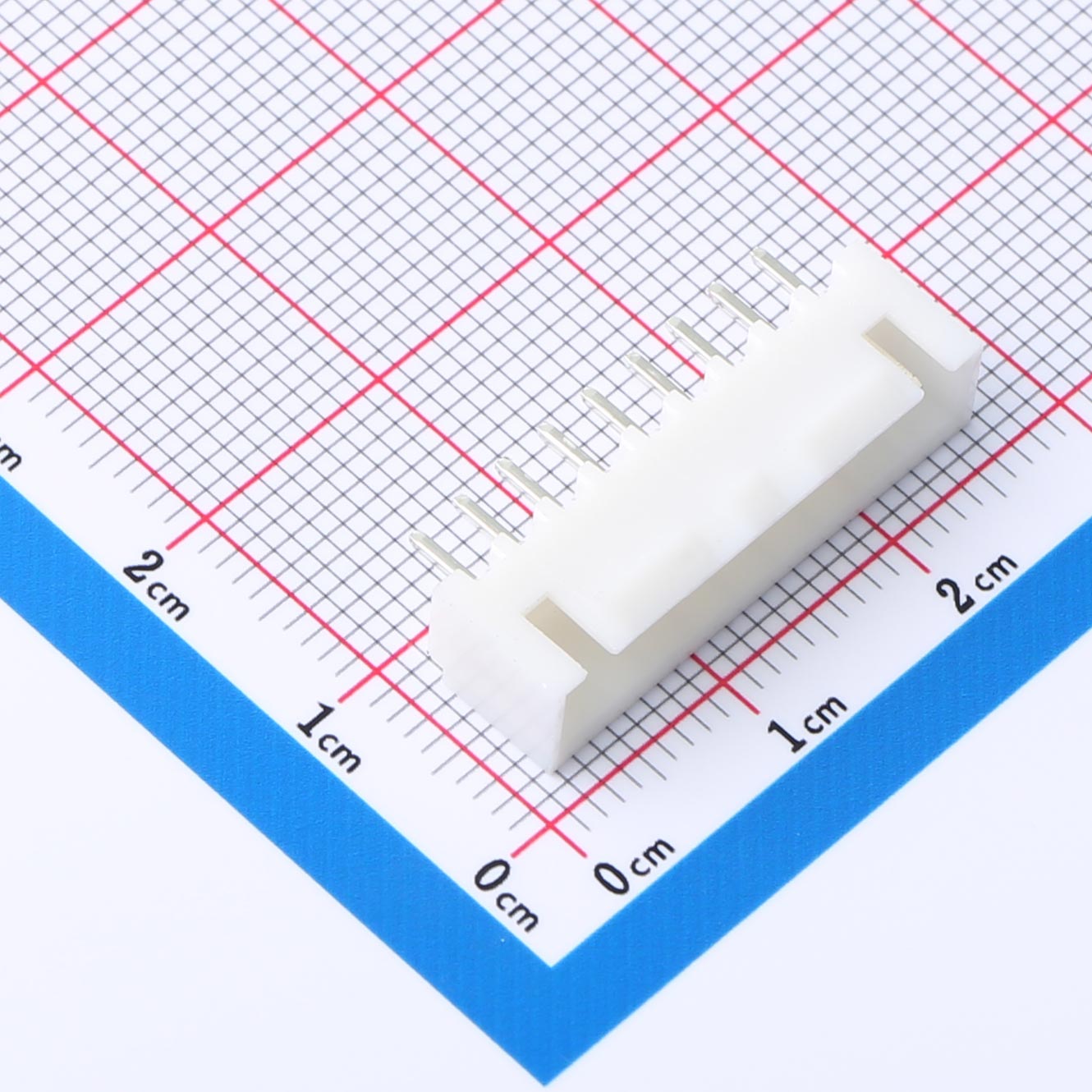

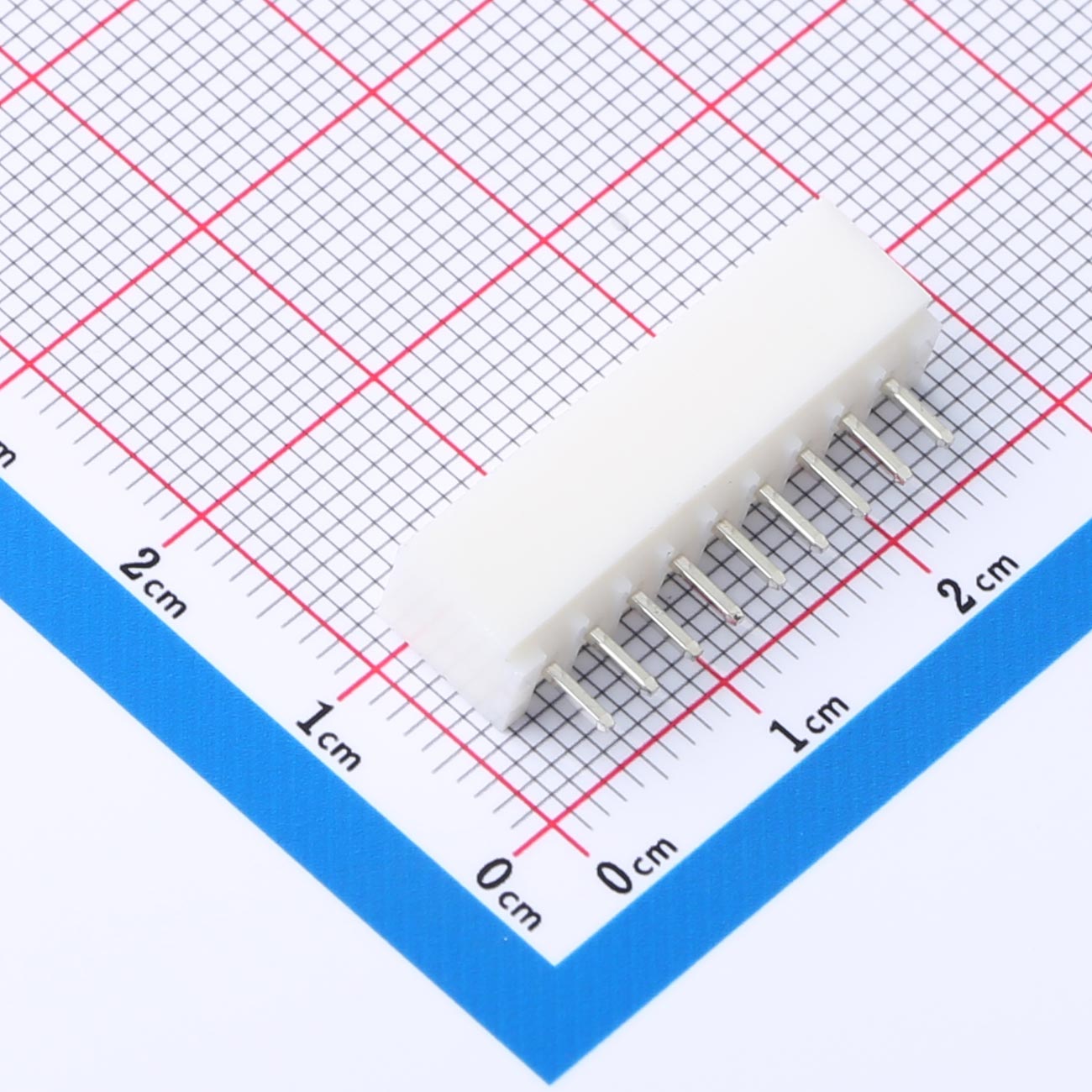

2.54mm Pitch Wire-to-Board Connector, 1x9P, KH-A2504-09A
Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.54mm pitch single-row board-to-board connector
● 9 pins configuration
● White housing with clean, professional finish
● HA straight pins with locking mechanism
Product Benefits
● Stable and reliable connections for various electronic applications
● Compact design for space-efficient PCB layout
● Locking feature prevents disconnections
● Ideal for both low and medium current applications
Product Applications
● Suitable for communication and networking devices
● Consumer electronics such as handheld devices
● Industrial control equipment
● Automotive sensor systems
