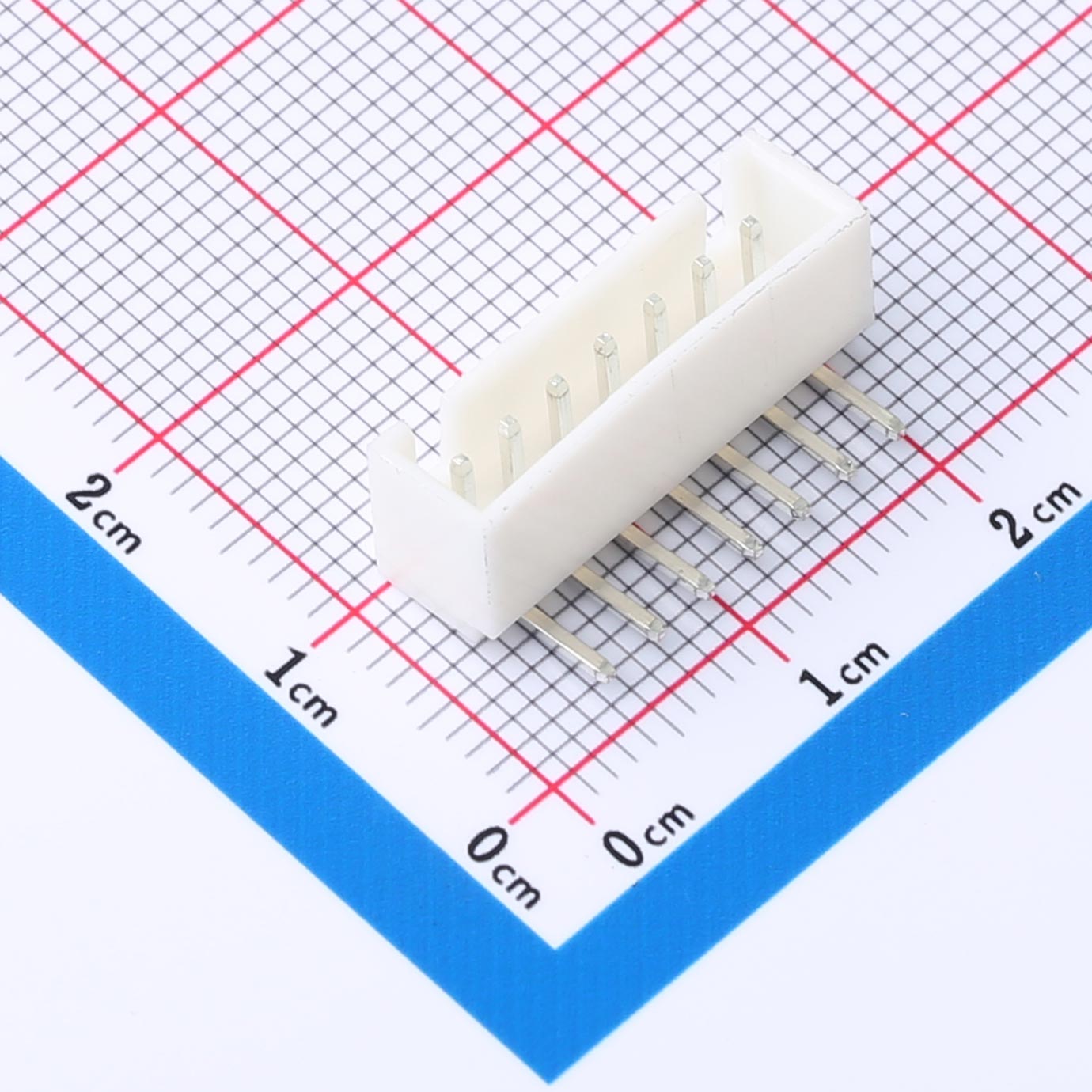

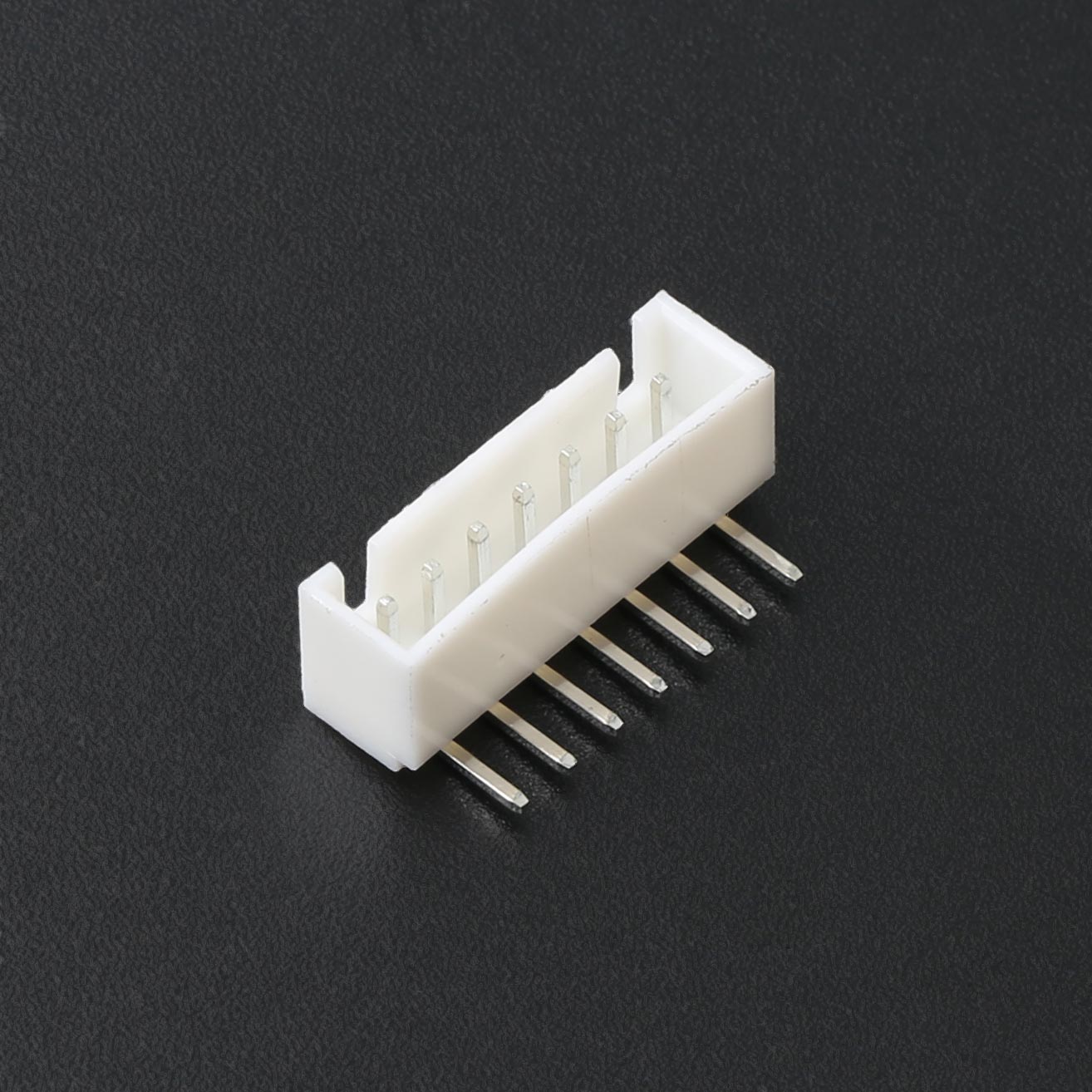

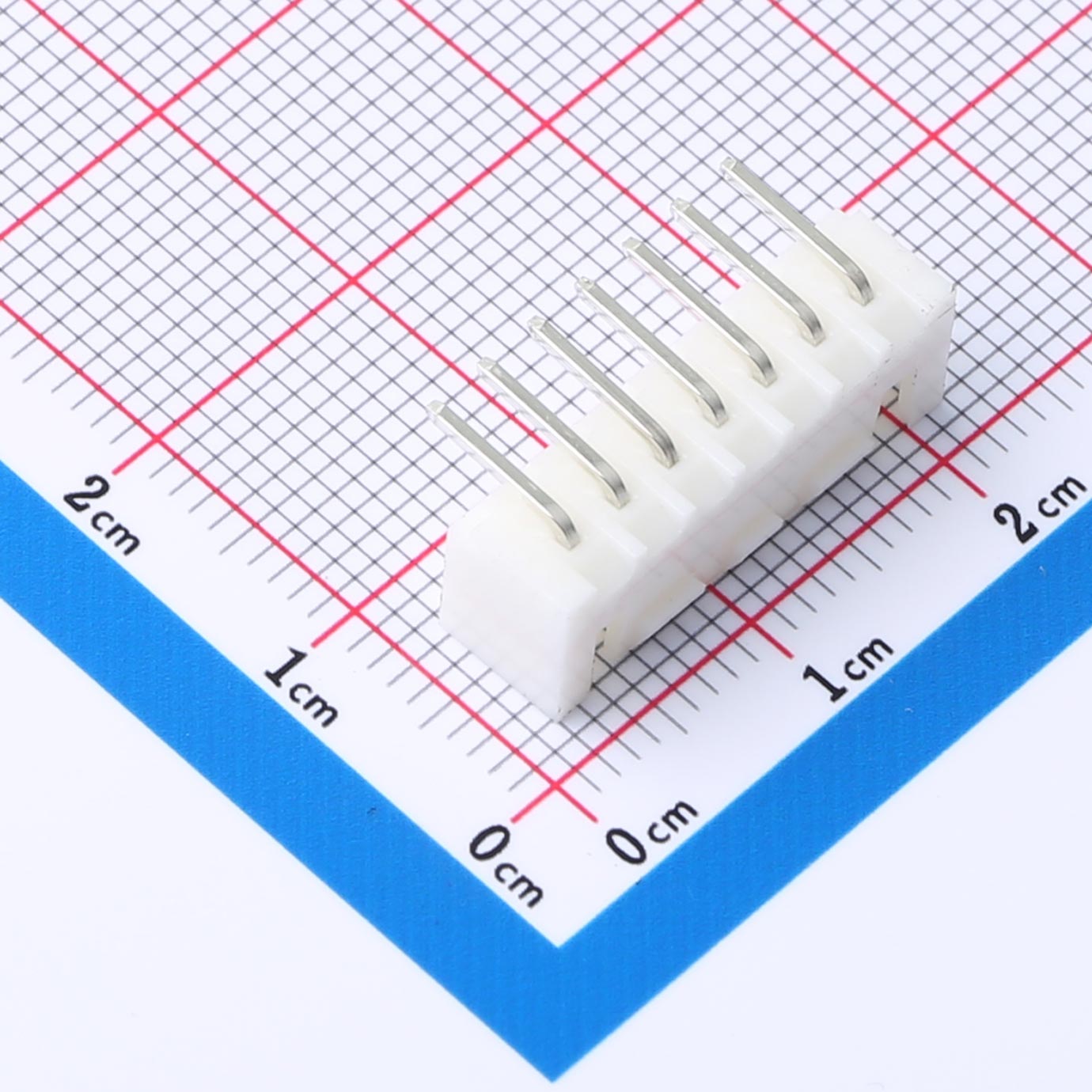

2.54mm Pitch Wire-to-Board Connector 1x7P--KH-A2504-07AW
Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● Wire-to-board male header, 2.54mm pitch
● 1x7P HA right-angle pin layout
● Locking latch design
● Through-hole mounting, P=2.5mm
● Bag-packed for shipping
Product Benefits
● Reliable signal connection in compact boards
● Right-angle format improves wiring access
● Lock feature adds connection safety
● Ideal for low pin-count control lines
● Low profile aids enclosure fitting
Product Applications
● Motor control interface PCBs
● Wireless transmission baseboards
● Smart meter communication units
● Compact audio device connections
