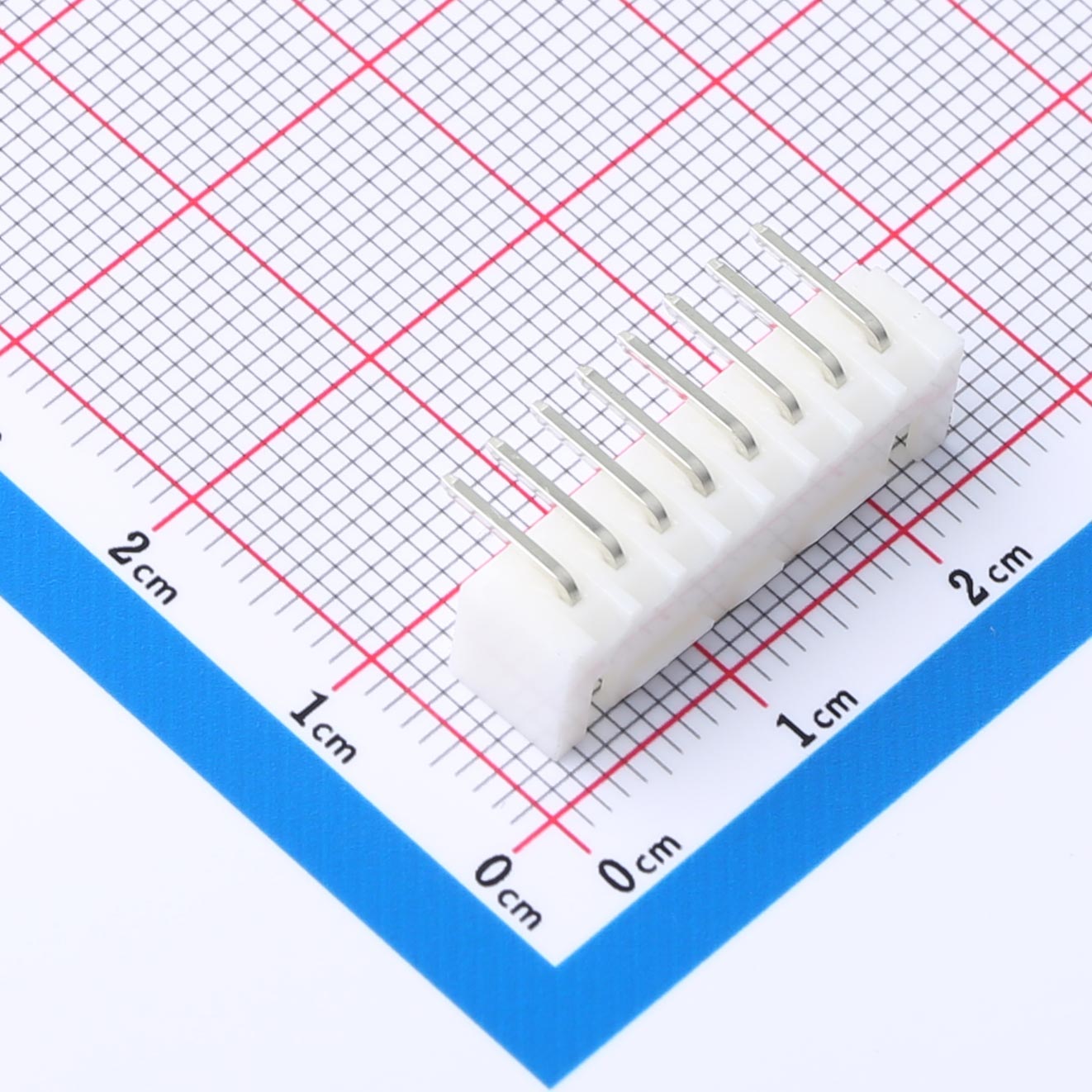

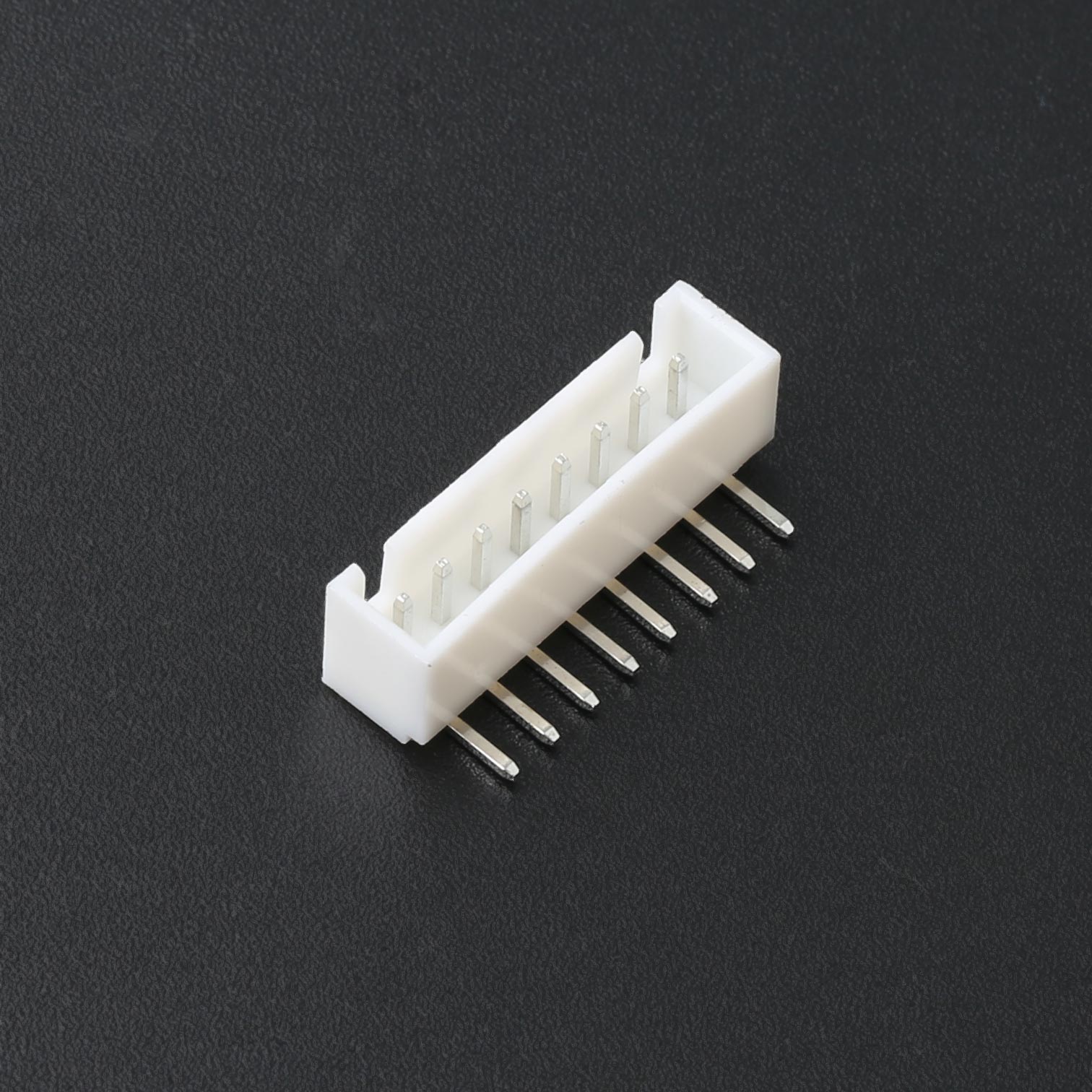

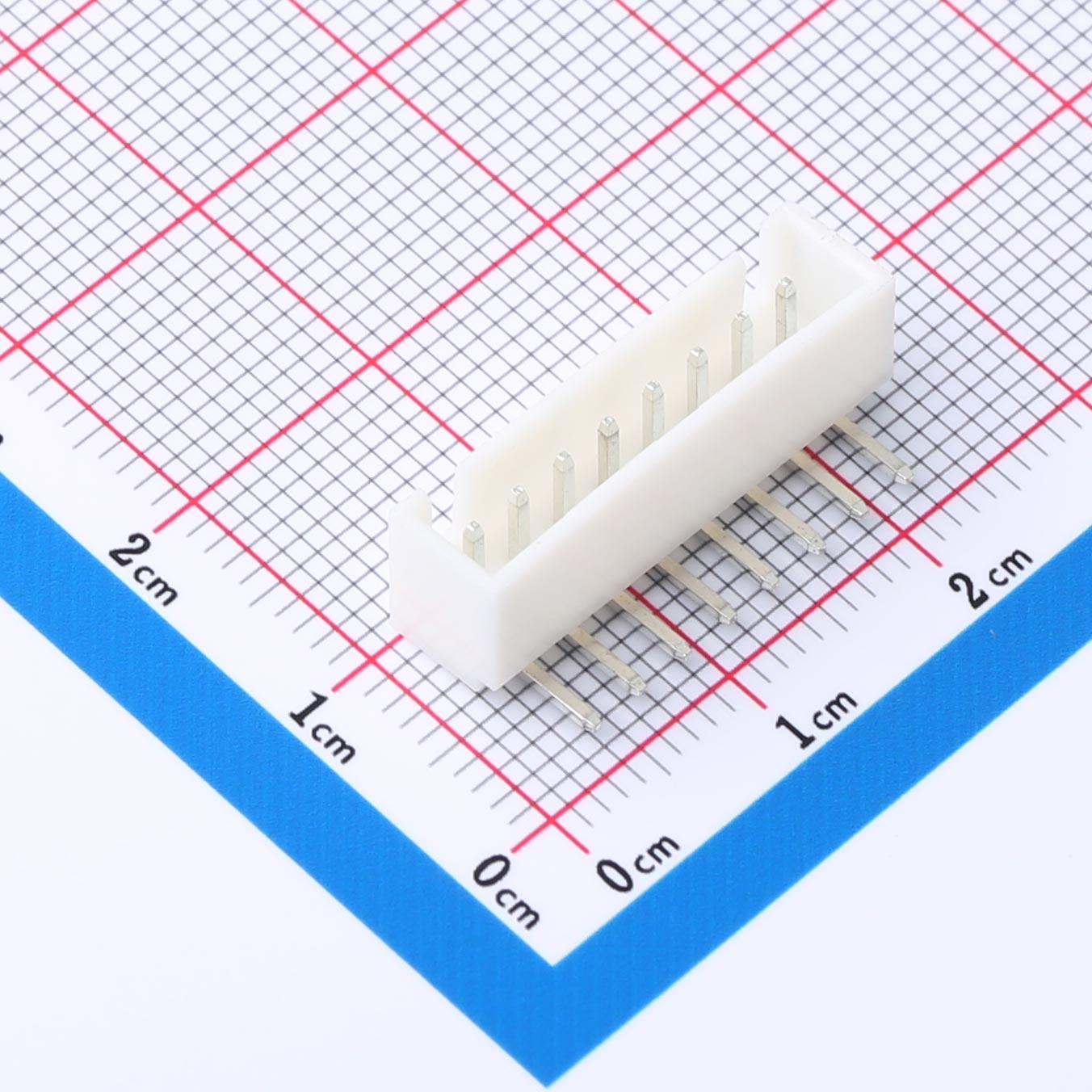

2.54mm Pitch Wire-to-Board Connector 1x8P--KH-A2504-08AW
Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25℃ to +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.54mm pitch, 1x8P wire-to-board male header
● HA right-angle pin structure with locking latch
● P=2.5mm solder mount
● Tin-plated contacts, white housing
● Anti-vibration mating mechanism
Product Benefits
● Ideal for low to mid-pin signal transmission
● Compact profile fits tight enclosures
● Secure mechanical engagement via latch
● Simple installation on standard PCBs
● Maintains electrical contact in mobile systems
Product Applications
● Sensor integration units
● Smart lighting controls
● Mini wireless communication modules
● Battery monitoring circuits
