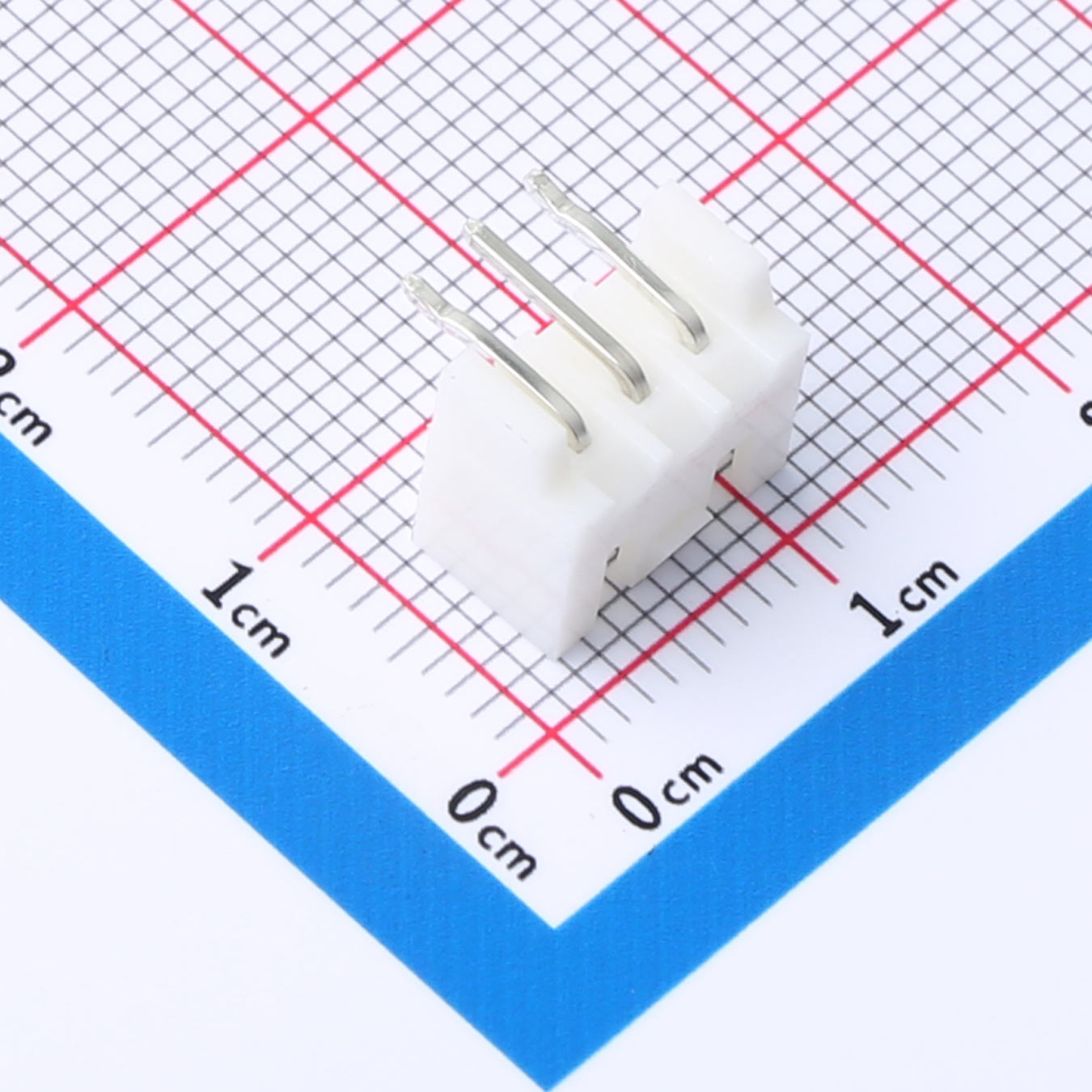

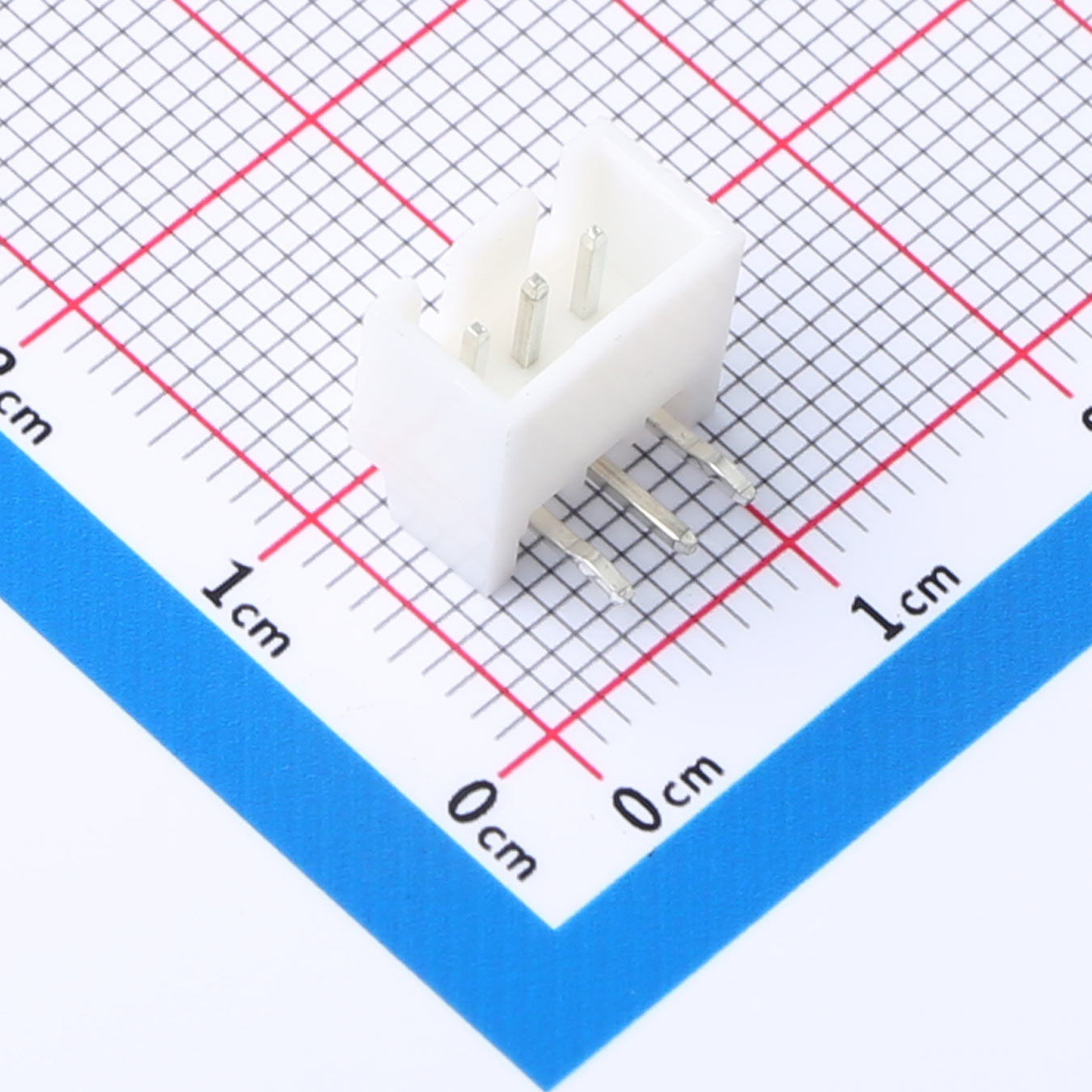

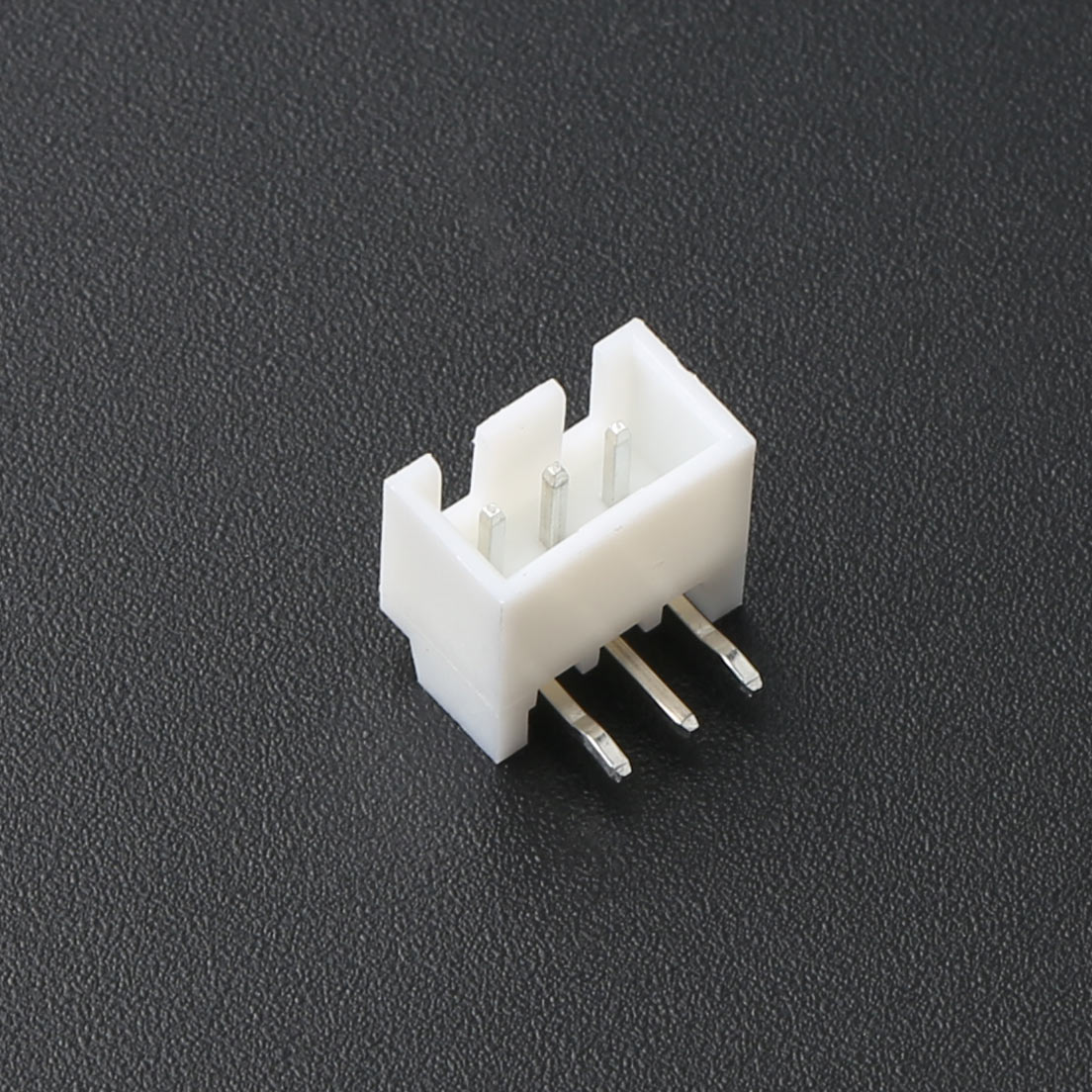

2.54mm Pitch Wire-to-Board Connector, 1x3P, Locating Angled Pin, KH-A2504-R-03AWD
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.54mm pitch for reliable wire-to-board connection
● 1x3P configuration for minimal space usage
● Angled locating pin for accurate alignment
● DIP type for PCB mounting
● 3A AC/DC current rating
● 250V AC/DC voltage rating
● -25℃ to +85℃ temperature range
● 20mΩ Max contact resistance
● 1000MΩ Min insulation resistance
Product Benefits
● Stable, dependable connection
● Compact design for tight spaces
● Supports high current and voltage requirements
● Works in a wide range of temperatures
● Low contact resistance for efficiency
● Superior insulation for safety
Product Applications
● Consumer electronics
● Automotive electronics
● Industrial systems
● Power distribution
● Household appliances
● Medical devices
