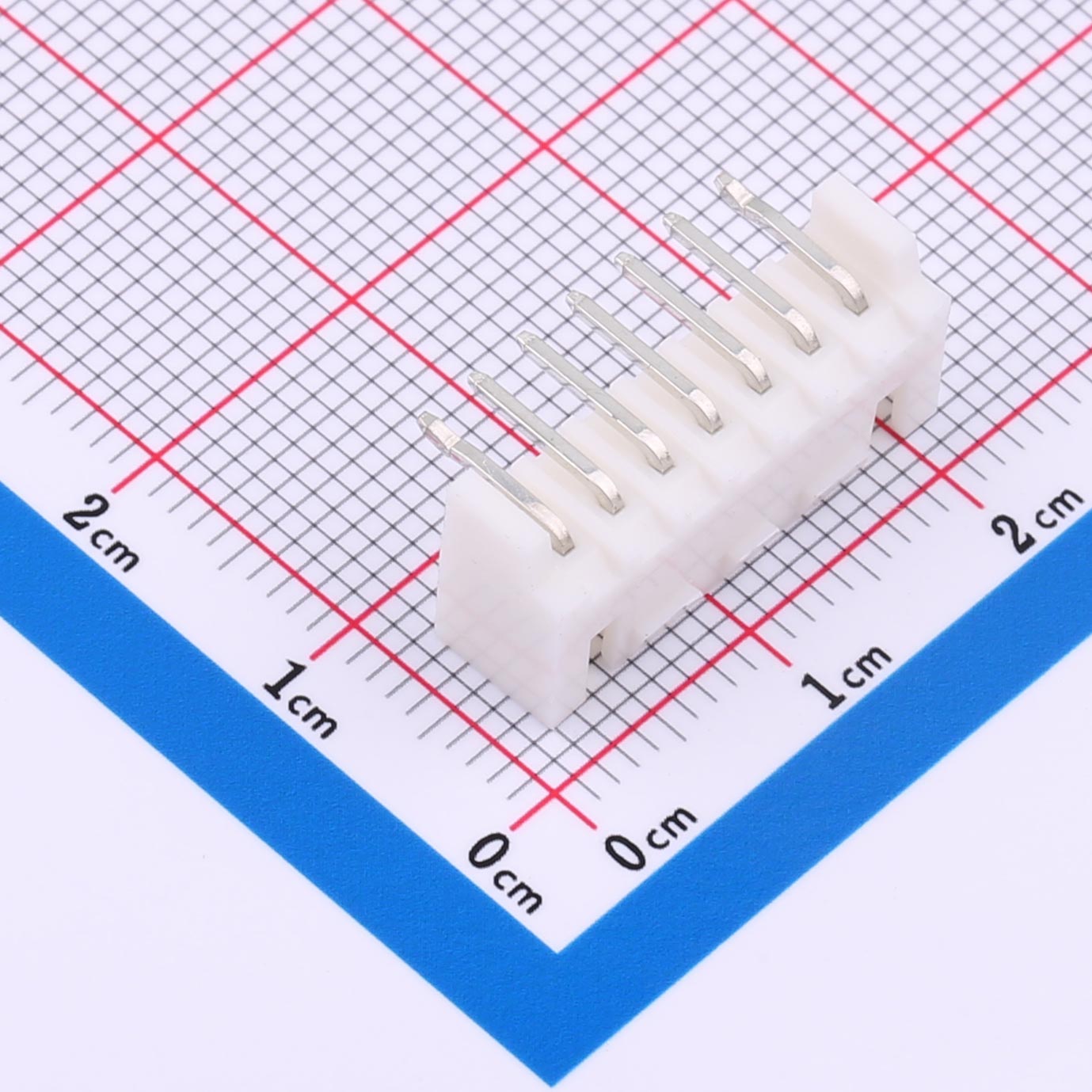

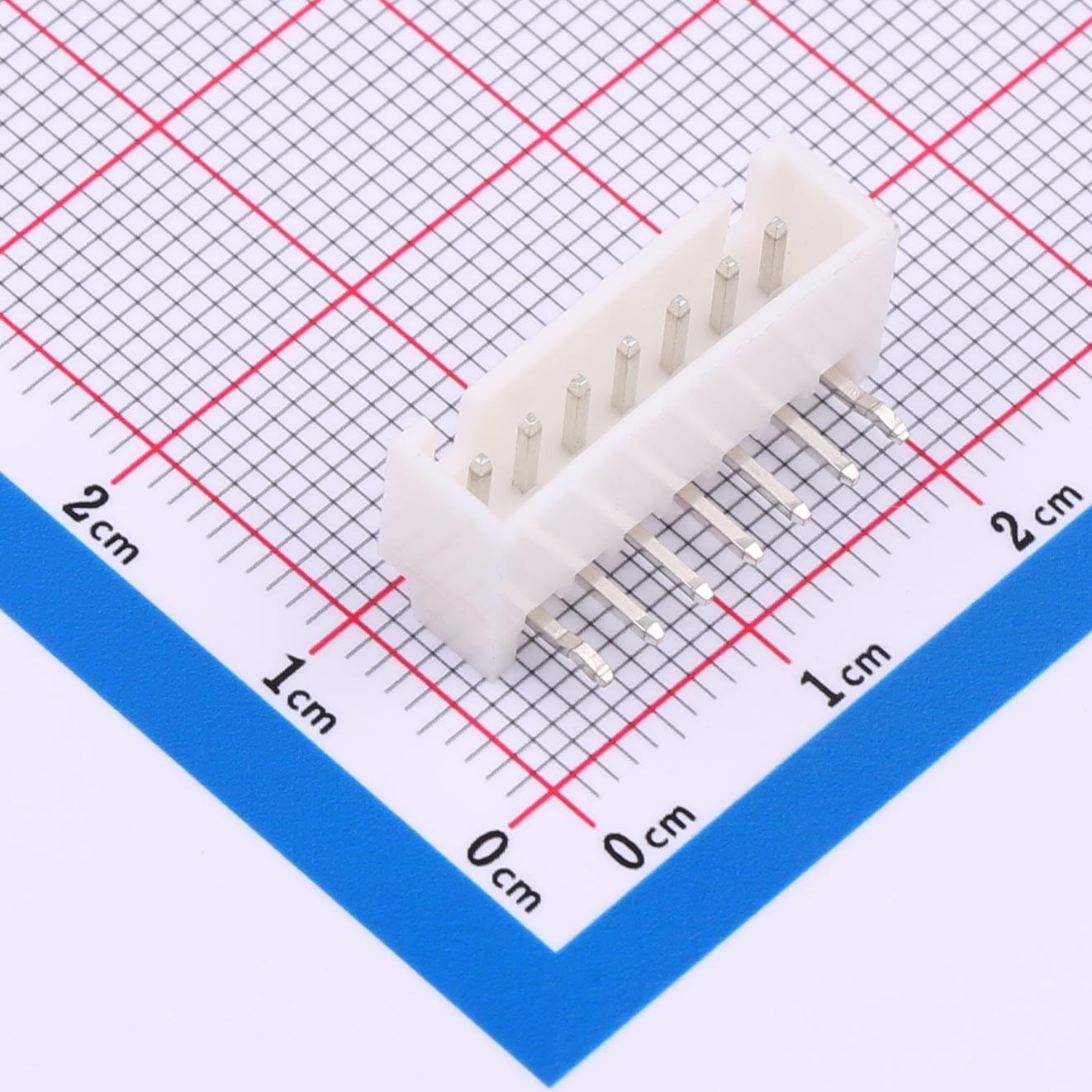

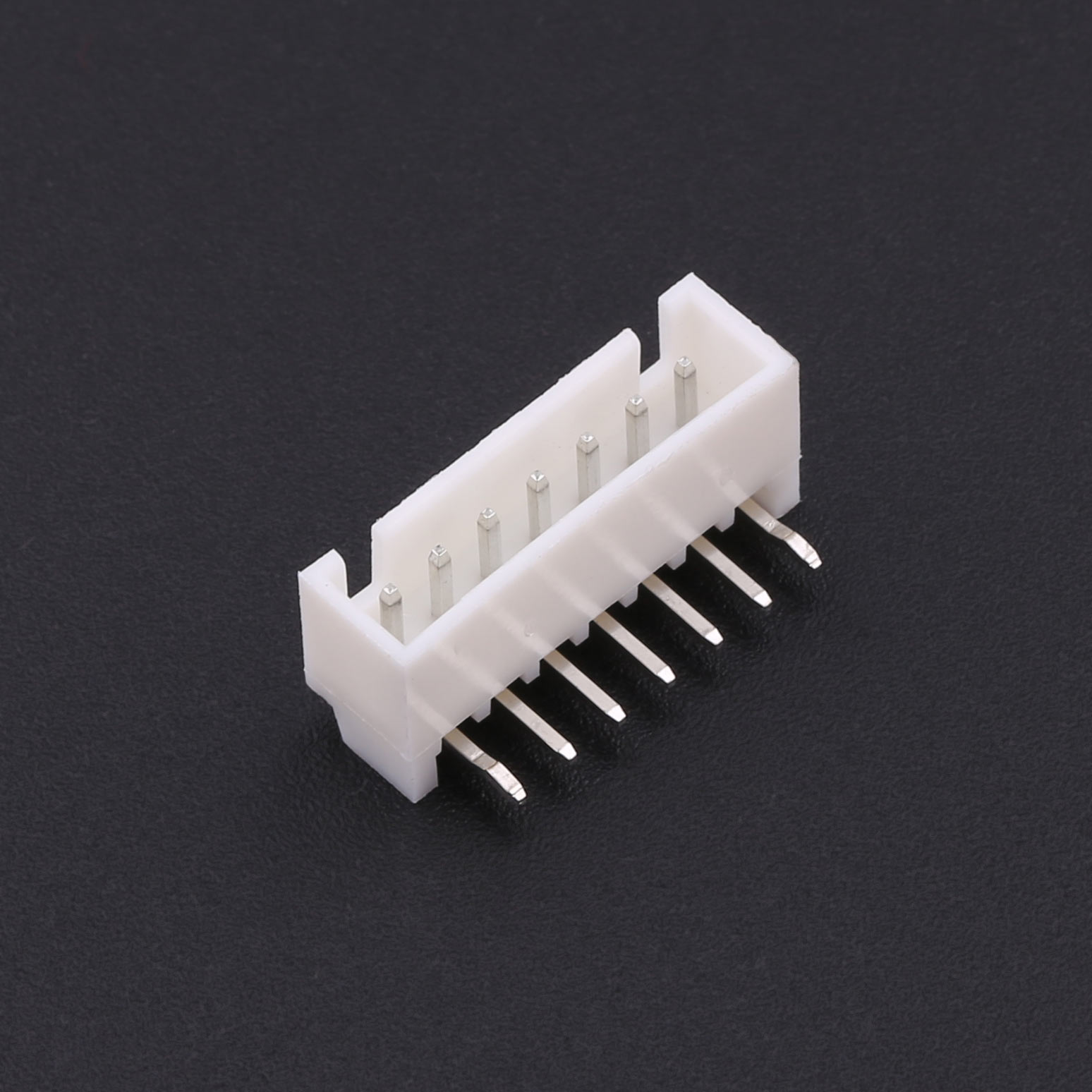

2.54mm Pitch Wire-to-Board Connector, 1x7P, Locating Angled Pin, KH-A2504-R-07AWD
Current Rating: 3A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: -25℃ ~ +85℃
Contact Resistance: 20mΩ Max
Insulation Resistance: 1000MΩ Min
Product Features
● 2.54mm pitch for robust wire-to-board connection
● 1x7P configuration for optimized space usage
● Angled locating pin for alignment accuracy
● DIP type for easy mounting on PCB
● 3A AC/DC current rating
● 250V AC/DC voltage rating
● Operational temperature from -25℃ to +85℃
● 20mΩ Max contact resistance
● 1000MΩ Min insulation resistance
Product Benefits
● Stable and secure connections
● Compact and efficient design
● Supports high current and voltage needs
● Wide temperature range compatibility
● Low contact resistance for better power transfer
● Enhanced insulation resistance for safety
Product Applications
● Consumer electronics
● Automotive control systems
● Industrial automation
● Power supply solutions
● Home appliances
● Medical devices
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
