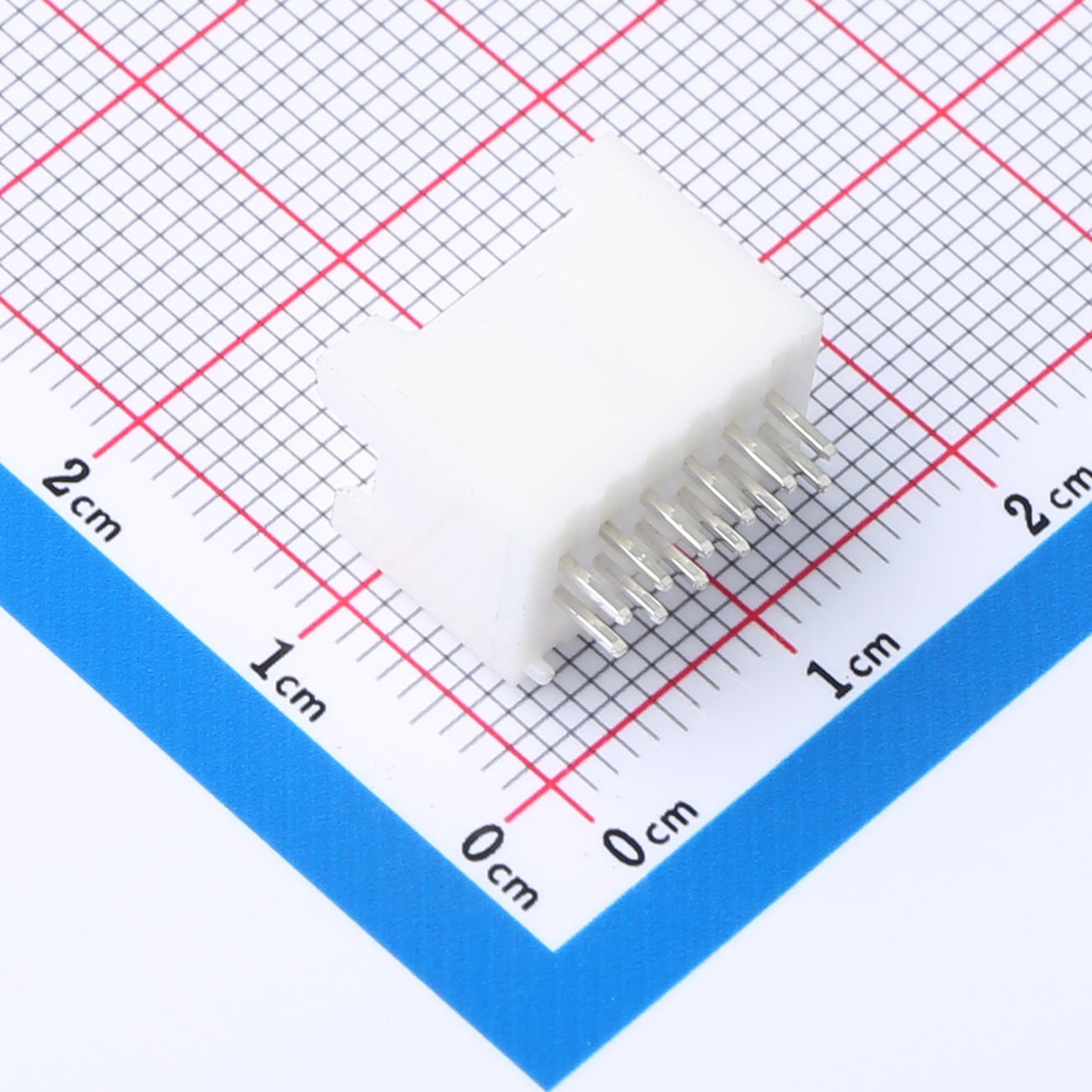

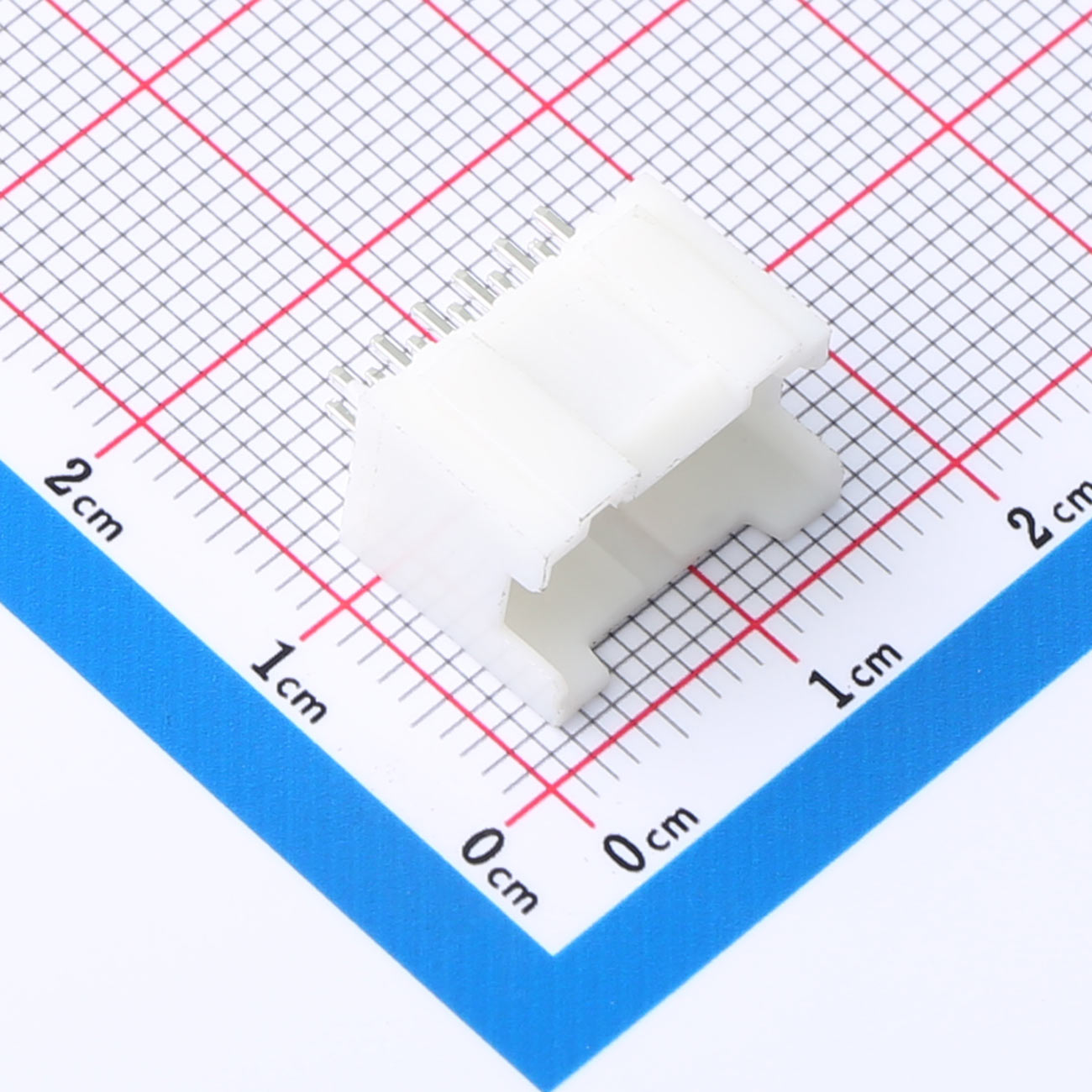

2mm Pitch Wire-to-Board Connector, 6-Pin 2-Row Straight Pin, KH-A2015-2X06A
Current Rating: 3A (AC/DC)
Voltage Rating: 250V (AC/DC)
Temperature Range: -25℃ to +85℃
Contact Resistance: ≤ 20 mΩ
Insulation Resistance: ≥ 1000 MΩ
Product Features
● 2.00mm pitch, 2x6P (12 pins)
● Straight, through-hole dual-row header
● Brass contacts with tin plating
● Miniature form factor for tight PCBs
● Flame-retardant high-performance housing
Product Benefits
● Excellent for modular connections
● Enhances board layout flexibility
● Supports compact and lightweight designs
● Maintains connectivity in mobile applications
● Durable under daily use cycles
Product Applications
● Wearable electronics
● Robotics sensor interface
● Bluetooth control boards
● Game controller PCBs
● Small power adapters
