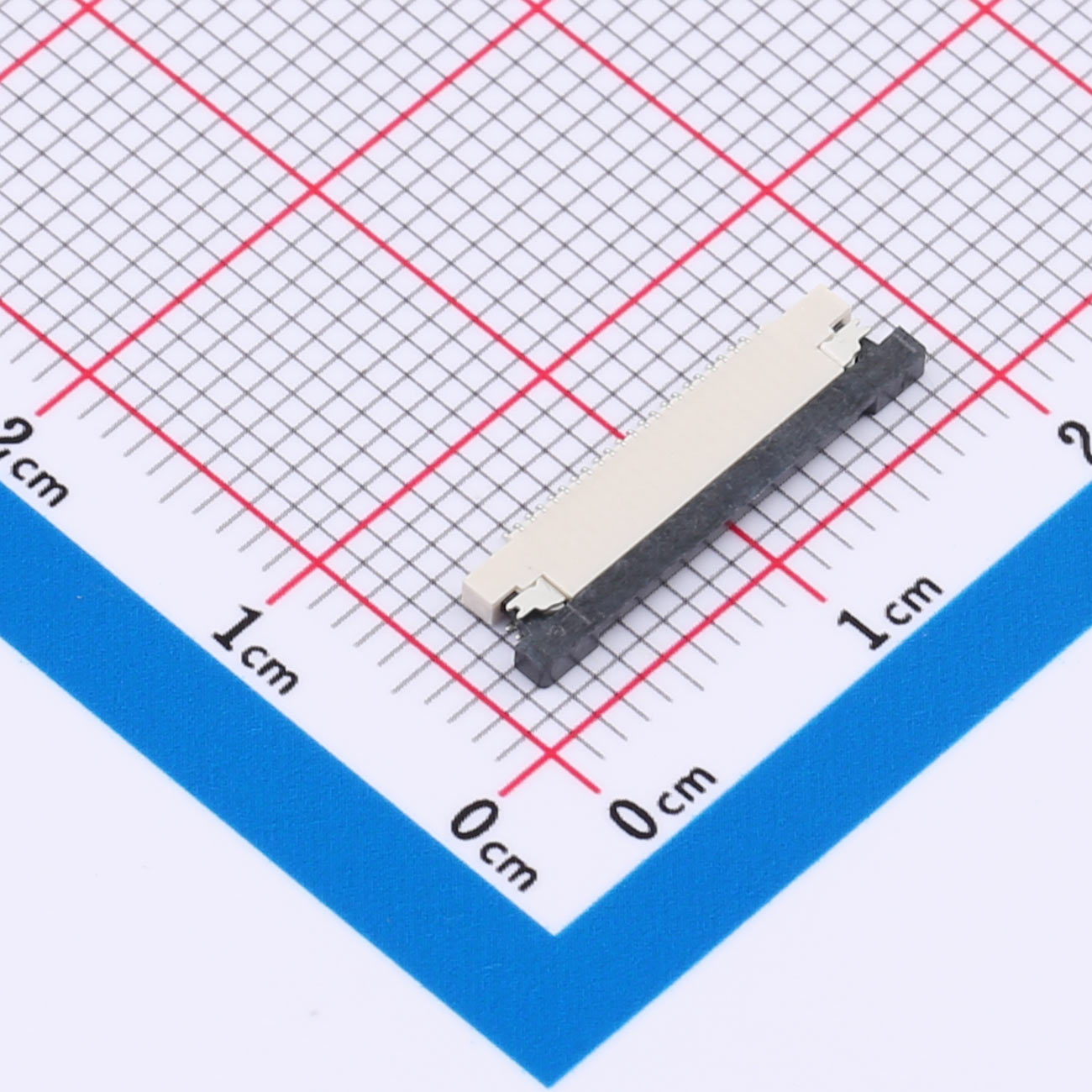

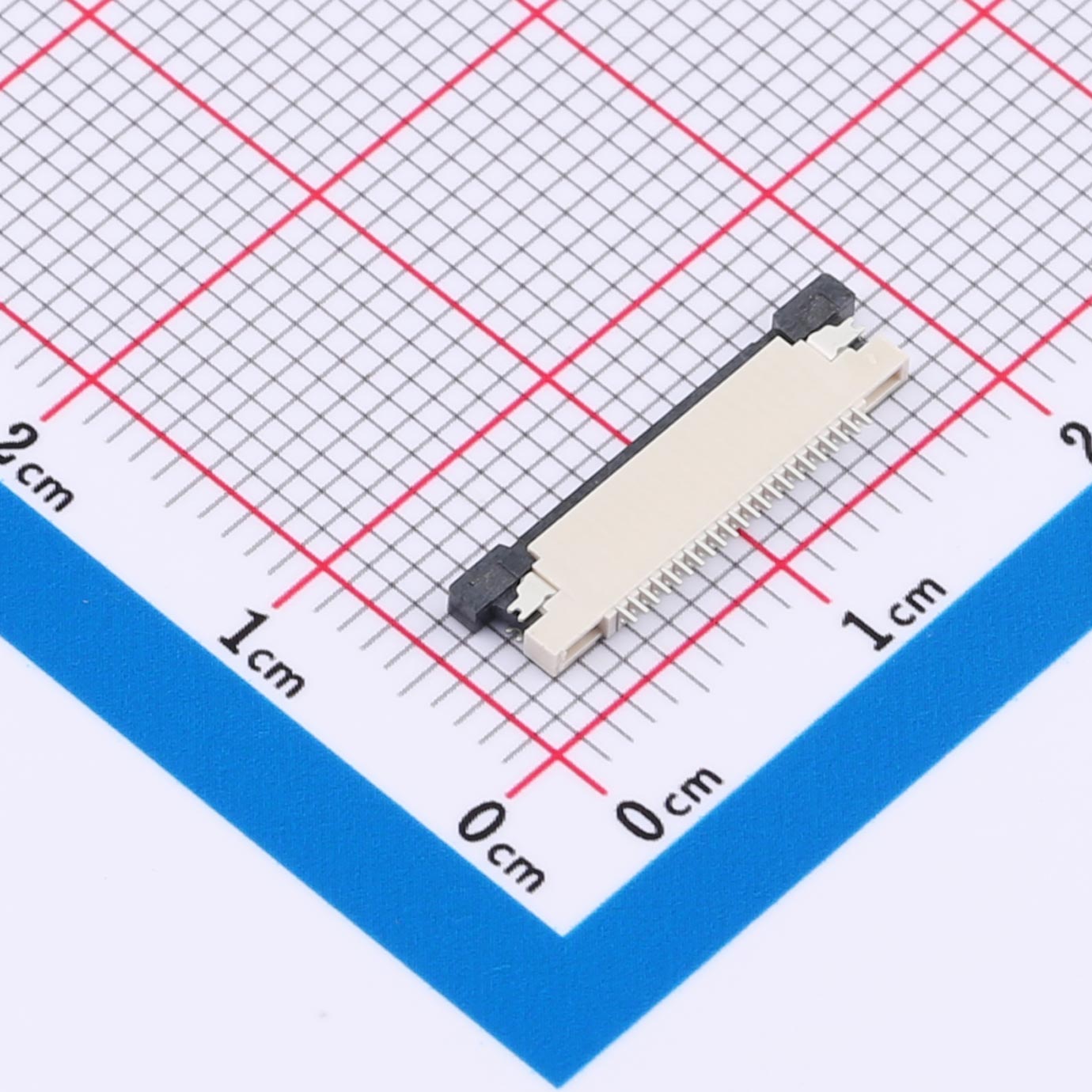

FFC/FPC Connector, 0.5mm Pitch, 22P,?KH-CL0.5-H1.2-22PIN-SMT
Temperature Range: -25℃ to 85℃
Rated Voltage: 50V AC/DC (equivalent)
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥500MΩ
Plating: Full Matte Tin on Terminals
Product Benefits
● Compact design for space-saving applications
● High reliability with low contact resistance
● Excellent insulation resistance ensures durability
● Wide temperature range for versatile use
● Full matte tin plating for improved solderability
● Easy integration into automated assembly processes
Product Applications
● Consumer electronics such as smartphones and tablets
● Industrial automation equipment
● Medical devices requiring compact connectivity
● Telecommunications devices for efficient data transfer
● Automotive applications with space constraints
● Home appliances with flexible circuit connections
Name
Title
Description
Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
