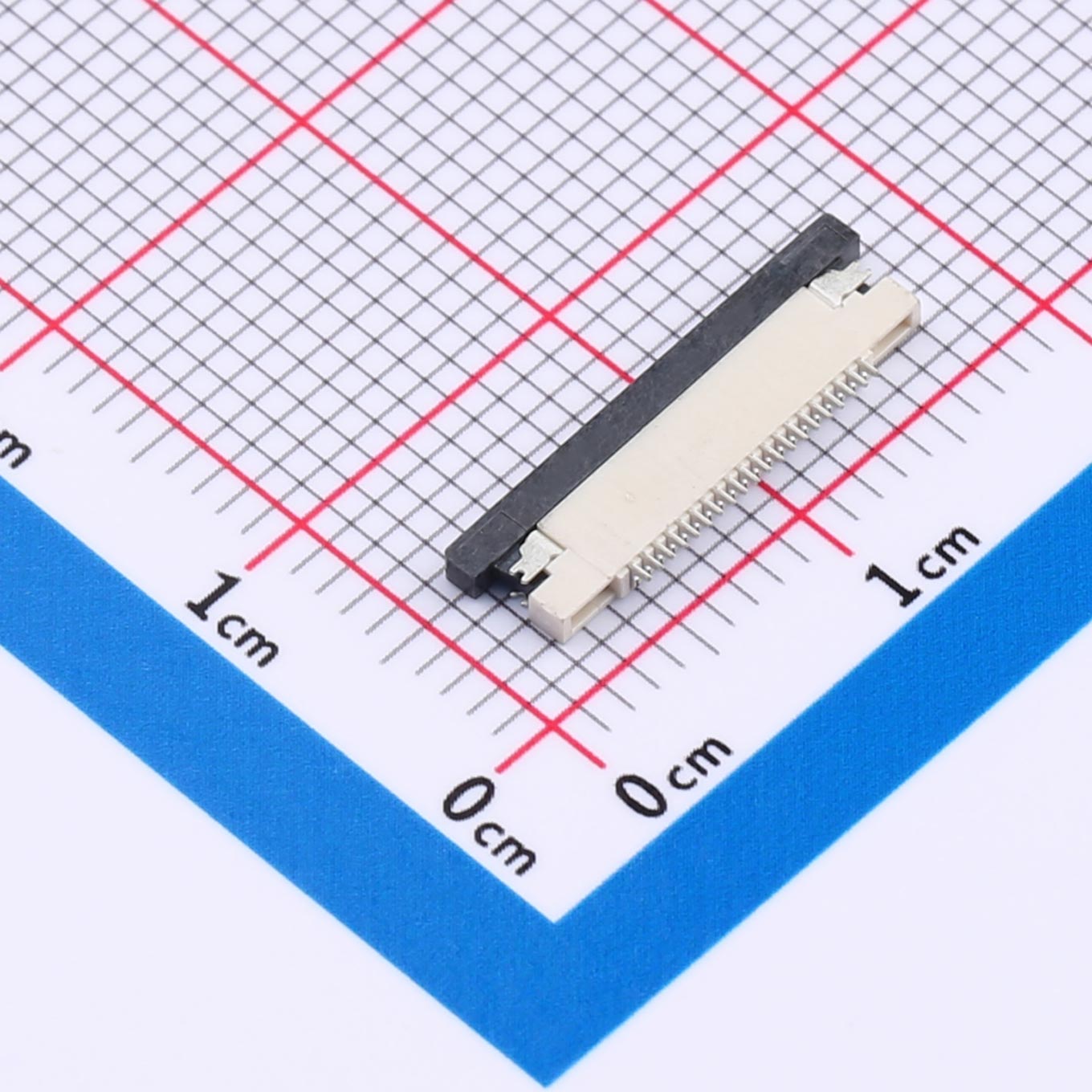

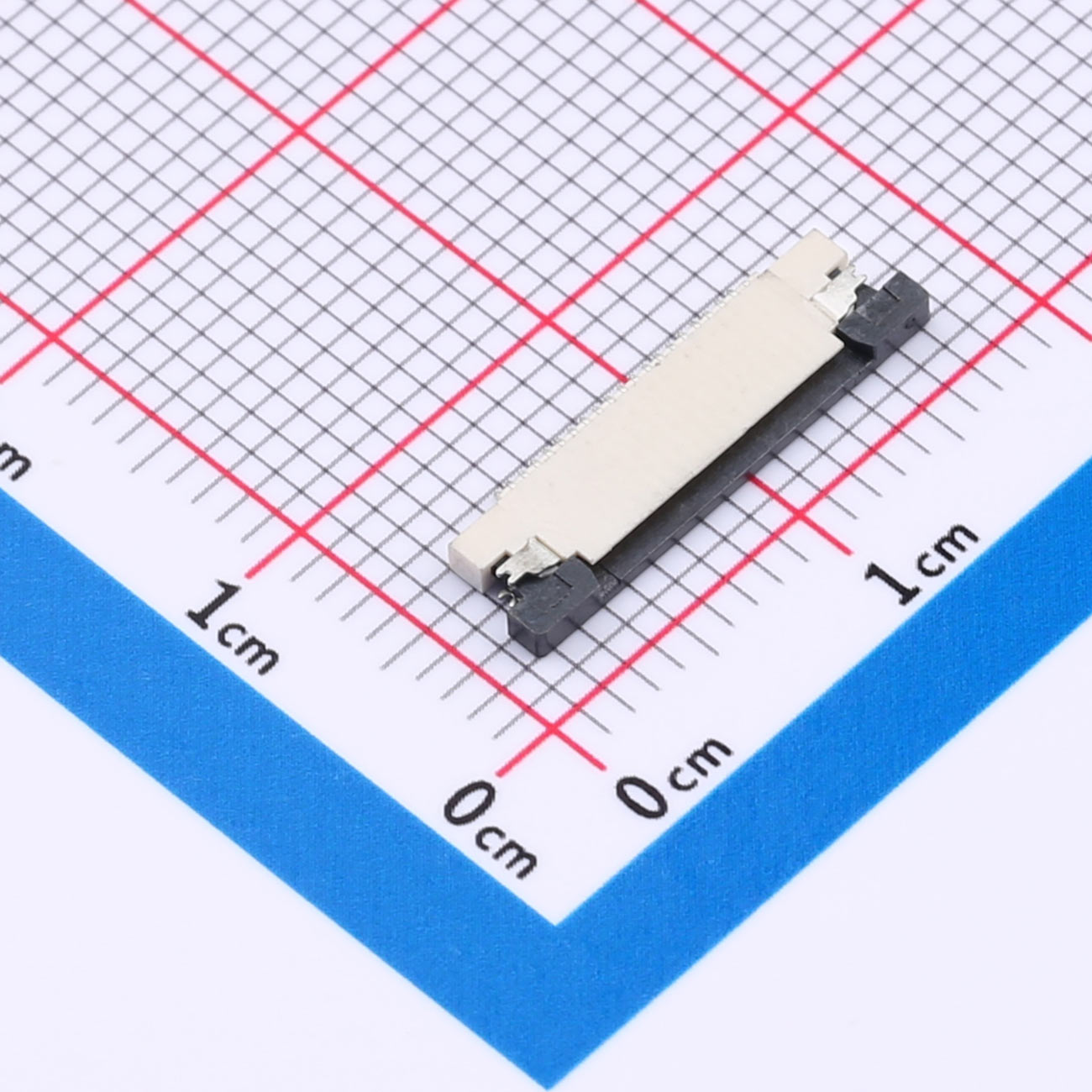

FFC/FPC Connector, 0.5mm Pitch, 20P, KH-CL0.5-H1.2-20PS-SMT
Temperature Range: -25℃ to 85℃
Rated Voltage: 50V AC/DC (equivalent)
Contact Resistance: ≤0.03Ω
Insulation Resistance: ≥500MΩ
Plating: Full Matte Tin on Terminals
Product Benefits
● Compact design saves PCB space
● Secure top contact for stable connection
● 0.5mm pitch supports high-density applications
● Low profile 1.2mm height enhances device slimness
● Surface mount design ensures easy automated assembly
● Strong retention force for reliable performance
● High-temperature resistance for durable operation
● Tape & reel packaging for efficient production
Product Application
● Smartphones and tablets
● Wearable electronic devices
● Consumer electronics
● Medical equipment
● Automotive infotainment systems
● Industrial control panels
● Smart home devices
● Communication equipment
