Kinghelm USB 3.0 Connector KH-3.0AF90CB-14.2SMT: Design for Space Saving

In the realm of modern electronic device design, high-speed data transmission and space optimization have emerged as two fundamental requirements. The AF90 Degree 3.0 Sunk Board SMT Edgeless KH-3.0AF90CB-14.2SMT connector represents a professional solution developed specifically to address these market demands. As a USB 3.0 standard-compliant interface component, this product combines innovative structural design with advanced manufacturing processes to deliver 5Gbps high-speed transmission performance while significantly improving space utilization and production assembly efficiency. It provides reliable connectivity solutions for consumer electronics, computer peripherals, automotive electronics, and industrial control systems.

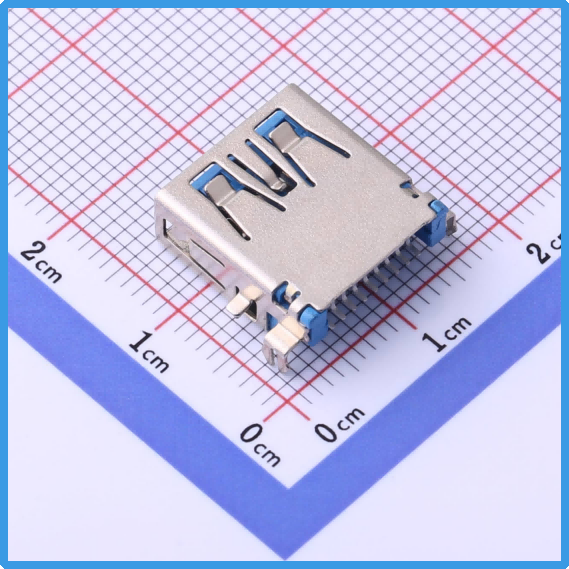

Kinghelm KH-3.0AF90CB-14.2SMT Product Image

The most distinctive physical feature of this connector is its 90-degree right-angle plug design. Compared to traditional vertical connectors, this configuration reduces the interface's vertical footprint by approximately 40%, making it particularly suitable for space-constrained mobile devices such as ultra-thin laptops and tablets. In practical applications where PCB-to-enclosure clearance is limited, the right-angle configuration effectively prevents mechanical interference between the interface and housing while providing more rational cable routing space. Engineering tests demonstrate that this design maintains signal integrity while achieving an industry-leading overall height of just 3.0mm for the interface module, a dimensional parameter that makes it compatible with the structural requirements of most slim electronic devices currently on the market.

From a manufacturing perspective, the product employs SMT (Surface Mount Technology) for assembly, offering multiple advantages over conventional through-hole technology. On automated production lines, the surface mount process achieves placement speeds exceeding 200 connectors per minute with placement accuracy reaching ±0.05mm, significantly improving production efficiency and consistency. The sunk board design embeds the main body of the connector into the PCB, not only reducing overall installation height but also enhancing mechanical strength between the connector and circuit board. Professional thermal simulation analysis shows that this structure limits temperature rise to below 15°C under continuous 1.5A current load, performance markedly superior to industry averages. The edgeless design optimizes mold structure to eliminate burrs common in traditional connectors, reducing installation friction by approximately 30% to protect connector contacts and prevent PCB pad damage.

Electrical performance parameters demonstrate the product's professional standards, with contact resistance strictly controlled below 30 milliohms to minimize energy loss during signal transmission. In 100V AC withstand voltage tests, the product exhibits excellent insulation performance with stable insulation resistance values exceeding 100 megohms. Particularly noteworthy is its 1,500-cycle mating durability, achieved through special phosphor bronze contact materials and optimized contact force design. Accelerated aging tests under harsh conditions of 85°C/85% relative humidity for 500 hours confirm the connector maintains stable contact impedance and mechanical performance, making it ideal for demanding applications such as automotive electronics where environmental resistance is critical.

For signal integrity, the connector incorporates differential pair shielding to effectively suppress electromagnetic interference during transmission. Test data shows insertion loss below -1.2dB and return loss better than -15dB at 5GHz frequency, fully meeting USB 3.0 SuperSpeed transmission protocol requirements. The engineering team specifically optimized grounding structures to reduce radiated noise by approximately 6dB compared to similar products, an improvement particularly valuable for medical equipment and industrial control systems requiring EMC certification.

Application versatility represents another major advantage. In consumer electronics, its compact structure provides greater layout flexibility for smartphone circuit boards; in automotive applications, excellent vibration resistance ensures stable operation in engine compartment environments; for industrial automation equipment, its wide temperature range (-40°C to +85°C) guarantees reliability under extreme conditions. Actual implementation by a leading laptop manufacturer demonstrates 22% space savings in motherboard USB interface areas and a 60% reduction in post-sale complaints related to connection issues.

To ensure optimal performance, users should pay attention to several key usage considerations. Installation requires strict control of reflow soldering temperature profiles, with peak temperatures recommended below 260°C for no more than 10 seconds. PCB design should incorporate sufficient grounding copper area for optimal heat dissipation. Daily use should avoid frequent mating cycles, with guided socket structures recommended to extend service life. For applications requiring environmental protection, specially developed sealing gasket accessories are available.

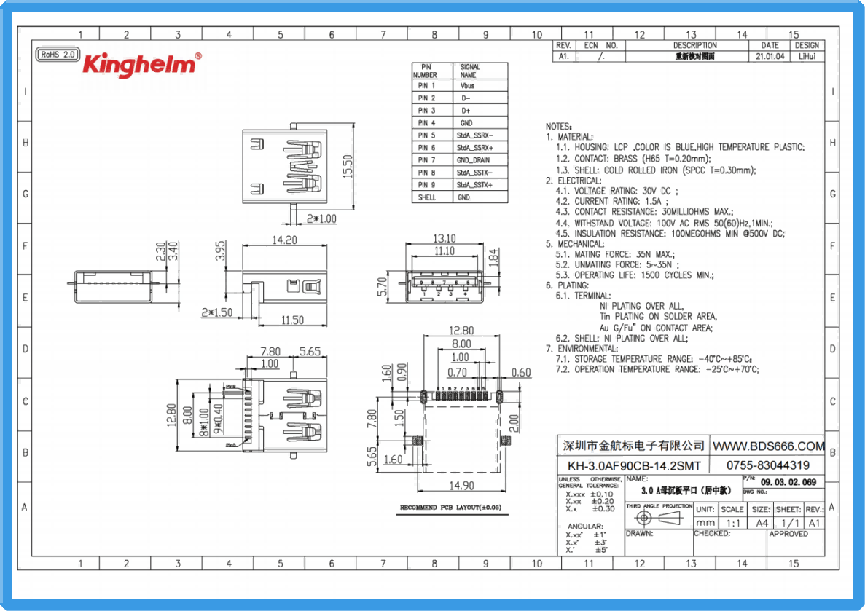

Kinghelm KH-3.0AF90CB-14.2SMT Specification

Market response indicates the connector has obtained USB-IF certification and completed compatibility testing with mainstream chip platforms. Over 50 global equipment manufacturers have designated it as a preferred component, with annual shipments exceeding 20 million units. As USB 3.0 interfaces proliferate in IoT devices, the product's application scope continues to expand. Future iterations will focus on increasing transmission speeds to 10Gbps and developing smaller versions for wearable devices.
