Kinghelm FPC Connector KH-FG0.5-H2.0-23PIN-SMT: Miniaturized High-Density Connection Solution

In today's era where electronic devices increasingly pursue thinness, compactness, lightweight design, and functional integration, reliable connections between internal components face unprecedented spatial and performance challenges. Flexible Flat Cables (FPC), leveraging their exceptional bendability and space-saving properties, have become the mainstream choice for internal wiring in modern precision electronic equipment. As the critical bridge connecting FPCs to circuit boards, the performance and design of the connector are paramount. the kinghelm understands this deeply and has meticulously engineered the KH-FG0.5-H2.0-23PIN-SMT FPC connector. This product integrates ultra-fine pitch, high-density pin configuration, secure locking mechanisms, and advanced mounting technology, specifically designed to address the connection challenges in high-density, miniaturized electronic devices. Utilizing a precise 0.5mm pitch design and offering 23 signal channels (23PIN), it innovatively combines a flip-lock, bottom-contact H2.0 SMT (Surface Mount Technology) mounting method. This enables rapid, precise, and highly efficient automated assembly processes. Its core mission is to provide a stable, reliable, and easily manufacturable electrical connection solution within extremely limited space constraints for increasingly complex and miniaturized electronic systems such as wearables, ultra-thin laptops, high-end smartphone camera modules, and precision medical instruments, serving as the invisible backbone supporting device miniaturization and high performance.

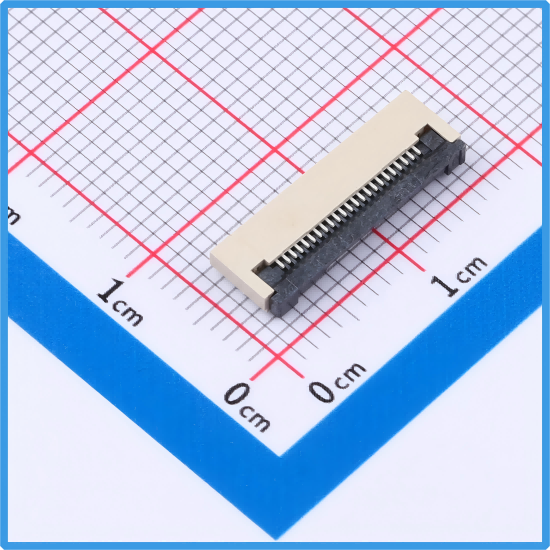

Kinghelm KH-FG0.5-H2.0-23P-SMT Product Image

Optimized Space Utilization: 0.5mm Ultra-Fine Pitch & High-Density 23-Pin Full-Function Configuration
The core advantage of the kinghelm KH-FG0.5-H2.0-23P-SMT FPC connector lies first in its breakthrough space efficiency. The 0.5mm ultra-fine pitch represents the advanced level in the current FPC connector field, meaning more signal contacts can be accommodated per unit length. The compact arrangement of these 23 precision contacts (23PIN) endows the connector with robust signal transmission capabilities, meeting the demands of modern complex electronic modules for parallel transmission of multiple signals (e.g., data, control, power). This high-density design is an inevitable requirement for the continued miniaturization and functional integration of devices. On space-critical PCBs, especially at motherboard edges or within highly space-constrained modules, this connector delivers maximum connection efficiency with minimal "footprint," effectively freeing up valuable layout space. This grants designers greater freedom when pursuing extreme thinness and powerful functionality, eliminating the need for painful compromises between performance and size.

Secure & Reliable Connection Assurance: Innovative Flip-Lock Structure
A connector must not only connect but also connect securely. Especially in mobile devices or applications subject to vibration and shock, connection stability directly impacts long-term device reliability and user experience. the kinghelm KH-FG0.5-H2.0-23P-SMT FPC connector employs a meticulously engineered flip-lock mechanism. This structure is intuitively simple to operate: the user simply inserts the FPC cable accurately into position and gently closes the flip-lock, which mechanically latches the FPC firmly within the connector housing. The flip-lock itself provides strong clamping force, effectively preventing FPC loosening, detachment, or poor contact caused by external pulling, vibration, or accidental impact during device operation. Compared to simple friction-based plug-in structures, this active locking method offers exponentially enhanced connection reliability. It forms a crucial line of defense ensuring fail-safe transmission of critical signals and significantly reduces the risk of device failure due to connection issues.

Efficient Assembly & Contact Optimization: Bottom-Contact Design & H2.0 Mounting Height
This connector features a unique "bottom-contact" design. This means the connector's conductive contacts are located at the base; when the FPC is inserted and locked by the flip-lock, the contacts engage "downward" to achieve tight contact with the FPC's gold fingers or conductive traces. This design offers multiple advantages: Firstly, it optimizes contact force distribution, facilitating more stable, lower-resistance electrical contact at ultra-fine pitch. Secondly, the bottom-contact approach, combined with the specific flip-lock structure, helps guide the FPC for precise insertion, reducing misalignment risk. Thirdly, it is highly compatible with SMT processes. The "H2.0" designation clearly indicates its post-mounting body height (or refers to a specific height specification). This optimized low profile not only meets stringent modern device requirements for internal component height but, more importantly, ensures the connector body has good thermal stability and soldering yield during SMT reflow processes. Simultaneously, it reserves ample operational space for FPC insertion and flip-lock actuation, simplifying subsequent assembly steps.

Cornerstone of Modern Manufacturing: SMT Surface Mount Technology Advantage
The "SMT" suffix in the name KH-FG0.5-H2.0-23P-SMT clearly denotes its core mounting method – Surface Mount Technology, the gold standard in modern electronics manufacturing. Compared to traditional Through-Hole Technology (THT), SMT offers revolutionary advantages: It enables fully automated, high-speed, precise component placement. High-precision pick-and-place machines rapidly and accurately position miniature components onto PCB pads, followed by single-pass soldering via reflow, boosting production efficiency exponentially. SMT components allow for double-sided mounting, significantly improving PCB space utilization. Components are smaller and lighter (e.g., this product's gross weight is only 0.512g), aiding device weight reduction. SMT solder joints are more reliable and consistent, reducing errors and potential defects from manual soldering. Choosing the SMT-packaged KH-FG0.5-H2.0-23P-SMT means customers can seamlessly integrate into efficient, high-yield, low-cost modern production lines, shortening time-to-market and enhancing overall manufacturing competitiveness, making it the ideal choice for large-scale mass production applications.

Perfect Unification of Miniaturization & High Reliability: A Future-Oriented Design Philosophy
In summary, the kinghelm KH-FG0.5-H2.0-23P-SMT FPC connector is far more than a simple aggregation of specifications; it embodies the kinghelm's profound understanding of connection requirements in the miniaturization era and offers a systematic solution. It masterfully integrates the space-saving capabilities derived from the 0.5mm ultra-fine pitch and 23-pin high density, the exceptional connection stability granted by the flip-lock mechanism, the contact reliability and assembly friendliness optimized by the bottom-contact design and H2.0 height, and the efficient automated production potential enabled by SMT technology, all within a miniaturized package. Every design detail serves the same goal: to provide the highest level of electrical connection performance and long-term operational reliability under extreme spatial constraints, while meeting the stringent demands of modern mass production for efficiency and consistency. This makes it not merely a component connecting two parts, but a key enabler empowering customer products to achieve thinner designs, more powerful functions, more stable quality, and more cost-effective production.

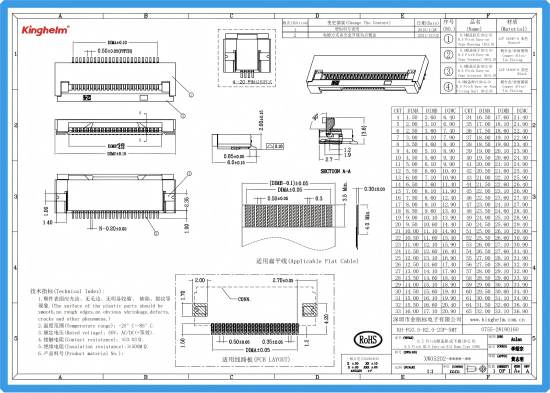

Kinghelm KH-FG0.5-H2.0-23P-SMT Specification

the kinghelm KH-FG0.5-H2.0-23P-SMT FPC connector, with its precise 0.5mm ultra-fine pitch and 23-pin high-density configuration, masters spatial constraints. Its innovative flip-lock mechanism builds a fortress of reliability. The unique bottom-contact design and optimized H2.0 mounting height ensure excellent electrical contact performance and smooth assembly experience. The application of SMT Surface Mount Technology paves the way for efficient, precise, high-yield modern mass production. This product crystallizes the kinghelm's profound technical expertise and accurate grasp of market trends. It perfectly demonstrates how to achieve the ultimate balance of functionality, reliability, and production efficiency under the demanding conditions of miniaturization. Whether for consumer electronics pursuing extreme thinness, or for applications with stringent requirements like industrial control, medical devices, or automotive electronics, the KH-FG0.5-H2.0-23P-SMT exhibits robust adaptability and outstanding value. Choosing it means selecting a trustworthy connection core for your next-generation high-density, miniaturized electronic devices, laying a solid foundation for winning multiple advantages in space, performance, and reliability in the fiercely competitive market. On the journey towards a miniaturized future, the kinghelm KH-FG0.5-H2.0-23P-SMT FPC connector undoubtedly stands as a benchmark product combining foresight and practicality.
