『Product Highlight』Kinghelm Tactile Switch KH-4.5X4.5X3.8H-STM: Ushers in New Era for Wearables

When smart glasses frames break the 4mm thickness barrier and hearing aids shrink to cochlear size, traditional electronic switches become the final obstacle to miniaturization. Kinghelm Electronics shatters this limitation with its disruptive innovation—the KH-4.5X4.5X3.8H-STM tactile switch. At a boundary-breaking height of just 3.8mm and weighing a mere 0.261g, this black cube smaller than a grain of rice rewrites the physics of human-machine interaction within micron-scale spaces, quietly transforming control logic in medical monitoring, AR glasses, and other cutting-edge fields.

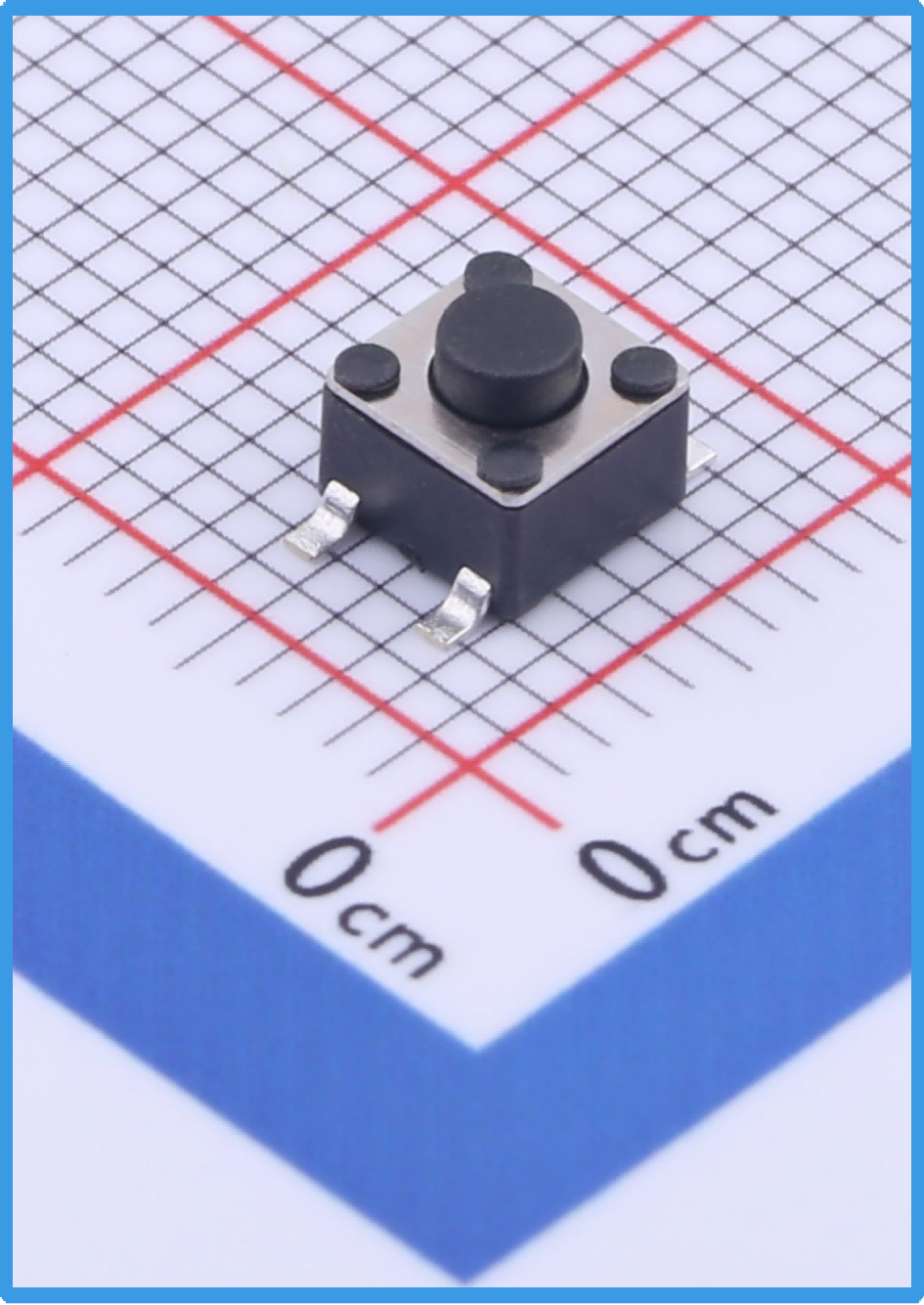

Kinghelm KH-4.5X4.5X3.8H-STM Product Image

Within the 4.5mm² micro-battlefield, gull-wing leads stage a precision revolution. The S-shaped pins, precision-stamped at 0.15mm thickness, spread like wings to expand solder contact area by 40%. Vibration tests by a smart wristband manufacturer reveal astonishing results: at 3,000 cycles per minute, the gull-wing design absorbs 200% more mechanical stress than traditional J-leads, conclusively ending chronic solder joint fractures in micro-devices. Hidden within the 3.8mm profile, a progressive dual-stage spring performs tactile magic—delivering definitive feedback at 180±25gf operating force with 0.3mm travel, allowing diabetes patients to adjust insulin pumps with feather-light touches while eliminating medical risks from accidental presses. This vertical SMT marvel even enabled one blood glucose monitor to shrink its PCB to coin-size, freeing crucial space for battery compartments.

In Kinghelm’s Dongguan lab, the KH-4.5X4.5X3.8H-STM withstands brutal trials. Through 500 hours in the battlefield of 85°C heat and 85% humidity, insulation resistance holds firm at >100MΩ, ensuring insulin pens function reliably during monsoon seasons. When temperatures plunge to -30°C, specially formulated silicone buttons retain elastic tactility with <5% force variance, guaranteeing precise AR glasses control on Alpine ski slopes. Most remarkable is the medical alcohol immersion test: after 24 hours of chemical assault, gold-plated contacts maintain resistance below 50mΩ—meeting stringent daily disinfection requirements.

This micro-switch’s cross-industry conquest reshapes three domains. In hearing aid cochlear modules, the 3.8mm height breaks industry constraints, enabling seamless "noise-canceling/environmental-sound" toggles at fingertips. Microsoft HoloLens competitors embed quad KH-4.5X4.5X3.8H-STM arrays along frames for blind-operation holographic menus. Within EV steering wheels, gull-wing pins absorb vibration energy to ensure 100% activation of autonomous driving buttons on bumpy roads. Every millimeter-precise response redraws trust boundaries in human-machine interaction.

Powering this micro-revolution is Kinghelm’s advanced micro-manufacturing ecosystem. Precision-stamped 0.08mm 304 stainless steel springs undergo 27-step forming to achieve ±2μm accuracy—one-thirtieth of a human hair. Contact surfaces feature Au/Ni composite plating (0.8μm gold over 2μm nickel armor), delivering triple corrosion resistance at 60% lower cost than pure gold. At Guangxi Luzhai factory, machine vision inspects pin geometry at 5 frames/second, completing 300 switches every 45 seconds. When a German medtech firm disassembled competing switches, they discovered Kinghelm’s stamping process extends spring life by 50%—recalibrating global precision benchmarks with Chinese excellence.

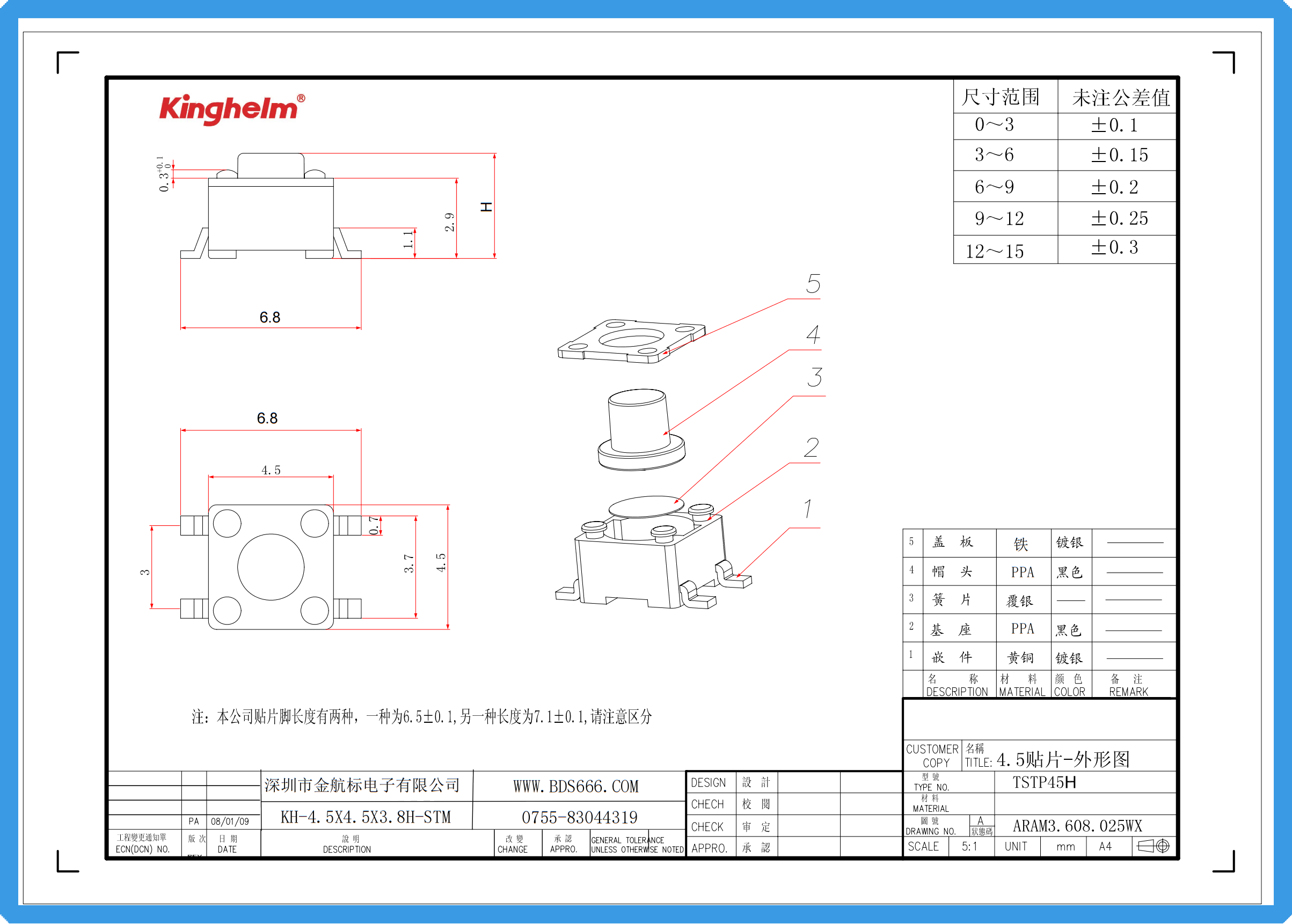

Kinghelm KH-4.5X4.5X3.8H-STM Specification

From sustaining life rhythms in medical devices to extending human senses via AR glasses, and safeguarding smart cabins on roads—the relentless pursuit of micro-perfection converges into world-changing momentum. Kinghelm Electronics delivers micron-scale reliability that transmits technology’s warmth through fingertips, imprinting a new chapter in human-machine interaction with the seal of Chinese innovation.
