『Product Highlight』Kinghelm Pin Header KH-1.27PH90-2X2P-L10.5: Precision Connection, Efficient Empowerment

In the wave of modern electronics striving for ultra-thin designs and high integration, a seemingly small component plays a vital role—the pin header. Serving as the bridge for reliable electrical connections between circuit boards or between a PCB and external devices, the design and performance of a pin header directly impact device stability, production efficiency, and final form factor.
Especially in applications with space constraints and high signal density requirements, selecting the right pin header solution becomes crucial. The Kinghelm KH-1.27PH90-2X2P-L10.5 dual-row right-angle pin header is a precision-engineered solution born to meet such demanding requirements.

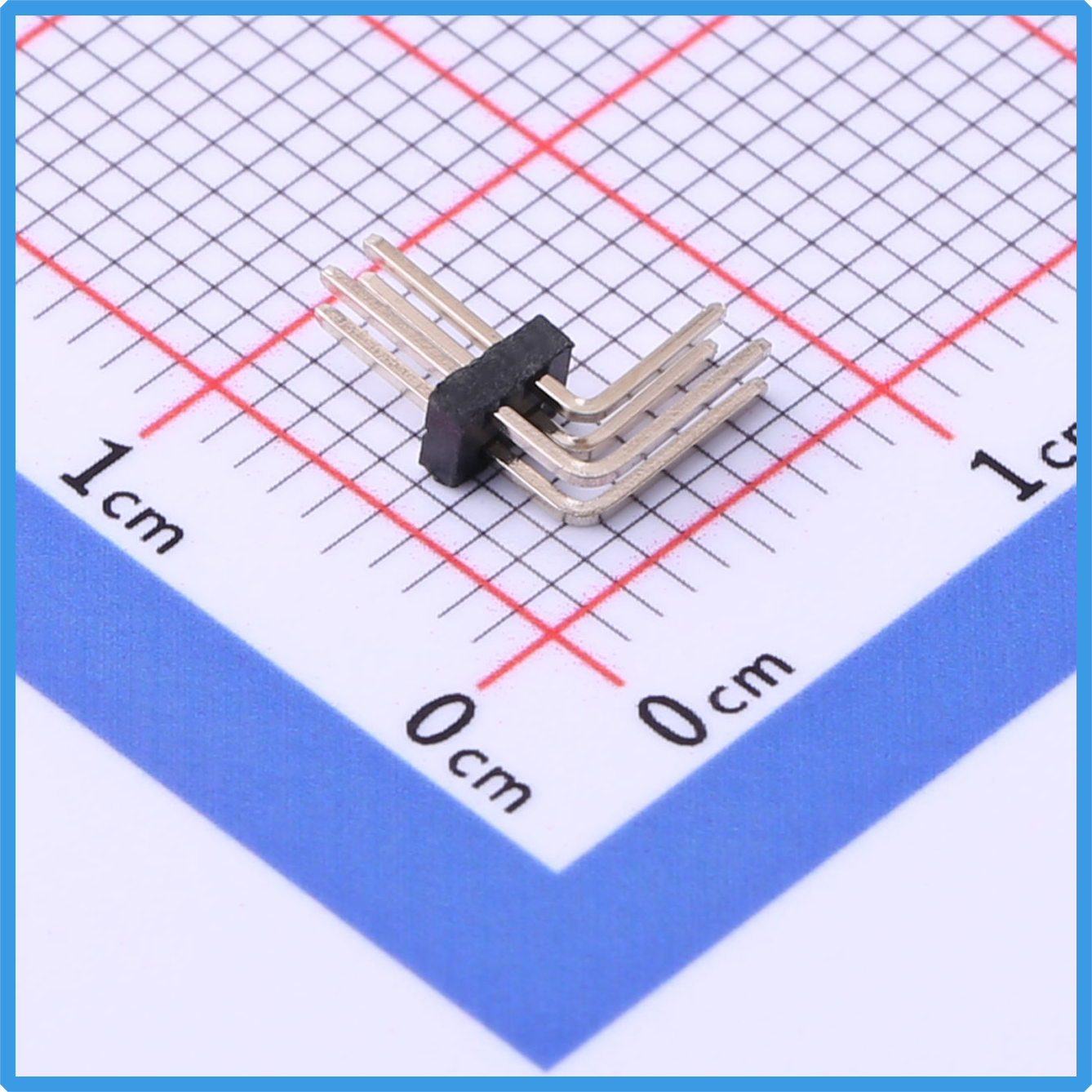

Kinghelm KH-1.27PH90-2X2P-L10.5 Product Image

1. Technical Highlights – Core Advantages of KH-1.27PH90-2X2P-L10.5

High-density precision pitch: Featuring the industry-standard 1.27mm pitch, this connector achieves effective 2x2P (dual-row, 4 pins) connections in an extremely compact space. Such high-density design is the foundation for modern consumer electronics—such as smart wearables, ultra-thin tablets, miniature sensor modules, and drone flight controllers—where every millimeter counts. Though small in size, it provides a clear and stable pathway for complex circuitry.

Stable right-angle design, optimized space usage: The unique 90° right-angle pin structure is a standout feature of this model. Compared to traditional straight pin headers, the right-angle design offers two major benefits:

1. Revolutionized space efficiency: Enables PCBs to be stacked or connected either vertically or horizontally rather than just flat-layered, significantly reducing Z-axis height or X/Y footprint—essential for miniaturization and slim designs.

2. Enhanced routing flexibility: Gives engineers greater freedom during PCB layout, allowing signal traces to exit from beneath or beside the connector, simplifying routing, reducing interference risk, and improving overall electrical performance.

Durable and reliable build: The pins adopt a square profile for better bending resistance and mechanical stability. The total pin length of 10.5mm (with a precise 4mm mating length) ensures accurate alignment and secure engagement. The 1mm insulator height provides sufficient insulation strength without wasting space. With a wide operating temperature range (-40°C to +105°C), it performs reliably in industrial control, automotive electronics, and outdoor devices. Its 1A current rating is ideal for most signal transmission and low-power supply needs.

Quality assurance: As a product of the Kinghelm brand, this pin header is manufactured under strict process controls and quality standards, ensuring product consistency, long-term reliability, reduced defect rates, and lower maintenance costs.

2. Core Application Scenarios – Where KH-1.27PH90-2X2P-L10.5 Excels

Miniaturized consumer electronics: Smartwatches, TWS earbud charging cases, ultra-thin mobile phone modules, and portable medical monitoring devices—where internal space is extremely limited—benefit from this high-density right-angle pin header for compact connections between mainboards, sub-boards, display modules, batteries, or sensor modules.

Industrial control & automation modules: PLC modules, I/O expansion cards, and compact motor drivers often require vertical plug-in or stacked configurations. The right-angle design facilitates modular assembly and maintenance, while the wide temperature range ensures stable performance in demanding factory environments.

Telecommunication & networking sub-boards: Routers, switches, and optical modules often need compact and reliable connections between interface boards and processing boards. Right-angle pin headers make effective use of chassis depth.

Drones & robotics core boards: Flight controllers, vision processing boards, and IMU sensor boards require lightweight yet reliable connections—this model, weighing only 0.08g, fits the bill perfectly.

Instrumentation & testing devices: Internal functional module connections and display panel integration benefit from the right-angle structure, which simplifies panel installation and cable management.

3. Choosing Kinghelm KH-1.27PH90-2X2P-L10.5 – Adding Value to Reliable Connections

In the highly competitive electronics manufacturing industry, selecting a high-quality connector often means lower overall costs (fewer repairs, higher yield, faster production) and stronger product competitiveness (smaller size, better performance, higher reliability).
The Kinghelm KH-1.27PH90-2X2P-L10.5 right-angle pin header, with its precise 1.27mm pitch, innovative 90° bent structure, rugged square pins, and wide operating temperature range, provides an efficient and reliable solution for high-density interconnection and space optimization challenges. It is more than just a connector—it is a key enabler for engineers to achieve compact designs, improve product quality, and seize market advantages.

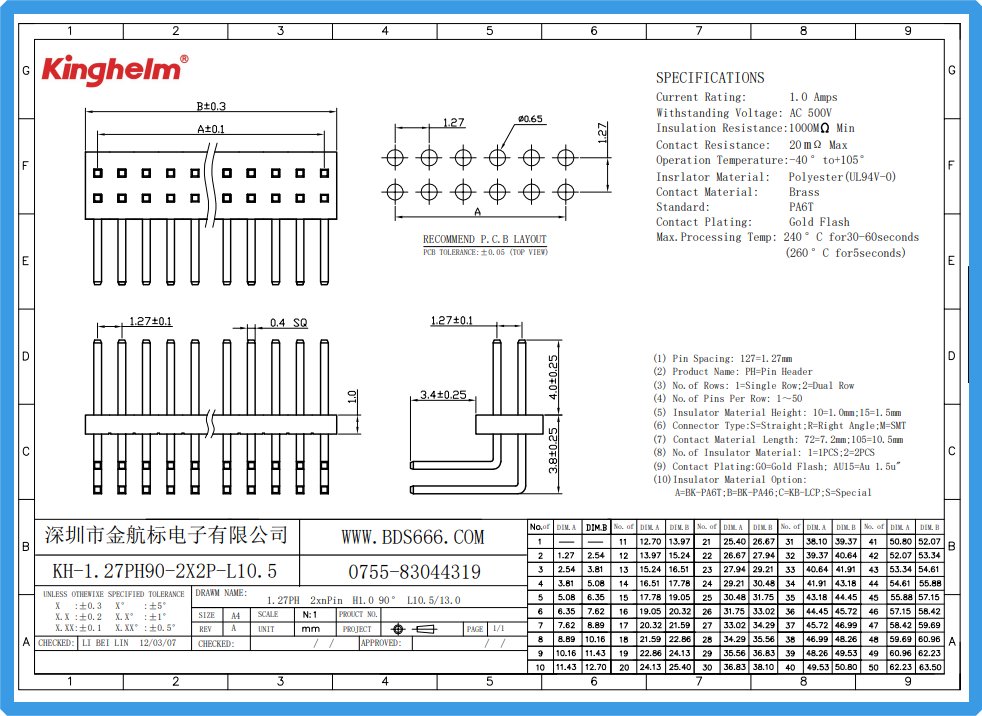

Kinghelm KH-1.27PH90-2X2P-L10.5 Specification

4. Conclusion

While we marvel at the thinness and power of modern electronics, we should not overlook the “bridge” role played by precision pin headers like the Kinghelm KH-1.27PH90-2X2P-L10.5. Quietly performing their duty, they ensure smooth current and data flow with millimeter-level precision and exceptional reliability, supporting the intricate architecture of the modern electronics world.
As the future of electronic design demands higher integration, smaller size, and stronger performance, the value of such high-performance, high-density right-angle pin headers will only become more evident.
