Kinghelm Pin Header KH-2PH180-1X4P-L8.7: High-Performance Pin Header for Reliable Electronic Connections

In modern electronics manufacturing, the choice of connectors directly impacts the stability and reliability of the final product. The KH-2PH180-1X4P-L8.7, developed by Kinghelm, is a high-quality pin header designed with a 2mm pitch, 1x4P pin configuration, and straight-through design, making it an ideal solution for fast installation and secure connections. Its 8.7mm pin length ensures a firm and consistent electrical interface across a wide range of applications.

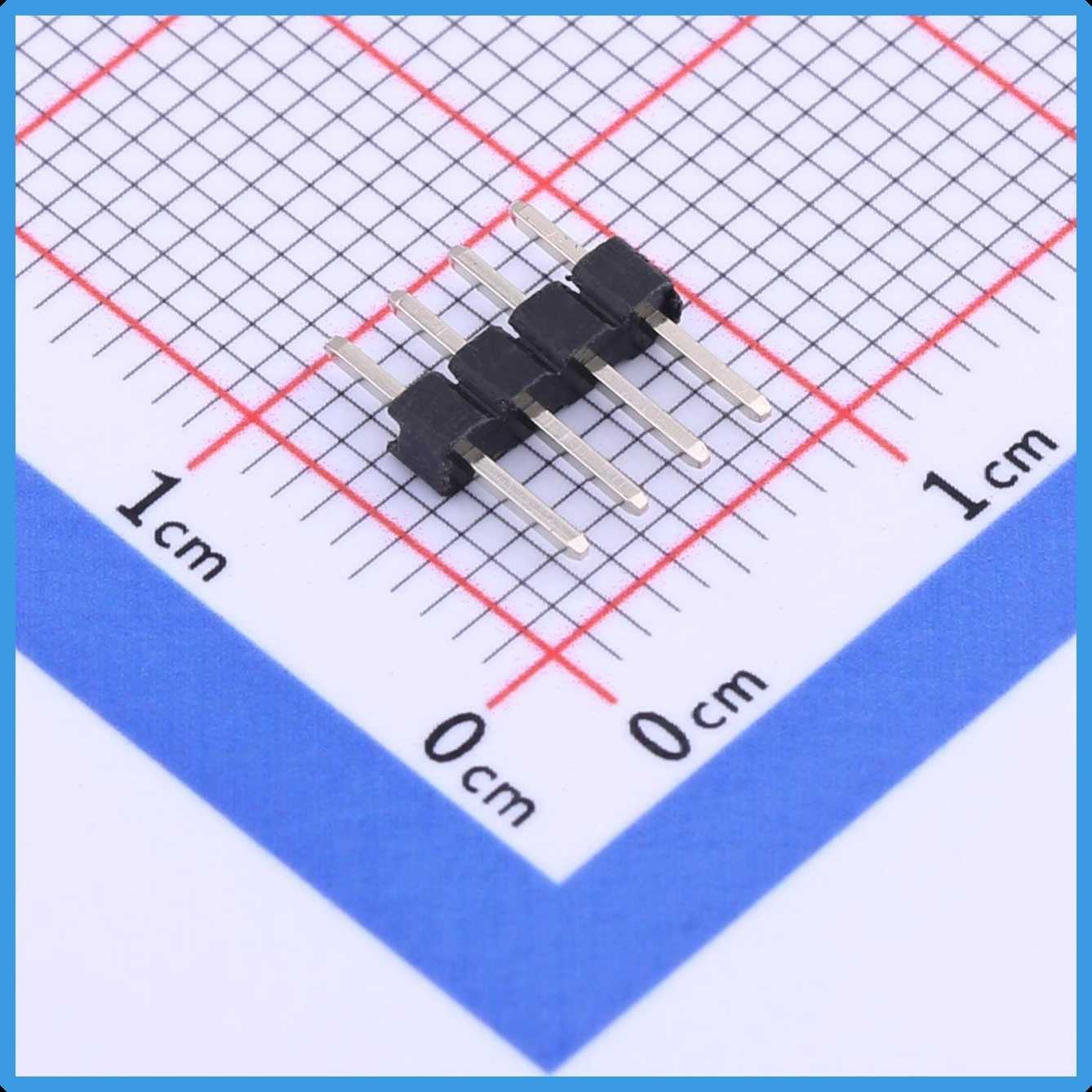

Kinghelm KH-2PH180-1X4P-L8.7 Product Image

Featuring a through-hole package type, this pin header supports a rated current of up to 1.5A, has a minimum insulation resistance of 1000MΩ, a maximum contact resistance of just 20mΩ, and can withstand up to AC 500V. It operates within a wide temperature range from -40°C to +105°C, making it suitable for demanding environments. These solid technical specifications make it a trusted choice for industrial automation, communication devices, and consumer electronics that require reliable signal and power transmission.

The straight-through pin header offers not only assembly convenience but also strong mechanical retention. Compared with surface-mount connectors, its through-hole design can withstand greater mechanical stress, reducing the risk of poor contact caused by vibration or impact. In PCB layout design, the 2mm pitch of the pin header strikes a balance between space efficiency and electrical insulation, helping engineers achieve both compactness and safety in their designs.

Manufactured with precision molds and high-grade materials, the KH-2PH180-1X4P-L8.7 ensures exact pin dimensions and a uniform, corrosion-resistant plating surface. This meticulous production process allows the pin header to maintain excellent conductivity over long-term use, reducing maintenance needs and extending the service life of the equipment.

In real-world applications, the KH-2PH180-1X4P-L8.7 works seamlessly with various sockets, cable assemblies, and female headers to create reliable plug-and-play systems. Whether for small-scale prototyping or mass production, this pin header offers consistent quality that minimizes rework rates and improves manufacturing efficiency. For devices requiring frequent plugging and unplugging, the straight-through design ensures lasting contact integrity even after numerous mating cycles.

Choosing the right pin header is not only about hardware compatibility but also about enhancing the overall quality and durability of the product. With its precise structural design, excellent electrical performance, and dependable mechanical characteristics, the KH-2PH180-1X4P-L8.7 plays a key role in ensuring stable operation for electronic systems. For engineers seeking both performance and reliability, it stands as a dependable and cost-effective solution.

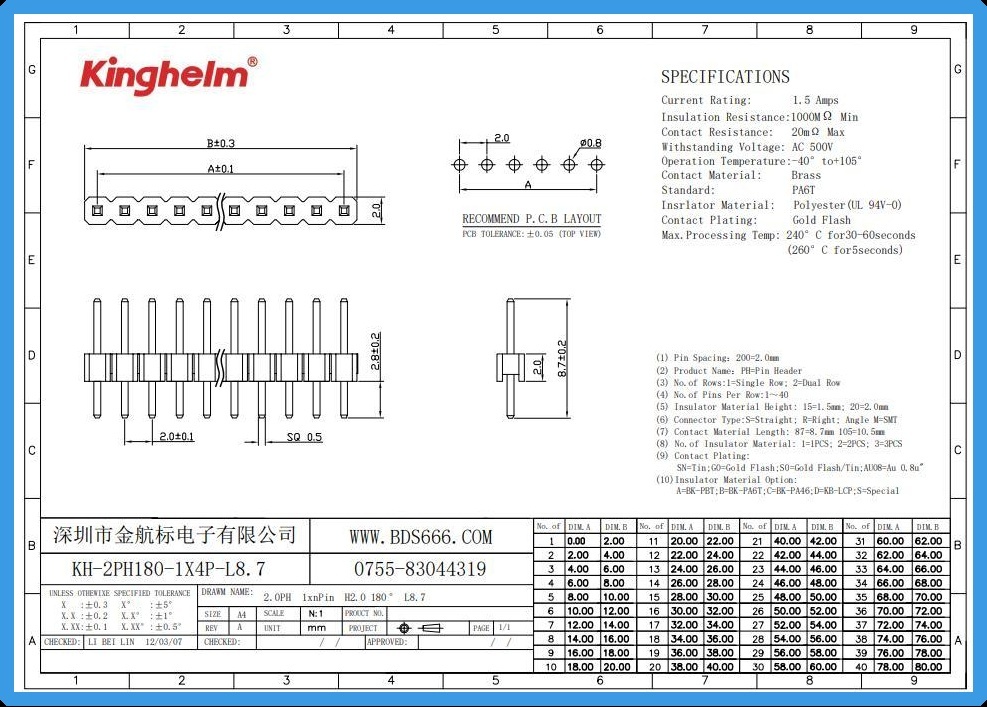

Kinghelm KH-2PH180-1X4P-L8.7 Specification

As electronics continue to evolve toward higher performance and smarter designs, high-quality pin headers will remain essential components. The KH-2PH180-1X4P-L8.7, with its proven stability, durability, and assembly efficiency, is well-positioned to meet the diverse needs of industrial and consumer electronics, empowering devices to deliver exceptional performance in the long run.

About Kinghelm

Shenzhen Kinghelm Electronics Co., Ltd.（www.kinghelm.net）has technical backbones from Tsinghua University and UESTC, and has introduced overseas returnee professionals. Kinghelm is able to develop highly reliable and high-performance antenna and connector products.KH series products of "Kinghelm" brand include Beidou/GPS antennas, RF adapter connectors, plug connector, electrical data connectors, terminals, and customized vehicle harnesses, industrial / medical connectors, and special antenna connectors."Kinghelm connects world", Kinghelm has grown with the development of China's Beidou industry. Starting from supplying Beidou/GPS dual mode antennas, IPEX terminals, and RF adapter cables for automotive manufacturers, Kinghelm has continuously developed products. Currently, it has a series of WiFi, Bluetooth, NB-loT, LoRa, Zigbee, UWB, and GSM antennas, RFID tags, RF adapter cables, standard microwave antennas, vehicle grade SMA, SMB, FAKRA holders, coaxial cables, and can customize non-standard antenna connectors based on customer drawings or samples.
