Kinghelm HDMI Connector KH-HDMI-0021-JBS: Exploring the Fundamentals and Types

HDMI connectors have become a cornerstone of modern electronics, serving as the vital link for transmitting high-definition video and audio across devices like TVs, monitors, gaming consoles, and industrial equipment. Short for High-Definition Multimedia Interface, HDMI has evolved significantly since its debut in 2002. From the initial HDMI 1.0, which supported standard HD video, to the cutting-edge HDMI 2.1 capable of handling 8K resolution and dynamic HDR, each version has expanded the possibilities for both consumer and professional applications. Understanding the different types of HDMI connectors and their technical foundations is essential for selecting the right solution for your needs.

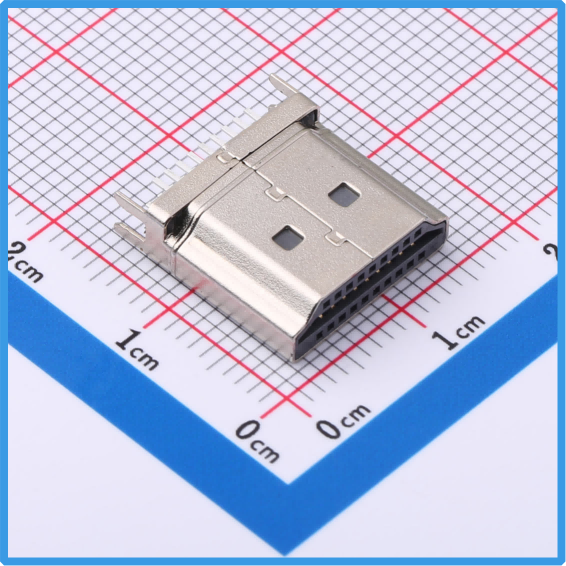

Kinghelm KH-HDMI-0021-JBS Product Image

HDMI connectors come in various types, each tailored to specific use cases. The most common is Type A, a 19-pin interface found in TVs, computers, and home theater systems. It supports bidirectional communication and content protection via HDCP. Type C, or Mini HDMI, is smaller but retains the same 19-pin configuration, making it ideal for portable devices like cameras. Type D, known as Micro HDMI, is even more compact, perfect for space-constrained applications. Type E, designed for automotive use, emphasizes durability and resistance to environmental factors. These variations differ in pin layout and physical design but share the goal of delivering reliable, high-quality signal transmission.

At its core, an HDMI connector operates using TMDS (Transition-Minimized Differential Signaling) technology, which minimizes electromagnetic interference and ensures signal integrity over long distances. The connector’s terminals are often gold-plated or nickel-plated to enhance conductivity and resist corrosion. HDMI supports resolutions from 480p to 8K@60Hz and delivers uncompressed audio, such as 7.1-channel Dolby TrueHD. When choosing an HDMI connector, factors like cable length, version compatibility, and device requirements are critical. For industrial settings, where vibration and temperature fluctuations are common, consumer-grade connectors may fall short, necessitating specialized solutions like Kinghelm’s KH-HDMI-0021-JBS.

Speaking of industrial-grade connectors, Kinghelm’s KH-HDMI-0021-JBS stands out as a robust solution. This Type A connector features straight-pin, ribbed, nickel-plated iron terminals for enhanced contact stability and durability. Its 1.6mm-thick clip-on design ensures secure PCB mounting, making it ideal for Surface-Mount Device (SMD) processes. Weighing just 1.79 grams per unit and packaged in trays for efficient production, it supports HDMI 2.0, enabling 4K@60Hz transmission with an 18Gbps bandwidth. Tailored for industrial applications like surveillance systems, medical devices, and automation lines, this connector offers vibration resistance and high reliability, ensuring uninterrupted signal flow in demanding environments.

The evolution of HDMI connectors mirrors technological advancements. HDMI 1.4 introduced 3D support and Ethernet channels, while HDMI 2.0 popularized 4K, and HDMI 2.1 added Variable Refresh Rate (VRR) and enhanced Audio Return Channel (eARC). Beyond Type A, some legacy systems used dual-link HDMI for higher bandwidth, though it’s less common today. A key feature of HDMI is its hot-plug capability, allowing devices to be connected or disconnected without damage, thanks to the EDID (Extended Display Identification Data) mechanism, which communicates supported resolutions and formats between devices.

When selecting an HDMI connector, electrical specifications are crucial. The KH-HDMI-0021-JBS boasts a current rating of 0.5A maximum, a voltage rating of 40V AC (r.m.s.) maximum, and a contact resistance of 10mΩ maximum, ensuring efficient signal transmission. Its insulation resistance of 100MΩ minimum and dielectric withstand voltage of 500V AC for one minute make it suitable for harsh industrial conditions, with an operating temperature range of -25°C to 85°C. The ribbed terminal design enhances pull-out resistance, making it a dependable choice for environments prone to mechanical stress.

HDMI connectors serve a broad range of applications. In home entertainment, they connect Blu-ray players to TVs for immersive experiences. In professional settings, such as conference rooms or control centers, multiple HDMI interfaces manage signal flows via switchers. For industrial users, the KH-HDMI-0021-JBS excels in reliability. Its SMD tray packaging simplifies integration into production lines, and its lightweight design reduces equipment weight. Supporting 4K, it ensures crystal-clear visuals in machine vision systems, preventing errors due to blurry images.

Maintaining HDMI connectors is straightforward but essential. Regular cleaning prevents dust buildup, which can degrade signals. Avoid excessive cable bending to extend lifespan. The KH-HDMI-0021-JBS’s nickel-plated terminals resist corrosion, ensuring long-term performance in industrial settings. Its clip-on design facilitates secure PCB mounting, compatible with standard 1.6mm-thick circuit boards. These details reflect Kinghelm’s commitment to addressing user pain points, giving engineers confidence in their designs.

Looking ahead, HDMI connectors will continue to evolve, supporting emerging technologies like 8K video and AI-enhanced displays. The variety of connector types ensures coverage from IoT devices to large-scale video walls. The KH-HDMI-0021-JBS, as an HDMI 2.0 solution, not only meets current 4K demands but also offers scalability for future upgrades. Its vibration resistance makes it ideal for mobile industrial equipment, and its reliability positions it as a top choice for engineers. Whether you’re a hobbyist or a professional, understanding HDMI fundamentals and selecting a connector like this one ensures optimal performance.

In procurement, compatibility testing is vital. The KH-HDMI-0021-JBS undergoes rigorous electrical and mechanical testing, with current and voltage specs ensuring safe operation. Its temperature range suits diverse industrial environments, from cold storage to warm workshops. Tray packaging reduces logistics costs, and the 1.79-gram weight aids precise inventory management. Integrated into various applications, it showcases Kinghelm’s expertise in delivering reliable connectivity solutions.

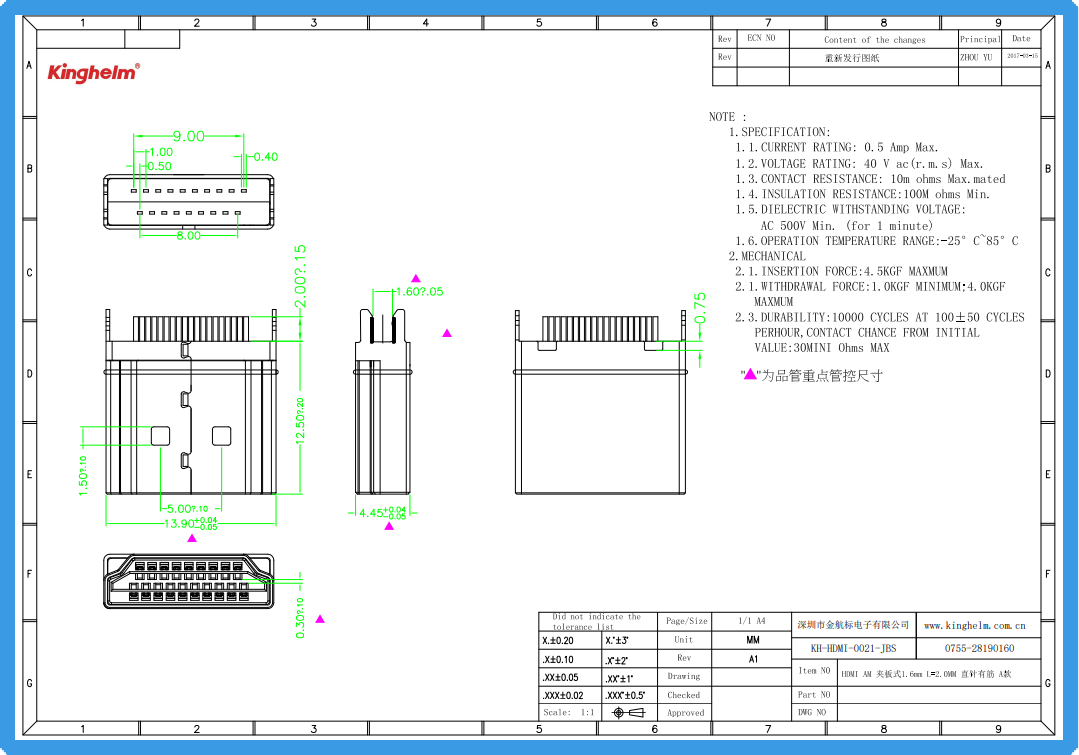

Kinghelm KH-HDMI-0021-JBS Specification

In summary, HDMI connectors have transformed from simple interfaces to sophisticated multimedia bridges. The Type A standard has made high-definition displays ubiquitous, while specialized connectors like the KH-HDMI-0021-JBS address industrial needs. Its straight-pin design and clip-on structure enhance installation efficiency and signal integrity. Supporting 4K via HDMI 2.0, it excels in vibration-prone settings, offering lasting performance. Whether you’re exploring HDMI basics or seeking a robust solution, this connector delivers a reliable link for modern technology.
