Kinghelm FPC Connector KH-FPC0.5-H5.0-24P-LTQB: Reliable 24-Pin FPC Connector for Multi-Module Systems

In multi-functional electronic systems, signal transmission stability and compact interconnection are crucial for performance and durability.The Kinghelm KH-FPC0.5-H5.0-24P-LTQB FPC connector is engineered to meet these demands.Featuring 0.5 mm pitch, SMD packaging, and a vertical pull-up configuration, this connector is designed for precision, reliability, and efficiency in high-density module integration.

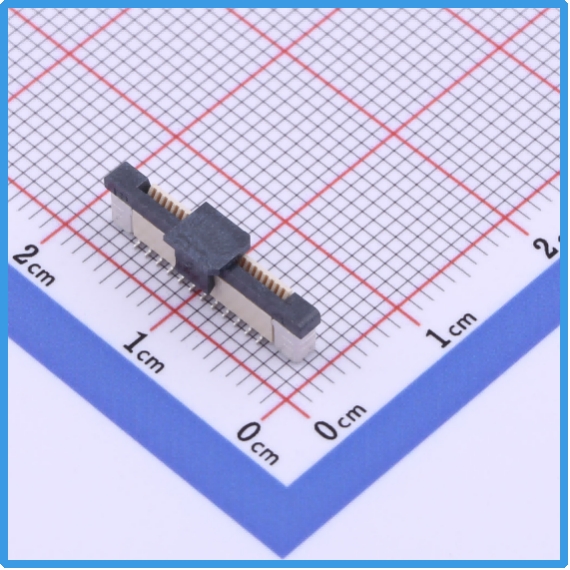

Kinghelm KH-FPC0.5-H5.0-24P-LTQB Product Image

1. Space-Efficient and Precise Design

The Kinghelm KH-FPC0.5-H5.0-24P-LTQB provides 24 contact pins, offering multiple signal channels within a compact footprint.
Its 5.0 mm height structure combines strength and ease of insertion while maintaining stability under repeated operation.
Each contact area is precisely plated to minimize resistance (≤ 0.03 Ω) and ensure efficient signal flow.

With an insulation resistance of ≥ 500 MΩ and a rated voltage of 50 V (AC/DC), the connector guarantees safe and consistent electrical performance across demanding environments.

2. Excellent Environmental and Electrical Endurance

Operating between −25 °C and +85 °C, this connector performs reliably under temperature variations typical of automotive and industrial applications.
The vertical design enhances retention force, reducing the risk of disconnection from vibration or mechanical impact.
Such stability makes it ideal for systems that experience continuous operation or require long service life.

3. SMT-Friendly and Production-Oriented

The KH-FPC0.5-H5.0-24P-LTQB features a surface-mount configuration, fully compatible with automated SMT production lines.
Its flat base and consistent solder pad dimensions simplify pick-and-place operations and reflow soldering.
This ensures uniform quality across production batches, helping manufacturers improve yield and reduce assembly cost.

4. Key Application Fields

l Automotive Modules: Display clusters, navigation systems, and vision cameras requiring vibration resistance and temperature stability.

l Display & Communication Devices: LCD panels, touch modules, and handheld terminals needing multi-channel signal routing.

l Industrial Controllers: Embedded control boards, sensor interfaces, and automation equipment requiring durable, compact connectors.

l Consumer Electronics: Tablets, notebooks, and imaging systems with high signal integrity requirements.

5. Durability and Compliance

Each KH-FPC0.5-H5.0-24P-LTQB connector undergoes mechanical durability and reliability testing.
Compliant with RoHS environmental standards, it supports lead-free soldering and environmentally friendly manufacturing processes.
Kinghelm’s strict quality control ensures consistent performance, helping designers build stable interconnections for complex systems.

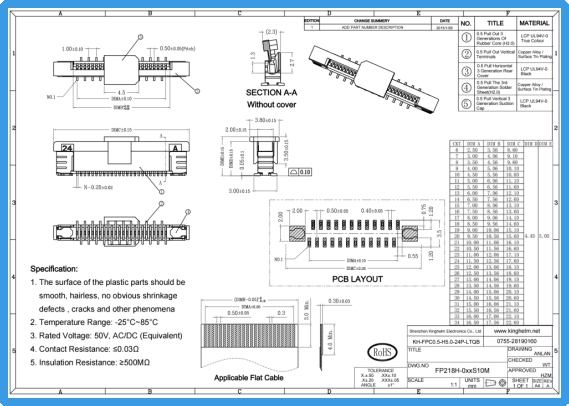

Kinghelm KH-FPC0.5-H5.0-24P-LTQB Specification

6. Conclusion

The Kinghelm KH-FPC0.5-H5.0-24P-LTQB FPC connector integrates high-density design, strong reliability, and manufacturing efficiency.It is an ideal choice for designers who require compact, durable, and precise interconnections in modern multi-module electronics.Through continuous innovation, Kinghelm continues to provide dependable FPC connection products that meet the evolving needs of automotive, industrial, and consumer electronic applications.
