In modern industrial and electronic systems, connectors play a critical role in maintaining stable operation between devices. Connection instability, loosening caused by vibration, and environmental influences are common challenges in real-world applications. The Kinghelm KH-GX12-2P aviation connector is designed to address practical connection needs through balanced mechanical structure and electrical performance, providing a dependable cable connection solution for a wide range of equipment.

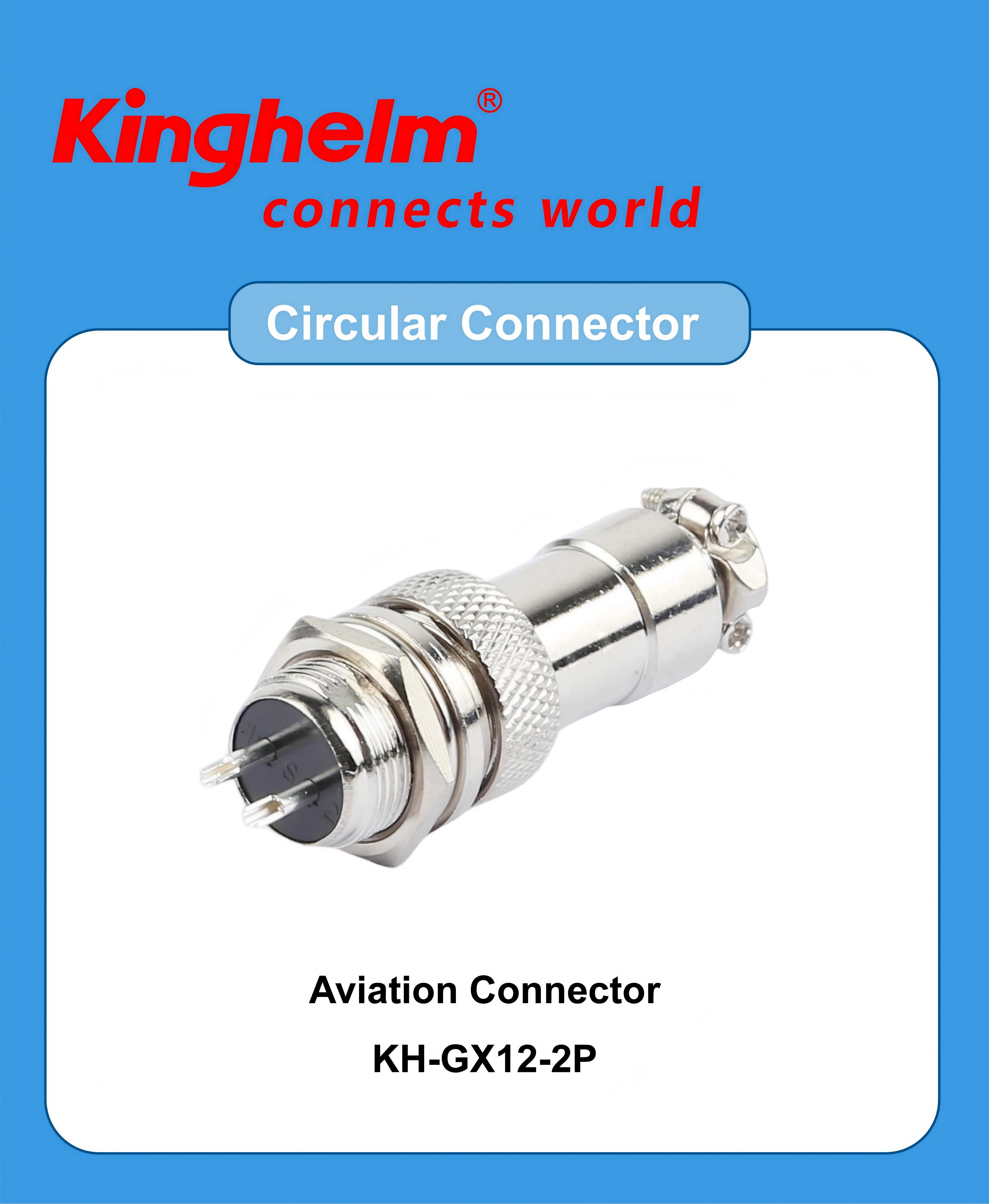

Kinghelm KH-GX12-2P Product Image

Connection Loosening in Vibrating Environments and Threaded Locking Design

Industrial machinery, automation equipment, and testing systems often operate under continuous vibration. Conventional plug-in connectors may gradually loosen during long-term operation, leading to unstable contact, intermittent power supply, or signal interruption. These issues can increase maintenance workload and reduce operational continuity.

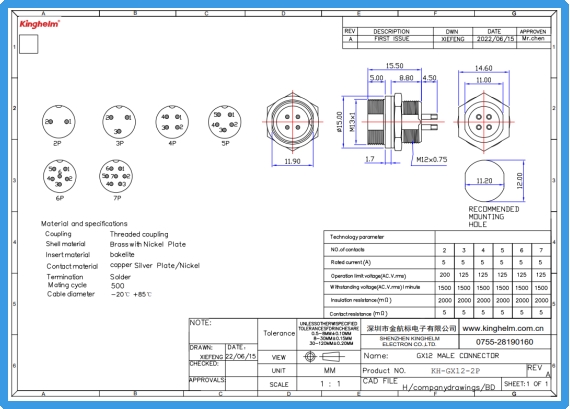

The KH-GX12-2P adopts a threaded locking structure with a 12 mm thread diameter. The screw-type fastening mechanism creates firm mechanical retention after installation, helping maintain consistent contact under vibration conditions. The male and female connector set also simplifies installation and reduces assembly errors during on-site wiring.

Limited Installation Space and Straight Connector Structure

Inside control cabinets and compact electronic devices, installation space is often restricted. Oversized connectors or unsuitable angles may cause excessive cable bending, which can affect long-term cable reliability and make routing more difficult.

This model features a straight connector design with a compact circular form factor. Cables can extend naturally along the equipment direction, reducing mechanical stress caused by sharp bends. The round panel-mount structure also supports standardized installation layouts, improving wiring organization and assembly efficiency in batch production environments.

Electrical Instability Risks and Balanced Performance Parameters

In applications such as sensor power supply, small control modules, and signal transmission systems, insufficient connector ratings may result in overheating or fluctuating electrical performance. Stable electrical characteristics are important for maintaining continuous operation.

The KH-GX12-2P is rated for 5A current and 200V voltage, suitable for common low-voltage equipment connections. A contact resistance of approximately 5 mΩ helps reduce energy loss, while an insulation resistance of 2000 mΩ supports reliable electrical isolation. The connector also withstands 1500V AC for one minute during dielectric testing, contributing to stable operation within normal working conditions.

Temperature Variation Challenges and Environmental Adaptability

Industrial environments and semi-outdoor installations frequently experience temperature changes. Thermal expansion and contraction can influence connector materials over time, potentially affecting connection stability.

With an operating temperature range from −20°C to +85°C, the KH-GX12-2P is suitable for typical industrial and electronic environments. Its structural materials maintain consistent performance under temperature variation, helping reduce risks associated with environmental changes during long-term operation.

Frequent Maintenance Scenarios and Improved Usability

Testing equipment, modular systems, and maintenance platforms often require repeated connection and disconnection. Complex interfaces or unclear alignment can slow installation and increase the chance of incorrect wiring.

The KH-GX12-2P features a clear 2-pin configuration that allows straightforward identification and installation. The connector is supplied as a complete male-female set, simplifying replacement and deployment. With a lightweight design of approximately 16.13 g per set and bag packaging for easy storage, it supports convenient handling in both workshop and field applications.

Overall, although small in size, connectors serve as a key interface within equipment systems. Through its threaded locking structure, compact mechanical design, and well-matched electrical specifications, the Kinghelm KH-GX12-2P aviation connector provides a stable connection option suitable for instrumentation, automation equipment, and general cable interconnection applications.
