As electronic devices continue to evolve toward compact size and higher integration, connectors play a critical role in ensuring stable signal transmission within complex systems. Among various connection solutions, FFC/FPC connectors are widely used due to their flexibility, space-saving characteristics, and suitability for high-density circuit designs.

Kinghelm has developed a comprehensive range of antenna and connector products, supported by years of experience in RF and electronic interconnection technologies. The KH-CL0.5-H2.0-15PS FFC/FPC connector is designed to meet the requirements of compact electronic devices that demand fine pitch and reliable connectivity.

1. Structural Design and Key Features

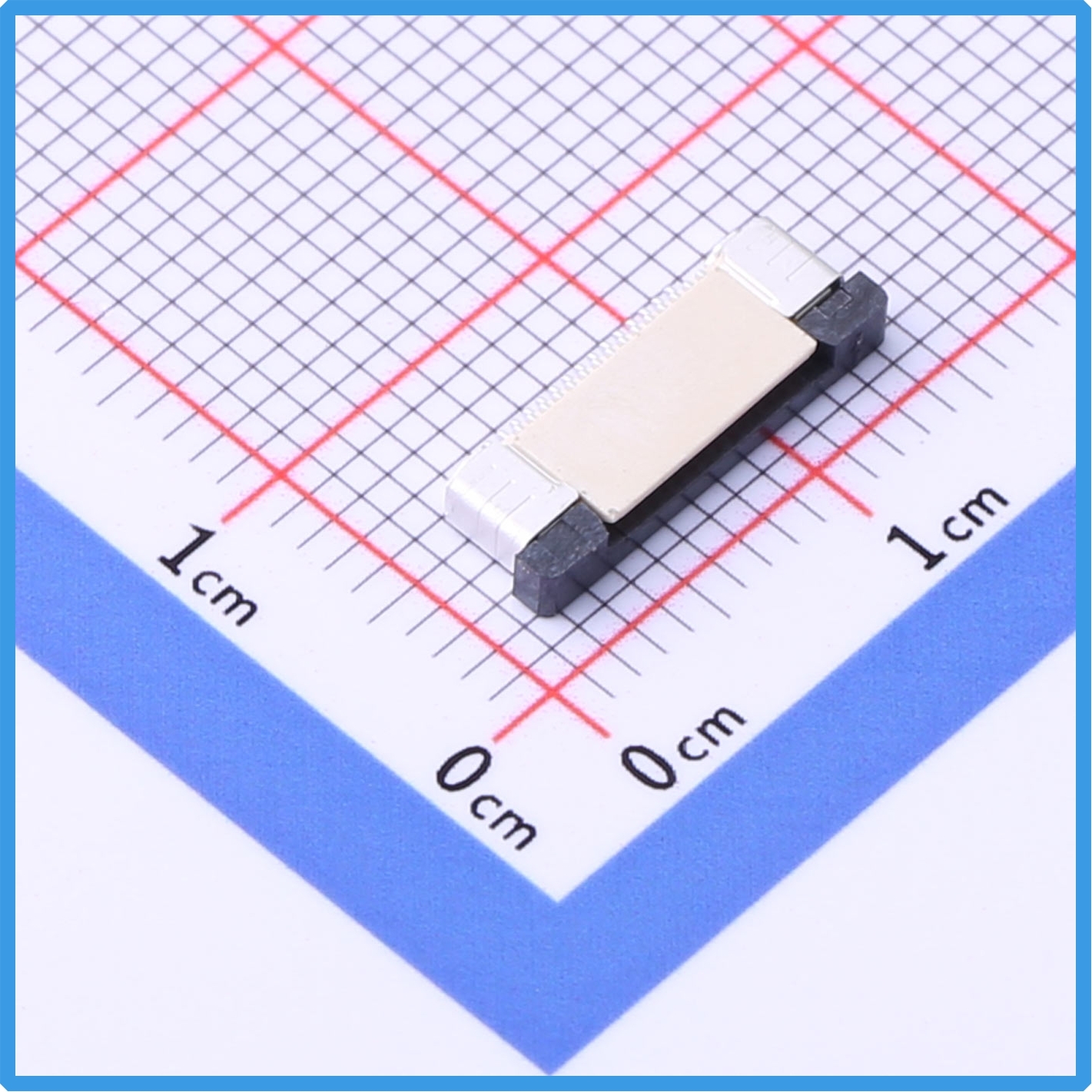

The KH-CL0.5-H2.0-15PS connector features a 0.5mm pitch with 15 संपर्क points, making it suitable for applications requiring multiple signal channels within limited space. The fine pitch design helps increase connection density while maintaining an organized PCB layout.

This model adopts an SMD (Surface Mount Device) horizontal mounting structure, which supports automated assembly processes and contributes to efficient production. With a board height of 2mm, it fits well in slim electronic designs where vertical space is limited.

The connector uses a drawer-type locking mechanism combined with a top contact configuration. This structure allows straightforward insertion and removal, helping improve assembly efficiency. The top contact design also provides flexibility in routing FFC/FPC cables depending on device layout requirements.

2. Technical Specifications

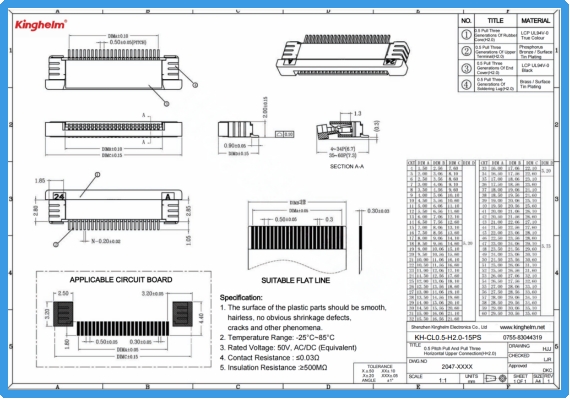

The KH-CL0.5-H2.0-15PS connector is designed to deliver stable performance under standard operating conditions. Key specifications include:

• Number of Contacts: 15P

• Pitch: 0.5mm

• Mounting Type: SMD, horizontal (right-angle)

• Cable Thickness Compatibility: 0.3mm

• Profile Height: 2mm

• Operating Temperature Range: -25°C to +85°C

These specifications make it suitable for a wide range of consumer and industrial electronic applications where compact size and consistent connection are required.

3. Application Scenarios

Due to its compact structure and practical design, the KH-CL0.5-H2.0-15PS connector can be applied in multiple fields:

• Consumer Electronics
  Used in smartphones, tablets, and laptops for connections between mainboards and modules such as displays, cameras, and touch panels. The fine pitch design helps support complex signal routing.

• Smart Home Devices
  Applicable in smart locks, speakers, and monitoring devices, where internal connections require both compact size and stable performance.

• Industrial Control Equipment
  Suitable for control boards and instrumentation systems, enabling signal transmission between modules in limited installation space.

• Automotive Electronics
  Can be used in infotainment systems, dashboards, and camera modules, where moderate temperature tolerance and stable connection are necessary.

• Medical Devices
  In portable medical equipment, the connector supports lightweight and simplified internal wiring structures.

4. Manufacturing and Support Capabilities

Kinghelm’s production base in Luzhai, Guangxi, is equipped with flexible manufacturing lines that support both small and large batch production. The manufacturing process includes mold development, component assembly, and product testing, enabling efficient transition from design to mass production.

The technical team, with long-term experience in RF and connector development, is supported by in-house laboratory facilities for product validation and performance testing. This integrated approach helps ensure consistency and reliability across different product batches.

In addition, for customized requirements, Kinghelm provides services including design, tooling, prototyping, and volume production, supporting various application-specific needs.

5. selection and Usage Considerations

When selecting an FFC/FPC connector, several factors should be considered:

• Pitch and Pin Count: Choose based on circuit design requirements

• Cable Compatibility: Ensure the connector matches the FFC/FPC thickness

• Mounting Style: Confirm compatibility with PCB layout

• Operating Environment: Consider temperature range and usage conditions

During assembly, proper insertion of the cable and careful handling are important to maintain stable contact performance and reduce potential connection issues.

Conclusion

With the continuous development of compact and multifunctional electronic devices, FFC/FPC connectors remain an essential component in modern circuit design. The KH-CL0.5-H2.0-15PS connector features a 0.5mm pitch with 15 contacts, making it suitable for applications requiring multiple signal channels within limited space.Its structural design and technical parameters make it suitable for a wide range of electronic products, supporting efficient and stable interconnection needs.
