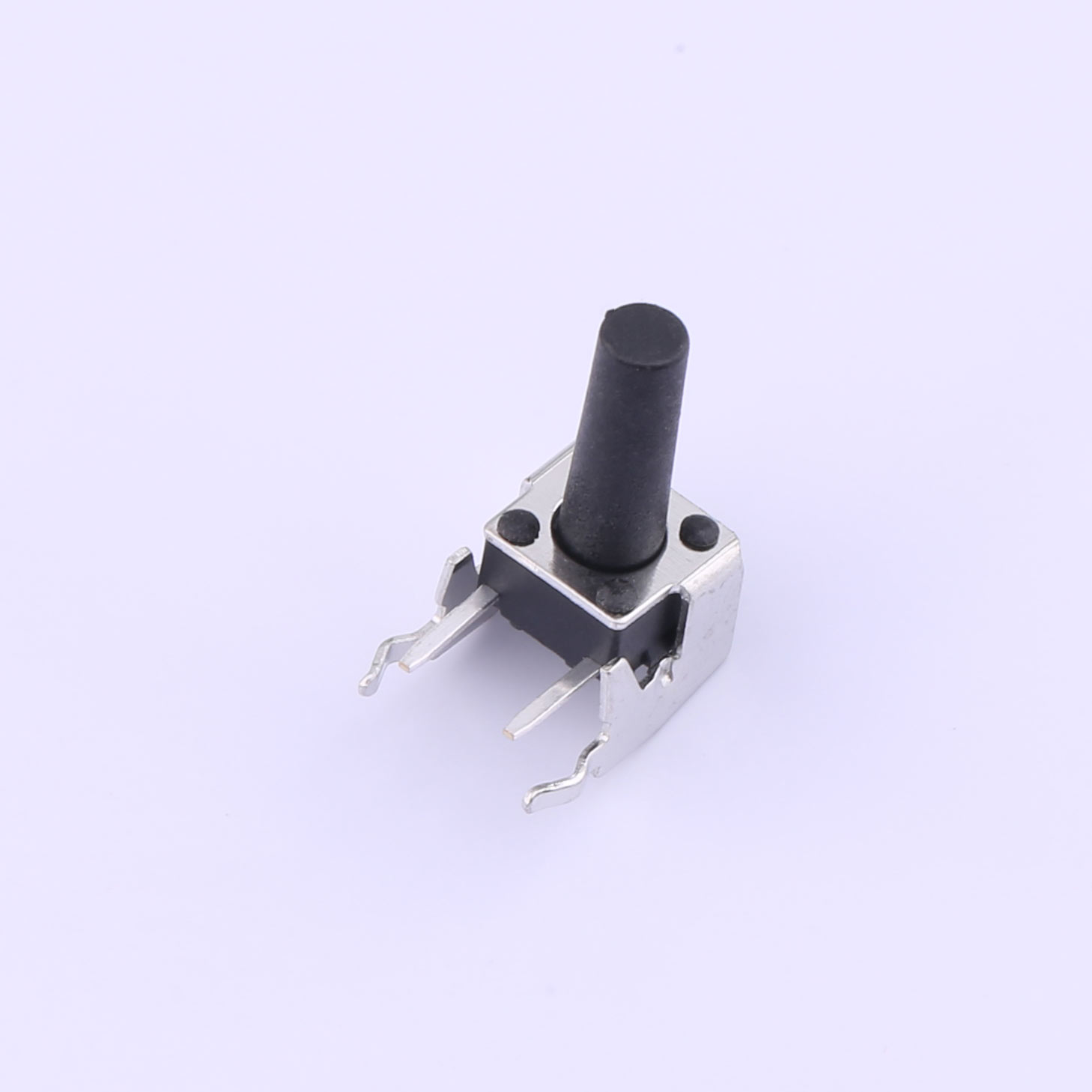

KH-6X6X13H-ZJ, 6*6*13 Tactile Switch, 50mA
Rating: DC 12V 50mA
Travel: 0.25±0.1mm
Insulation Resistance: 100MΩ MIN
Contact Resistance: 30mΩ Max
Life: 100,000 Cycles Min
Dimensions：
6*6*13mm
Mounting Type：
Right-Angle
Circuit Type：
SPST
Illumination：
Without LED
Button Shape：
Round

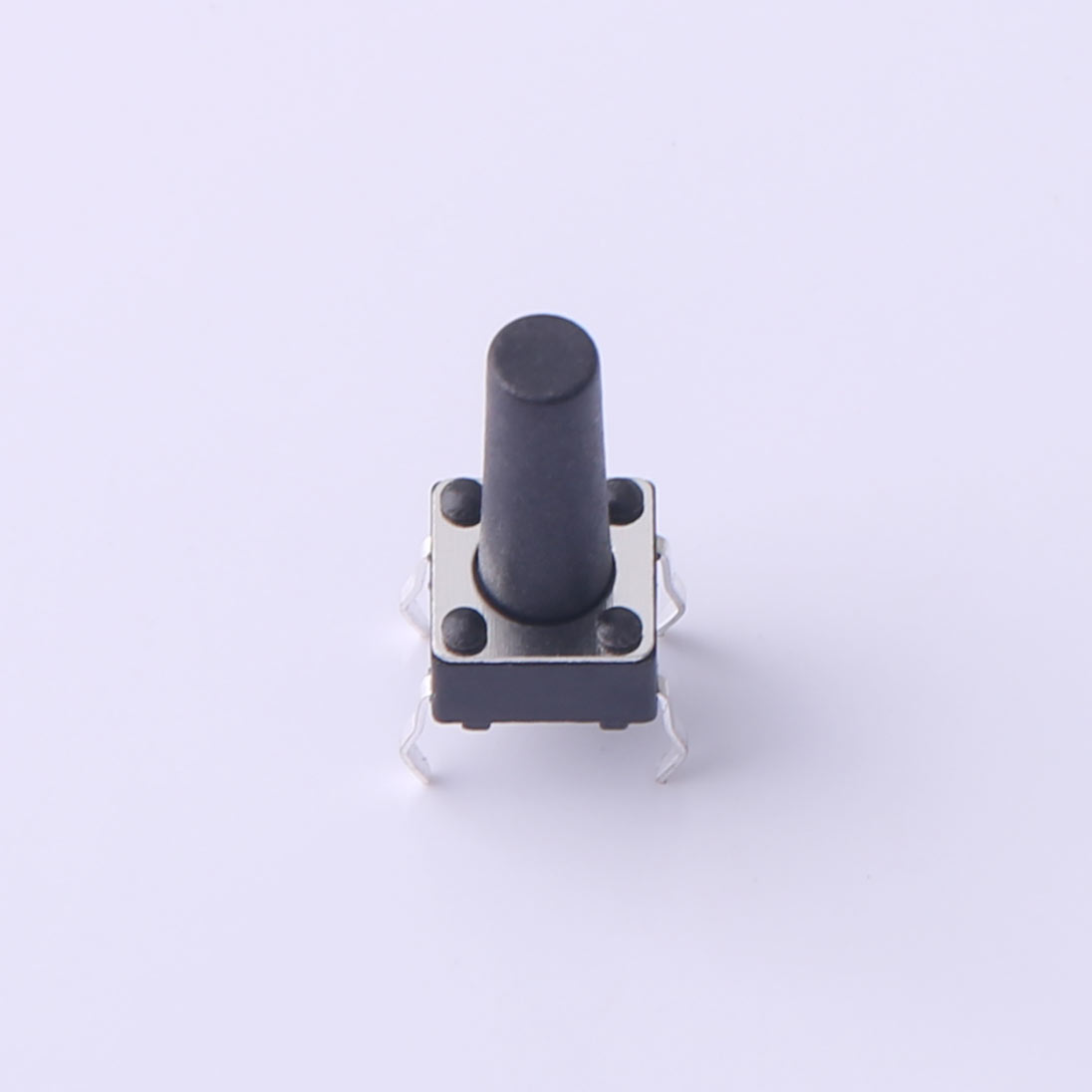

KH-6X6X13H-TJ-FS, 6*6*13 Tactile Switch, 50mA
Rating: DC 12V 50mA
Travel: 0.3±0.1mm
Operating Force: 250±50gf
Contact Resistance: 50mΩ Max
Life: 100.000 Cycles Min
Dimensions：
6*6*13mm
Mounting Type：
Through-Hole
Circuit Type：
SPST
Illumination：
Without LED
Button Shape：
Round
KH-6X6X13H-TJ, 6*6*13 Tactile Switch, 50mA, SMD
Practical temperature:-25℃~+85℃
Operating Force: 260±30gf
Insulation Resistance: 100MΩ MIN
Contact Resistance: 30mΩ Max
Service Life:100000 times
Dimensions：
6*6*13mm
Mounting Type：
Through-Hole
Circuit Type：
SPST
Illumination：
Without LED
Button Shape：
Round
KH-6X6X13H-STM, 6*6*13 Tactile Switch, 50mA
Rating: DC 12V 50mA
Travel: 0.3±0.1mm
Operating Force: 250/180±30gf
Contact Resistance: 50mΩ Max
Life: 80.000 Cycles Min
Dimensions：
6*6*13mm
Mounting Type：
Vertical SMT
Circuit Type：
SPST
Illumination：
Without LED
Button Shape：
Round
KH-6X6X13H-SMT-FS-D, 6*6*13 Tactile Switch, 50mA
Rating: DC 12V 50mA
Travel: 0.3±0.1mm
Operating Force: 260±50gf
Contact Resistance: 50mΩ Max
Life: 100.000 Cycles Min
Dimensions：
6*6*13mm
Mounting Type：
Vertical SMT
Circuit Type：
SPST
Illumination：
Without LED
Button Shape：
Round
KH-6X6X13H-SMT-FS, 6*6*13 Tactile Switch, 50mA, SMD
Rating: DC 12V 50mA
Travel: 0.3±0.1mm
Operating Force: 260±50gf
Contact Resistance: 50mΩ Max
Life: 100.000 Cycles Min
Dimensions：
6*6*13mm
Mounting Type：
Vertical SMT
Circuit Type：
SPST
Illumination：
Without LED
Button Shape：
Round
