Kinghelm Pin Header KH-2.54PH90-2X27P-L13.8.18.8: A Core Component of Electronic Connections

Inside the intricate internal world of modern electronic devices, those seemingly tiny metal contact points play a vital role. Among them, pin headers stand out as one of the most fundamental and widely used interconnect components — acting as the “nervous system” of electronic equipment. They are responsible for transmitting signals, distributing power, and building bridges between modules. Their performance and reliability directly impact the stability of the entire system. Today, we take the KH-2.54PH90-2X27P-L13.8.18.8 dual-row right-angle pin header from Kinghelm as an example to explore the core value of these precision connectors.

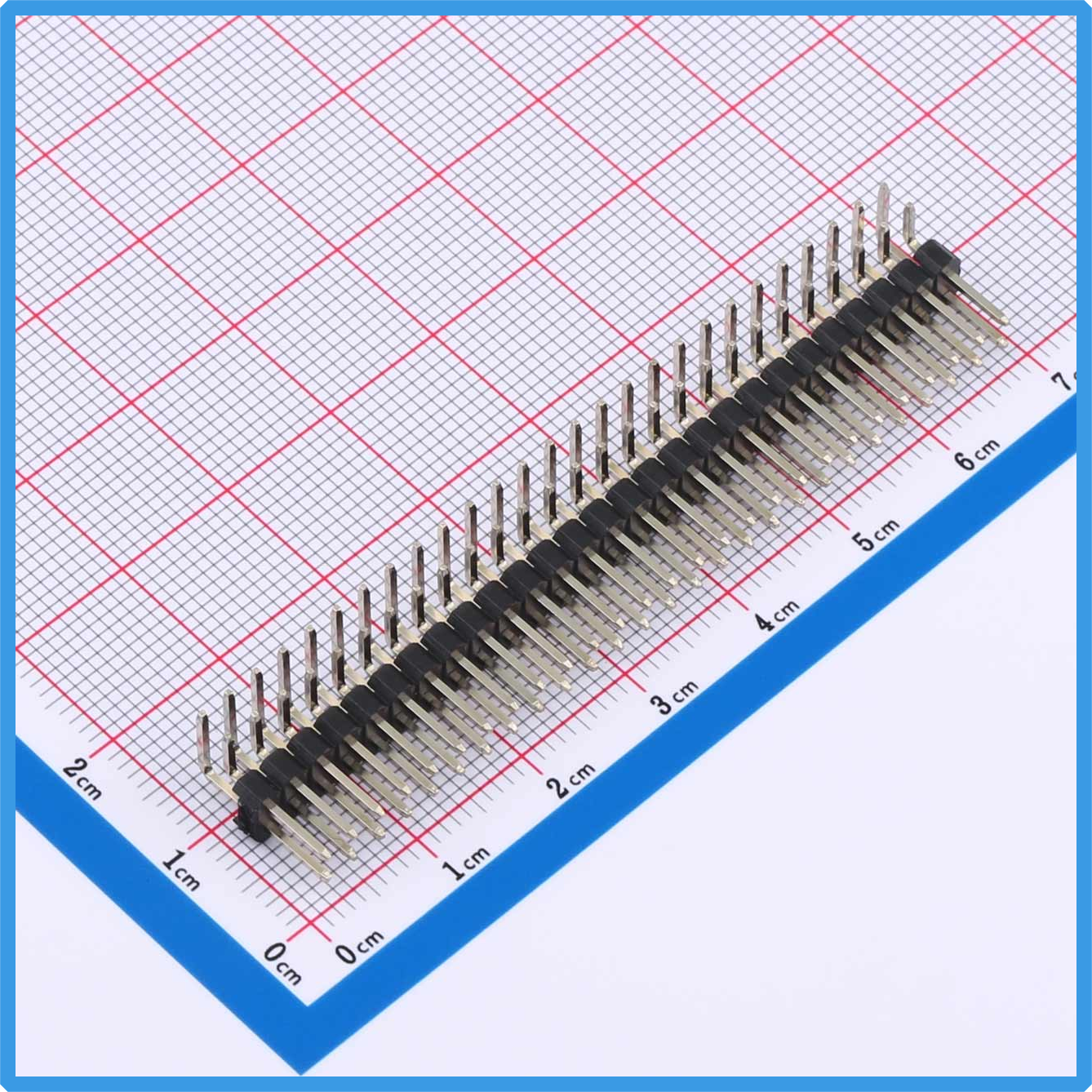

Kinghelm KH-2.54PH90-2X27P-L13.8.18.8 Product Image

The model name KH-2.54PH90-2X27P-L13.8.18.8 itself reveals its key specifications: it adopts the industry-standard 2.54 mm pitch (0.1 inches) and offers dual rows (2×) totaling 54 pins (27 pins per row) for high-density connections. The “PH90” designation indicates a 90-degree bent pin design — particularly suitable for applications requiring parallel PCB mounting or where space is limited. This structure effectively reduces the overall height of the device and optimizes internal layout. The suffix “L13.8.18.8” precisely defines critical dimensions, ensuring installation compatibility and accuracy.

The performance parameters of this dual-row right-angle pin header demonstrate its ability to deliver reliable connections under demanding conditions:

lHigh current capacity: Rated at 3 A, it can handle not only signal transmission but also small to medium power distribution.

lExcellent electrical isolation: Minimum insulation resistance of 1000 MΩ prevents crosstalk and leakage, ensuring signal integrity.

lEfficient conductivity: Maximum contact resistance of 20 mΩ minimizes energy loss and signal attenuation.

lRobust safety margin: Withstands up to AC 1000 V, providing a high-voltage safety barrier for both equipment and operators.

lWide environmental adaptability: Operates reliably from -40 °C to +105 °C, whether in frigid industrial sites or high-temperature enclosures.

These features are not isolated; together they serve one core goal — building long-lasting, stable, and efficient electrical connections. Kinghelm achieves this by selecting premium conductive and insulating materials (such as phosphor bronze and high-temperature nylon) and applying precision stamping, plating (gold or tin for enhanced corrosion resistance and conductivity), and injection molding processes. This attention to quality ensures that every pin header offers excellent conductivity, mechanical strength, and long-term durability.

Thanks to these qualities, pin headers like the KH-2.54PH90 are widely used in industrial control motherboards, communication modules, medical instruments, testing equipment, consumer electronics, and emerging IoT terminals. They are indispensable bridges for modular design, board-to-board, or board-to-wire connections inside devices.

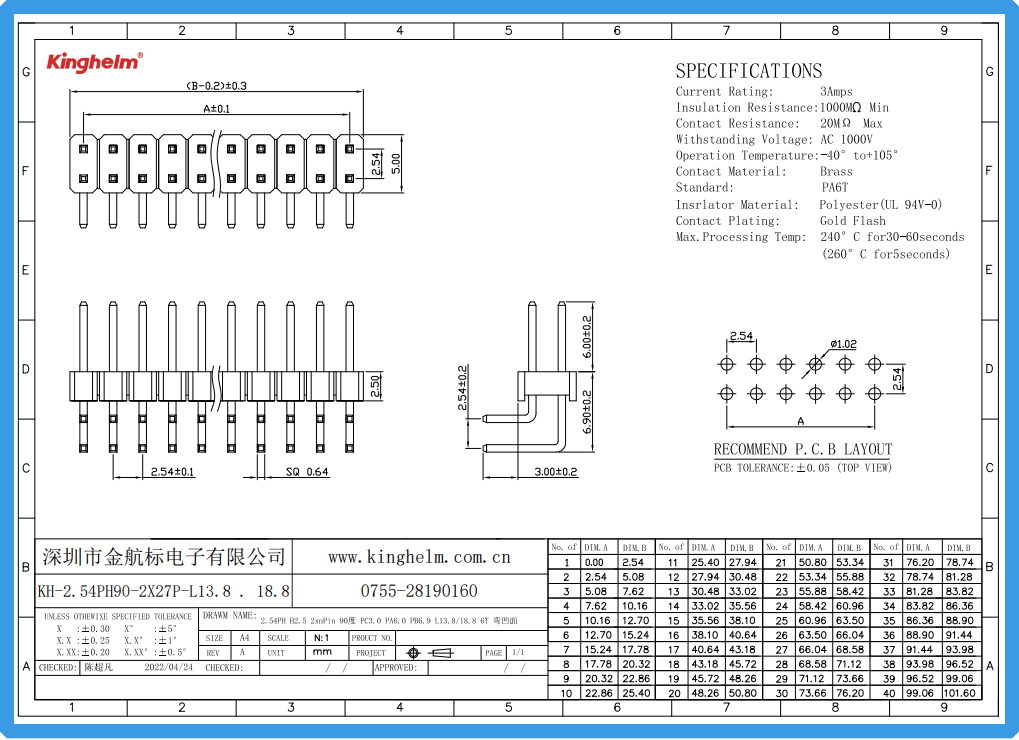

Kinghelm KH-2.54PH90-2X27P-L13.8.18.8 Specification

Indeed, it is these seemingly ordinary precision pin headers that quietly sustain the complex yet orderly flows of information and energy within electronic systems. Small in size but crucial in function, they form the foundation for functional integration, modular design, and efficient production in modern electronics. With its standardized interface, excellent electrical properties, solid physical structure, and broad environmental adaptability, the Kinghelm KH-2.54PH90-2X27P-L13.8.18.8 dual-row right-angle pin header is undoubtedly a trusted connection solution for engineers building reliable electronic systems. In today’s pursuit of miniaturization, intelligence, and high reliability, choosing a high-quality pin header is the first step toward ensuring stable product performance.
