Kinghelm Tactile Switch KH-6X6X6H-Z: A cubic body, a reliable core

In the era of ultra-thin smart devices, a 6mm³ black cube is redefining the reliability limits of human-machine interaction. Kinghelm Electronics has condensed over a decade of interconnect expertise into the KH-6X6X6H-ZJ tactile switch, empowering this 0.6-gram micro-component to deliver a promise of 100,000 actuations.

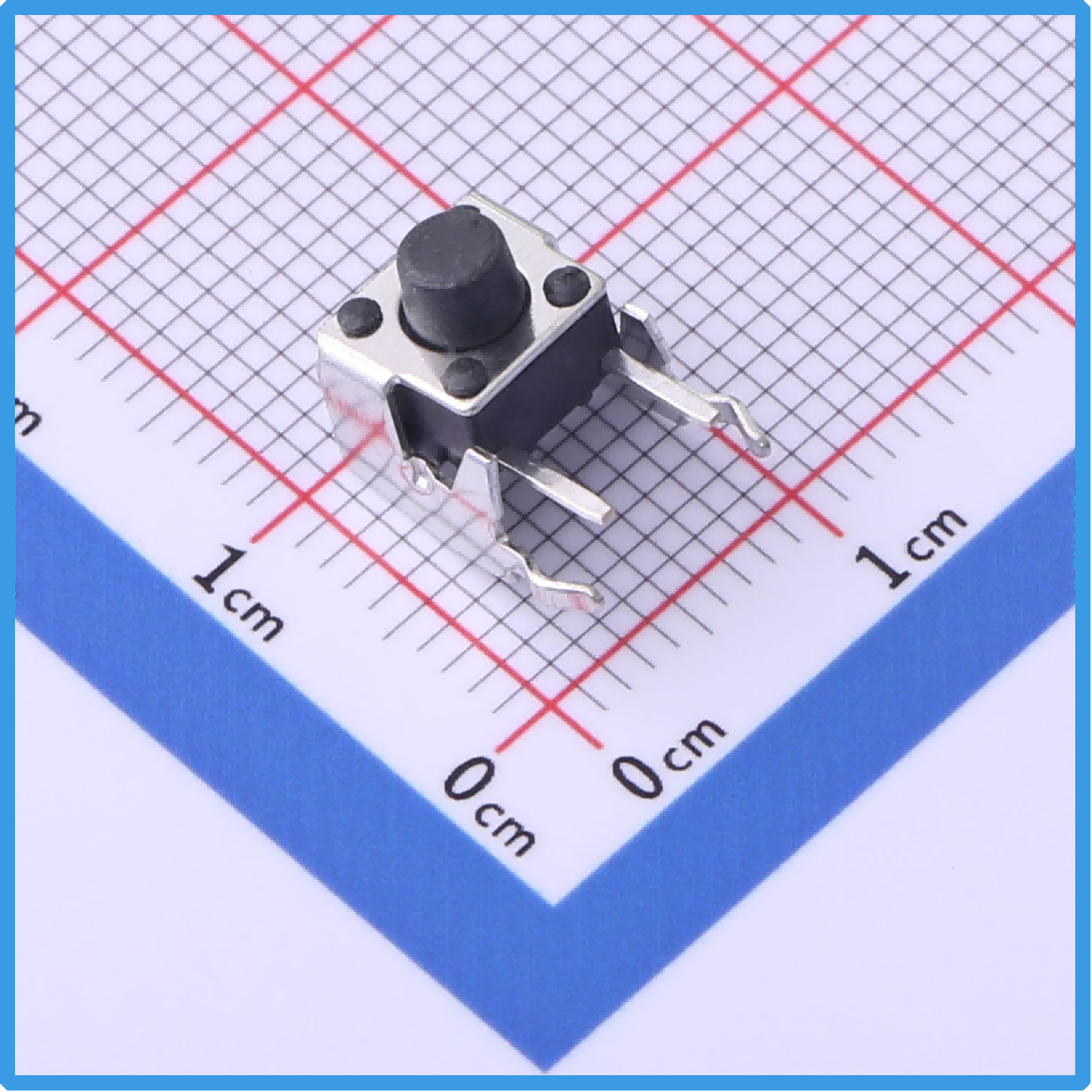

Kinghelm KH-6X6X6H-ZJ Product Image

When fingertips touch the matte-finished circular button, the precise 260±30gf operating force delivers crisp feedback. The 0.25mm travel control performs like mechanical ballet—an embodiment of the minimalist philosophy behind its SPST circuit architecture. By eliminating redundant contact paths, signal transmission flows unimpeded like a highway, eradicating misfire risks at the source. The synergy between horizontal insertion PC pins and the bottom bracket achieves zero solder joint fractures in rigorous automotive audio vibration tests, conclusively solving the industry-wide failure of mobile devices under mechanical stress.

Inside Kinghelm’s Dongguan testing center, KH-6X6X6H-ZJ endures a triple crucible of validation: After 100,000 continuous presses, contact resistance remains below 30mΩ, with silver-plated stainless steel contacts resisting arc erosion. Across temperatures from -25℃ deep freeze to 85℃ thermal torture, its 100MΩ insulation resistance stands guard against leakage currents. Within 260℃ reflow soldering flames, the anti-deformation system formed by PC pins and brackets maintains a 99.98% yield rate. These figures aren’t just specifications—they’re survival passports for smart devices in extreme environments.

In a Shenzhen luxury hotel suite, five KH-6X6X6H-ZJ switches integrate seamlessly into aluminum alloy panels. Their 6mm ultra-slim profile enables elegant embedding of smart-scene toggles, where low-power backlighting waltzes with RS485 protocols—a single touch activates "sleep mode" with synchronized curtain closure. In textile mills kilometers away, these black cubes withstand fiber contamination in PLC control cabinets, slashing failure rates from 0.3% to 0.02%. Within electric vehicle battery management systems, they serve as final safety guardians, executing emergency shutdowns at 85℃—a testament to life-critical reliability.

Kinghelm’s manufacturing ethos shines through its LCP polymer base. This "Chinese formula" costs 30% less than imported alternatives yet withstands 120℃. At Guangxi Luzhai factory, AI vision systems sculpt contact springs with ±0.01mm precision—five times stricter than international standards. When Huawei’s production lines initiated batch replacement and Gree’s AC control boards adopted the golden Kinghelm logo, KH-6X6X6H-ZJ ceased being merely a switch. It became a milestone in China’s transition from cost advantage to technological superiority.

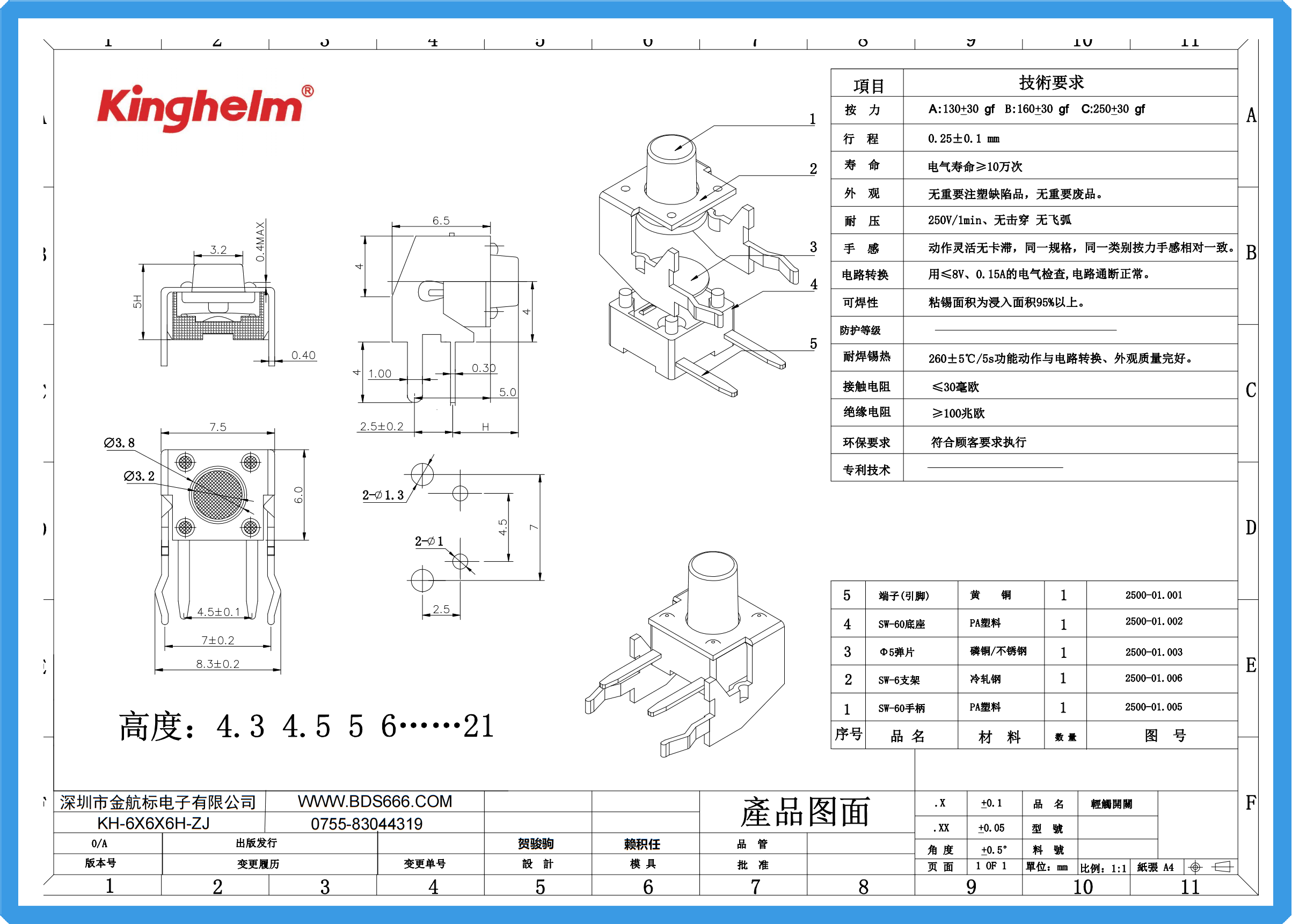

Kinghelm KH-6X6X6H-ZJ Specification

Within cubic millimeters lies the ambition to transform worlds. Medical monitors rely on its sterile sealing to sustain life rhythms; automotive cockpits depend on its shock resistance for safety; industrial machines leverage its dust-proof design for uninterrupted operation. Every precise actuation propels our smart ecosystem toward a more reliable future. Kinghelm Electronics rewrites the rules of human-machine interaction at millimeter scale and builds trust for the IoT era with cubic determination. This relentless pursuit of micro-perfection will ultimately converge into a force that drives our age forward.
