Kinghelm Tactile Switch KH-6X6X9H-ZJ: Horizontal Mount Tactile Switch Empowers New Era of Electronic Control

Beneath the green indicator lights of industrial control equipment, a sleek black switch with a 9mm profile stands ready for commands. When an engineer's finger presses its circular surface, a crisp actuation sound signals precise circuit switching—this is the daily mission of Kinghelm Electronics' KH-6X6X9H-ZJ horizontal mount tactile switch. Combining traditional through-hole mounting with modern reliability requirements, this component delivers exceptional performance with 100,000 mechanical cycles, making it the preferred choice for industrial controls and home appliances.

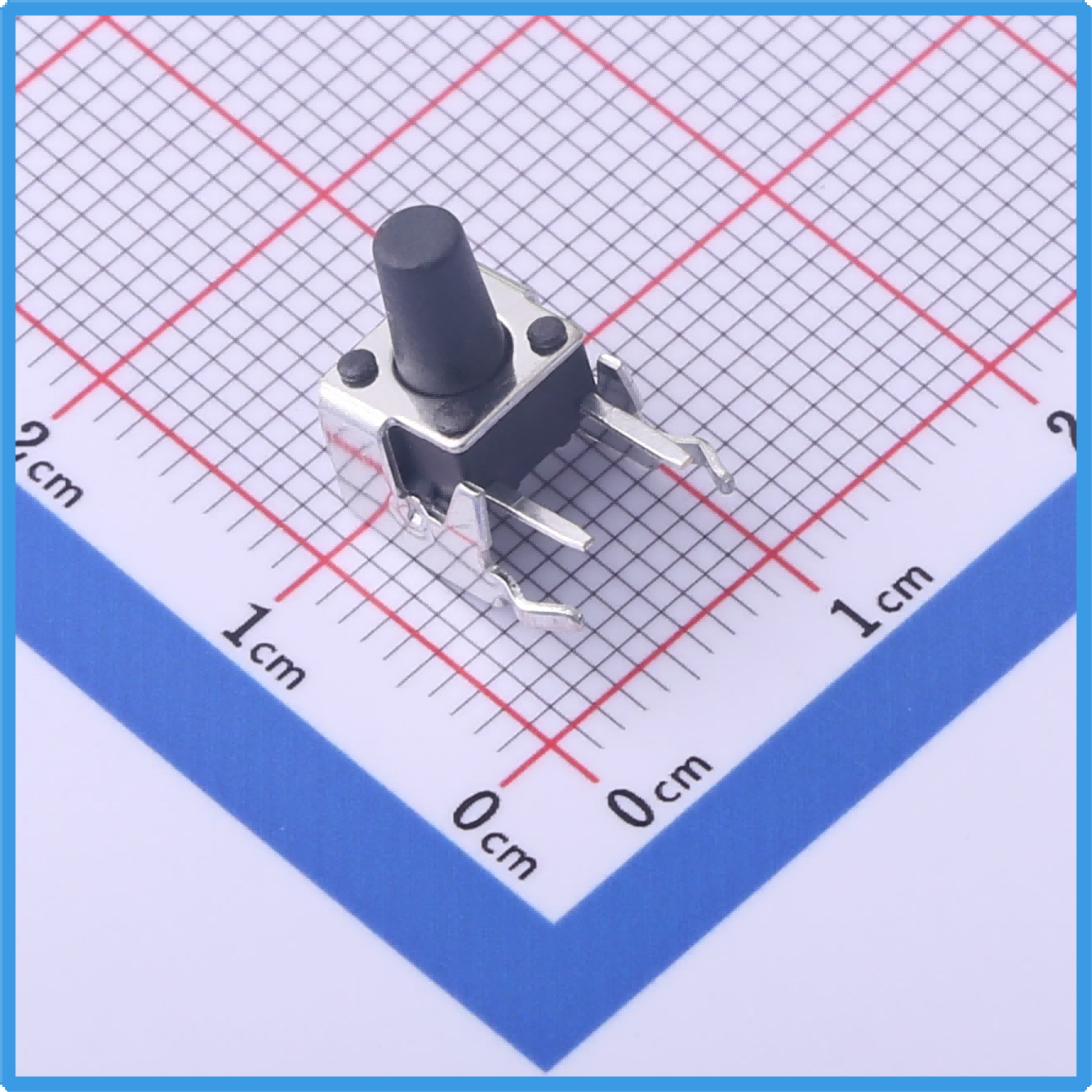

Kinghelm KH-6X6X9H-ZJ Product Image

The classic value of horizontal mounting finds new expression in this switch. Its 6×6mm standard base size accommodates most PCB layouts, while the 9mm vertical height ensures sufficient travel while maintaining compactness. The PC pins use a glass fiber-reinforced formula, increasing bending resistance to 5N—surpassing the industry standard of 3N. The unique bracket design ensures stability during wave soldering, effectively preventing misalignment due to thermal stress. The micro-textured surface of the black circular button enhances tactile recognition and demonstrates excellent wear resistance in long-term testing on Gree air conditioner control panels.

Electrical reliability is the switch's core advantage. With 100MΩ insulation resistance (tested up to 120MΩ at 500VDC), it provides essential safety protection. The SPST structure ensures signal purity, while maintaining stable 50mA current carrying capacity at 12V. Wide temperature adaptability ensures consistent performance from -25℃ to +70℃, with contact resistance variation controlled within 1.5mΩ.

Mechanical durability reaches new industry heights. After 100,000 lifecycle tests (60 presses/minute), the switch maintains excellent tactile response with less than 8% force degradation. This reliability stems from the precision dual-spring construction and silver-plated contacts that ensure consistent electrical performance. In Midea microwave applications, with daily use of 30 actuations, the switch demonstrates an expected lifespan exceeding 8 years.

Applications span multiple industries. In industrial control, it passes 10-500Hz vibration testing per GB/T 2423.10-2019. For home appliances, it withstands 1500 hours of damp heat testing (85℃/85%RH). In automotive electronics, it meets GMW3172 mechanical shock requirements. The horizontal mount design is particularly suitable for equipment requiring frequent maintenance or upgrades, allowing direct replacement without specialized tools like hot air guns.

Manufacturing excellence is ensured through fully automated injection molding, maintaining dimensional tolerances within ±0.05mm. Pin plating thickness is strictly controlled at 3-5μm, verified by 24-hour salt spray testing. 100% of products undergo continuity, insulation, and mechanical feel testing to guarantee leave factory quality.

Usage recommendations include controlling soldering temperature at 350±10℃ for no more than 3 seconds. Pay attention to pin orientation during installation to avoid reverse insertion. In humid environments, moisture-proof coating is recommended for enhanced long-term reliability.

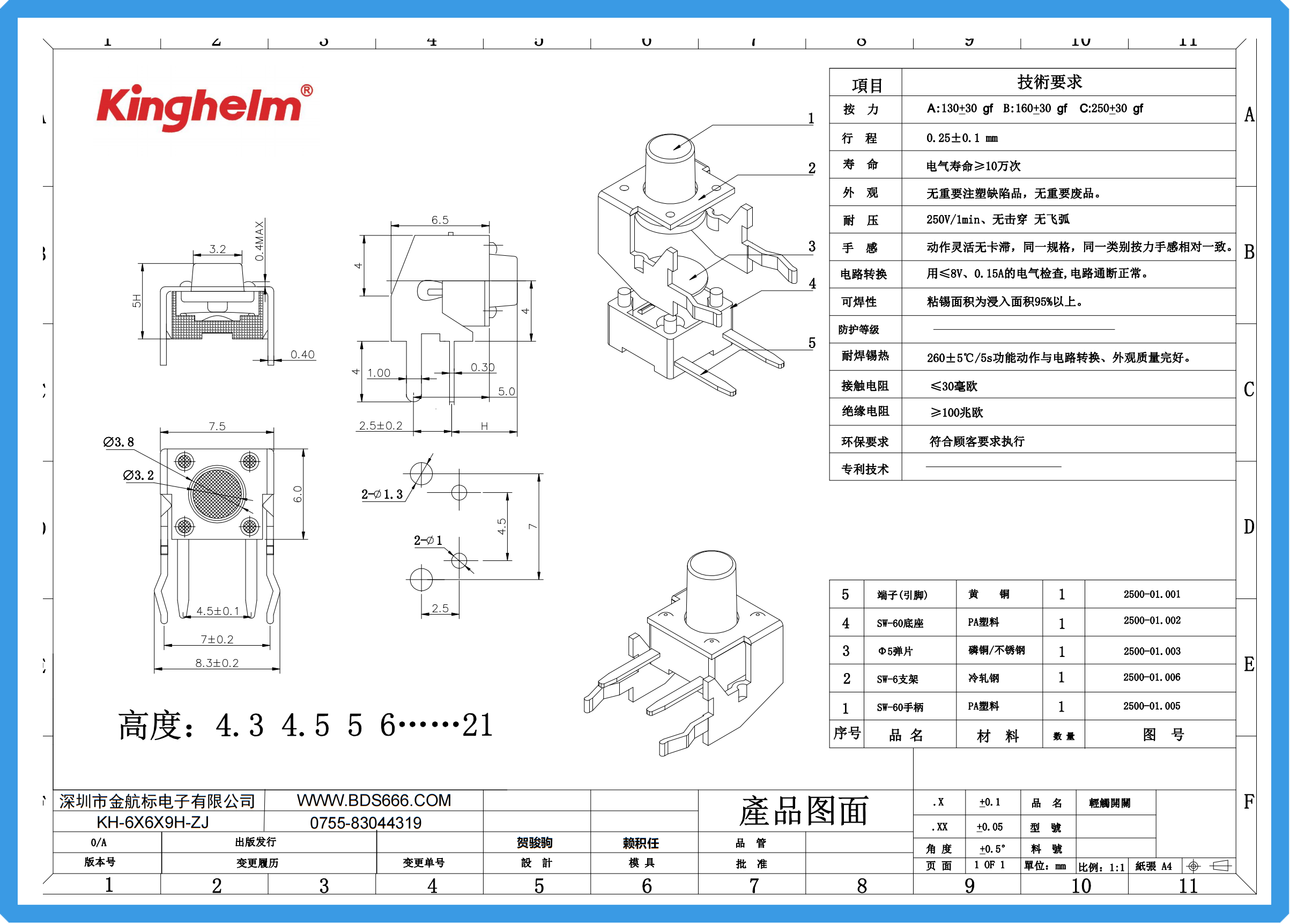

Kinghelm KH-6X6X9H-ZJ Specification

Kinghelm Electronics' ISO9001 and IATF16949 certifications ensure every switch meets high standards. The product has been adopted by Haier, BYD and other leading enterprises, with cumulative shipments exceeding 20 million units and field failure rates below 0.01%. We continue to optimize design and manufacturing processes to provide global customers with increasingly reliable switching solutions.
