Kinghelm female header KH-1.27FH-2X8P-H4.3-SMT: The Premium High-Density Interconnect Solution

In modern electronic device design and manufacturing, the selection of connectors often determines the reliability and performance of the entire system. Particularly, the female header, as a critical component for signal transmission and power connectivity between circuit boards, directly impacts product stability and longevity. Today, we will take an in-depth look at a high-performance product from Kinghelm—the KH-1.27FH-2X8P-H4.3-SMT—exploring its technical features, application scenarios, and why it stands out among numerous female headers.

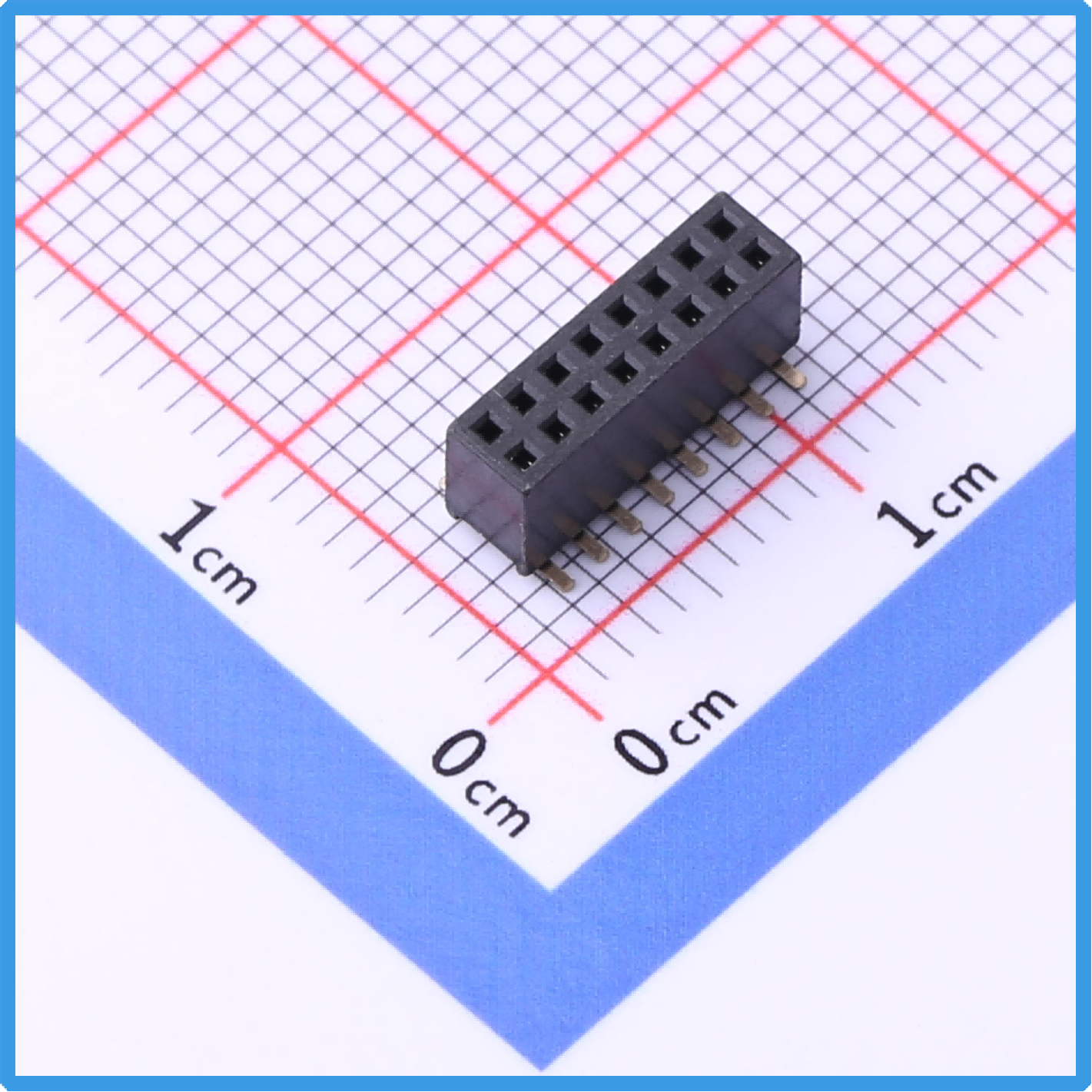

Kinghelm KH-1.27FH-2X8P-H4.3-SMT Product Image

What Is a Female Header? Why Is It Crucial in Electronic Design?

A female header, also known as a socket connector, is widely used on printed circuit boards (PCBs) to pair with male pin headers, enabling board-to-board connections or cable-to-PCB linkages. Its core functions include signal transmission, power distribution, and mechanical fixation. In high-density electronic devices—such as communication equipment, industrial controls, medical instruments, and consumer electronics—the stability, durability, and electrical characteristics of female headers are paramount. Substandard female headers can lead to poor contact, signal attenuation, or even system failure. Therefore, selecting a high-performance female header is key to successful design.

Technical Highlights of Kinghelm KH-1.27FH-2X8P-H4.3-SMT

The Kinghelm KH-1.27FH-2X8P-H4.3-SMT is a dual-row female header with SMD packaging, a pitch of 1.27mm, and a total of 16 positions, optimized for high-density PCB designs. Below are its advantages from multiple perspectives:

High-Precision Design and Stability

This product features a square-hole contact structure with a pitch and row spacing of 1.27mm, ensuring high-precision mating with pin headers. This design is particularly suitable for compact electronic devices, such as micro-sensors, portable medical equipment, and high-end communication modules, where space utilization and connection reliability are top priorities. Its vertical surface-mount installation further enhances PCB layout flexibility, making it ideal for automated SMT production and significantly improving manufacturing efficiency.

Outstanding Electrical Performance

The KH-1.27FH-2X8P-H4.3-SMT has a rated current of 1A, an insulation resistance of over 1000MΩ, a contact resistance of less than 20mΩ, and a withstand voltage of AC 500V. These parameters ensure stable operation in high-voltage and high-frequency environments, making it suitable for demanding applications such as industrial automation, power control, and automotive electronics. Its operating temperature range of -40℃ to +105℃ allows it to withstand thermal expansion and contraction in extreme environments, preventing connection failures due to temperature variations.

Mechanical Durability and Applicability

With a plastic height of 4.3mm and tube packaging, this female header is convenient for automated handling. The square-hole structure enhances mating durability, withstands multiple insertion and extraction cycles without damaging the terminals. The top-entry contact design simplifies PCB layout, especially for double-sided SMT high-density boards. Moreover, its gross weight of only 0.46 grams reflects Kinghelm’s perfect balance between lightweight design and strength.

Application Scenarios: From Consumer Electronics to Industrial Core

The versatility of the KH-1.27FH-2X8P-H4.3-SMT makes it the first choice for multiple industries. In consumer electronics, such as smartwatches, drones, and VR devices, its high density and lightweight properties meet the trend of device miniaturization. In industrial applications, such as PLC controllers, motor drive boards, and sensor networks, its wide temperature range and high withstand voltage ensure long-term stable operation. Medical devices also benefit from its high reliability, especially in life monitoring and diagnostic equipment, where the stability of the female header directly impacts device safety.

How to Choose the Right Female Header? Expert Advice

When selecting a female header, factors such as pitch, current capacity, operating temperature, and mounting style must be comprehensively considered. The 1.27mm pitch of the Kinghelm KH-1.27FH-2X8P-H4.3-SMT is one of the standards for current high-density designs, suitable for most modern electronic projects. Additionally, the rated current of 1A is sufficient for most low-voltage applications, while the wide temperature range design makes it suitable for outdoor or industrial environments. For scenarios requiring high-frequency signal transmission, its low contact resistance and high insulation resistance ensure signal integrity.

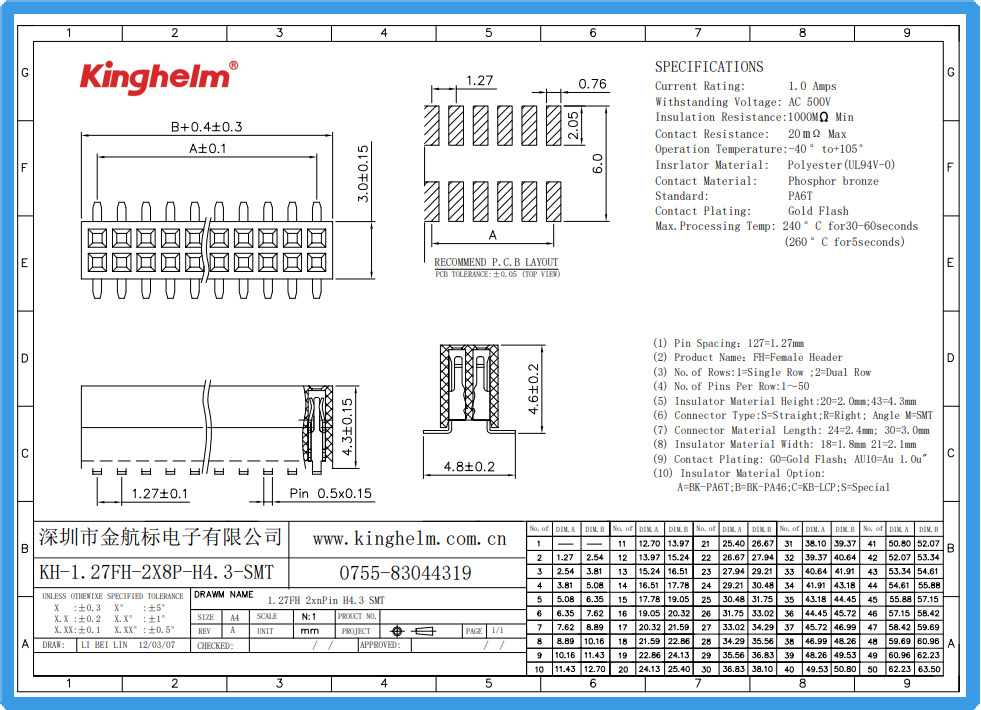

Kinghelm KH-1.27FH-2X8P-H4.3-SMT Specification

Conclusion: Kinghelm—A Reliable Partner in Connectivity Technology

As a leading brand in electronic connectivity, Kinghelm demonstrates its profound expertise in the design and manufacturing of female headers through the KH-1.27FH-2X8P-H4.3-SMT. This product not only meets the technical demands of high-density interconnections but also earns the trust of engineers with its exceptional reliability. In an era of increasingly miniaturized and complex electronic devices, choosing a high-quality female header like Kinghelm’s is undoubtedly a critical step toward ensuring product success.
