Kinghelm Type-A Horizontal SMT Receptacle KH-AF90HSMT-10JB-H6.3: The Ideal Choice for High-Reliability SMT Connections

In today's highly integrated electronics manufacturing landscape, the pursuit of PCB space efficiency and assembly productivity never ceases. Surface Mount Technology (SMT), renowned for its high precision, efficiency, and suitability for automated mass production, has become the dominant process. Addressing this need, the KH-AF90HSMT-10JB-H6.3 Type-A Horizontal SMT Receptacle from Kinghelm Electronics is a high-reliability interface solution tailored for modern electronic devices. It is more than a simple connector; it is a critical bridge ensuring stable data transfer and efficient power delivery.

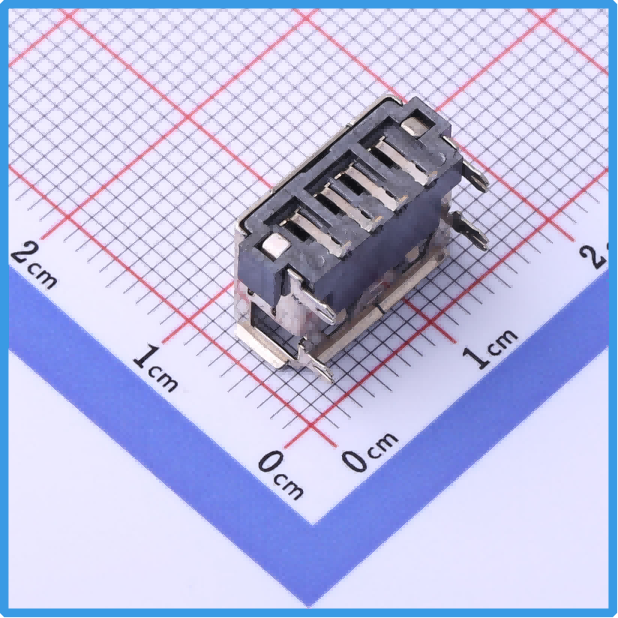

Kinghelm KH-AF90HSMT-10JB-H6.3 Product Image

I. Core Product Overview: Fusion of a Classic Interface and Modern Process

The Kinghelm KH-AF90HSMT-10JB-H6.3 is a USB 2.0 Type-A female receptacle designed for horizontal surface mounting. The Type-A interface, the most classic and ubiquitous form in the USB standard, offers unparalleled compatibility, able to connect billions of USB peripherals like keyboards, mice, flash drives, cameras, and various adapters. This connector merges this classic interface with advanced SMT processes, aiming to provide a robust and reliable port for a wide range of devices, including consumer electronics, smart home appliances, industrial controls, and networking equipment.

Its "horizontal" mounting design means the connector sits parallel to the PCB surface. This not only effectively reduces the overall product profile, enabling slimmer designs, but also distributes mating and unmating forces evenly across the solder pads and PCB, offering higher mechanical strength and fatigue resistance than vertical through-hole connectors.

II. Detailed Specifications & Performance Deep Dive

Brand & Model: Kinghelm - KH-AF90HSMT-10JB-H6.3

Interface Type: USB Type-A, Female Receptacle

USB Standard: Complies with USB 2.0 specification, supporting data transfer rates up to 480Mbps, fully meeting the needs of mid-to-high-speed peripherals.

Mounting Type: Surface Mount (SMT). This process is ideal for high-speed, precise placement by automated pick-and-place machines, significantly boosting production efficiency and reducing errors and costs associated with manual insertion.

Contact Configuration: 4-Pin design, strictly adhering to the USB 2.0 standard pinout (VBUS, D+, D-, GND).

Rated Current: A key advantage is its high 1.5A current-carrying capacity. This means it can not only transfer data but also provide ample power to connected devices, supporting higher-power peripherals like large-capacity portable HDDs and high-speed hubs, preventing issues like unrecognized devices or unstable operation due to insufficient power.

Packaging: Standard tray packaging. This ensures product integrity during transportation and automated handling, prevents pin damage, and facilitates direct feeding into SMT production lines.

III. Design & Structural Features: Meticulous Engineering for Reliability

High-Reliability SMT Terminals: The connector's solder terminal structure is optimized for a large contact area with PCB pads, ensuring strong solder joint integrity. It minimizes tombstoning defects during reflow soldering, improving production yield.

Robust Housing & Precision Tongue: Features a high-strength, high-temperature-resistant engineering plastic insulation and housing, offering excellent flame retardancy and mechanical strength. The internal metal shield and precision-molded contact tongue ensure accurate guide during plug insertion and optimal retention force, guaranteeing a solid mating feel and stable connection.

Excellent EMI Shielding: The full metal shield design effectively suppresses Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI), ensuring the integrity of high-speed data signals and reducing bit error rates, which is crucial for devices operating in complex electromagnetic environments.

Long Lifespan & Durability: Contacts and terminals are typically made from premium phosphor bronze with selective gold plating. The gold plating prevents oxidation, lowers contact resistance, and ensures good electrical conductivity over long-term use. It is designed for thousands of mating cycles, ensuring enduring performance.

IV. Key Advantages Summary

High Space Efficiency: Horizontal SMT design saves vertical space, enabling product miniaturization and thinner form factors.

Excellent Production Compatibility: Perfect SMT compatibility enables high-speed automated assembly, improving efficiency and reducing costs.

Strong Power Delivery: 1.5A high current rating supports more power-hungry USB devices.

Stable & Reliable Connection: Excellent mechanical structure, shielding, and contact materials ensure long-term stable electrical performance.

Brand Quality Assurance: Kinghelm, a reputable connector brand, guarantees reliable product quality and consistency.

V. Typical Application Scenarios

The KH-AF90HSMT-10JB-H6.3 has an extremely wide application range, wherever a standard USB host port is required:

Consumer Electronics: Smart TVs, Set-Top Boxes (STBs), digital media players, gaming consoles, desktop PC motherboards, all-in-one PCs.

Office Equipment: Printers, scanners, surveillance cameras.

Industrial Control: Industrial PCs (IPCs), PLC controllers, Human-Machine Interfaces (HMIs), test and measurement equipment. Its high reliability is ideal for demanding industrial environments.

Networking & Communication: Routers, switches, modems, Network Attached Storage (NAS) devices.

Smart Home: Smart central control hubs, smart speakers, smart security systems.

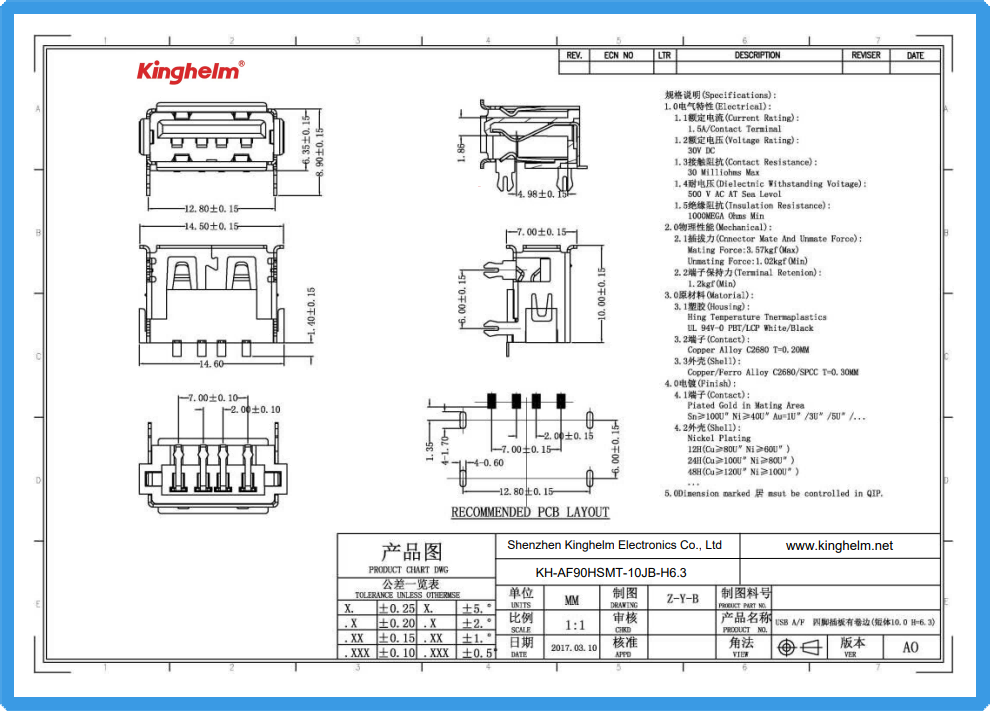

Kinghelm KH-AF90HSMT-10JB-H6.3 Specification

VI. Why Choose Kinghelm?

Kinghelm Electronics boasts a rich portfolio of connector products and profound technical expertise. Its products strictly adhere to international quality standards. The KH-AF90HSMT-10JB-H6.3 offers not only superior performance but also comprehensive technical support and reliable supply chain assurance. Choosing Kinghelm means choosing reliability, efficiency, and cost-effectiveness
