Kinghelm Micro-B USB Connector KH-MICRO5P-JZH for Smartphones, Tablets, and Power Banks

Introduction

In the realm of modern electronic product design, the choice of interface significantly impacts device performance and user experience. The KH-MICRO5P-JZH Micro-B USB connector, developed by Shenzhen Kinghelm Electronics Co., Ltd. (Kinghelm), is a high-performance connectivity solution that adheres to USB 2.0 standards. Featuring a surface-mount design and a rolled-edge with post structure, it ensures exceptional stability in high-speed data transmission and power delivery. This connector is widely adopted in smartphones, tablets, power banks, and various other applications, making it a preferred choice for manufacturers seeking reliable interface solutions.

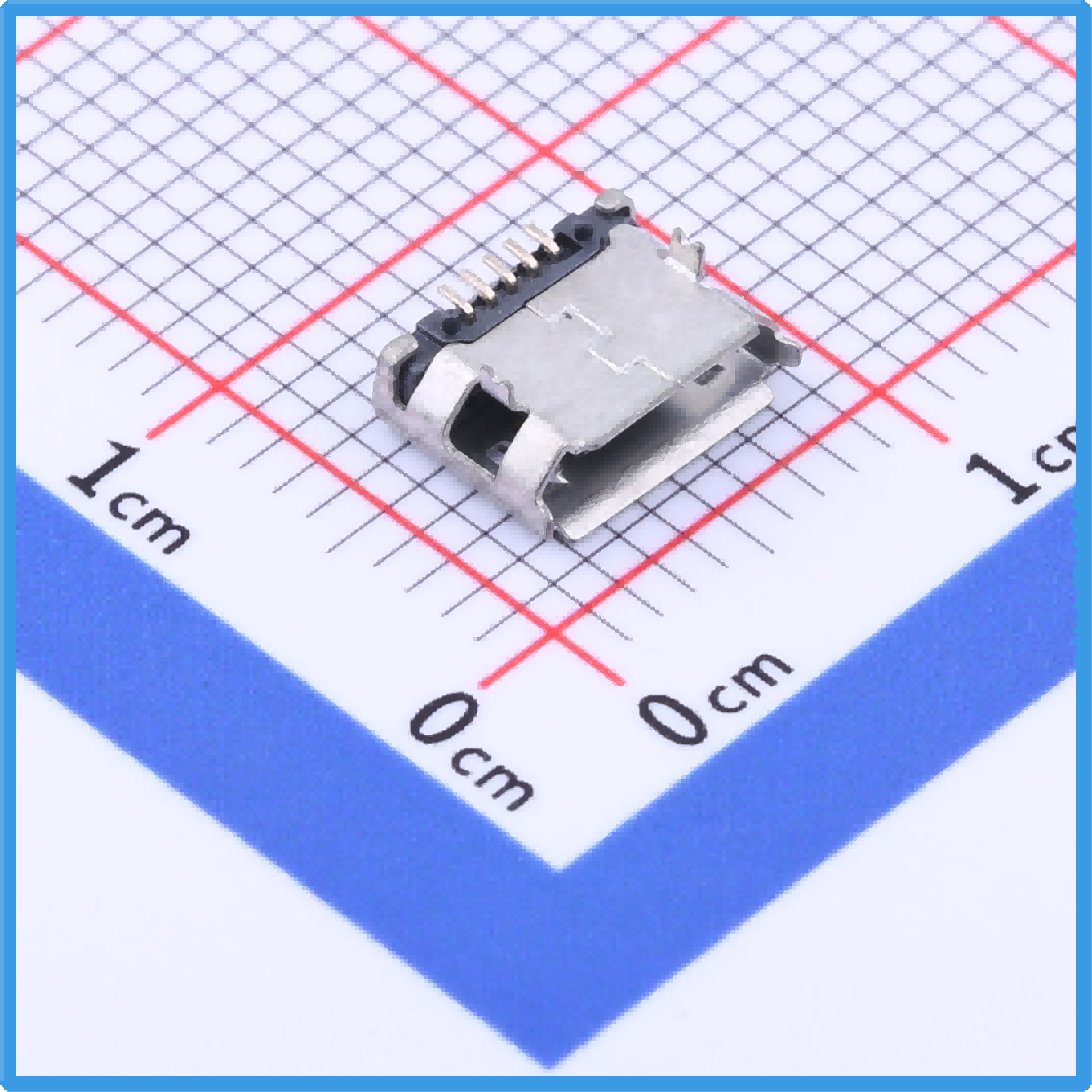

Kinghelm KH-MICRO5P-JZH Product Image

Applications in Smartphones

Smartphones, as essential tools in daily life, demand interfaces that are compact, durable, and reliable. The KH-MICRO5P-JZH meets these requirements with its small footprint and robust design, aligning perfectly with the trend toward thinner and lighter devices. Its surface-mount installation minimizes space usage, allowing manufacturers to optimize internal layouts for critical components like batteries and processors.

For daily use, smartphones require frequent charging and data transfer. The KH-MICRO5P-JZH’s 5-pin contact design ensures stable current delivery and seamless data synchronization, supporting fast charging and efficient file transfers. The rolled-edge with post structure enhances soldering strength, reducing the risk of interface loosening or damage during prolonged plug-unplug cycles. This durability allows the connector to withstand thousands of insertions, significantly extending the smartphone’s lifespan.

With an operating temperature range of -30°C to +80°C, the KH-MICRO5P-JZH performs reliably in diverse environments, from cold outdoor conditions to warm indoor settings. This adaptability provides manufacturers with greater design flexibility and ensures a consistent user experience, making the connector a cornerstone of modern smartphone design.

Applications in Tablets

Tablets, bridging the gap between smartphones and laptops, require interfaces that deliver high data transfer speeds and stability. The KH-MICRO5P-JZH, fully compliant with USB 2.0 standards, supports smooth data synchronization and efficient charging through its 5-pin contact design. This makes it an ideal choice for tablet motherboards, accommodating tasks like file transfers, system updates, and peripheral connections.

The trend toward slimmer tablets necessitates space-efficient components. The KH-MICRO5P-JZH’s surface-mount design integrates seamlessly into compact internal structures, enabling manufacturers to maintain sleek aesthetics without compromising performance. Its rolled-edge with post structure further enhances mechanical stability, ensuring reliable contact even under frequent plugging or accidental impacts.

Tablets often connect to peripherals such as keyboards, storage devices, or audio equipment. The KH-MICRO5P-JZH’s high compatibility ensures seamless integration with various accessories, expanding the functionality of tablets for home entertainment, professional work, or educational purposes. Its robust design guarantees consistent performance across diverse use cases.

Applications in Power Banks

Power banks, as portable energy storage devices, rely on interfaces that offer reliability and high current-carrying capacity. The KH-MICRO5P-JZH excels in this domain with its rolled-edge with post structure, which withstands the mechanical stress of repeated plug-unplug cycles, preventing contact issues and extending product lifespan.

Efficient charging is critical for power banks, and the KH-MICRO5P-JZH’s 5-pin design supports high-power output while maintaining stability. Its USB 2.0 compliance also enables data transfer, allowing users to sync files between devices via the power bank, enhancing its versatility. The connector’s wide operating temperature range ensures reliable performance in various conditions, making it suitable for daily commutes or outdoor adventures.

Applications in Other Fields

Beyond consumer electronics, the KH-MICRO5P-JZH is widely used in automotive electronics, wearable devices, medical portable equipment, and small-scale industrial control terminals. Its robust design and wide temperature range meet the stringent requirements of these applications, ensuring stable connectivity in harsh environments like vehicle vibrations or medical device operations. This versatility makes the connector a reliable choice across multiple industries.

Technical Advantages and Market Value

The KH-MICRO5P-JZH offers several key advantages: its USB 2.0-compliant 5-pin design ensures efficient data and power delivery; the rolled-edge with post structure enhances mechanical strength; and its surface-mount installation optimizes space usage. Its durability and wide operating temperature range make it adaptable to diverse environments, expanding its applicability.

From a market perspective, the KH-MICRO5P-JZH’s cost-effectiveness and versatility make it a top choice for manufacturers. Its reliable performance enhances the competitiveness of end products, contributing to Kinghelm’s strong market reputation. Whether in consumer electronics or industrial applications, this connector delivers secure and dependable connectivity.

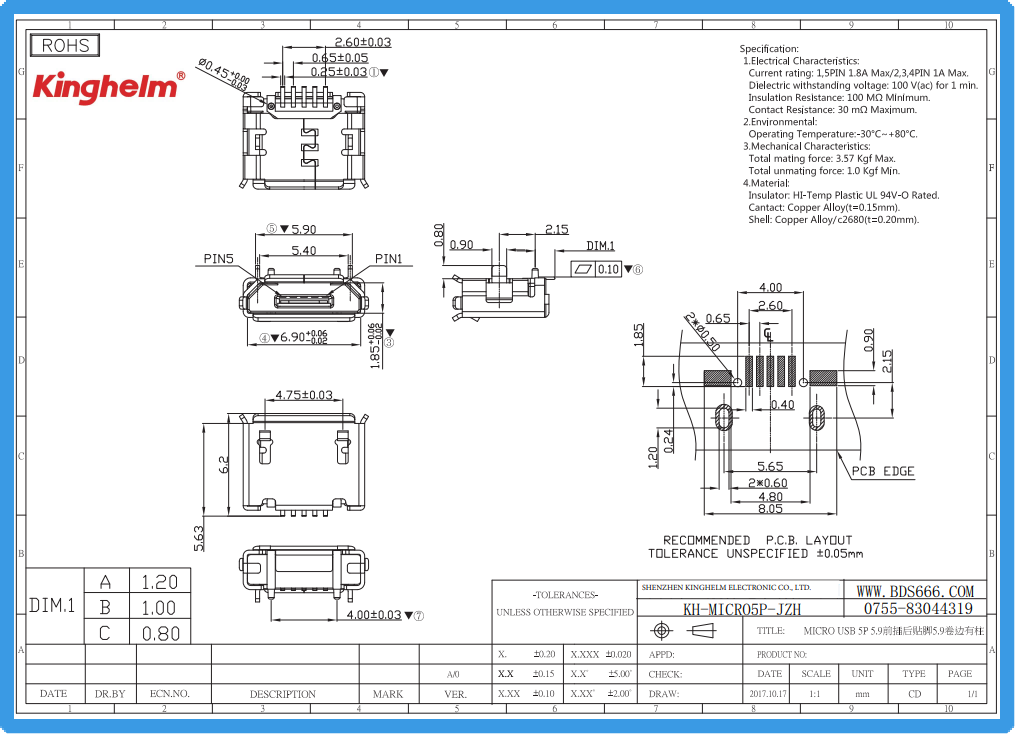

Kinghelm KH-MICRO5P-JZH Specification

Conclusion

The KH-MICRO5P-JZH Micro-B USB connector, with its compact design, robust performance, and broad applicability, is a vital component in smartphones, tablets, power banks, and beyond. Its surface-mount design, rolled-edge structure, and USB 2.0 compliance provide manufacturers with flexible solutions and users with a seamless experience. As a cornerstone of modern electronic design, this connector drives innovation across industries.
