Kinghelm XH2.5 Pitch 12-Pin Board-to-Board Connector KH-XH-12A-Z: Practical Guide and Application Insights

In the world of electronics, connecting circuit boards efficiently is a cornerstone of reliable system design. The KH-XH-12A-Z, a board-to-board connector with a 2.5mm pitch and 12-pin configuration, stands out as a dependable solution for this purpose. Part of the KH-XH series by Kinghelm, this connector ensures stable power and signal transmission, making it a go-to choice for engineers working on compact, high-performance devices. Whether you're designing IoT modules or industrial control systems, the KH-XH-12A-Z offers the versatility needed to streamline your projects.

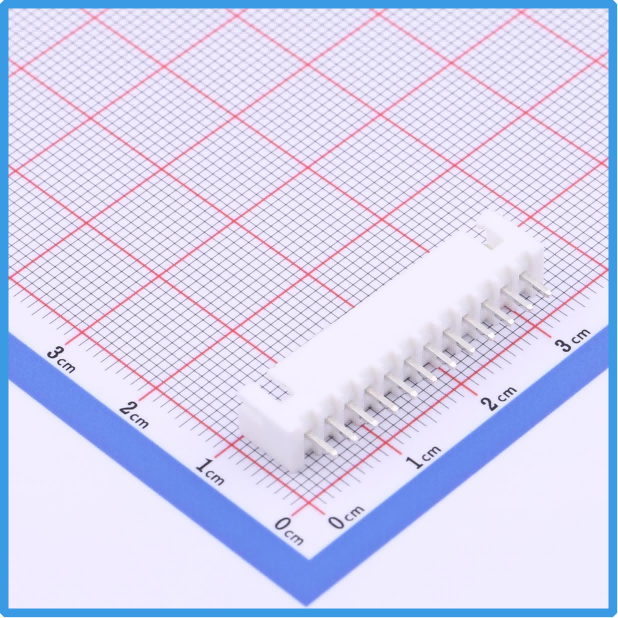

Kinghelm KH-XH-12A-Z Product Image

Manufactured by Kinghelm, the KH-XH-12A-Z weighs just 0.96 grams and comes in bag packaging, making it easy to store and transport. Its 12-pin design is tailored for medium-scale board interconnections, providing ample channels for signal and power transfer. Picture a scenario where you need to link a microcontroller board to a peripheral module in a smart home device—this connector is engineered to handle such tasks with ease, balancing space constraints with robust performance.

Technical Specifications: What Makes KH-XH-12A-Z Stand Out

The KH-XH-12A-Z boasts impressive electrical characteristics. It supports a current rating of 3A AC/DC and a voltage rating of 250V AC/DC, making it suitable for a wide range of power demands. Its operating temperature range of -25°C to +85°C ensures reliability in diverse environments, from cold storage units to warm indoor setups. With a contact resistance of 20mΩ maximum and an insulation resistance of at least 1000MΩ, this connector guarantees low signal loss and high safety. It also withstands 1000V AC for one minute, adding an extra layer of durability.

The materials used in the KH-XH-12A-Z enhance its functionality. The wafer is made of Nylon66, certified to UL94V-0 standards for flame resistance, which is critical for applications requiring strict safety compliance. The pins, crafted from tin-plated brass, offer excellent conductivity and corrosion resistance, ensuring long-term performance. As a wire-to-board pin header, this connector simplifies installation, allowing for secure connections with minimal effort.

Applications: Where KH-XH-12A-Z Shines

The KH-XH-12A-Z board-to-board connector is a versatile component found in various industries. In consumer electronics, it’s often used to connect mainboards to expansion modules in devices like smart thermostats or wireless routers, ensuring seamless data transfer. In medical equipment, it links sensor boards to processing units, reducing the risk of connection failures compared to traditional soldering. Industrial automation also benefits from its robust design, as it can withstand vibrations in environments like PLC control cabinets. The 2.5mm pitch strikes a perfect balance between compactness and reliability, making it ideal for space-constrained designs.

For engineers, the KH-XH-12A-Z is a practical choice due to its ease of integration. Its lightweight 0.96-gram design minimizes the overall weight of portable devices, a critical factor in wearables or drones. The bag packaging further simplifies inventory management, especially for teams working on rapid prototyping or large-scale production. This connector’s ability to handle multiple signal channels makes it compatible with protocols like I2C or SPI, enhancing its utility in modern electronics.

Installation and Maintenance Tips

Installing the KH-XH-12A-Z is straightforward, even for those new to electronics assembly. Begin by aligning the connector’s pins with the corresponding holes on your circuit boards, ensuring the 2.5mm pitch matches your design. Apply gentle, even pressure to secure the connection, listening for a slight click to confirm proper seating. Before finalizing, use a multimeter to verify continuity across all 12 pins to rule out any loose connections. If working in high-temperature environments, pre-warm the boards to reduce thermal stress during insertion.

Maintaining this connector is equally simple. In dusty or humid settings, clean the pin surfaces every few months using isopropyl alcohol to maintain low contact resistance. Avoid high-pressure air cleaning to prevent static damage. If you notice an increase in resistance, consider replacing the connector to ensure consistent performance. Kinghelm’s quality assurance means the KH-XH-12A-Z is built for longevity, reducing the need for frequent replacements in most applications.

Why Choose a 2.5mm Pitch Connector?

The 2.5mm pitch of the KH-XH-12A-Z is a sweet spot in connector design. It’s compact enough to save valuable PCB real estate, yet robust enough to handle stable connections in dynamic environments. The 12-pin configuration supports multiple signal paths, making it ideal for applications requiring parallel data transfer. Compared to larger connectors, it reduces board clutter, which is a significant advantage in the trend toward miniaturization. Its compatibility with standard protocols also makes it a versatile choice for engineers across industries.

From a cost perspective, the KH-XH-12A-Z offers a compelling balance of performance and affordability. Its bag packaging streamlines procurement, especially for bulk orders, while the lightweight design reduces shipping costs. Engineers can rely on Kinghelm’s detailed specifications to ensure compatibility with their PCB layouts, minimizing design errors. The connector’s ability to handle 3A current and 250V voltage makes it suitable for powering LED drivers or sensors, while its high insulation resistance prevents unwanted leakage.

The Bigger Picture: Connectivity in Modern Electronics

The evolution of board-to-board connectors reflects the broader shift in electronics toward modularity and scalability. The Kinghelm KH-XH-12A-Z embodies this trend, offering a plug-and-play solution that simplifies assembly and maintenance. In fast-paced development cycles, such as those for IoT devices, the ability to quickly swap modules can significantly reduce downtime. For instance, in a drone’s control system, this connector allows easy separation of navigation and power boards, facilitating field repairs.

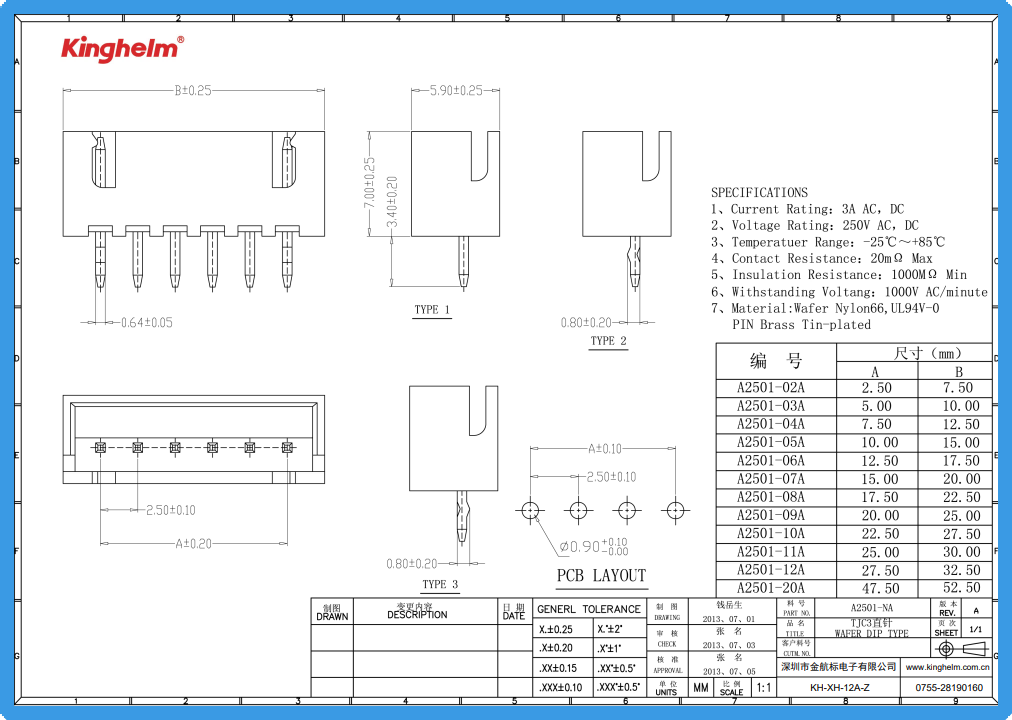

Kinghelm KH-XH-12A-Z Specification

Looking ahead, the demand for compact, reliable connectors like the Kinghelm KH-XH-12A-Z is set to grow. As 5G networks and edge computing gain traction, devices will require more efficient interconnects to handle increased data rates. This connector’s 12-pin design supports such needs, while its Nylon66 material aligns with eco-friendly manufacturing trends. Engineers can use simulation tools to optimize its placement on PCBs, ensuring maximum space efficiency.
