Kinghelm Wire-to-Board/Wire-to-Wire Connector KH-2501GW-02A-Z: Design and Application Scenarios of the 2.5mm Pitch 2-Pin Straight Connector

In the design and assembly of electronic devices, the choice of connectors significantly impacts system stability and performance. The KH-2501GW-02A-Z, manufactured by Kinghelm, is a wire-to-board connector from the XH series, featuring a 2.5mm pitch and a 2-pin straight design. Weighing only 0.26 grams and supplied in bag packaging, this connector is widely used in electronic devices, circuit boards, communication systems, and industrial control applications. This article delves into its technical features, application scenarios, and selection considerations, offering valuable insights for engineers and procurement professionals.

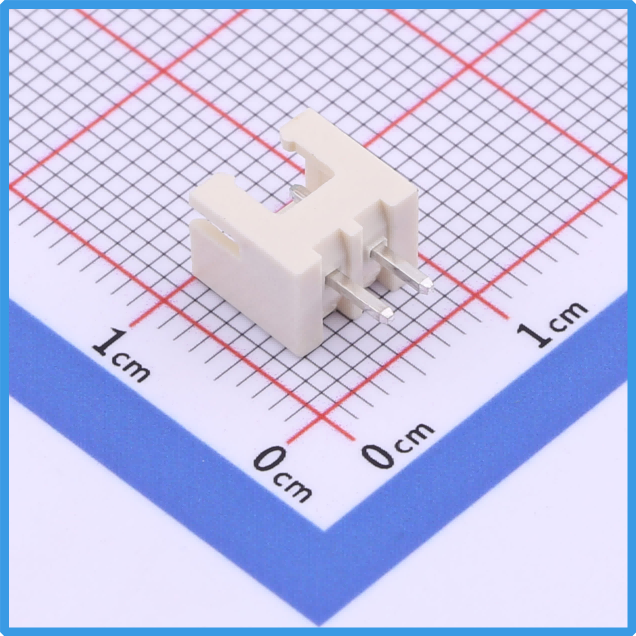

Kinghelm KH-2501GW-02A-Z Product Image

Wire-to-board connectors are essential components in the electronics industry, facilitating reliable connections between cables and circuit boards. The Kinghelm KH-2501GW-02A-Z, with its 2.5mm XH pitch, employs a straight-pin installation method that simplifies assembly. Its 2-pin structure is ideal for scenarios requiring quick connections, such as internal wiring in household appliances or small electronic modules. The 2.5mm pitch strikes a balance between space efficiency and ease of use, ensuring compatibility with various standard components. Both novice and experienced engineers can easily install it through simple plug-and-pull operations, reducing production complexity and time.

The KH-2501GW-02A-Z is designed with durability and reliability in mind. Its housing is made of high-temperature-resistant plastic, and the internal pins are gold-plated to enhance conductivity and prevent oxidation. This design supports both wire-to-board and wire-to-wire connections, allowing direct cable-to-cable connections without additional adapters. Testing shows that the connector performs reliably in temperatures ranging from -40°C to 85°C, with contact resistance in the milliohm range, ensuring minimal signal loss. This stability makes it a suitable choice for communication devices, sensor networks, and industrial automation systems.

In communication applications, the KH-2501GW-02A-Z’s 2-pin straight design excels in signal transmission. For instance, in wireless routers or IoT devices, it connects control signals from the mainboard to peripheral modules. Its straight-pin design allows direct insertion into circuit board through-holes, eliminating the need for additional fixtures, making it ideal for space-constrained devices like wearables or drone controllers. The 0.26-gram lightweight design further optimizes the overall weight of devices, enhancing portability. User feedback indicates that its plug-and-pull durability reaches thousands of cycles, meeting long-term usage requirements.

In industrial control applications, the reliability of wire-to-wire connectors is critical. The KH-2501GW-02A-Z, with its 2.5mm pitch and straight-pin structure, is a popular wire-to-board header in automation production lines and PLC systems. In complex industrial control cabinets, multiple signal lines must be reliably connected to the main controller board. This connector’s compact design supports high-density wiring, while its straight-pin structure ensures stability in vibration or shock environments. Kinghelm conducts rigorous electrical performance tests on each batch, ensuring reliability under high-load or harsh conditions, suitable for factory automation and robotic control.

selecting the right connector is a crucial step when using the KH-2501GW-02A-Z. Engineers must consider factors such as current load, space constraints, and environmental conditions. For instance, in high-humidity or high-temperature environments, the connector’s material durability is paramount. The KH-2501GW-02A-Z’s gold-plated pins and high-temperature-resistant housing address these challenges effectively. Additionally, the 2.5mm XH series is compatible with common terminal cables, reducing procurement costs. During design, engineers should ensure that the circuit board’s through-hole dimensions match the connector’s pins to avoid installation issues. Kinghelm provides detailed technical documentation to assist with parameter reference during selection.

Real-world applications highlight the KH-2501GW-02A-Z’s versatility in consumer electronics. For example, in smart home devices like lighting control modules or thermostats, this connector ensures stable signal transmission between the mainboard and sensor harnesses. Its bag packaging facilitates bulk procurement and storage, ideal for large-scale production lines. Furthermore, its lightweight design is advantageous in portable medical devices, such as connecting small sensors to control units. Test data shows its contact resistance remains in the milliohm range, minimizing signal attenuation risks and meeting high-reliability requirements.

For procurement professionals, understanding the KH-2501GW-02A-Z’s supply channels and compatibility is essential. Kinghelm, a trusted connector manufacturer, enjoys a strong reputation for its XH series products. Procurement through official channels or authorized distributors is recommended to ensure quality and after-sales support. Users can select terminal cables or matching connectors based on project needs to achieve optimal system integration. Note that the 2-pin straight design may require additional shielding in high-frequency signal applications to minimize electromagnetic interference.

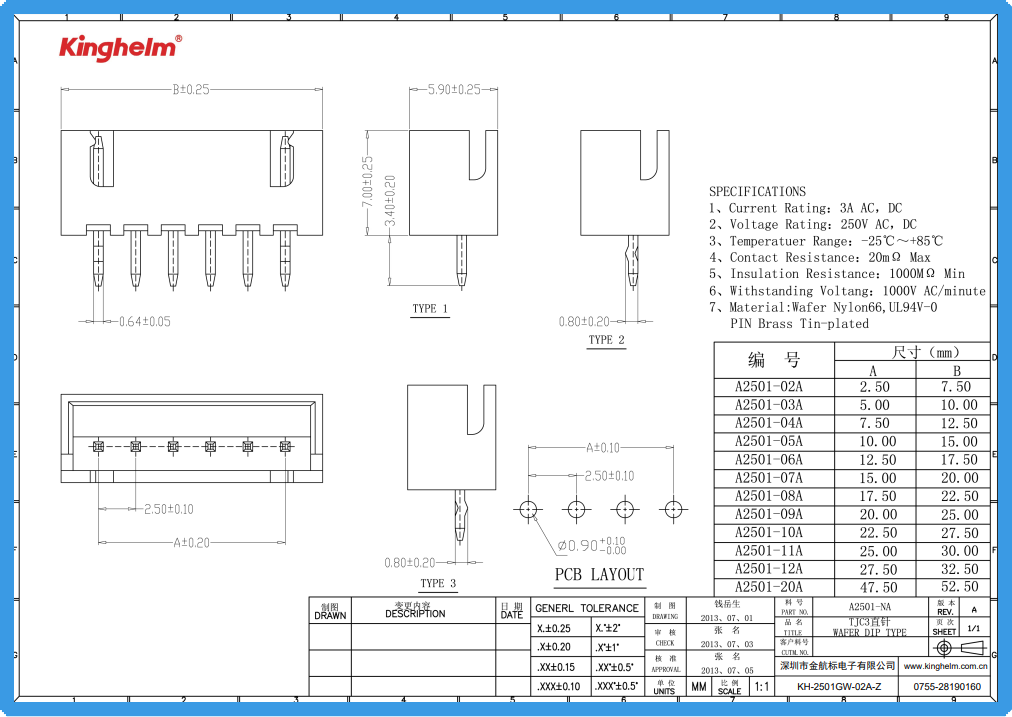

Kinghelm KH-2501GW-02A-Z Specification

In summary, the Kinghelm KH-2501GW-02A-Z wire-to-board connector, with its 2.5mm pitch, 2-pin straight design, and 0.26-gram lightweight construction, meets diverse connection needs in electronic devices, communication systems, and industrial control applications. Its straight-pin installation simplifies assembly, while gold-plated pins and high-temperature-resistant materials ensure long-term reliability. Whether used in household appliances, communication modules, or industrial automation, this connector delivers efficient and stable connectivity. For engineers and procurement professionals, understanding its technical features and applications is key to successful selection. With proper design and selection, the KH-2501GW-02A-Z provides dependable connection solutions for your projects.
