Kinghelm FPC Connector KH-FG0.5-H2.0-22P-SMT: Pioneering Connectivity for Sleek Devices

As electronic devices trend toward ultra-slim designs and high performance, Flexible Flat Cable (FPC) connectors are increasingly critical. They must deliver efficient signal transmission in constrained spaces while ensuring ease of assembly and connection stability. The Kinghelm KH-FG0.5-H2.0-22P-SMT, designed for FPC applications, features a 0.5mm ultra-fine pitch, 22-pin configuration, and a flip-lock, bottom-contact H2.0 SMT mounting style. It provides a reliable electrical connectivity solution for compact applications like smart wearables and portable medical devices.

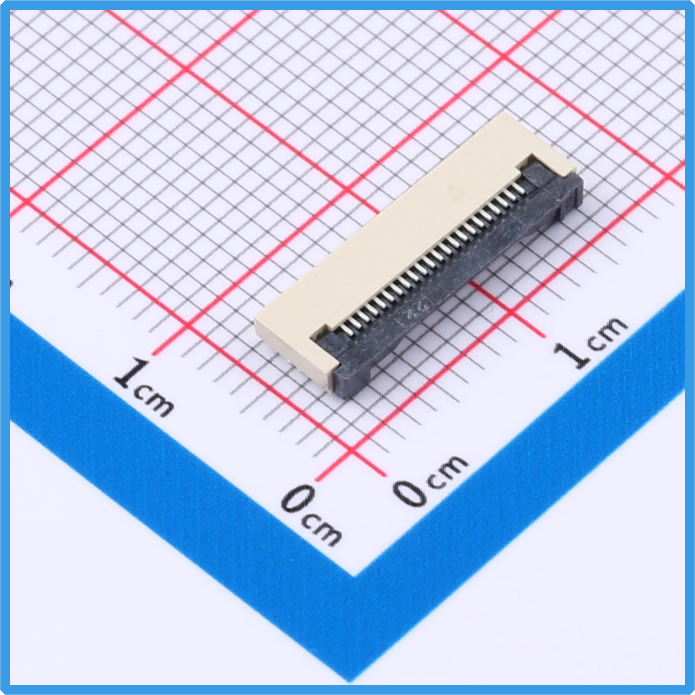

Kinghelm KH-FG0.5-H2.0-22P-SMT Product Image

SMT Compatibility: Streamlined Precision

A key strength of the Kinghelm KH-FG0.5-H2.0-22P-SMT is its Surface-Mount Technology (SMT) compatibility, simplifying assembly with high precision. By eliminating manual soldering’s alignment challenges, SMT enables automated PCB mounting, reducing errors and enhancing efficiency. In smartwatch production, for instance, high-precision equipment places the connector swiftly, bypassing additional calibration. This makes it ideal for consumer electronics requiring rapid prototyping and production cycles.

Flip-Lock Design: Ease and Stability

The flip-lock mechanism adds both practicality and reliability. Its bottom-contact design allows users to lift the cover, insert the FPC cable, and secure it by closing the cover—an intuitive, efficient process. This ensures stable connections in dynamic environments like vibration-prone settings, extending device lifespan in applications such as portable audio devices or drone control modules. The design also facilitates maintenance, enabling quick cable swaps without damaging components, a boon for prototyping.

Electrical Performance: Consistent Signal Delivery

The KH-FG0.5-H2.0-22P-SMT offers dependable electrical performance. Rated at 50V AC/DC, it meets low-voltage signal needs. A contact resistance below 0.03Ω ensures low-loss, high-fidelity signal transmission, critical for high-speed interfaces like tablet touchscreen-to-chip connections, where 22 pins handle multi-channel signals without degradation. Insulation resistance above 500MΩ prevents electrical interference, reducing crosstalk risks in dense PCB layouts and ensuring signal purity.

Broad Temperature Resilience

Operating from -25°C to 85°C, the connector adapts to varied environments, from cold outdoor navigation devices to warm smart home systems. This resilience stems from high-quality insulating materials and metal contacts, rigorously tested to maintain mechanical and electrical performance under stress, ensuring reliability across global markets.

Kinghelm’s Manufacturing Excellence

Produced by Kinghelm, the KH-FG0.5-H2.0-22P-SMT reflects meticulous design for production needs. Weighing just 0.503g, it simplifies logistics, while its SMD packaging and 0.5mm pitch suit compact PCB layouts. Tape-and-reel packaging enhances automated pick-and-place efficiency, boosting feeder performance by ~15% in high-volume settings like smart bands or wireless earbuds.

Versatile 22-Pin Configuration

The 22-pin setup balances functionality and simplicity, ideal for mid-sized data transmission needs. In smart glasses, it handles video, power, and sensor signals while maintaining a compact footprint via its 0.5mm pitch. The H2.0 height enables horizontal cable insertion, minimizing vertical space and enhancing heat dissipation in foldable devices or ultra-thin laptops.

Durability and Eco-Compliance

Gold-plated contacts ensure oxidation resistance and durability, maintaining low resistance across thousands of mating cycles. This is crucial for consumer devices with frequent handling. RoHS-compliant materials meet global environmental standards, supporting market access, particularly in regions like the EU, while reinforcing Kinghelm’s commitment to sustainable manufacturing.

Production Optimization

The KH-FG0.5-H2.0-22P-SMT integrates into reflow soldering lines with standard solder paste and temperature profiles, requiring no equipment adjustments. This lowers costs for SMEs. A medical device manufacturer reported a 10% yield increase with similar connectors, thanks to SMT stability and tape-and-reel efficiency.

Future-Ready Design

With IoT and 5G growth, FPC connector demand is rising. The KH-FG0.5-H2.0-22P-SMT’s compact, reliable design suits smart home gateways and wearable health monitors, supporting real-time data without added bulk. Its low height and flip-lock enable innovative flexible circuit applications, like electronic skin or flexible displays.

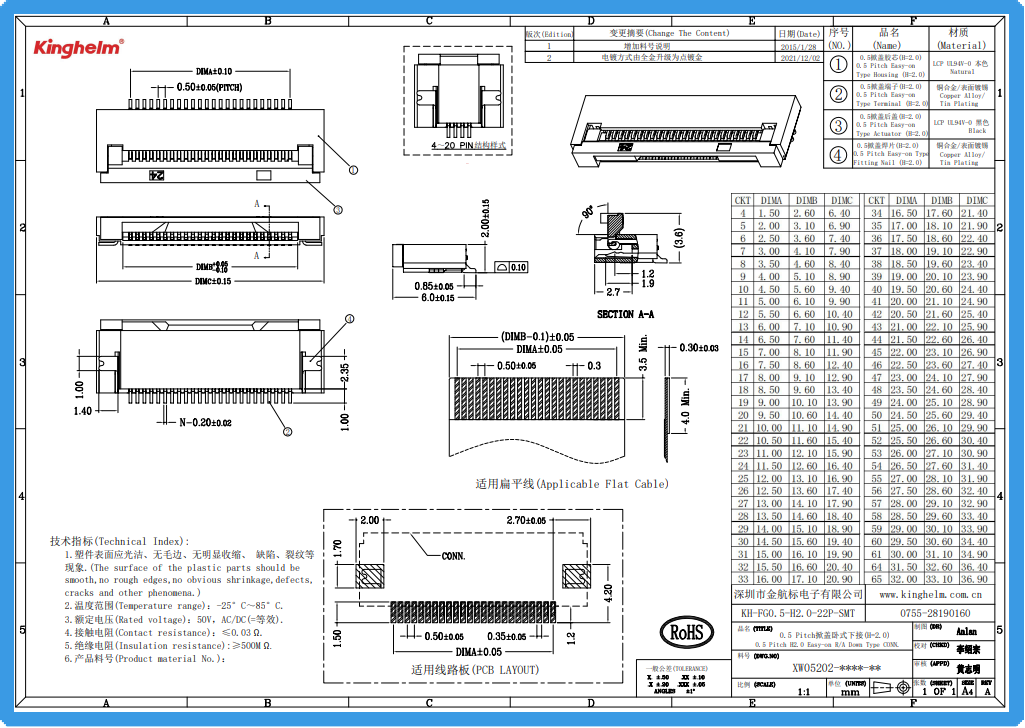

Kinghelm KH-FG0.5-H2.0-22P-SMT Specification

Conclusion

The Kinghelm KH-FG0.5-H2.0-22P-SMT delivers lightweight design, robust electrical performance, and efficient assembly, making it a go-to solution for modern electronics. From rapid prototyping to mass production, it empowers innovation, with Kinghelm’s technical expertise ensuring reliable connectivity for cutting-edge devices.
