Kinghelm Antenna Spring Contact KH-291012-TP: Empowering Seamless Connectivity in Compact Devices

In the era of interconnected smart devices, the demand for compact, high-performance components is driving innovation in wireless communication. The Antenna Spring Contact KH-291012-TP, engineered by Kinghelm, emerges as a pivotal solution for reliable signal transmission in space-constrained applications. With its manufacturer model KH-291012-TP and a precise encapsulation of 2.9x1.0x1.2mm, this antenna spring contact is designed to meet the rigorous needs of modern electronics, delivering unmatched durability and efficiency.

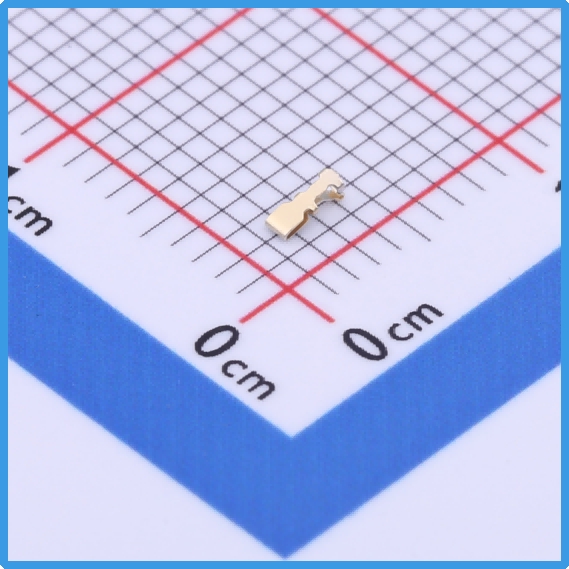

Kinghelm KH-291012-TP Product Image

Ultra-Compact Design for Next-Gen Devices

The Antenna Spring Contact KH-291012-TP boasts a remarkably small footprint of 2.9x1.0x1.2mm, making it one of the most compact solutions for wireless connectivity. With a gross weight of just 0.042 grams, it adds negligible mass to devices, ideal for ultra-slim smartphones, smartwatches, and IoT sensors. Its tape-and-reel packaging ensures compatibility with high-speed automated assembly lines, reducing production time and costs. This miniature design empowers engineers to maximize space efficiency, enabling the creation of sleek, lightweight devices without compromising connectivity performance.

Robust SUS304 Stainless Steel Construction

Crafted from SUS304 stainless steel with a thickness of 0.08±0.005mm, the Antenna Spring Contact KH-291012-TP offers exceptional mechanical strength and corrosion resistance. SUS304 is renowned for its ability to withstand environmental stressors, ensuring the spring contact maintains its structural integrity in humid or variable temperature conditions. This material choice guarantees long-term reliability, making the Antenna Spring Contact KH-291012-TP a dependable component for devices exposed to challenging environments.

Gold Plating for Superior Conductivity

The surface treatment of the Antenna Spring Contact KH-291012-TP features a nickel base layer of 50–80µ" minimum, paired with gold plating on both the soldering and contact areas, with a minimum gold thickness of 1µ" in the contact region. This gold-plated finish minimizes contact resistance, ensuring efficient signal transmission with minimal loss. The anti-oxidation properties of gold plating also enhance the component’s longevity, making it ideal for high-frequency applications such as 5G modules, Bluetooth devices, and Wi-Fi-enabled systems.

Long-Lasting Performance for Demanding Applications

Durability is a hallmark of the Antenna Spring Contact KH-291012-TP, which is engineered to endure over 20,000 cycles in lifespan testing. This makes it suitable for devices requiring frequent connections, such as wireless earbuds or test equipment. The spring force is meticulously calibrated to remain between 60gf and 80gf, providing secure contact without risking material fatigue. This balance ensures consistent performance over extended use, making the Antenna Spring Contact KH-291012-TP a reliable choice for high-demand applications.

Versatile Applications in Smart Technology

The Antenna Spring Contact KH-291012-TP is designed to support a wide range of industries, from consumer electronics to industrial IoT. Its compact size and robust performance make it an excellent fit for augmented reality (AR) headsets, smart home devices, and vehicle-to-everything (V2X) communication systems. In applications requiring low-latency, high-reliability connections, such as medical wearables or smart city infrastructure, this spring contact delivers consistent results, enabling seamless integration into cutting-edge technologies.

Kinghelm’s Commitment to Quality

Kinghelm, a trusted name in connectivity solutions, has poured its expertise into the Antenna Spring Contact KH-291012-TP. The company’s rigorous quality control processes ensure each component meets stringent standards, from material selection to final testing. With a focus on innovation, Kinghelm collaborates with industry partners to stay ahead of market trends, ensuring that products like the Antenna Spring Contact KH-291012-TP address the evolving needs of wireless communication. This dedication to excellence makes Kinghelm a preferred partner for manufacturers worldwide.

Streamlined Procurement and Integration

The Antenna Spring Contact KH-291012-TP is available through Kinghelm’s official channels or authorized distributors, with tape-and-reel packaging facilitating bulk orders for large-scale production. Kinghelm provides comprehensive technical documentation and sample testing to support seamless integration into customer designs. Engineers can leverage the gold-plated soldering areas for robust assembly and perform spring force calibration to optimize performance in specific applications.

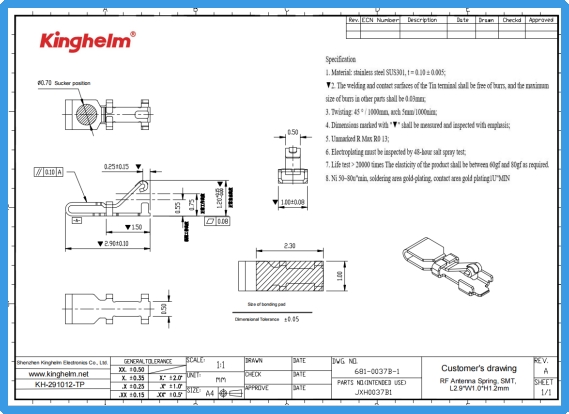

Kinghelm KH-291012-TP Specification

Powering the Future of Connectivity

The Kinghelm Antenna Spring Contact KH-291012-TP stands as a testament to the power of precision engineering in the wireless age. Its 2.9x1.0x1.2mm form factor, SUS304 stainless steel construction, and gold-plated finish combine to deliver a component that is both compact and resilient. With a lifespan exceeding 20,000 cycles and a finely tuned 60gf–80gf spring force, this spring contact is poised to support the next generation of smart devices. By choosing the Antenna Spring Contact KH-291012-TP, manufacturers invest in a component that ensures reliable connectivity and drives innovation in an increasingly connected world.

About Kinghelm

Shenzhen Kinghelm Electronics Co., Ltd.（www.kinghelm.net）has technical backbones from Tsinghua University and UESTC, and has introduced overseas returnee professionals. Kinghelm is able to develop highly reliable and high-performance antenna and connector products.KH series products of "Kinghelm" brand include Beidou/GPS antennas, RF adapter connectors, plug connector, electrical data connectors, terminals, and customized vehicle harnesses, industrial / medical connectors, and special antenna connectors."Kinghelm connects world", Kinghelm has grown with the development of China's Beidou industry. Starting from supplying Beidou/GPS dual mode antennas, IPEX terminals, and RF adapter cables for automotive manufacturers, Kinghelm has continuously developed products. Currently, it has a series of WiFi, Bluetooth, NB-loT, LoRa, Zigbee, UWB, and GSM antennas, RFID tags, RF adapter cables, standard microwave antennas, vehicle grade SMA, SMB, FAKRA holders, coaxial cables, and can customize non-standard antenna connectors based on customer drawings or samples.
