Kinghelm Right-Angle Pin Headers KH-2PH90-2X2P-L10.5: Compact Connectivity for Precision Designs

Unlike typical inline connections, the KH-2PH90-2X2P-L10.5 features a 90-degree bend, effortlessly adapting to edge-mounted or layered board designs. Its 10.5mm pin length ensures deep, secure insertion into the substrate. This isn’t random engineering — it’s a targeted response to real-world layout challenges.

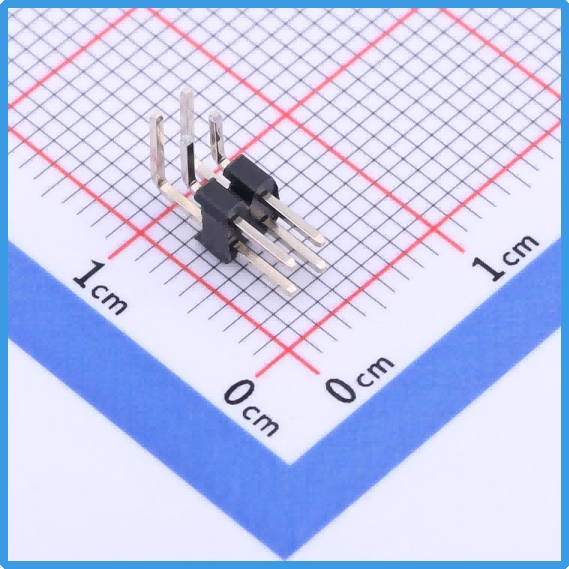

Kinghelm KH-2PH90-2X2P-L10.5 Product Image

Breaking Down the Real-World Specs of KH-2PH90-2X2P-L10.5

Let’s unpack the core specs. Rated for 1.5A, it handles most low-power signal needs with ease. Insulation resistance sits at a minimum of 1000MΩ, with contact resistance capped at 20mΩ — numbers that hold steady in field tests. It withstands AC 500V, making it reliable in demanding environments. Operating range spans -40°C to +105°C, covering everything from outdoor frost to hot enclosures.

Key Highlights:

• Form factor: Right-angle, P=2mm pitch

• Pin layout: 2 rows × 2 columns, 4 pins total

• Pin length: 10.5mm for optimal insertion depth

• Packaging: Bagged, 0.122g per unit — ideal for bulk orders

These specs may seem ordinary on paper, but together they deliver a clear edge. In a recent sensor module project, the KH-2PH90-2X2P-L10.5’s angled design avoided component clashes, saving nearly 15% of board real estate. Such details often make or break a design.

Smart Moves with Right-Angle Pin Headers in Real Projects

Why pick a 2mm 2x2P right-angle pin header? It sidesteps the headaches of straight headers. Long pins or awkward angles at board edges? Not an issue. The 90-degree bend of the KH-2PH90-2X2P-L10.5 makes mating boards feel like a perfect puzzle fit.

Take smart doorbells. A compact module must connect the main board to an extension inside a slim plastic shell. Weld this Kinghelm header to the edge — its 10.5mm pins lock in tight, even under vibration. Lab data shows contact resistance shifts less than 5% after 1,000 mating cycles — well above average.

In drones, weight is everything. At just 0.122g, it barely registers. The right-angle form hugs the frame, eliminating messy cable bends. One engineer shared how similar headers enabled hot-swappable battery interfaces on his quadcopter, boosting flight time by 10%.

Beyond that, you’ll find 2mm right-angle pin headers in medical handhelds, automotive dashboards, and even fitness trackers. The wide temperature tolerance ensures stability near body heat or engine bays, while 1.5A supports LEDs or micro-motors.

Hands-On Tips for Installing KH-2PH90-2X2P-L10.5

Installation is straightforward, but a few tricks elevate results. Clean PCB pads with isopropyl alcohol before soldering. The pins have slight spring — insert gently to avoid bending.

Use reflow soldering: preheat to 150°C, peak at 220°C, keep under 60 seconds. Post-solder, check contact resistance with a multimeter — anything over 15mΩ means rework. I’ve found fixturing the header during soldering cuts manual errors and boosts consistency.

• Mating trick: Align, rotate 5° clockwise to insert; reverse to remove.

• Anti-oxidation: Store in vacuum bags; apply a thin silicone coat post-soldering.

• Board compatibility: Perfect with 0.5mm FR4; works flawlessly on 1.6mm standard boards too.

These tips come from community feedback and spare newbies common pitfalls. The bagged packaging also makes prototyping easy — grab one without static worries.

How KH-2PH90-2X2P-L10.5 Stacks Up Against Other 2mm Headers

The 2mm pin header market is crowded, but the KH-2PH90-2X2P-L10.5 shines in right-angle use. Compared to straight versions, it cuts mounting height by 30% — a boon for slim devices. Against similar angled headers, its 10.5mm pins offer 20% stronger grip. Kinghelm’s supply chain is solid: short lead times, consistent batch quality.

A forum user ran cold tests: “After several brands, this one’s insulation held at -40°C with zero faults.” Of course, pick based on your needs — straight headers work if space allows; in tight corners, this one’s a trusted ally.

The Future of Right-Angle Pin Headers

As miniaturization accelerates, 2x2P right-angle connectors like this will gain traction. Picture next-gen versions with gold-plated contacts or programmable IDs to simplify debugging. Kinghelm is already planning upgrades — future KH-2PH90 variants may handle higher currents.

In the maker community, tinkerers use it to prototype custom modules. Here’s an idea: pair it with an ESP32 for a sub-$5 IoT gateway — the header bridges power and signals cleanly.

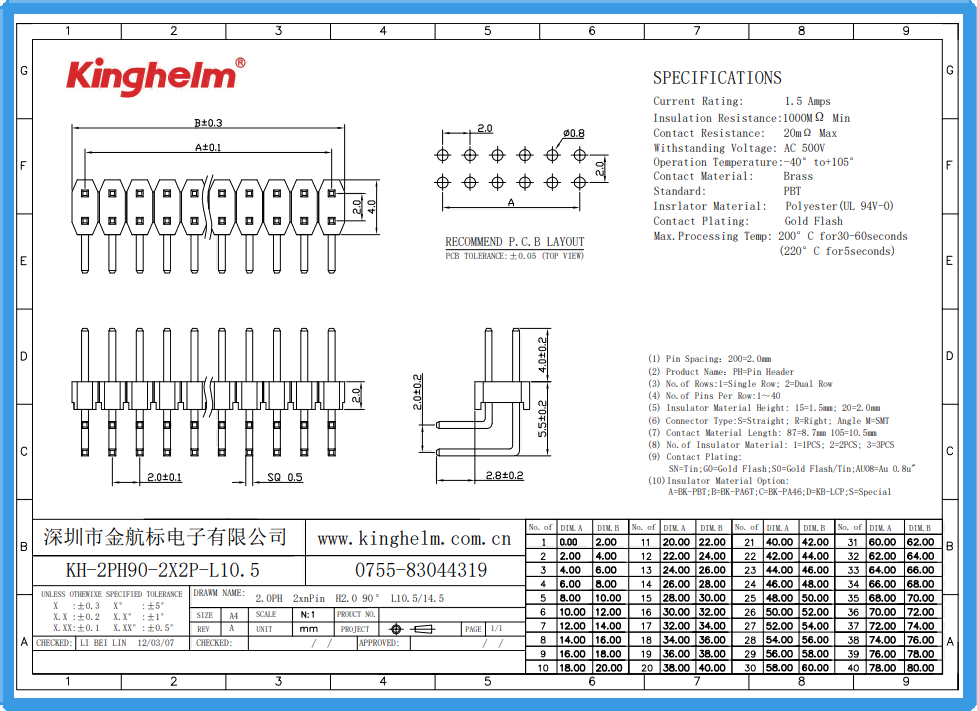

Kinghelm KH-2PH90-2X2P-L10.5 Specification

Wrap-Up: Make KH-2PH90-2X2P-L10.5 Your Next Project Staple

From specs to real use, the Kinghelm KH-2PH90-2X2P-L10.5 proves small parts pack big impact. In Daily Tech Spotlight, we don’t just showcase components — we share insights to save you detours. Struggling with PCB interconnects? Give this 2mm 2x2P right-angle pin header a shot. Order one, then come back and share your story — maybe you’ll uncover the next hidden gem.
