Kinghelm Wire-to-Board Connector KH-A1000RSL-2P: Buckle Tape Innovation for Faster Precision Connections

As electronic devices keep shrinking, every millimeter counts. Connectors are no longer just simple links—they decide whether a design stays compact, reliable, and easy to assemble. The Kinghelm KH-A1000RSL-2P wire-to-board connector steps into this challenge with a clever buckle tape design that makes high-density layouts feel straightforward. Picture fitting a stable connection inside a smartwatch thinner than a coin. That’s exactly where this 1mm-pitch part shines.

Its horizontal SMD structure and 1×2PIN layout keep the footprint tiny while the buckle mechanism locks everything in place. Engineers who have used it often mention how it cuts down fiddly adjustments on the production line, letting them focus on the bigger picture instead of wrestling with loose wires.

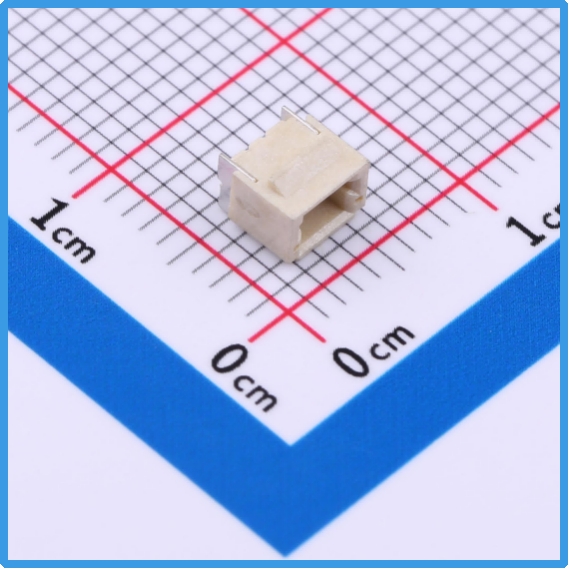

Kinghelm KH-A1000RSL-2P Product Image

What Makes the Buckle Tape Design Stand Out

The buckle tape isn’t just a gimmick—it solves real problems. Traditional micro connectors can shift under vibration or accidental tugs, causing intermittent signals or outright failures. Kinghelm’s flexible buckle snaps the cable firmly yet gently, and the tape packaging feeds straight into pick-and-place machines. Assembly becomes predictable, fast, and repeatable.

At 0.3 g per piece, the connector barely adds weight. The plastic housing withstands reflow temperatures without warping, and the metal terminals stay flat for consistent contact. These small details add up, especially in projects where every gram and every second on the line matters.

Tape packaging also reduces waste compared to loose parts in bags. Fewer dropped pieces, less static risk, and smoother automation—practical benefits that factories notice immediately.

Performance Numbers That Deliver Confidence

Rated current sits at 1 A for both AC and DC, plenty for sensors, displays, and low-power chips found in wearables. The 50 V rating provides comfortable headroom for most battery-powered designs. Contact resistance stays below 20 mΩ, keeping signal loss negligible, while insulation resistance above 100 MΩ prevents crosstalk even when traces run close together.

A 500 V AC dielectric withstand for one minute means the connector laughs off humidity spikes or accidental over-voltage events. Kinghelm tested prototypes across temperature cycles, drop shocks, and salt mist to make sure these figures hold up in the real world. The result is a part you can trust for months—or years—of continuous operation.

Where It Fits Best: From Wearables to IoT Nodes

Smart rings, fitness trackers, and AR glasses live or die by their internal connections. The KH-A1000RSL-2P lets designers route thin FPC cables to the main board without bulky headers. The buckle clicks securely, so the device stays reliable even when you’re jogging or waving your hands.

Consumer gadgets like true-wireless earbuds and portable power banks benefit too. The low profile keeps lids thin, and the robust lock survives repeated charging cable swaps. In communication modules—think Wi-Fi add-ons or 5G IoT gateways—the low resistance and strong insulation help maintain clean data streams.

Medical monitors, lab probes, and industrial sensors also adopt it. Anywhere long-term stability trumps initial cost, this connector finds a home. Its simple two-pin layout pairs perfectly with battery lines, LED drivers, or basic I²C buses.

Step-by-Step Assembly Guide

Start with a clean reel. Check that the tape isn’t torn and terminals aren’t bent. Lay out your PCB pads exactly 1 mm apart—precision here pays off later. Run a standard reflow profile with peak temperature under 260 °C for less than 10 seconds. The housing handles it without deforming.

For hand soldering, use a fine tip at 350 °C and touch each pad for no more than two seconds. After the board cools, insert the mating cable and press the buckle until you hear a soft click. That’s it—connection locked. Verify continuity and insulation with a multimeter if you want extra peace of mind.

Maintenance is almost zero. If a buckle ever feels loose after heavy vibration, just press it again. No need to re-solder or replace the part.

The Story Behind the Design

A few years ago Kinghelm engineers visited assembly lines and heard the same complaints: connectors too fragile, cables popping out, reels jamming machines. They went back to the lab and sketched dozens of buckle shapes. Early prototypes gripped too hard and damaged thin cables; later versions found the sweet spot—firm yet forgiving.

Material selection took months. They needed a polymer that stayed flexible at –40 °C and didn’t melt at +260 °C. Terminal plating had to resist corrosion without adding thickness. Hundreds of test boards later, the KH-A1000RSL-2P was born. Today it ships from Shenzhen to startups in California, quietly keeping new gadgets together.

How It Compares to Similar Parts

Plenty of 1 mm wire-to-board options exist, but few combine buckle locking with tape packaging at this size. Some competitors rely on friction fit that weakens over time; others need extra latches that steal board space. The KH-A1000RSL-2P gives you mechanical security without extra parts or complex tooling.

Batch-to-batch consistency is another quiet advantage. Kinghelm runs tight process controls, so the reel you open today behaves exactly like the one you’ll open next quarter. For companies scaling from prototype to mass production, that reliability translates directly into fewer headaches.

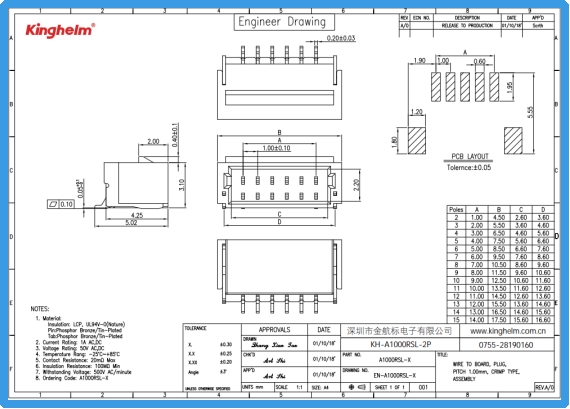

Kinghelm KH-A1000RSL-2P Specification

Looking Ahead: Connections in a Smarter World

As 5G modules shrink and flexible PCBs become common, demand for tiny, robust connectors will only grow. Parts like the Kinghelm KH-A1000RSL-2P are ready for foldable phones, skin-patch sensors, and drone flight controllers. Kinghelm already experiments with higher pin counts and side-entry buckles for even tighter spaces.

Whatever comes next—smarter homes, lighter wearables, or autonomous everything—reliable connections will remain the unsung backbone. The Kinghelm KH-A1000RSL-2P proves that a small improvement in design can make a big difference in how fast and how well new ideas reach the market.

In short, if you need a compact, click-and-forget wire-to-board link that survives real life, this Kinghelm connector deserves a spot on your shortlist. It turns a potential weak point into one less thing to worry about.

About Kinghelm

Shenzhen Kinghelm Electronics Co., Ltd.（www.kinghelm.net）has technical backbones from Tsinghua University and UESTC, and has introduced overseas returnee professionals. Kinghelm is able to develop highly reliable and high-performance antenna and connector products.KH series products of "Kinghelm" brand include Beidou/GPS antennas, RF adapter connectors, plug connector, electrical data connectors, terminals, and customized vehicle harnesses, industrial / medical connectors, and special antenna connectors."Kinghelm connects world", Kinghelm has grown with the development of China's Beidou industry. Starting from supplying Beidou/GPS dual mode antennas, IPEX terminals, and RF adapter cables for automotive manufacturers, Kinghelm has continuously developed products. Currently, it has a series of WiFi, Bluetooth, NB-loT, LoRa, Zigbee, UWB, and GSM antennas, RFID tags, RF adapter cables, standard microwave antennas, vehicle grade SMA, SMB, FAKRA holders, coaxial cables, and can customize non-standard antenna connectors based on customer drawings or samples.

KH-A1000RSL-2PProduct Details
