Kinghelm SMA to IPEX RF Adapter Cable KH-SMAKW-IPEX-RG0.81-B50: Small, High Compatibility

Among various short jumper cables and antenna connection accessories, small RF adapter cables are often overlooked. However, in space-constrained end products such as automotive OBD devices, wireless router modules, IoT sensors, and embedded modules, these cables play a critical role in ensuring stable signal transmission. This article focuses on the Kinghelm KH-SMAKW-IPEX-RG0.81-B50, helping engineers and procurement professionals quickly understand the design features, applicable scenarios, and selection tips for this SMA right-angle → IPEX 0.81 (1st generation) adapter cable.

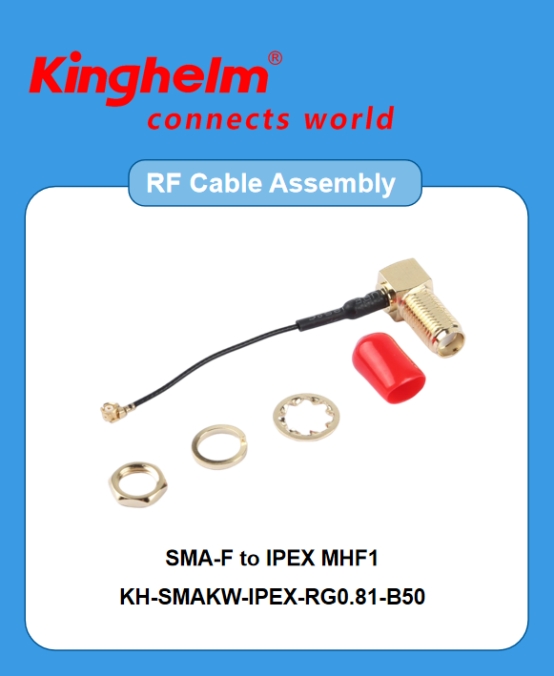

Kinghelm KH-SMAKW-IPEX-RG0.81-B50 Product Image

Product Overview & Key Specifications

The Kinghelm KH-SMAKW-IPEX-RG0.81-B50 features a right-angle SMA female connector (11 threads, gold-plated) mated to a 1st-generation IPEX 0.81 miniature terminal. It uses RF0.81 coaxial cable with a 0.81mm outer diameter in black, with a cable length of approximately 5 cm and a single-piece gross weight of about 4.424 g. The cable is covered with a black heat-shrink tube (2×15 mm), which protects the solder joints and allows easy cable management, making it ideal for short-distance antenna routing or internal module connections.

• Model: KH-SMAKW-IPEX-RG0.81-B50

• Connector: SMA female (11 threads, right-angle, gold-plated) → 1st generation IPEX 0.81 domestic terminal

• Coaxial Cable: RF0.81, 0.81mm outer diameter, black

• Cable Length: 5 cm

• Heat-Shrink Tube: Black, 2×15 mm

• Packaging: Bag

• Single-Piece Gross Weight: ~4.424 g

Design Highlights (Practical Perspective)

The short cable design minimizes excess signal loss and cable interference, suitable for direct antenna routing from the top or side of a module. The right-angle SMA layout allows connection in confined vertical space without occupying excessive module height. Gold-plated contacts improve contact resistance and reduce the probability of poor connections. The 1st-generation IPEX (0.81) terminal is compatible with many early and mainstream wireless modules, making replacements or on-site debugging more convenient.

Common Application Scenarios

• Vehicle data recorders and OBD external antenna connections

• Industrial IoT gateways with short external antenna connections

• Consumer wireless routers, smart locks, and smart home devices

• Wireless module prototyping and test jumper applications

Installation Tips & Usage Notes

When installing, ensure proper clearance between the right-angle SMA and the module casing to avoid concentrated stress. The heat-shrink tube protects solder joints and can also be used to secure the cable; it is recommended to shrink it moderately after soldering to prevent loosening. For frequency and impedance matching, the RF0.81 coaxial structure is typically used for 2.4GHz and similar bands. In high-frequency or long-distance systems, the overall link loss should be evaluated.

Engineer’s Tip:
If your module supports multiple IPEX generations, verify the module documentation before procurement to avoid mismatched plugs (e.g., differences in size and locking design between 1st and 2nd generation). During assembly, always confirm the orientation of the connectors and the direction of the right-angle SMA to minimize rework.

Common Issues & Troubleshooting

1. No signal or weak signal: Check that the IPEX is fully seated in the module and that the SMA is firmly connected to the external antenna or adapter. If necessary, replace with a known-good adapter cable for comparison.

2. Intermittent or poor contact: Inspect the SMA gold-plated pin for contamination or oxidation, clean if needed, and retest. If intermittent issues persist, check the solder joints and heat-shrink for stability.

Procurement & Bulk Application Considerations

When buying in bulk, confirm the cable batch and terminal source with the supplier to maintain consistency. For special environments such as high humidity or high-vibration industrial settings, it is recommended to conduct environmental reliability tests during the sample stage, including vibration, temperature cycling, and salt spray testing.

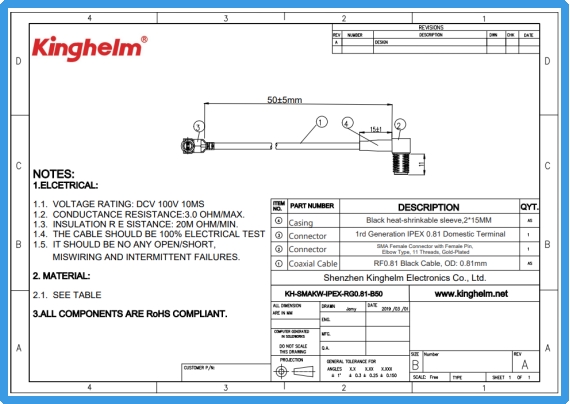

Kinghelm KH-SMAKW-IPEX-RG0.81-B50 Specification

Conclusion: When to Choose This Short Cable

For projects with strict space constraints that require quick antenna routing outside the module or frequent plug/unplug operations during prototyping, this 5 cm SMA right-angle → IPEX 0.81 adapter cable offers a flexible and convenient solution. While it is not a universal connector for all scenarios, it demonstrates excellent compatibility and ease of use for short-distance, module-level wiring, and on-site debugging applications.
