Kinghelm RF Connector KH-SMAK-PBS: Details Define Signal Strength

In an era where wireless communication technologies evolve at remarkable speed, the stability and quality of signal transmission have become critical indicators of device performance. Whether in smart home systems, industrial IoT networks, vehicle navigation, or satellite communication, the integrity of RF signals determines whether equipment can operate reliably in real-world conditions. Among the numerous electronic components that shape these systems, RF coaxial connectors may appear small and inconspicuous, yet their importance is anything but trivial. The Kinghelm KH-SMAK-PBS SMA female edge-mount RF connector is one such component that demonstrates how meticulous engineering and precision manufacturing can significantly elevate system-level performance.

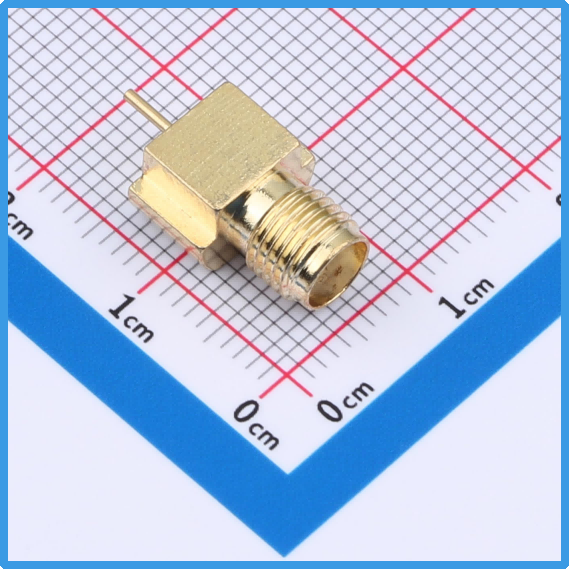

Kinghelm KH-SMAK-PBS Product Image

To fully understand the strength behind this product, it is equally important to understand the philosophy of the brand that created it. Kinghelm adheres to the mission of “Kinghelm, Connecting the World,” striving to enhance global connectivity through advanced microwave and RF technologies. Guided by the corporate culture of “Integrity, Excellence, Resilience, and Attention to Detail,” and upholding fairness, openness, cooperation, and win-win collaboration as its core values, the company—under the leadership of Mr. Song Shiqiang—insists on technology-driven development and quality-driven trust. By continuously exploring new technologies and launching innovative products, Kinghelm contributes to industrial progress and societal development. This dedication to detail and craftsmanship is deeply embedded in the design philosophy of the KH-SMAK-PBS connector.

As a standard SMA female connector with an edge-mount (board-end) configuration, the KH-SMAK-PBS is engineered to be compact, durable, and highly adaptable to modern high-frequency wireless systems. The edge-mount structure allows the connector to be positioned directly along the PCB boundary, offering engineers invaluable flexibility when optimizing antenna placement and RF trace routing. As devices become increasingly compact and integrated, RF interfaces must deliver both mechanical stability and electrical precision within minimal space—a challenge that the KH-SMAK-PBS addresses with remarkable effectiveness.

What truly distinguishes an RF connector is its ability to preserve signal integrity. The KH-SMAK-PBS is built with a precision-machined center conductor and a tightly controlled characteristic impedance of 50Ω, ensuring minimal signal reflection and insertion loss. This stable performance is essential when dealing with high-frequency signals such as Wi-Fi, 5G, Bluetooth, UWB, and GNSS/Beidou navigation bands. Maintaining low VSWR and consistent impedance across frequencies is a result of Kinghelm’s long-standing expertise in RF engineering and its commitment to achieving excellence through fine-tuned structural design.

The connector’s metal shell is corrosion-resistant and mechanically robust, providing superior shielding effectiveness and long-term durability. This sturdy housing enhances electromagnetic interference protection and ensures that the connector performs reliably even in harsh conditions—such as high temperatures, humidity, vibration, and outdoor environments. Weighing only 3.48 grams, the KH-SMAK-PBS remains lightweight yet strong, making it suitable for compact devices that require both size efficiency and structural reliability. Its center contact utilizes high-elasticity materials, offering consistent contact force, excellent mechanical endurance, and stable long-term electrical performance without loosening or degradation.

Compatibility is another significant advantage of the KH-SMAK-PBS. As a standard SMA female interface, it supports universal pairing with mainstream SMA male connectors and antennas across the global market. This allows seamless integration into a broad range of devices and reduces development time for engineers. Furthermore, the edge-mount design helps minimize RF trace length, effectively lowering transmission loss and improving system-level performance—an essential benefit in compact wireless modules and high-frequency systems.

The KH-SMAK-PBS finds widespread use across multiple industries. In consumer electronics, it is commonly found in wireless routers, smart gateways, cameras, UAV controllers, wearables, and handheld communication terminals. In industrial IoT environments, it serves reliably in DTU/RTU modules, smart metering, power systems, industrial sensing platforms, and automation control equipment. In automotive electronics, SMA connectors are widely adopted for Beidou/GPS navigation receivers, telematics systems, OBD monitoring devices, and fleet management terminals. Regardless of the application scenario, the KH-SMAK-PBS consistently provides a dependable RF entry point, supporting stable, high-quality wireless communication.

As a leading domestic manufacturer of RF and microwave components, Kinghelm has built a strong reputation through continuous technological innovation and strict quality control. Its product portfolio includes SMA, SMB, MCX, MMCX, UHF, and various other RF connectors, as well as Beidou antennas, FPC antennas, Bluetooth/Wi-Fi antennas, and numerous supporting components along the RF chain. Each product undergoes rigorous testing—from electrical performance evaluation and mechanical endurance assessments to environmental reliability trials—to ensure consistent and dependable operation in real-world usage. This deep technical accumulation and craftsmanship allow the KH-SMAK-PBS to stand out as a high-reliability solution in professional RF markets.

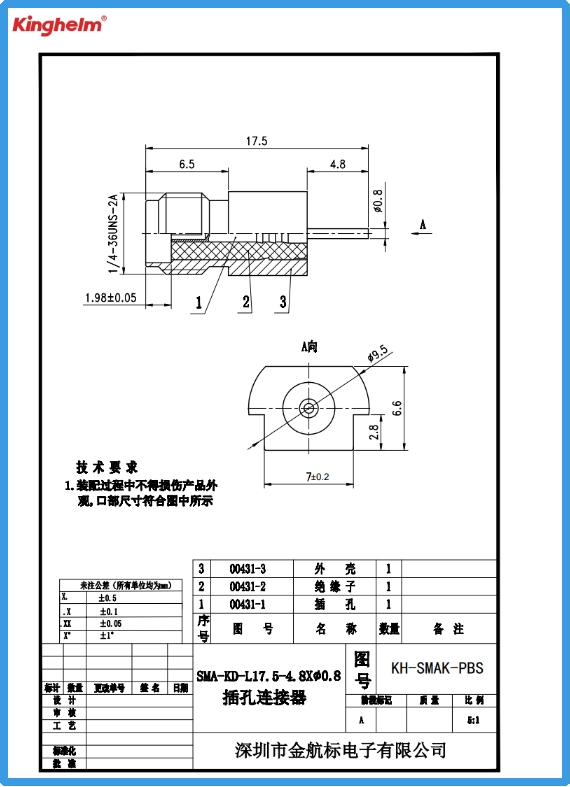

Kinghelm KH-SMAK-PBS Specification

In today’s age of rapid communication development, a reliable RF interface is not merely a minor design detail; it is a fundamental component that influences the entire system’s performance. The Kinghelm KH-SMAK-PBS SMA female edge-mount RF connector demonstrates how precision engineering, robust construction, and brand-backed technical expertise can create a small component with a significant impact. For engineers seeking long-life, high-stability, and high-frequency performance, choosing Kinghelm means choosing reliability, professionalism, and a forward-looking approach to connectivity.
