​Kinghelm RF Cable Assembly KH-FAKRADK-FAKRADK-RG174-150MM: How the FAKRA Purple D-Type Pre-Made Assembly Solves Vehicle RF Connection Challenges

In vehicle electronics, communication devices, navigation modules, and RF applications, engineers and buyers often face signal instability, incompatible connectors, and complex cable assembly issues. Choosing the wrong RF assembly can lead to signal loss, loose connections, or maintenance headaches.

The core challenge is not just the cable itself, but whether the assembly is truly matched to the application. The KH-FAKRADK-FAKRADK-RG174-150MM RF Cable Assembly addresses these issues with its standard FAKRA Purple D-type connectors, RG174 coaxial cable, and pre-formed assembly, offering a reliable solution for device-to-device or device-to-antenna connections. This article explains the assembly’s advantages, use cases, and supporting products, helping you make better selection and application decisions.

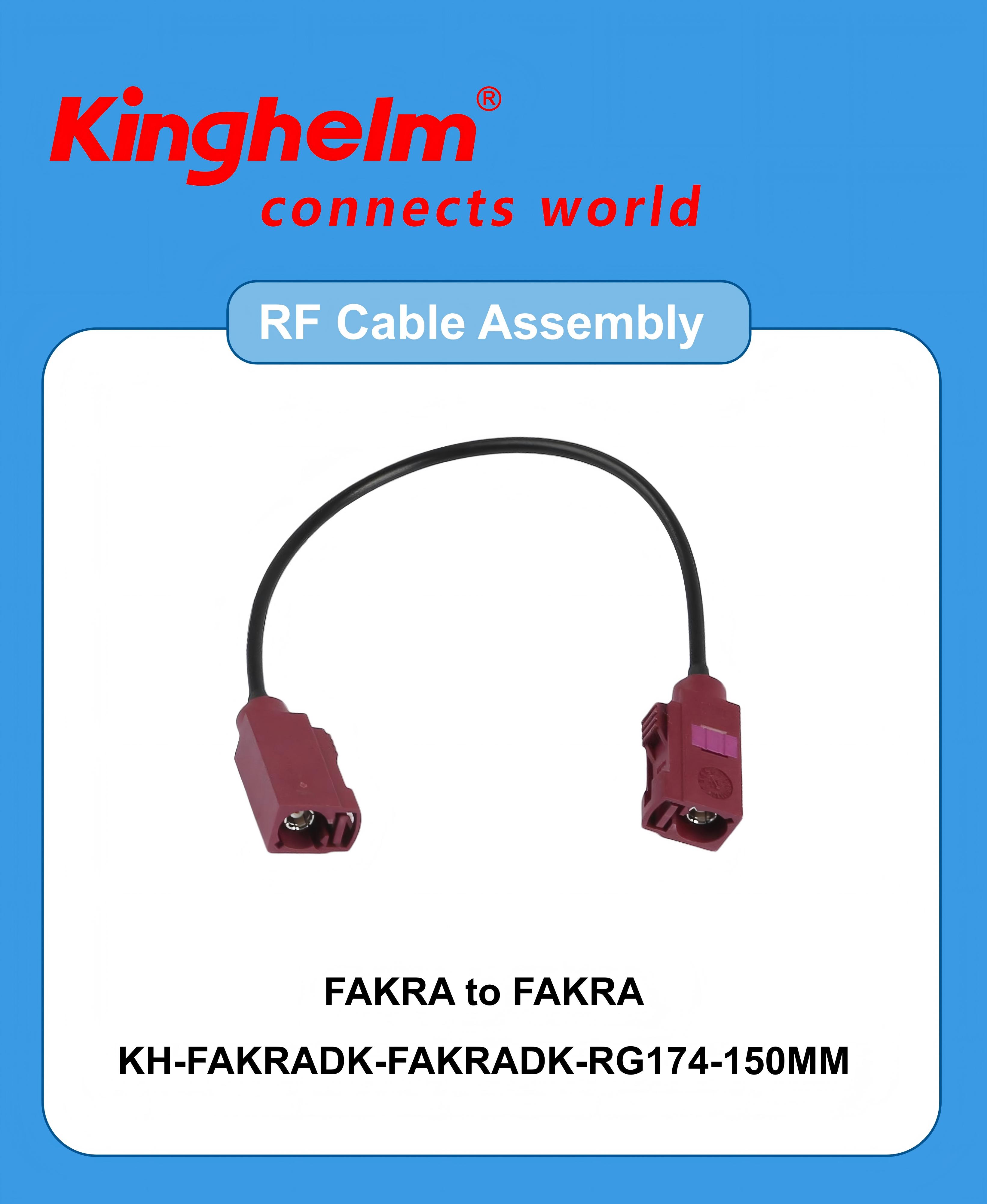

Kinghelm KH-FAKRADK-FAKRADK-RG174-150MM Product Image

Connector Mismatch and Signal Loss Solutions

Common Pain Points:

In vehicle and communication systems, FAKRA connectors are widely used, but color coding or keying mismatches can prevent proper connection, causing misplugging and rework. Additionally, some RF assemblies experience noticeable signal attenuation, especially at high frequencies, which can affect communication reliability.

How the KH-FAKRADK-FAKRADK-RG174-150MM Solves These Issues:

The KH-FAKRADK-FAKRADK-RG174-150MM RF Cable Assembly solves both problems with:

• Consistent keying and color coding for error-free connections

• RG174 coaxial cable to maintain signal integrity and reduce interference

• Reliable short-range RF signal transmission for vehicle antennas, GPS modules, and RF systems

By ensuring proper connection standards and maintaining signal quality, this assembly guarantees better system performance.

Compact and Reliable Design

Pain Points:

Assemblies that are too long can create cable clutter, while cables that are too short can put stress on connectors, causing instability in tight spaces.

How the KH-FAKRADK-FAKRADK-RG174-150MM Solves These Issues:

The 150mm fixed length design of the KH-FAKRADK-FAKRADK-RG174-150MM is ideal for:

• Internal vehicle module connections

• Short RF jumpers between devices

• Device-to-antenna connections in confined spaces

This fixed length helps with clean, organized installation, reducing the risk of mechanical stress and signal loss.

The Advantages of Kinghelm's RF Cable Assembly

The KH-FAKRADK-FAKRADK-RG174-150MM is a complete RF Cable Assembly, offering:

• Pre-molded FAKRA Purple D-type connectors on both ends

• RG174 coaxial cable for stable signal transmission

• 150mm fixed length, perfect for tight spaces

• Ready-to-use assembly, no further installation required

This assembly offers a fast and reliable solution for vehicle electronics, RF modules, and antenna connections.

Supporting Products by Kinghelm

Kinghelm also offers a wide range of complementary products to support your RF connection needs, including:

• FAKRA RF connectors (male/female, multiple key types)

• SMA, SMB, IPEX RF cable assemblies

• GPS, Beidou, Wi-Fi, Bluetooth antennas

• RF adapters and custom cable solutions

This comprehensive product line ensures you can find all the necessary components for your RF system needs.

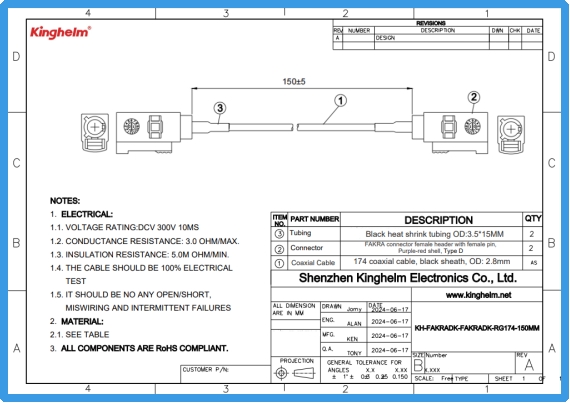

Kinghelm KH-FAKRADK-FAKRADK-RG174-150MM Specification

Conclusion

In RF systems, a suitable cable assembly can greatly improve signal stability and reduce installation time. The Kinghelm KH-FAKRADK-FAKRADK-RG174-150MM RF Cable Assembly is specifically designed to address connector mismatches, improper cable lengths, and signal instability. If your project faces similar challenges, this ready-to-use solution can help ensure more efficient and reliable device connections.
