Kinghelm RF Adapter Cable KHB (RG316)-MCX-80-28: How Gold-Plated SMA/MCX Connectors Improve Signal Integrity

In wireless communication systems, test and measurement setups, and networking equipment, signal stability is often the foundation of reliable performance. When devices with different RF interfaces need to be interconnected, signal loss, interference, or unstable contacts can easily become weak points—affecting accuracy, efficiency, and long-term reliability.

One component that is often underestimated is the RF adapter cable. Although small in size, it plays a critical role in maintaining signal integrity across the entire RF link. In this article, we take the Kinghelm RF Adapter Cable KHB (RG316)-MCX-80-28 as an example to explain how thoughtful connector design, gold plating, and cable selection work together to optimize RF signal transmission.

Whether you are an RF engineer, system integrator, or electronics enthusiast, understanding these details can help you choose the right adapter cable and avoid hidden performance losses.

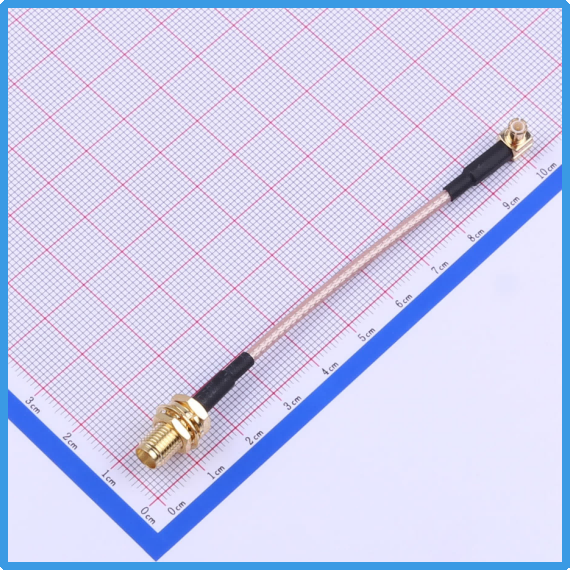

Kinghelm KHB(RG316)-MCX-80-28 Product Image

Understanding RF Adapter Cables and Their Typical Applications

RF adapter cables are designed to connect RF devices with different connector standards, such as antennas, RF modules, communication terminals, or laboratory instruments. They are widely used in wireless communication, broadcast systems, medical electronics, industrial IoT, and network infrastructure.

Among the many RF connector types, SMA and MCX are two of the most commonly used:

SMA connectors are well known for their wide frequency range and mechanical stability, making them suitable for Wi-Fi, GPS, cellular, and test equipment.

MCX connectors feature a compact size and snap-on structure, ideal for space-limited designs such as embedded modules and compact RF devices.

An RF adapter cable bridges these interfaces, ensuring smooth signal transfer while minimizing mismatch and insertion loss.

Key Design Features of the KHB (RG316)-MCX-80-28 RF Adapter Cable

The Kinghelm KHB (RG316)-MCX-80-28 is designed with an MCX right-angle male connector to SMA female connector configuration. Both connectors are gold-plated, enhancing electrical performance and long-term reliability.

Gold plating significantly improves contact conductivity and reduces micro-level contact resistance. More importantly, it provides excellent resistance to oxidation and corrosion, ensuring stable electrical performance even after repeated mating cycles or prolonged use in demanding environments.

The right-angle MCX connector is especially practical for applications with limited installation space. It helps reduce mechanical stress on the cable and connector, while allowing cleaner and more efficient internal routing.

Why Gold-Plated Connectors Matter in RF Transmission

At high frequencies, even minor imperfections at the contact interface can lead to signal reflection, increased insertion loss, and impedance mismatch. Gold plating creates a smooth, stable conductive surface that minimizes these effects.

Compared with standard nickel or tin finishes, gold-plated RF connectors:

Maintain consistent electrical performance over time

Resist oxidation in humid or outdoor environments

Reduce the need for frequent maintenance or replacement

While gold plating does not change the fundamental electrical design, it plays a key role in long-term signal stability and reliability, especially in professional and industrial applications.

Performance Advantages of RG-316 Coaxial Cable

The adapter cable uses RG-316 coaxial cable, a widely trusted choice in RF applications. With an outer diameter of approximately 2.5 mm, RG-316 offers an excellent balance between flexibility and low signal attenuation.

Key advantages of RG-316 include:

Low insertion loss for short-distance RF connections

Strong shielding effectiveness against electromagnetic interference

Good flexibility for compact layouts and internal device wiring

The 80 mm cable length is optimized for short interconnections, helping minimize unnecessary signal loss. A protective sleeve further enhances mechanical durability, reducing the risk of damage caused by bending or vibration.

selecting the Right RF Adapter Cable for Your Application

When choosing an RF adapter cable, it is important to look beyond connector type alone. Factors such as operating frequency, installation environment, mechanical stress, and routing space all influence performance.

For applications involving vibration, frequent plugging, or harsh environments, gold-plated connectors and reinforced cable structures offer clear advantages. Right-angle connectors are particularly useful in compact devices, helping improve cable management and reduce strain.

During installation and use, keeping connectors clean and avoiding excessive bending can further extend service life and maintain stable signal transmission.

Practical Maintenance Tips and Common Issues

Most RF connection issues—such as intermittent signals or unstable links—are caused by poor contact, contamination, or mechanical wear. Regular inspection of connectors, proper alignment during insertion, and gentle handling can prevent many of these problems.

For long-term storage, RF adapter cables should be kept in a dry environment to avoid moisture-related degradation. With proper care, high-quality adapter cables like the KHB (RG316)-MCX-80-28 can deliver consistent performance over extended periods.

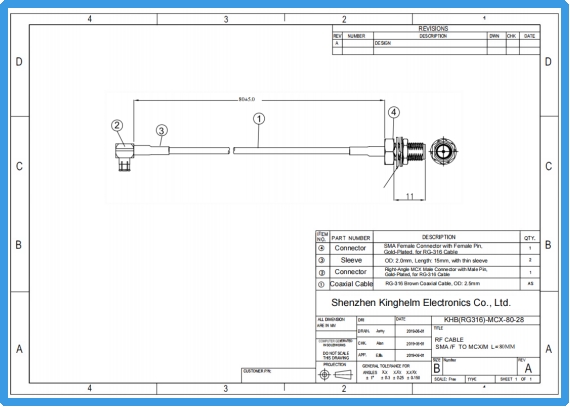

Kinghelm KHB(RG316)-MCX-80-28 Specification

Conclusion: Small RF Components with a Big Impact

Although RF adapter cables are often considered minor accessories, they play a vital role in the overall RF signal chain. From gold-plated connectors to carefully selected coaxial cables, every design detail contributes to signal integrity and system reliability.

By choosing well-designed products such as the Kinghelm RF Adapter Cable KHB (RG316)-MCX-80-28, users can reduce signal loss, improve connection stability, and ensure dependable performance across a wide range of RF applications.

As RF technology continues to evolve, attention to these “small” components can make a meaningful difference in real-world system performance.
