『Product Highlight』Kinghelm Female Header Connector KH-2.54FH-1X16P-H8.5: A Robust Choice in the Electronics Connectivity Field

Since its establishment in 2007, Kinghelm has embarked on a journey to delve deeply into the electronics field. As a company specializing in electronic connectivity solutions, Kinghelm has received numerous accolades, including national-level high-tech and dual-software certifications. It is a member of the "China Satellite Navigation Association" and has passed the ISO 9001 quality management certification. The company is also actively working on completing the IATF 16949 automotive quality management system. These certifications and honors are a testament to Kinghelm's dedication and persistence over the years, as well as its continuous efforts to improve its capabilities and pursue excellence in quality.

Kinghelm’s business scope primarily revolves around Beidou satellite navigation and IoT terminal application hardware, covering research and development, manufacturing, and sales, while also offering logistics and information intelligence system solutions. In the field of electronic connectors, Kinghelm has invested significant effort in R&D innovation, aiming to provide the electronics industry with reliable and practical connectivity products. The KH-2.54FH-1X16P-H8.5 female header connector is one such exemplary product.

R&D: Focus on Details, Pursuit of Practicality

In developing the KH-2.54FH-1X16P-H8.5 female header connector, Kinghelm did not blindly pursue high-end technical specifications but instead started from actual application scenarios, paying attention to every detail. Recognizing that electronic connectors, though small, play a crucial role in the overall electronic system, Kinghelm carefully considered the needs of universal circuit design. The pin pitch was set to 2.54mm, an optimal spacing validated by market research and practical applications, ensuring compatibility with most circuit designs.

For the socket structure, Kinghelm chose a square hole design. This was not a random choice but was based on repeated testing and comparison. Square holes provide a more stable connection than round holes, reducing the risk of poor contact and ensuring stable signal transmission.

For the installation method, Kinghelm adopted a direct insertion type. This simple and straightforward installation method not only facilitates operation during production, improving efficiency but also helps reduce production costs. Additionally, the reasonable plastic height design of 8.5mm ensures the connector is securely mounted on the PCB while providing ample space for pin insertion and offering some protection for the pins.

Manufacturing: Strict Control, Ensuring Quality

The manufacturing process is a critical step in ensuring product quality at Kinghelm. The company has established a rigorous production management system, with dedicated personnel overseeing every stage from raw material procurement to finished product delivery.

When selecting raw materials, Kinghelm insists on using reliable, stable materials. The company has established long-term, stable partnerships with several high-quality suppliers to ensure the materials meet the required standards. During production, advanced equipment and techniques are employed, and all operations are conducted according to strict production processes. Each step is subject to detailed quality inspection standards, and only products that pass these inspections move on to the next stage.

For the KH-2.54FH-1X16P-H8.5 female header connector, Kinghelm has conducted multiple performance tests. For example, its performance in various temperature environments has been tested to ensure it operates reliably within the temperature range of -40°C to +105°C. Whether in cold winter or hot summer, it delivers stable performance, minimizing the risk of failure due to temperature fluctuations.

Applications: Widely Adaptable, Supporting Development

Thanks to its stable performance and practical design, the KH-2.54FH-1X16P-H8.5 female header connector has found widespread applications in several fields.

In the consumer electronics sector, it is an essential component in devices such as smartphones and tablets. It is used to connect the motherboard with various functional modules, such as camera modules and sensor modules. When users take photos with their phones, it serves as an invisible channel, quickly and accurately transmitting the image signals captured by the camera to the motherboard, allowing users to capture memorable moments.

In the industrial control sector, it provides reliable connections for industrial automation equipment and instruments. It can be used to connect control boards with various actuators and sensors, enabling precise control and signal feedback. In an automated production line, it acts as a silent coordinator, ensuring that all devices work together efficiently, thus improving production efficiency.

In the telecommunications sector, it also plays an important role. It is used to connect signal transmission lines between different circuit boards in devices such as routers and switches, ensuring high-speed and stable transmission of communication signals. This allows users to enjoy smooth network communication and convenient digital living.

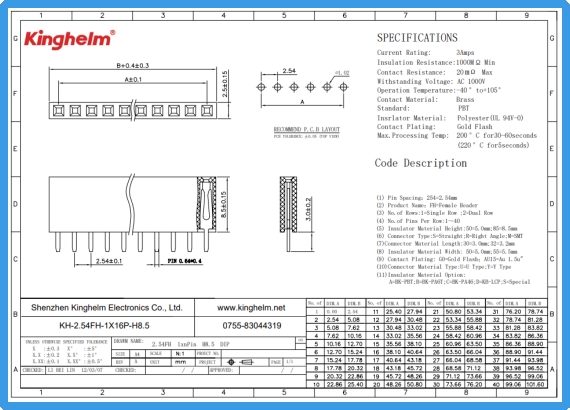

Kinghelm KH-2.54FH-1X16P-H8.5 Specification

Looking to the Future: Continuous Exploration, Steady Progress

Looking back, Kinghelm has made significant strides in the electronics connectivity field, but it understands that this is just the beginning. As the development of electronic technology accelerates, the demands for electronic connectors will continue to rise.

Kinghelm will continue to invest in R&D, constantly improving product performance and quality. The company will closely monitor market demand changes, adjusting its R&D focus accordingly and introducing new connector products that meet market needs. Kinghelm will also strengthen communication and collaboration with customers to understand their experiences and needs, continuously improving products and services.

On the road ahead in the electronic connectivity field, Kinghelm will continue to move forward with a steady pace, exploring and advancing. With its commitment to technology and quality, Kinghelm believes it will achieve even greater success in the electronics connectivity field, contributing to the progress of the electronics industry.

About Kinghelm

Shenzhen Kinghelm Electronics Co., Ltd.（www.kinghelm.net）has technical backbones from Tsinghua University and UESTC, and has introduced overseas returnee professionals. Kinghelm is able to develop highly reliable and high-performance antenna and connector products.KH series products of "Kinghelm" brand include Beidou/GPS antennas, RF adapter connectors, plug connector, electrical data connectors, terminals, and customized vehicle harnesses, industrial / medical connectors, and special antenna connectors."Kinghelm connects world", Kinghelm has grown with the development of China's Beidou industry. Starting from supplying Beidou/GPS dual mode antennas, IPEX terminals, and RF adapter cables for automotive manufacturers, Kinghelm has continuously developed products. Currently, it has a series of WiFi, Bluetooth, NB-loT, LoRa, Zigbee, UWB, and GSM antennas, RFID tags, RF adapter cables, standard microwave antennas, vehicle grade SMA, SMB, FAKRA holders, coaxial cables, and can customize non-standard antenna connectors based on customer drawings or samples.
