『Product Highlight』Kinghelm ​DC Power Socket KH-DC-015-2.5: A Stable DC Power Connection Solution

In electronic equipment systems, a stable power input is an important factor for maintaining normal device operation. From everyday consumer electronics to industrial control equipment, the reliability of the power interface can directly affect device performance and operational stability. As a commonly used component in power input systems, the DC power socket plays an important role in establishing a secure connection between the power supply and electronic circuits.

With the increasing diversity of electronic applications, there is a growing demand for power connectors that offer reliable electrical performance, compatibility with common power plugs, and adaptability to different operating environments. The KH-DC-015-2.5 DC power socket developed by Kinghelm adopts a through-hole mounting structure and is designed to provide a stable DC power connection for a wide range of electronic devices.

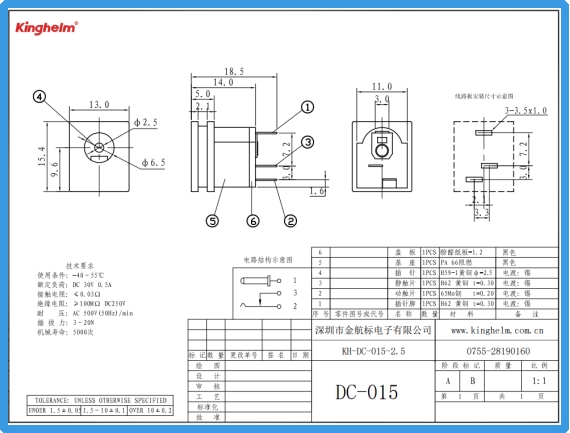

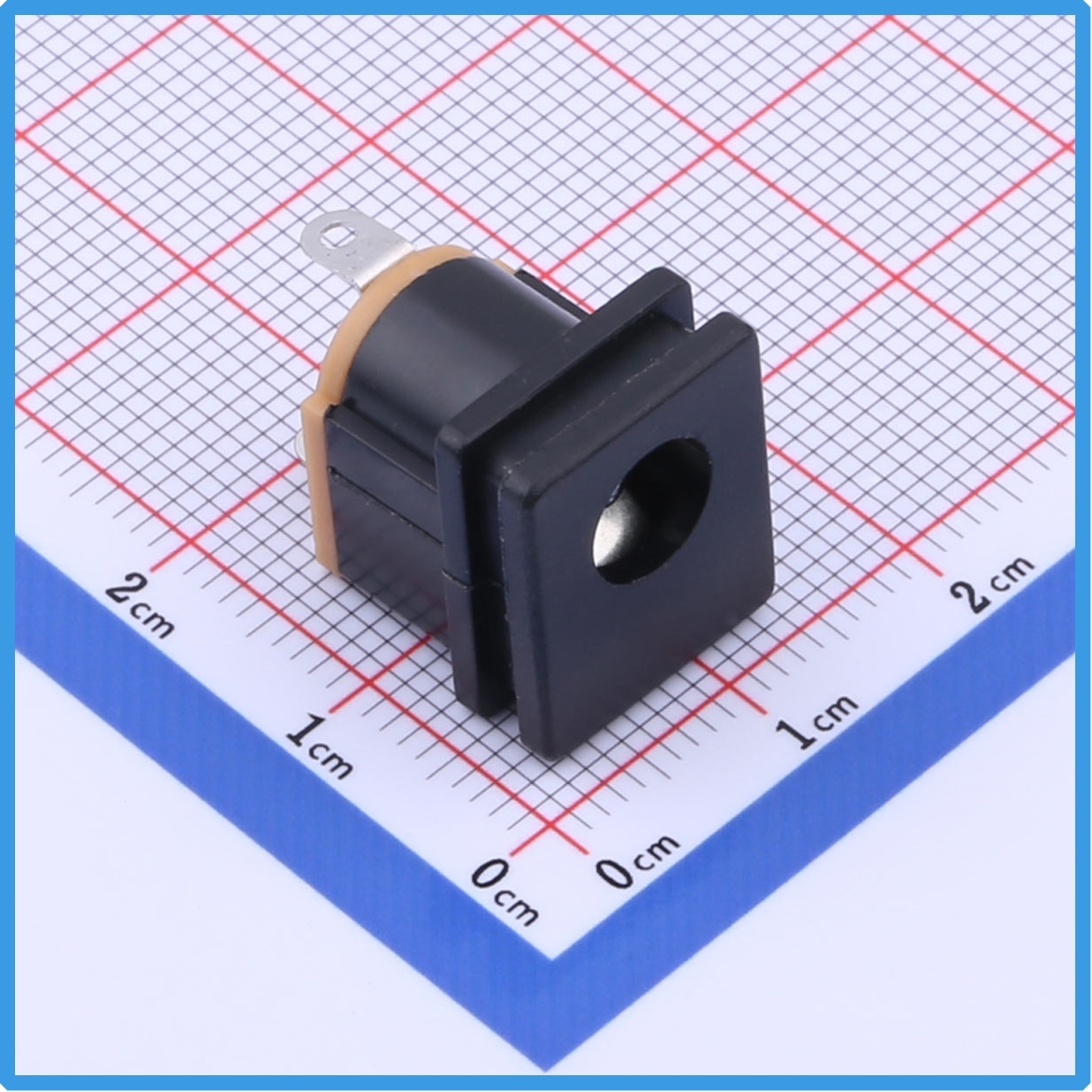

Kinghelm KH-DC-015-2.5 Product Image

Standard Interface Design for Broad Compatibility

The KH-DC-015-2.5 DC power socket features a 2.5 mm inner contact diameter and a 6.4 mm outer contact diameter. This interface specification is widely used in DC power connections and is compatible with many commonly used DC power plugs.

Using a standard interface structure helps equipment designers simplify the power interface selection process during product development. It also allows easier matching with power adapters during device maintenance or replacement. For manufacturers producing electronic devices in large volumes, standardized interfaces help maintain consistency in product design.

The socket uses a through-hole mounting method, allowing it to be soldered directly onto a PCB. This installation structure is widely used in electronic manufacturing and provides stable mechanical support for the connector inside the device.

Low Contact Resistance for Stable Power Transmission

Contact resistance is an important parameter in evaluating the electrical performance of power connectors. Excessive contact resistance may lead to additional energy loss during current transmission and could also cause localized heating at the interface.

The KH-DC-015-2.5 has a contact resistance of ≤0.03Ω, which helps reduce energy loss during power transmission and supports stable electrical conduction. For electronic devices that operate continuously, maintaining consistent power input is essential for reliable operation.

Through appropriate contact structure design, the socket maintains a stable connection between the plug and the socket, which contributes to maintaining consistent electrical contact during operation.

Good Insulation Performance for Electrical Safety

In electronic equipment, power connectors should provide reliable insulation performance to minimize the risk of leakage current and reduce potential electrical interference.

The KH-DC-015-2.5 provides an insulation resistance of ≥100MΩ under a DC250V test condition. This level of insulation resistance meets the general requirements for many electronic power interface applications. Adequate insulation performance helps maintain stable electrical conditions within the device.

Stable insulation characteristics also contribute to maintaining safe operation of electronic equipment over extended periods of use.

Balanced insertion and Withdrawal Force

Power connectors are often subjected to repeated insertion and removal during regular use. Therefore, the mechanical structure of the connector has an impact on its long-term usability.

The KH-DC-015-2.5 has an insertion and withdrawal force range of 3–20N. This range helps maintain a balance between connection stability and ease of operation. The plug can remain securely connected during use while still allowing convenient removal when maintenance or power replacement is required.

The mechanical lifespan of the connector is approximately 5000 insertion cycles, which supports long-term use in typical electronic equipment environments.

Wide Operating Temperature Range

Electronic devices may operate in different environmental conditions, so connectors should maintain stable performance across a reasonable temperature range.

The KH-DC-015-2.5 DC power socket supports an operating temperature range from -40°C to 55°C. Within this range, the connector can maintain stable electrical connections. This temperature tolerance allows the product to be used in standard indoor electronic equipment as well as certain outdoor or industrial applications where temperature conditions may vary.

Stable environmental adaptability helps maintain consistent device power connections across different usage environments.

Typical Application Areas

DC power sockets are commonly used in a wide variety of electronic devices. The KH-DC-015-2.5 can be applied in several types of equipment, including:

Network communication equipment such as routers and switches
Security monitoring devices and surveillance systems
LED lighting equipment and power modules
Small electronic devices and control boards
Power adapter interface systems
Industrial control equipment

In these applications, a stable power interface helps support continuous device operation. Reliable DC power sockets help maintain consistent electrical connections between the power source and electronic circuits.

Industry Applications and Development Trends

As the electronics industry continues to evolve, DC power connectors remain widely used across many types of devices. Although new interface technologies are emerging, DC power sockets are still commonly used in equipment that requires simple and stable power connections.

In the field of Internet of Things (IoT) devices, many sensor nodes, gateways, and communication modules rely on stable DC power interfaces. As the number of connected devices continues to grow, the demand for compact and reliable power connectors remains steady.

Smart home systems also use various network devices, monitoring units, and control hubs that require consistent power input. DC power connectors are frequently used in these systems due to their straightforward connection method.

In industrial electronics, automation equipment, monitoring devices, and control systems often require reliable power connectors capable of stable operation over long periods. Connectors used in such environments need to maintain stable electrical performance and mechanical durability.

As electronic products continue to develop toward more compact and modular designs, power connectors are also evolving in terms of structural optimization, reliability, and adaptability to different application environments.

Conclusion

A stable power interface is an important part of electronic equipment operation. The Kinghelm KH-DC-015-2.5 DC power socket adopts a through-hole mounting structure and provides low contact resistance, reliable insulation performance, and a stable mechanical design.

With its standardized interface and practical structural design, the KH-DC-015-2.5 can be used in various electronic devices including communication equipment, monitoring systems, lighting products, and industrial electronics, supporting stable DC power connections in a range of application scenarios.
