『Product Highlight』​​Kinghelm DC Power Connector KH-FSDC-30008-03DBAP-A: IPX7 Waterproof Design for Reliable Power Connection

The Role of Power Connectors in Electronic Devices

In many electronic devices, the power connector may appear to be a small component, yet it plays an important role in maintaining stable power delivery. Whether in industrial equipment, security monitoring systems, or everyday smart devices, the reliability of the power connection can directly affect how a device operates.

If the power interface experiences unstable contact, moisture exposure, or mechanical looseness, power fluctuations may occur and influence the normal operation of the equipment. For this reason, the structural design and electrical characteristics of power connectors are often important considerations during product development.

Increasing Demand for Environmental Adaptability

As electronic devices are used in a wider range of environments, some equipment is required to operate for long periods under relatively complex conditions. For example, outdoor installations, industrial sites, and continuously operating electronic terminals may be exposed to humidity, water vapor, or dust.

Under such conditions, power connectors are expected not only to provide stable electrical conduction but also to offer a certain level of environmental protection through appropriate structural design.

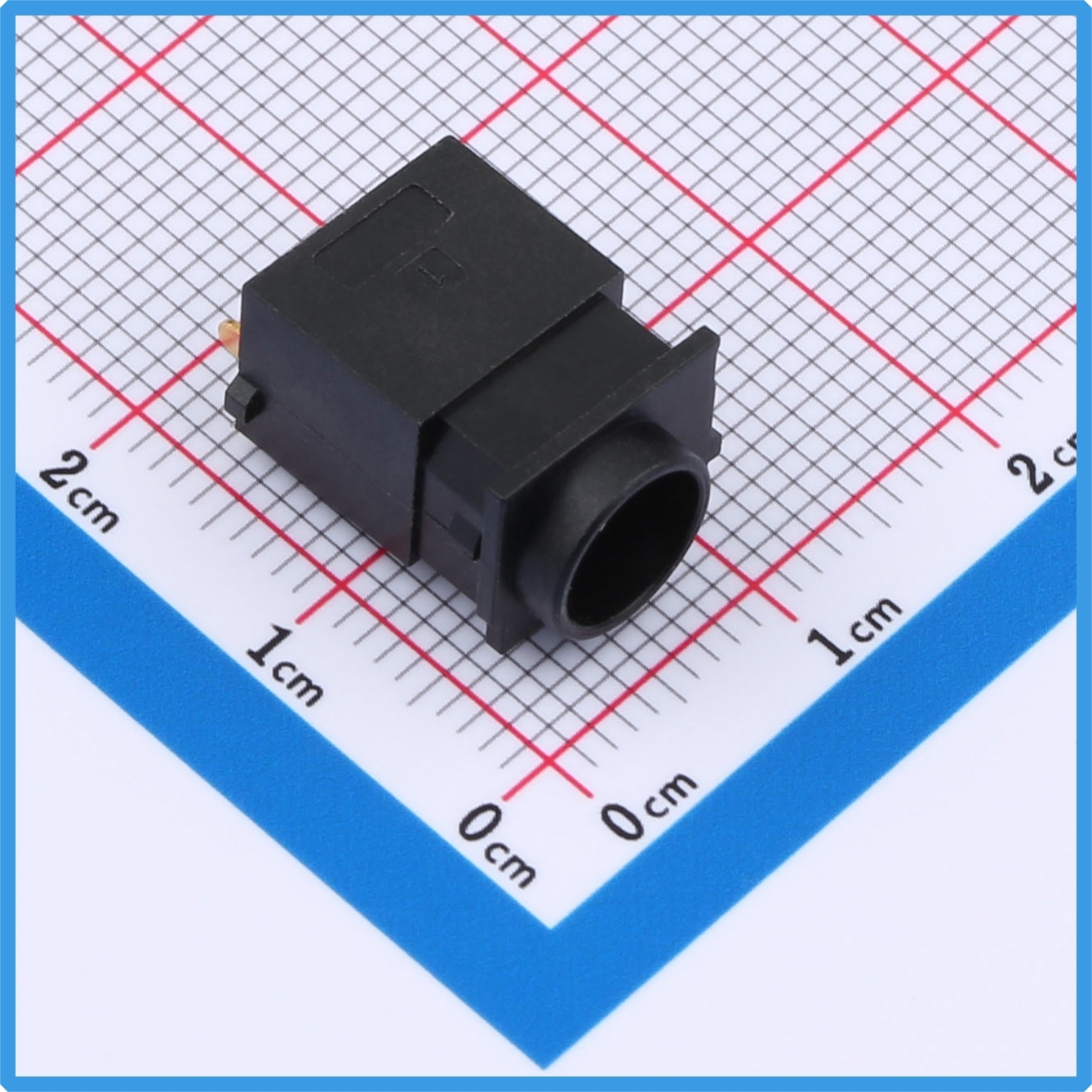

Overview of the KH-FSDC-30008-03DBAP-A

To meet these types of application requirements, Kinghelm has introduced the DC power connector KH-FSDC-30008-03DBAP-A. This model is designed for power interface connections in electronic equipment and provides a practical solution for device power input through suitable structural dimensions and electrical specifications.

The connector uses a through-hole mounting structure, making it suitable for PCB soldering and installation. The product weighs approximately 3.25 g and is supplied in tape packaging, which supports automated assembly and efficient production processes.

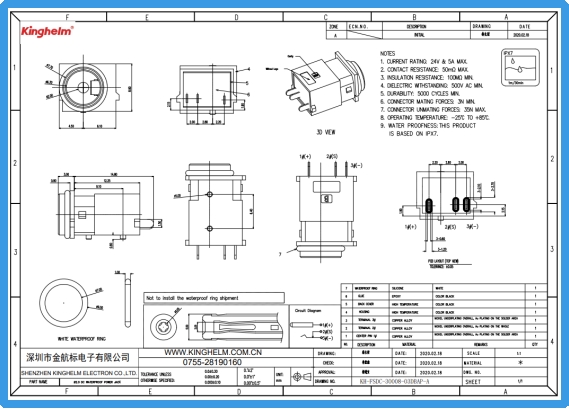

Structural Design and Interface Dimensions

The KH-FSDC-30008-03DBAP-A features a vertical through-hole design with an overall height of 17.8 mm. This structure is commonly used in power interface applications and allows stable installation on printed circuit boards.

In terms of interface specifications, the DC socket has an outer diameter of 7.7 mm and an inner diameter of 6.3 mm, along with a 2.0 mm center pin. This configuration corresponds to a commonly used DC power interface size and can be matched with many standard DC plugs, giving designers flexibility when selecting power connection solutions.

The connector also adopts a 3-pin structure, which can provide additional connection points for applications that may require power detection or signal-related functions.

Electrical Performance Characteristics

From an electrical performance perspective, the KH-FSDC-30008-03DBAP-A is designed to support typical power input requirements for many electronic devices.

The connector has a rated voltage of 24V and a rated current of 5A, making it suitable for a range of low- to medium-power electronic equipment. The maximum contact resistance is 50 mΩ, which helps reduce energy loss during power transmission while maintaining stable electrical contact.

In terms of insulation performance, the connector provides an insulation resistance of at least 100 MΩ, which helps reduce the possibility of leakage current. It also supports a withstand voltage of AC500V, offering a certain level of electrical isolation margin.

The operating temperature range is -25°C to +85°C, allowing the connector to function in a variety of common operating environments.

IPX7 Waterproof Structure

Another feature of the KH-FSDC-30008-03DBAP-A is its IPX7 waterproof design. This protection level is commonly applied to connectors that require resistance to water exposure. Under defined conditions, the structure can help reduce the possibility of water entering the internal contact area.

For devices installed outdoors or used in environments with higher humidity, such structural protection can help limit the influence of environmental factors on the connector interface.

Typical Application Areas

The KH-FSDC-30008-03DBAP-A DC power connector can be used in various types of electronic equipment that require a stable DC power input interface. Typical applications may include:

• Security monitoring equipment

• Industrial control terminals

• Smart home devices

• Outdoor electronic equipment

• Other electronic products requiring DC power connections

In these applications, connectors with appropriate structure and electrical specifications help maintain consistent power connections during device operation.

Conclusion

Overall, the Kinghelm DC power connector KH-FSDC-30008-03DBAP-A provides a practical interface solution for electronic device power connections through its commonly used interface dimensions, 3-pin structure, and defined electrical parameters.

Although power connectors are often considered basic components within electronic systems, their structural stability and electrical reliability can influence the long-term operation of equipment. As electronic devices continue to be used in a wider variety of environments, connectors with protective design features are increasingly applied in different types of electronic products.
